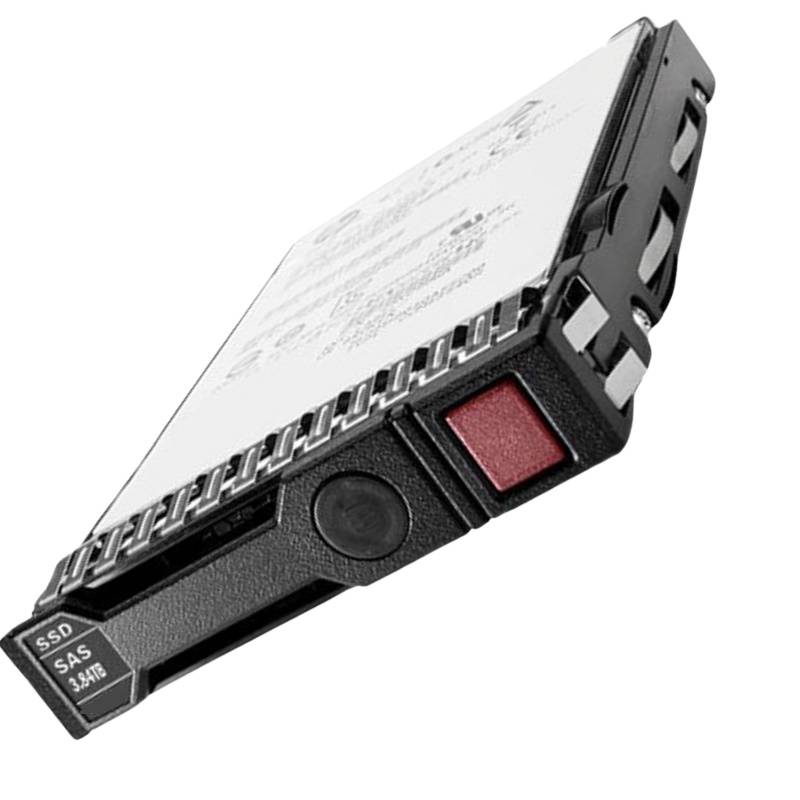

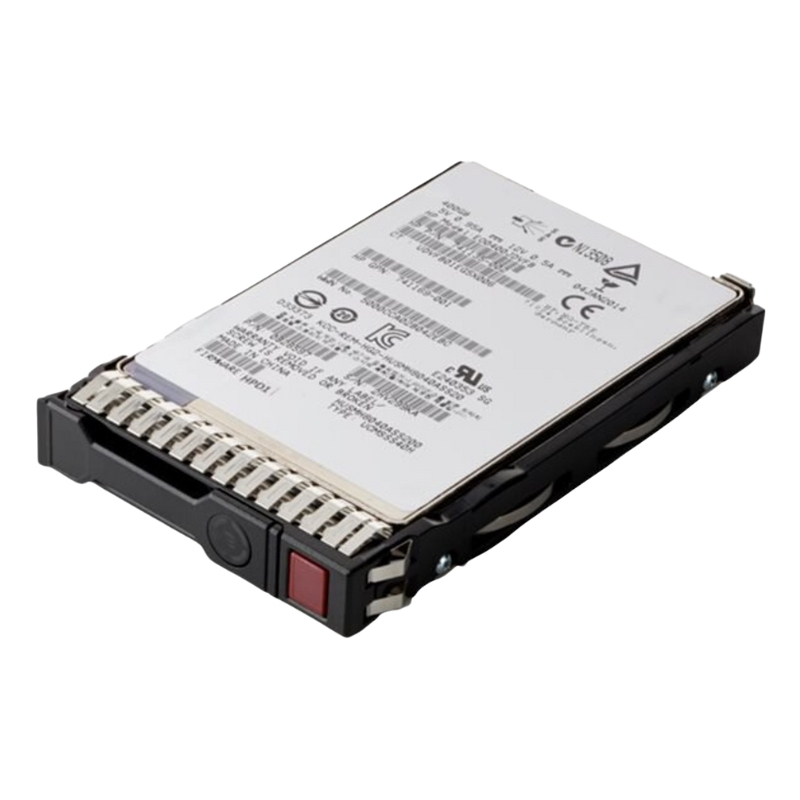

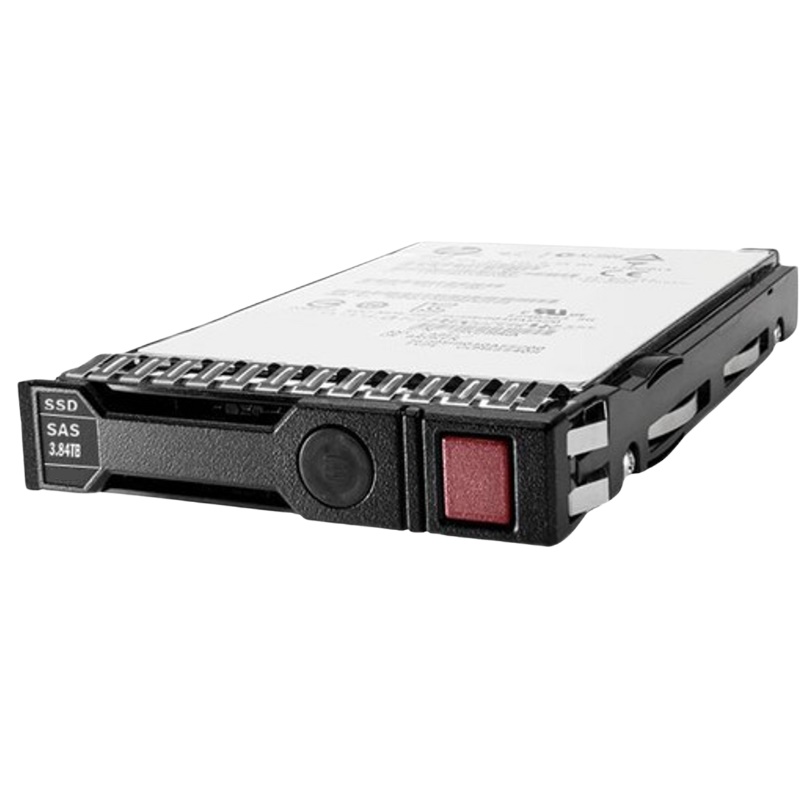

HPE P04521-X21 3.84TB SAS-12GBPS 2.5" DS Smart Carrier RI SSD

HPE Solid State Drive Specifications

Brand Information

• Brand: HPE
• MPN: P04521-X21
• Option Part Number: P04521-X21
• Spare Part Number: P06598-001
• Model Number: VO003840JWTBN
• Assembly Number: P04172-003

General Features

• Device Type: Hot-swap Solid State Drive
• Capacity: 3.84 TB
• Interface: SAS 12Gbps
• Form Factor: 2.5" SFF
• Plug Type: Hot-Pluggable
• Workload Type: Read Intensive
• Carrier Type: Smart Carrier (SC)
• NAND Type: Multi-Level Cell (MLC)
• Features: Digitally Signed Firmware (DS)
• Bundled With: HPE Smart Carrier
• Supported Platforms: HPE ProLiant Rack, Tower, BladeSystem Servers, and Synergy
• Height: 15 mm

Performance Overview

• 30 Days Writes: 7008
• Endurance DWPD: 1 (Drive Writes Per Day)
• Drive Transfer Rate: 12 Gb/sec (external)
• Random Read IOPS (4KiB, Q=16): 110,000
• Max Random Read IOPS (4KiB): 165,000 @ Q32
• Random Write IOPS (4KiB, Q=16): 54,000
• Max Random Write IOPS (4KiB): 54,000 @ Q4
• Internal Data Rate (Read): 1075 MBps
• Internal Data Rate (Write): 1030 MBps

Expansion & Connectivity

• Interfaces: 1 x SAS 12 Gb/s
• Compatible Bay: 2.5" SFF

Power Consumption

• Idle Time: 5.00 Watts
• Random Read/Write: 6.17 Watts
• Sequential Read/Write: 8.56 Watts
• Random Read/Write Average: 5.90 Watts
• Maximum Power: 8.56 Watts

Physical Dimensions

• Height: 5.00 inches (12.70 cm)
• Width: 7.00 inches (17.78 cm)
• Depth: 9.00 inches (22.86 cm)
• Weight: 1.10 lbs (0.50 kg)

Compatibility

HPE ProLiant BL Series

• BL460c Gen10 (2.5 inch)

HPE ProLiant DL Series

• DL325 Gen10 (2.5 inch)
• DL325 Gen10 Base (2.5 inch)
• DL325 Gen10 Entry (2.5 inch)
• DL325 Gen10 Performance (2.5 inch)
• DL325 Gen10 Plus (2.5 inch)
• DL360 Gen10 Entry (2.5 inch)
• DL360 Gen10 High Performance (2.5 inch)
• DL360 Gen10 Network Choice (2.5 inch)
• DL360 Gen10 SMB (2.5 inch)
• DL380 Gen10 Entry (2.5 inch)
• DL385 Gen10 Base (2.5 inch)
• DL580 Gen10 (2.5 inch)

HPE ProLiant ML Series

• ML110 Gen10 (2.5 inch)
• ML350 Gen10 (2.5 inch)

HPE Synergy Series

• Synergy 660 Gen10 Base Compute Module (2.5 inch)
• Synergy 660 Gen10 Performance Compute Module (2.5 inch)

Capacity

The HPE P04521-X21 SSD is an impressive storage device that offers a massive capacity of 3.84TB. This exceptional capacity allows users to store and access a vast amount of data, making it ideal for various applications and industries.

Benefits of 3.84TB Capacity

The significant benefit of the 3.84TB capacity is the ability to store large amounts of data in a single drive. This eliminates the need for multiple drives or complex storage configurations, simplifying the overall system setup. With such a vast storage capacity, users can store extensive databases, multimedia content, and critical business files without worrying about running out of space.

Improved Data Management

With the HPE P04521-X21 SSD's 3.84TB capacity, users can effectively manage their data without the hassle of constantly transferring or deleting files. This allows for efficient data organization, enhanced productivity, and streamlined workflows. Users can easily access their data whenever needed and have the flexibility to expand their storage capabilities as their needs grow.

Increased Performance

The large capacity of the HPE P04521-X21 SSD also contributes to improved performance. With ample storage space, the drive can distribute data more evenly across its memory cells, reducing write amplification and improving overall performance and endurance. This ensures that users can access their data quickly and experience smooth, uninterrupted operations.

Cost Savings

By providing a single drive with a massive 3.84TB capacity, the HPE P04521-X21 SSD offers cost savings in multiple ways. Firstly, users can avoid investing in additional storage devices or infrastructure to accommodate their growing data needs. Secondly, with fewer drives in operation, there is a reduction in power consumption, cooling requirements, and maintenance costs.

Importance of 3.84TB Capacity

The importance of the 3.84TB capacity of the HPE P04521-X21 SSD cannot be overstated, particularly in today's data-driven world. Whether it is for large-scale enterprises, data centers, or creative professionals, the ability to store and access significant amounts of data efficiently is crucial for seamless operations and business success.

Interface

The HPE P04521-X21 SSD features a SAS-12GBPS interface, which plays a vital role in ensuring high-speed data transfer and reliable connectivity. The SAS-12GBPS interface is known for its exceptional performance and compatibility with various systems, making it an excellent choice for demanding applications.

Benefits of SAS-12GBPS Interface

The SAS-12GBPS interface offers several benefits that enhance the overall performance and reliability of the HPE P04521-X21 SSD.

Superior Data Transfer Speeds

One of the key advantages of the SAS-12GBPS interface is its high data transfer speeds. With a maximum transfer rate of 12 gigabits per second, users can experience lightning-fast data access and transfer times. This is particularly beneficial for applications that require quick access to large datasets or frequent data transfers, such as databases, virtualization environments, and multimedia editing.

Enhanced Scalability

The SAS-12GBPS interface provides excellent scalability options for users. Its backward compatibility with previous generations of SAS interfaces allows for easy integration into existing systems and infrastructure. Users can upgrade their storage solutions without the need for major system overhauls, thereby reducing costs and minimizing disruption to operations.

Reliability and Compatibility

The SAS-12GBPS interface is known for its robustness and compatibility with various devices and platforms. It offers advanced error detection and correction mechanisms, ensuring data integrity and minimizing the risk of data loss or corruption. Additionally, the interface is widely supported by operating systems and storage management software, making it a reliable choice for enterprise-level deployments.

Importance of SAS-12GBPS Interface

The SAS-12GBPS interface is highly important for users who require fast, reliable, and scalable storage solutions. Its exceptional performance capabilities enable efficient data processing, seamless multitasking, and improved overall system responsiveness. Whether it is for enterprise servers, high-performance computing clusters, or data-intensive applications, the SAS-12GBPS interface ensures that users can harness the full potential of their storage infrastructure.

Form Factor

The HPE P04521-X21 SSD boasts a compact 2.5-inch form factor, which offers numerous benefits in terms of flexibility, compatibility, and space efficiency. The 2.5-inch form factor is widely adopted in various computing devices and storage systems due to its versatility and performance advantages.

Benefits of 2.5-Inch Form Factor

The 2.5-inch form factor of the HPE P04521-X21 SSD provides several advantages that contribute to improved user experience and system performance.

Easy Integration

The compact size of the 2.5-inch form factor allows for easy integration into a wide range of devices, including laptops, desktops, servers, and storage arrays. This versatility ensures that users can leverage the benefits of the HPE P04521-X21 SSD across different computing environments without compatibility issues or complex installation procedures.

Space Efficiency

Compared to larger form factors such as 3.5-inch drives, the 2.5-inch form factor offers superior space efficiency. This is especially valuable in scenarios where physical space is limited or at a premium, such as small form factor PCs, compact servers, or densely populated data centers. The smaller footprint of the HPE P04521-X21 SSD allows for better airflow, reduced power consumption, and more efficient use of available space.

Higher RPM and Performance

2.5-inch drives typically feature higher rotational speeds (RPM) compared to larger form factors. This translates to faster data access times, reduced latency, and improved overall performance. The HPE P04521-X21 SSD's 2.5-inch form factor enables users to benefit from these performance advantages, making it an excellent choice for applications that require high-speed data processing and responsiveness.

Importance of 2.5-Inch Form Factor

The 2.5-inch form factor has become a standard in the storage industry due to its versatility and performance benefits. Users across various sectors, including enterprise, gaming, and content creation, can take advantage of the HPE P04521-X21 SSD's compact size to optimize their computing infrastructure without compromising on storage capacity or performance. Whether it is for upgrading existing systems or building new ones, the 2.5-inch form factor offers unmatched flexibility and compatibility.

Usage

The HPE P04521-X21 SSD is specifically designed for read-intensive workloads, making it an ideal choice for applications that require fast and reliable data access. By emphasizing read-intensive usage, this SSD delivers exceptional performance and endurance tailored to meet the demands of specific workloads.

Benefits of Read-Intensive Usage

The read-intensive usage capability of the HPE P04521-X21 SSD offers several benefits that enhance its performance, reliability, and lifespan.

Optimized for Fast Data Retrieval

Read-intensive workloads primarily involve retrieving data from storage devices rather than writing large amounts of data. The HPE P04521-X21 SSD is optimized to excel in such scenarios, providing rapid data access and minimizing latency. This is crucial for applications that rely heavily on quick access to data, such as online transaction processing (OLTP), content delivery networks (CDNs), and virtual desktop infrastructure (VDI).

Enhanced Data Endurance

Read-intensive applications typically involve a higher proportion of read operations compared to write operations. This results in reduced wear on the SSD's memory cells, prolonging its lifespan and ensuring long-term reliability. The HPE P04521-X21 SSD is engineered to handle read-intensive workloads efficiently, offering extended endurance and minimizing the risk of premature drive failure.

Improved Cost Efficiency

By tailoring the HPE P04521-X21 SSD for read-intensive usage, users can achieve improved cost efficiency. The drive's design and firmware optimizations focus on delivering exceptional read performance, allowing users to achieve their desired workload performance levels without the need for pricier, high-end SSDs designed for mixed or write-intensive workloads. This makes the HPE P04521-X21 SSD a cost-effective solution for applications where read performance is paramount.

Importance of Read-Intensive Usage

The ability to handle read-intensive workloads effectively is crucial for various industries and applications. From financial institutions processing vast amounts of transactional data to media companies delivering high-quality streaming content, the HPE P04521-X21 SSD's read-intensive usage capability ensures that users can meet their performance requirements reliably and efficiently.

Smart Carrier

The HPE P04521-X21 SSD comes equipped with a smart carrier, offering additional functionality and ease of use for users. The smart carrier enhances the overall user experience by providing valuable information and facilitating efficient drive management.

Benefits of Smart Carrier

The smart carrier of the HPE P04521-X21 SSD offers several benefits that improve drive monitoring, management, and compatibility.

Drive Health Monitoring

The smart carrier incorporates advanced monitoring capabilities, allowing users to assess the health and performance of the HPE P04521-X21 SSD. This includes real-time monitoring of various parameters such as temperature, wear level, and error rates. By proactively monitoring drive health, users can identify and address potential issues before they escalate, ensuring uninterrupted operations and minimizing the risk of data loss.

Hot-Swappable Design

The smart carrier's hot-swappable design enables users to replace or upgrade the HPE P04521-X21 SSD without shutting down the system. This eliminates downtime and increases business continuity, particularly in mission-critical environments where system availability is paramount. Users can easily replace drives or expand storage capacity on-the-fly, ensuring seamless operations and minimal disruption to productivity.

Enhanced Compatibility

The smart carrier is designed to be compatible with various HPE servers and storage systems, ensuring a hassle-free integration process. It allows for effortless installation and removal of the HPE P04521-X21 SSD in supported systems without the need for additional tools or adapters. This compatibility simplifies drive management and enhances overall system scalability.

Importance of Smart Carrier

The smart carrier of the HPE P04521-X21 SSD offers valuable features that enhance drive monitoring, management, and compatibility. By providing real-time health monitoring, hot-swappable functionality, and seamless integration with HPE systems, the smart carrier ensures that users can maximize the benefits of the HPE P04521-X21 SSD while minimizing administrative overhead and maintaining system reliability.
