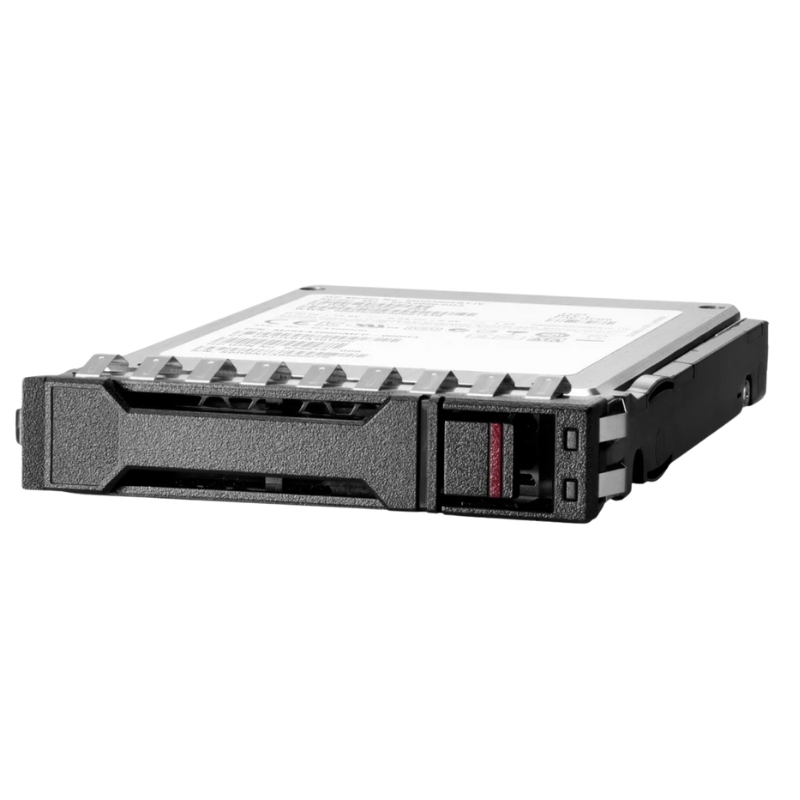

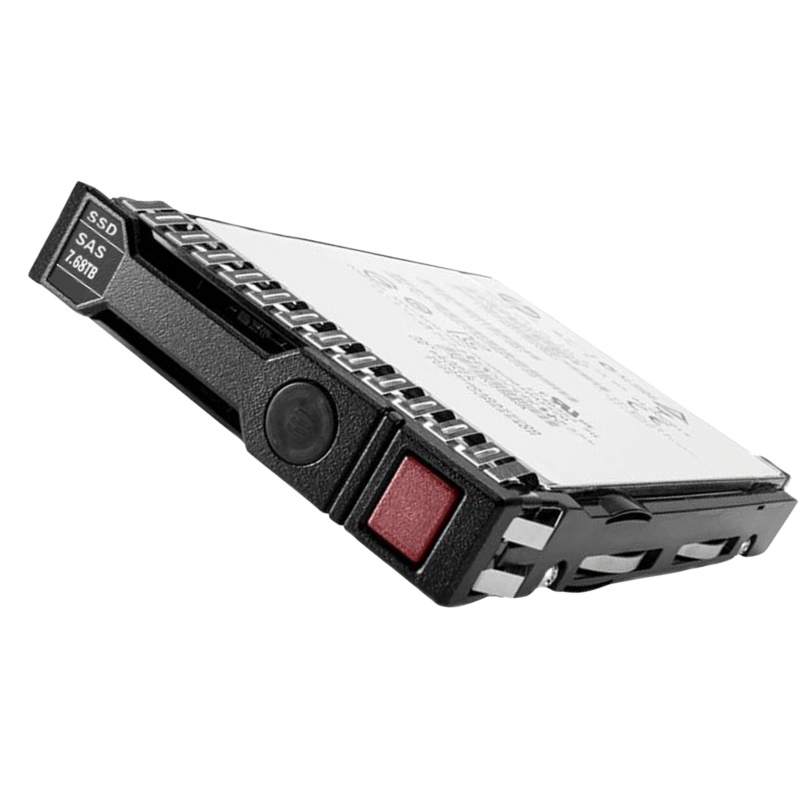

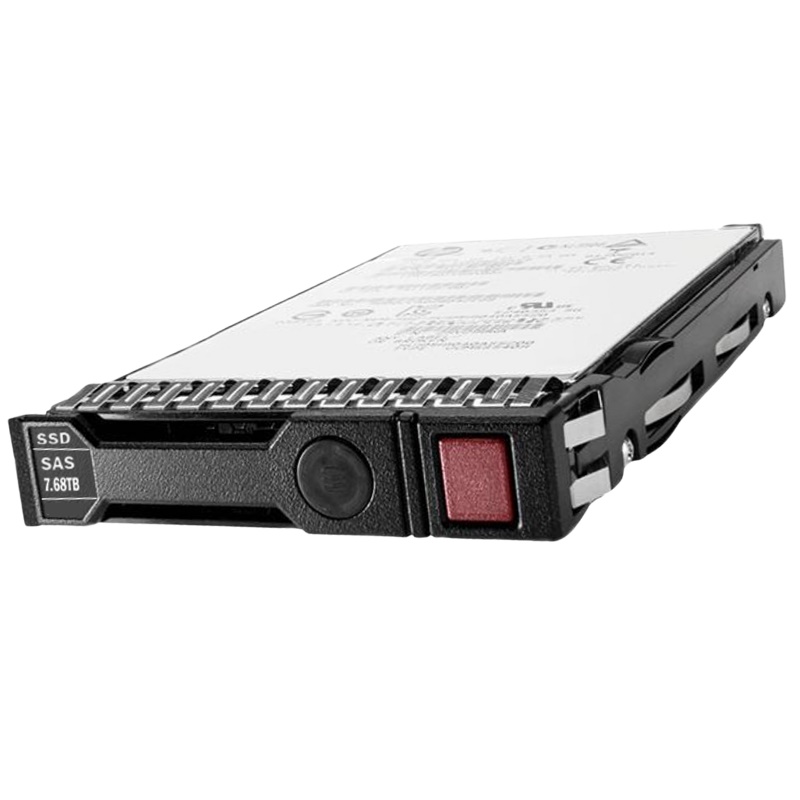

HPE P04523-H21 SAS 7.68TB 12GBPS Smart Carrier (SC) Read Intensive SSD

Product Specifications

Brand Details

• Brand: HPE
• MPN: P04523-H21
• Option Part Number: P04523-H21
• Spare Part Number: P06599-001
• Model Number: VO007680JWTBP
• Assembly Number: P04172-004

General Specifications

• Device Type: Solid State Drive – Hot-Swap
• Storage Capacity: 7.68 TB
• NAND Flash Type: Triple-Level Cell (TLC)
• Connectivity: Dual Port
• Form Factor: 2.5 inch Small Form Factor (SFF)
• Interface: SAS 12Gbps
• Hot Plug Feature: Yes
• Carrier Type: Smart Carrier (SC)
• Workload Type: Read-Intensive
• Additional Feature: Digitally Signed Firmware
• Compatibility: HPE ProLiant Rack, Tower, BladeSystem, and Synergy Servers
• Height: 0.6 inches (15 mm)

Performance Specifications

• 30 Days Writes: 14016
• Endurance (DWPD): 1 Drive Write Per Day
• Data Transfer Rate: 12 Gb/s external
• Random Read IOPS (4KiB Q=16): 110,000
• Max Random Read IOPS (4KiB Q=32): 165,000
• Random Write IOPS (4KiB Q=16): 48,000
• Max Random Write IOPS (4KiB Q=4): 48,000
• Sequential Read Throughput: 1075 MiB/s
• Sequential Write Throughput: 1030 MiB/s
• Read Latency (4KiB Q1): 135 microseconds
• Write Latency (4KiB Q1): 35 microseconds

Expansion and Connectivity

• Interface: 1 x SAS 12Gb/s
• Compatible Bay: 2.5" Small Form Factor

Power Consumption

• Idle Power Usage: 5.00 Watts
• Random Read Power Consumption: 6.20 Watts
• Random Write Power Consumption: 6.20 Watts
• Sequential Read Power Consumption: 8.56 Watts
• Sequential Write Power Consumption: 8.56 Watts
• Mixed Read/Write Power Consumption: 5.90 Watts
• Maximum Power Draw: 8.56 Watts

Physical Dimensions

• Height: 5.00 inches (12.70 cm)
• Width: 7.00 inches (17.78 cm)
• Depth: 9.00 inches (22.86 cm)
• Weight: 1.10 lbs (0.50 kg)

Compatibility Overview

ProLiant DL Series

• DL325 Gen10 (2.5")
• DL325 Gen10 Base (2.5")
• DL325 Gen10 Performance (2.5")
• DL360 Gen10 Entry (2.5")
• DL360 Gen10 Low (2.5")
• DL380 Gen10 All Flash Server (2.5")
• DL380 Gen10 High Performance (2.5")
• DL385 Gen10 Plus (2.5")
• DL560 Gen10 Base (2.5")
• DL580 Gen10 Performance (2.5")

ProLiant ML Series

• ML110 Gen10 (2.5")
• ML350 Gen10 Base (2.5")
• ML350 Gen10 High Performance (2.5")

Synergy Series

• 660 Gen10 Base Compute Module (2.5")
• 680 Gen9 4S-EX Compute Module (2.5")

Capacity

The HPE P04523-H21 SSD offers a massive storage capacity of 7.68TB. This impressive capacity allows users to store a vast amount of data, making it ideal for businesses and individuals with demanding storage needs. Whether you are running a large-scale enterprise or managing a personal media library, the 7.68TB capacity ensures that you will have ample space to store your files, applications, and media.

Increased Storage Efficiency

With 7.68TB of storage, users can consolidate their data onto a single drive, reducing the need for multiple drives and simplifying their storage infrastructure. This consolidation leads to improved storage efficiency by minimizing the physical space required for storage devices and reducing power consumption. By optimizing their storage resources, users can enhance productivity and reduce costs associated with maintaining and expanding their storage infrastructure.

Seamless Scalability

The 7.68TB capacity also provides users with the flexibility to scale their storage as their needs grow. Whether you need to accommodate increasing data volumes or expand your application portfolio, the ample capacity of the HPE P04523-H21 SSD ensures that you will have room for future growth without worrying about running out of storage space. This scalability is particularly beneficial for businesses that anticipate rapid data growth or frequently add new applications.

Efficient Data Management

By having a single high-capacity drive like the HPE P04523-H21 SSD, users can simplify their data management processes. With fewer drives to manage, it becomes easier to organize and locate specific files or applications. Furthermore, consolidating data onto a single drive can streamline backup and recovery processes, allowing users to protect their valuable data more efficiently.

Interface

The HPE P04523-H21 SSD features a SAS (Serial Attached SCSI) interface. SAS is a high-performance interface that offers numerous benefits for users requiring fast and reliable data transfer.

High Data Transfer Rates

The SAS interface provides exceptional data transfer rates, allowing users to quickly access and transfer large files. With a data transfer rate of 12Gbps, the HPE P04523-H21 SSD ensures that users can efficiently handle demanding workloads and reduce latency. This is particularly crucial for businesses that rely on data-intensive applications or require fast access to their stored information.

Reliable Data Transmission

SAS offers superior reliability compared to other interfaces, ensuring that data is transmitted accurately and without errors. This reliability is crucial for critical applications where data integrity is of utmost importance. The HPE P04523-H21 SSD, with its SAS interface, provides users with the peace of mind that their data will be transferred safely and without corruption.

Interoperability and Compatibility

The SAS interface is widely supported by various hardware and software vendors, ensuring compatibility across different systems and devices. This compatibility makes it easier for users to integrate the HPE P04523-H21 SSD into their existing infrastructure without the need for extensive modifications or additional investments. The ability to seamlessly connect the SSD to different devices enhances flexibility and allows users to leverage their investment in the drive across multiple platforms.

Data Transfer Rate

The HPE P04523-H21 SSD boasts an impressive data transfer rate of 12Gbps. This high-speed connectivity enables users to experience lightning-fast data transfer and access times, significantly improving overall system performance.

Enhanced Productivity

The 12Gbps data transfer rate ensures that users can quickly retrieve and store large files, reducing waiting times and improving productivity. Whether you are working with multimedia content, running demanding applications, or managing a database, the high data transfer rate of the HPE P04523-H21 SSD ensures that your system can keep up with your workload.

Seamless Multi-Tasking

The fast data transfer rate allows users to perform multiple tasks simultaneously without experiencing significant performance degradation. This capability is particularly beneficial for power users and professionals who require multitasking capabilities to complete their work efficiently. With the HPE P04523-H21 SSD, you can seamlessly switch between applications, run resource-intensive processes, and handle complex workloads with ease.

Reduced Latency

The 12Gbps data transfer rate significantly reduces latency, providing near-instantaneous access to stored data. This reduced latency is particularly important for applications that require real-time access to data, such as online transaction processing or high-performance computing. With the HPE P04523-H21 SSD, users can experience faster response times, enabling them to make quick decisions and perform time-sensitive tasks without delays.

Form Factor

The HPE P04523-H21 SSD features a Smart Carrier (SC) form factor. The Smart Carrier design offers several benefits in terms of ease of use, installation, and compatibility.

Simplified Installation

The Smart Carrier form factor makes installation quick and straightforward. The drive can be easily inserted into compatible systems without the need for additional tools or complex procedures. This ease of installation saves time and effort for users, allowing them to quickly integrate the HPE P04523-H21 SSD into their existing infrastructure or new deployments.

Hot-Swappable Design

The Smart Carrier form factor supports hot-swapping capabilities. This means that the drive can be replaced or added while the system is still running, eliminating the need for system downtime. The hot-swappable design is particularly beneficial for businesses and organizations that require continuous operation or have strict uptime requirements. Users can replace faulty drives or add new ones without interrupting critical processes or services.

Wide Compatibility

The Smart Carrier form factor is designed to be compatible with a wide range of systems and devices. This compatibility ensures that users can easily integrate the HPE P04523-H21 SSD into their existing infrastructure without compatibility issues or the need for additional adapters or converters. The ability to seamlessly connect the drive to various systems enhances its versatility and allows users to leverage its benefits across multiple platforms.

Intended Use

The HPE P04523-H21 SSD is designed for read-intensive workloads. This makes it ideal for applications and environments that require fast access to stored data.

Optimized Read Performance

The read-intensive design of the HPE P04523-H21 SSD prioritizes read operations, ensuring that users can quickly retrieve data from the drive. This optimized read performance is particularly advantageous for applications that involve frequent data access, such as data analytics, content delivery, or virtual desktop infrastructure. With the HPE P04523-H21 SSD, users can experience faster data retrieval, resulting in improved application performance and responsiveness.

Extended Lifespan

The read-intensive design of the HPE P04523-H21 SSD also contributes to its extended lifespan. By minimizing write operations, the drive experiences less wear and tear, leading to increased durability and longevity. This extended lifespan is essential for applications that involve continuous read operations over extended periods, as it ensures that the drive can handle high workloads without compromising performance or reliability.

Cost-Efficiency

The read-intensive nature of the HPE P04523-H21 SSD makes it a cost-effective solution for users with predominantly read-oriented workloads. By focusing on read performance, the drive optimizes its resources to deliver maximum efficiency for these specific use cases. This targeted approach allows users to benefit from high-performance storage without investing in unnecessary write-intensive capabilities that may not be required for their particular workload.
