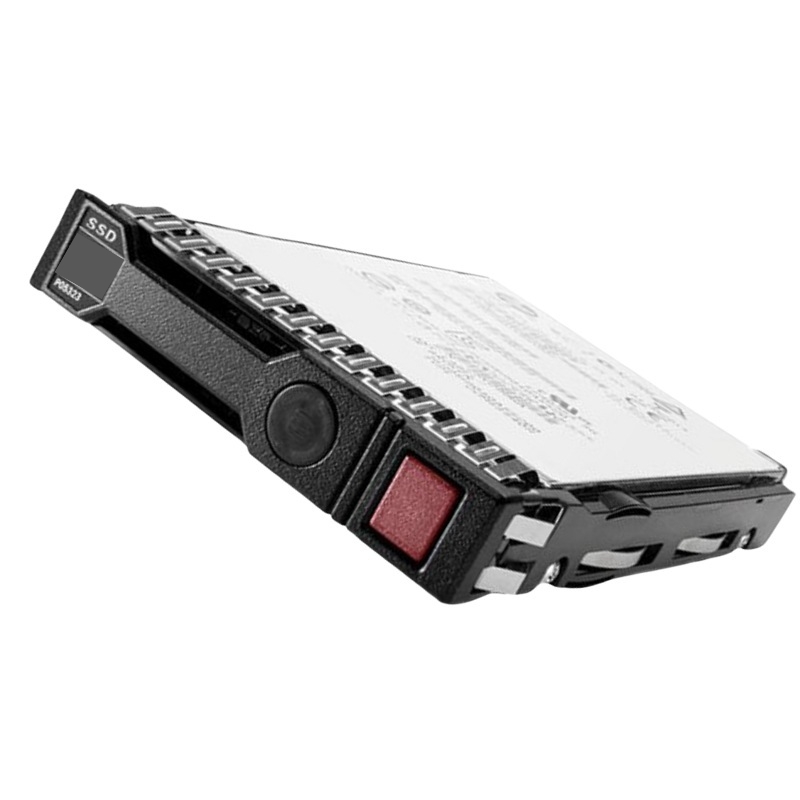

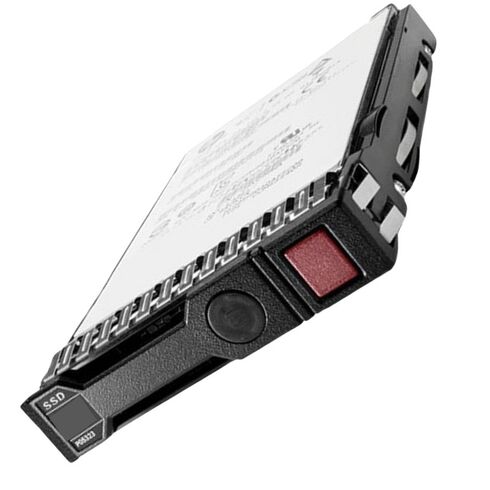

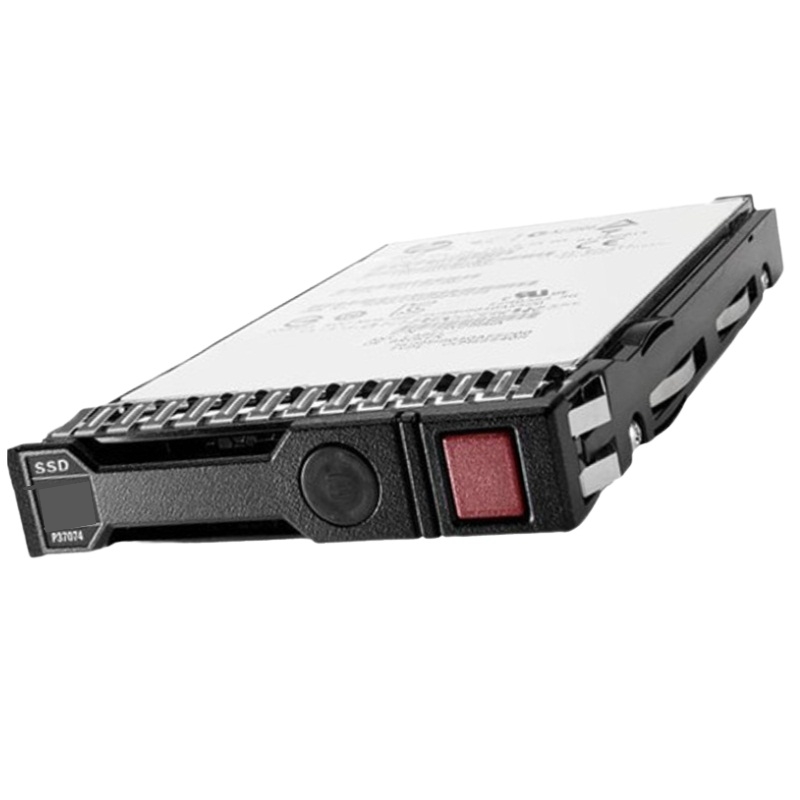

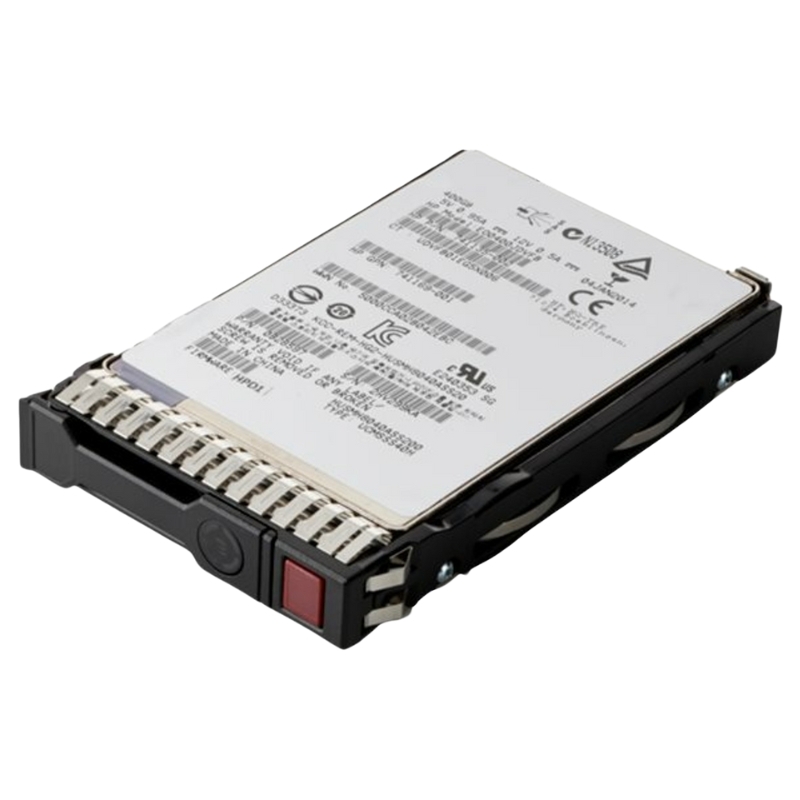

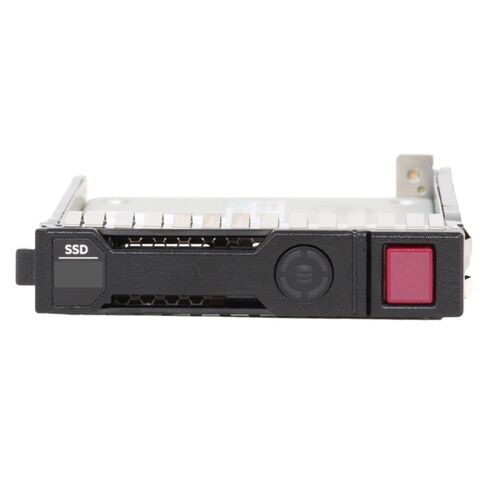

HPE P04537-X21 3.2TB SAS-12GBPS 2.5" MLC DS SC Mixed Use SSD

P04537-X21
Hover on image to enlarge

Brief Overview of P04537-X21

HPE 3.2TB SAS-12GBPS 2.5inch MLC DS SC Mixed Use G9 G10 SSD P04537-X21. New Sealed in Box (NIB) 3 Years Warranty
QR Code of HPE P04537-X21 3.2TB SAS-12GBPS 2.5" MLC DS SC Mixed Use SSD
$1,238.63
$819.48
You save: $419.15 (34%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNP04537-X21Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Manufacturer Warranty3 Years Warranty from Original Brand Product/Item ConditionFactory-Sealed New in Original Box (FSB) ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

Product Overview

Specifications

  • Manufacturer: HPE
  • MPN: P04537-X21
  • Type: Solid State Drive
  • SSD Type: SAS-12GBPS
  • Spare Part Number: P06582-001
  • Model Number: MO003200JWTBU
  • Assembly Number: P04174-004

Key Features

Storage and Interface

  • Storage Capacity: 3.2TB
  • Interface: Dual SAS-12GBPS
  • Form Factor: 2.5 Inch
  • NAND Flash Memory: Triple-Level Cell

Connectivity

  • Connection Type: Dual Port
  • Plug Type: Hot Pluggable
  • Carrier Type: Low Profile Converter
  • Workload Type: Mixed Use
  • Included: HPE Low Profile Converter
  • Additional Feature: Digitally Signed Firmware

Performance Metrics

Write Endurance

  • Lifetime Writes: 17,520
  • Endurance (DWPD): 3

Transfer Rates

  • Drive Transfer Rate: 1.2 GBps (external)
  • Max Sequential Read Throughput: 1075 MiB/s
  • Max Sequential Write Throughput: 1025 MiB/s

Random Performance

  • Random Read Latency (4KiB, Q1): 120 µSec
  • Random Write Latency (4KiB, Q1): 50 µSec
  • Random Read IOPS (4KiB, Q=16): 125,000
  • Random Write IOPS (4KiB, Q=16): 93,000
  • Max Random Read IOPS (4KiB): 185,000 @ Q32
  • Max Random Write IOPS (4KiB): 93,000 @ Q4
  • 4KiB Random 70% Read / 30% Write IOPS: 120,000
  • 4KiB Random 50% Read / 50% Write IOPS: 107,500

Power Consumption Details

  • Idle Power Consumption: 4.22 Watts
  • Random Read Power Consumption: 4.74 Watts
  • Random Write Power Consumption: 4.74 Watts
  • Sequential Read Power Consumption: 7.75 Watts
  • Sequential Write Power Consumption: 9.50 Watts
  • Random Read/Write Power Consumption: 4.74 Watts

Physical Specifications

Dimensions and Weight

  • Height: 0.63 inch
  • Width: 3.10 inches
  • Depth: 5.45 inches
  • Weight: 1.50 lbs

Compatibility Overview

Supported HPE ProLiant DL Series Servers

  • DL160 Gen9 (3.5 inch)
  • DL360 Gen10 (2.5 inch)
  • DL385 Gen10 (2.5 inch)
  • DL580 Gen9 (3.5 inch)

Supported HPE ProLiant ML Series Servers

  • ML110 Gen10 (2.5 inch)
  • ML350 Gen10 (2.5 inch)

Supported HPE ProLiant XL Series Servers

  • XL170r Gen9 (3.5 inch)
  • XL450 Gen10 (2.5 inch)

Capacity

The HPE P04537-X21 SSD boasts an impressive storage capacity of 3.2TB. This high-capacity storage solution is designed to meet the demanding needs of modern businesses and enterprises. With such a large storage capacity, users can store a vast amount of data, including files, documents, applications, and multimedia content.

Benefits of 3.2TB Capacity

Ample Space for Data Storage

The 3.2TB capacity of the HPE P04537-X21 SSD provides ample space for storing a large volume of data. Businesses can easily store their critical data, including databases and applications, without the need for multiple storage devices. This reduces complexity and simplifies data management processes.

Improved Performance and Efficiency

By offering a high storage capacity, the HPE P04537-X21 SSD enables businesses to consolidate their data onto a single drive. This consolidation reduces the number of storage devices required, resulting in improved performance and efficiency. Users can access their data quickly and efficiently without experiencing any lag or delay.

Scalability and Future-Proofing

The 3.2TB capacity of the HPE P04537-X21 SSD ensures scalability and future-proofing for businesses. As data volumes continue to grow exponentially, having a high-capacity storage solution becomes essential. With this SSD, businesses can expand their storage capabilities without the need for additional hardware investments.

Importance of 3.2TB Capacity for Users

The importance of the 3.2TB capacity of the HPE P04537-X21 SSD cannot be overstated for users in various industries:

Enterprise Businesses

Enterprise businesses deal with massive amounts of data on a daily basis. The 3.2TB capacity allows them to store and manage their data efficiently without compromising performance. It enables them to handle the ever-increasing data requirements of their operations.

Media and Entertainment Industry

The media and entertainment industry relies heavily on digital content creation and storage. With the 3.2TB capacity, professionals in this industry can store high-quality video footage, audio files, graphics, and other multimedia assets without worrying about running out of space.

Research and Development

Research and development departments in various industries generate vast amounts of data through experiments, simulations, and analysis. The 3.2TB capacity of the HPE P04537-X21 SSD ensures that researchers can store and access their data quickly, enabling them to make informed decisions based on their findings.

Interface

The HPE P04537-X21 SSD features a SAS-12GBPS interface. This interface offers high-speed data transfer capabilities, making it ideal for demanding applications and workloads. The SAS-12GBPS interface ensures seamless connectivity with compatible systems, providing users with a reliable storage solution.

Benefits of SAS-12GBPS Interface

Fast Data Transfer Speeds

The SAS-12GBPS interface enables high-speed data transfer between the HPE P04537-X21 SSD and the host system. With its impressive transfer rate, users can quickly access and transfer large files, reducing waiting times and increasing productivity.

Reliable Performance

The SAS-12GBPS interface offers reliable performance for businesses that require constant data access and storage. It ensures a stable connection between the SSD and the host system, minimizing the risk of data corruption or loss.

Compatibility with Existing Infrastructure

The SAS-12GBPS interface is backward compatible with previous generations of SAS interfaces, allowing users to seamlessly integrate the HPE P04537-X21 SSD into their existing infrastructure. This compatibility ensures a smooth transition and minimizes the need for additional hardware upgrades.

Importance of SAS-12GBPS Interface for Users

The SAS-12GBPS interface of the HPE P04537-X21 SSD offers several important benefits for users:

Enterprise Data Centers

Enterprise data centers deal with massive data volumes, and the SAS-12GBPS interface provides the necessary speed and reliability for efficient data storage and retrieval. It ensures that critical business applications can run smoothly without any performance bottlenecks.

High-Performance Computing

Industries such as financial services, scientific research, and engineering heavily rely on high-performance computing (HPC) systems. The SAS-12GBPS interface allows HPC systems to access and process data quickly, enabling faster simulations, analyses, and computations.

Virtualization

Virtualization environments require fast data access and transfers to ensure smooth operations. The SAS-12GBPS interface provides the necessary bandwidth to support virtualized workloads, allowing for efficient resource allocation and management.

Form Factor

The HPE P04537-X21 SSD features a 2.5-inch form factor. This compact size makes it suitable for various applications, including server installations, data centers, and personal computing devices. The 2.5-inch form factor offers flexibility and easy integration into existing systems.

Benefits of 2.5-inch Form Factor

Space Efficiency

The 2.5-inch form factor is significantly smaller than traditional 3.5-inch hard drives. This smaller size allows for higher storage density in servers and data centers, maximizing the use of available space. It is particularly beneficial for organizations with limited physical storage capacity.

Hot-Swappable Design

The 2.5-inch form factor is often designed to be hot-swappable, allowing for easy replacement or upgrade of storage devices without the need to power down the system. This feature reduces downtime and improves system availability, making it ideal for mission-critical applications.

Compatibility with Existing Infrastructure

The 2.5-inch form factor is widely adopted in the industry, making it compatible with a wide range of systems and drive bays. This compatibility ensures that the HPE P04537-X21 SSD can be seamlessly integrated into existing infrastructure without the need for additional adapters or modifications.

Importance of 2.5-inch Form Factor for Users

The 2.5-inch form factor of the HPE P04537-X21 SSD offers several important benefits for users:

Data Centers and Servers

Data centers and servers require high storage density to maximize their operational efficiency. The 2.5-inch form factor allows for more drives to be installed in the same physical space, increasing the overall storage capacity and performance of the system.

Mobile Workstations and Laptops

Mobile workstations and laptops often have limited space for storage devices. The compact size of the 2.5-inch form factor makes it ideal for these devices, allowing users to enjoy high-capacity storage without sacrificing portability.

Small Businesses and Home Offices

Small businesses and home offices often have limited physical space and budget constraints. The 2.5-inch form factor provides an affordable and space-efficient storage solution that meets their needs without requiring extensive infrastructure changes.

Technology

The HPE P04537-X21 SSD is based on MLC (Multi-Level Cell) technology. MLC is a type of NAND flash memory that offers a balance between cost, performance, and endurance. This technology provides reliable and cost-effective storage for a wide range of applications.

Benefits of MLC Technology

Cost-Effectiveness

MLC technology is more affordable compared to other types of NAND flash memory, such as SLC (Single-Level Cell). This affordability makes the HPE P04537-X21 SSD an attractive option for businesses that require high-capacity storage without breaking the budget.

Good Performance

MLC-based SSDs offer good performance for most general-purpose workloads. They provide fast data access and transfer speeds, ensuring smooth operations and reduced latency. The HPE P04537-X21 SSD's MLC technology allows users to handle demanding applications and workloads effectively.

Reliability and Endurance

Although not as durable as SLC-based SSDs, MLC-based SSDs still offer good reliability and endurance. The HPE P04537-X21 SSD's MLC technology ensures that users can store and access their data without worrying about data corruption or loss.

Importance of MLC Technology for Users

The MLC technology used in the HPE P04537-X21 SSD provides several benefits for users in different scenarios:

General Purpose Applications

For general-purpose applications and workloads, MLC technology offers a cost-effective solution without compromising on performance. It allows businesses to meet their storage needs without overspending on more expensive NAND flash memory technologies.

Virtualization Environments

Virtualization environments require reliable and high-performance storage solutions to ensure smooth operations. The HPE P04537-X21 SSD's MLC technology provides the necessary performance and endurance to support virtualized workloads, making it an ideal choice for virtualized environments.

Read-Intensive Workloads

MLC-based SSDs are well-suited for read-intensive workloads, such as content delivery networks (CDNs) and web servers. These workloads primarily involve data retrieval rather than constant writing, making MLC technology a cost-effective and reliable option.

Endurance

The HPE P04537-X21 SSD is designed for mixed-use applications, offering a balance between read and write operations. This mixed-use design ensures that the SSD can handle both high read and write workloads effectively, making it suitable for a wide range of applications and use cases.

Benefits of Mixed-Use Endurance

Versatility

The mixed-use endurance of the HPE P04537-X21 SSD allows it to handle various types of workloads effectively. Whether it's heavy read or write operations, this SSD can provide the necessary performance and endurance to meet the demands of different applications.

Optimized Performance

By offering a balance between read and write operations, the mixed-use endurance of the HPE P04537-X21 SSD ensures optimized performance for both types of operations. This optimization allows for efficient data access and transfer, reducing latency and improving overall system performance.

Reliability

The mixed-use endurance design of the HPE P04537-X21 SSD ensures high reliability in handling different workloads. It can withstand the demands of applications that involve frequent data access and storage, providing users with a reliable and durable storage solution.

Importance of Mixed-Use Endurance for Users

The mixed-use endurance feature of the HPE P04537-X21 SSD offers several advantages for users across different industries:

Database Applications

Database applications often involve a mix of read and write operations. The mixed-use endurance of the HPE P04537-X21 SSD ensures that these applications can handle high data throughput without compromising on performance or reliability.

Virtualization Environments

Virtualization environments require storage solutions that can handle both read and write operations efficiently. The mixed-use endurance of the HPE P04537-X21 SSD ensures that virtualized workloads can run smoothly, providing users with a reliable and high-performance storage solution.

Content Creation and Editing

Content creation and editing workflows involve frequent read and write operations. The mixed-use endurance of the HPE P04537-X21 SSD ensures that professionals in media production, graphic design, and other content-related industries can access and modify their files without any performance degradation.

Compatibility

The HPE P04537-X21 SSD is compatible with G9 and G10 server generations. This compatibility ensures seamless integration into existing server infrastructures, allowing businesses to upgrade their storage capabilities without the need for extensive hardware changes or modifications.

Benefits of G9 and G10 Compatibility

Easy Integration

The compatibility with G9 and G10 server generations simplifies the integration process for businesses. They can easily replace existing storage devices with the HPE P04537-X21 SSD without disrupting their server infrastructure or requiring additional adapters or connectors.

Seamless Upgrades

By being compatible with G9 and G10 servers, the HPE P04537-X21 SSD allows businesses to upgrade their storage capacity without replacing their entire server infrastructure. This compatibility saves time, effort, and costs associated with migrating to a new server platform.

Improved System Performance

The compatibility with G9 and G10 servers ensures that the HPE P04537-X21 SSD can fully leverage the capabilities of these server generations. This optimization results in improved system performance, allowing businesses to handle demanding workloads and applications more efficiently.

Importance of G9 and G10 Compatibility for Users

The compatibility of the HPE P04537-X21 SSD with G9 and G10 server generations offers several benefits for users:

Server Upgrades

When upgrading their server infrastructure, businesses can seamlessly integrate the HPE P04537-X21 SSD into their existing G9 or G10 servers. This compatibility allows for a smooth transition and minimizes the potential disruption to business operations.

Data Center Expansion

Data centers often require storage upgrades to accommodate growing data volumes. The compatibility with G9 and G10 servers ensures that data center operators can easily expand their storage capabilities without significant infrastructure changes.

Cost Savings

The compatibility with G9 and G10 servers reduces the need for additional hardware investments. Businesses can leverage their existing server infrastructure and simply upgrade their storage capacity with the HPE P04537-X21 SSD, resulting in cost savings and improved return on investment.

In conclusion, the HPE P04537-X21 SSD offers impressive features that cater to the diverse needs of businesses and users across various industries. With its high capacity of 3.2TB, SAS-12GBPS interface, 2.5-inch form factor, MLC technology, mixed-use endurance, and compatibility with G9 and G10 servers, this SSD provides a reliable, high-performance, and cost-effective storage solution. Whether it's data centers, virtualization environments, or content creation workflows, users can benefit from the HPE P04537-X21 SSD's advanced features to meet their storage requirements efficiently and effectively.

Features
Manufacturer Warranty:
3 Years Warranty from Original Brand
Product/Item Condition:
Factory-Sealed New in Original Box (FSB)
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
