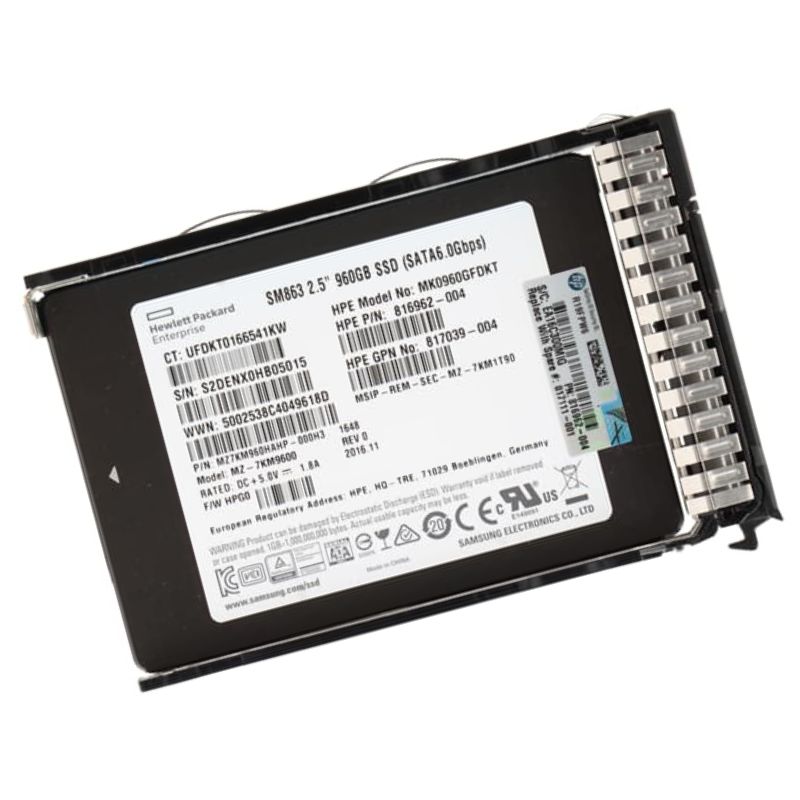

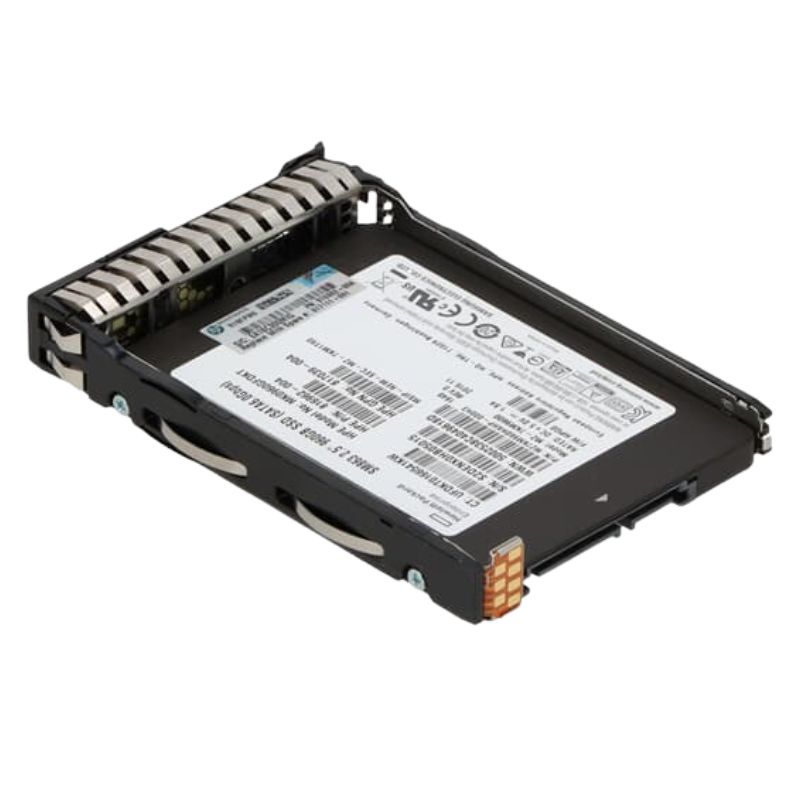

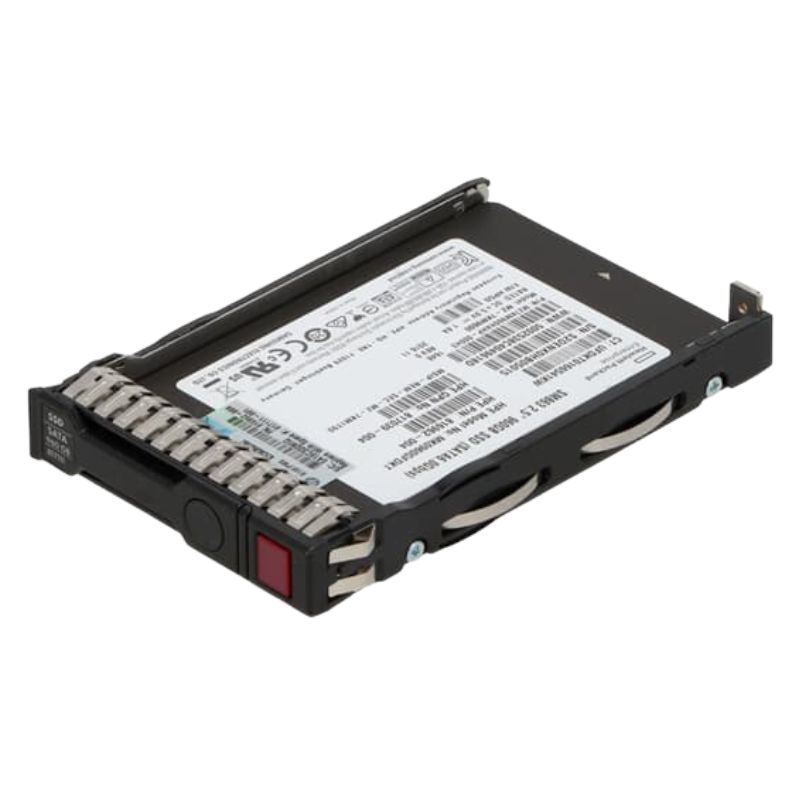

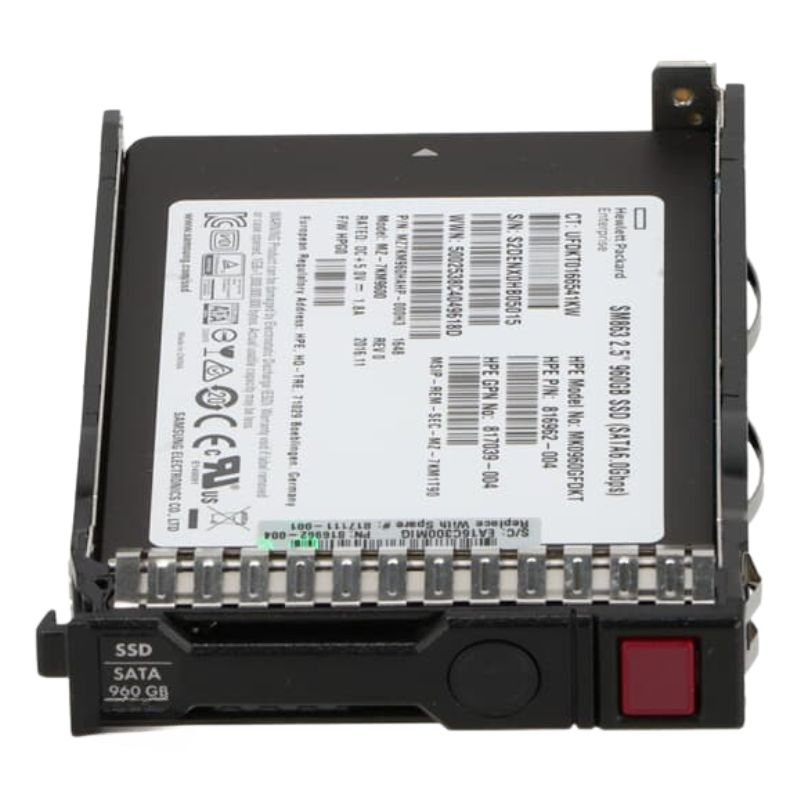

HPE P08693-001 960GB SATA-6GBPS Enterprise Performance SSD

HPE P08693-001 SSD Overview

General Information

• Manufacturer: HPE
• Model Number (SKU): P08693-001
• Type of Device: Solid State Drive (Hot-Swap)
• Storage Capacity: 960 GB
• Form Factor: 3.5 inch Large Form Factor (LFF)
• Connection Interface: SATA 6Gbps
• Carrier Type: Smart Carrier Converter (SCC)
• Plug Type: Hot Pluggable
• Workload Type: Mixed Use
• Special Features: Digitally Signed Firmware
• Included Accessories: HPE Smart Carrier Converter
• Height: 7 mm

Performance Specifications

• Lifetime Writes: 8,760 TB
• Endurance (DWPD): 5.0
• Drive Transfer Rate: 600 MB/s (external)
• Max Sequential Read Throughput: 520 MiB/s
• Max Sequential Write Throughput: 495 MiB/s
• Random Read Average Latency: 125 µs (4KiB, Q=1)
• Random Write Average Latency: 36 µs (4KiB, Q=1)
• Random Read IOPS: 63,000 (4KiB, Q=16)
• Random Write IOPS: 52,000 (4KiB, Q=16)

Expansion and Connectivity

• Interface Ports: 1 x SATA 6Gb/s
• Compatible Bay Size: 3.5 inch LFF

Physical Dimensions and Weight

• Width: 5.75 inches
• Depth: 10.00 inches
• Height: 5.63 inches
• Weight: 3.00 lbs

Power Specifications

• Idle Power Consumption: 1.50 Watts
• Random Read Power Consumption: 2.30 Watts
• Random Write Power Consumption: 2.30 Watts
• Sequential Read Power Consumption: 4.20 Watts
• Sequential Write Power Consumption: 6.30 Watts
• Maximum Power Consumption: 6.30 Watts

Compatibility Information

• HPE ProLiant DL Series Models:
  • DL20 Gen9
  • DL20 Gen9 Base
  • DL20 Gen9 Entry
  • DL20 Gen9 Performance
  • DL20 Gen9 Solution
  • DL20 Gen9 Special Server
  • DL360 Gen10
  • DL360 Gen10 Base
  • DL360 Gen10 Entry
  • DL360 Gen10 High Performance
  • DL360 Gen10 Low
  • DL360 Gen10 Performance
  • DL360 Gen10 Solution
  • DL360 Gen9
  • DL360 Gen9 Base
  • DL360 Gen9 CMS
  • DL360 Gen9 Entry
  • DL360 Gen9 Performance
  • DL360 Gen9 Special Server
  • DL380 Gen10
  • DL380 Gen10 Base
  • DL380 Gen10 Entry
  • DL380 Gen10 High Performance
  • DL380 Gen10 Performance
  • DL380 Gen10 Solution
  • DL380 Gen9
  • DL380 Gen9 Base
  • DL380 Gen9 Entry
  • DL380 Gen9 High Performance
  • DL380 Gen9 Performance
  • DL380 Gen9 Scale-up
  • SAP HANA Tailored Datacenter Integration Compute Block
  • DL380 Gen9 Special
  • DL385 Gen10
  • DL385 Gen10 Base
  • DL385 Gen10 Entry
  • DL385 Gen10 High-Performance
  • DL385 Gen10 Performance
  • DL385 Gen10 Solution

Capacity: 960GB

When it comes to storage solutions, having ample capacity is crucial for users who deal with large amounts of data on a daily basis. The HPE P08693-001 SSD offers an impressive capacity of 960GB, ensuring that you have enough space to store your important files and applications without any worries.

Benefits of 960GB Capacity

1. Enhanced Storage Capability

One of the key benefits of the 960GB capacity is its ability to handle vast amounts of data. Whether you are a professional working with resource-intensive applications or an avid gamer with a vast library of games, this SSD provides you with sufficient storage space to accommodate your needs. You can store numerous high-definition videos, thousands of photos, and even entire operating systems without worrying about running out of space.

2. Improved Performance

With a larger capacity, you can experience improved performance as the drive has more room to spread out and organize your data. This results in faster read and write speeds, ensuring that your applications load quickly and your files are accessed without any delays. Whether you are multitasking or running demanding software, the ample storage space provided by the 960GB capacity allows for smooth and efficient operations.

3. Future-Proof Solution

Investing in a storage solution with a significant capacity like 960GB ensures that you are prepared for future needs. As technology advances and file sizes continue to grow, having a large storage capacity allows you to stay ahead of the curve. You won't have to worry about constantly deleting files or transferring data to external drives to make room for new content. The 960GB capacity provides you with peace of mind knowing that you have enough space for future expansion.

Importance of 960GB Capacity

1. Flexibility and Versatility

The 960GB capacity offers users the flexibility to store a wide range of files and applications. Whether you need to store large media files, databases, or virtual machines, this SSD can handle it all. Its versatility makes it suitable for various use cases, from creative professionals who work with high-resolution videos to businesses that require ample storage for their critical data.

2. Cost-Effective Solution

Opting for the 960GB capacity can be a cost-effective choice in the long run. While it may have a higher upfront cost compared to lower-capacity options, the larger capacity allows you to avoid purchasing additional storage devices in the future. By investing in a single SSD with a substantial capacity, you can save money and streamline your storage setup.

Interface: SATA-6GBPS

The interface is a crucial factor to consider when selecting an SSD as it determines how the drive communicates with your system. The HPE P08693-001 SSD features a SATA-6Gbps interface, which offers several benefits for users.

Benefits of SATA-6GBPS Interface

1. Increased Data Transfer Speeds

The SATA-6Gbps interface provides faster data transfer speeds compared to its predecessors. With a maximum transfer rate of 6 gigabits per second (Gbps), this interface allows for quick and efficient data transmission between the SSD and your system. Whether you are transferring large files or running resource-intensive applications, the increased speed ensures smooth and responsive performance.

2. Backward Compatibility

Another advantage of the SATA-6Gbps interface is its backward compatibility with previous SATA versions. This means that you can easily connect the HPE P08693-001 SSD to systems that only support older SATA interfaces, ensuring compatibility and ease of use. You won't have to worry about whether your system can accommodate the SSD or the need for additional adapters or converters.

3. Wide Availability

The SATA interface is widely adopted and supported by a vast range of devices, making it a reliable choice for users. Whether you are using a desktop computer, laptop, or even certain external storage enclosures, chances are they already have SATA ports available. This widespread compatibility ensures that you can seamlessly integrate the HPE P08693-001 SSD into your existing setup without any hassles.

Importance of SATA-6GBPS Interface

1. Enhanced System Performance

The SATA-6Gbps interface plays a crucial role in improving overall system performance. The increased data transfer speeds enable faster boot times, quicker application launches, and reduced loading times for files and programs. Whether you are a professional looking to increase productivity or a gamer seeking a seamless gaming experience, the SATA-6Gbps interface ensures that your system operates at its full potential.

2. Easy Upgradability

The availability and compatibility of the SATA-6Gbps interface make it an ideal choice for users who want to upgrade their storage without the need for extensive hardware modifications. If you already have a system with a SATA port, adding the HPE P08693-001 SSD is as simple as connecting a few cables. This simplicity allows for hassle-free upgrades and future-proofing your system.

Usage: Enterprise Performance

When it comes to enterprise-level performance, reliability, and endurance are crucial factors to consider. The HPE P08693-001 SSD is designed specifically for enterprise usage, offering exceptional performance that meets the demands of critical business applications.

Benefits of Enterprise Performance

1. Enhanced Reliability

Enterprise-grade SSDs, like the HPE P08693-001, undergo rigorous testing and quality control processes to ensure their reliability. This SSD is built to handle heavy workloads and demanding environments, making it suitable for mission-critical applications. With enhanced reliability, you can trust that your data is safe and accessible when you need it the most, minimizing the risk of unexpected failures and downtime.

2. Improved Endurance

Enterprise SSDs are designed to withstand constant use and high write-erase cycles. The HPE P08693-001 SSD offers improved endurance, allowing it to handle intense workloads without compromising performance or lifespan. This endurance ensures that the drive can consistently deliver fast and reliable performance over an extended period, making it an ideal choice for businesses that rely on continuous data access.

3. Advanced Data Protection

Enterprise SSDs often come equipped with advanced data protection features to safeguard critical information. The HPE P08693-001 SSD incorporates various technologies such as error correction codes (ECC), power-loss protection, and advanced wear leveling algorithms. These features help prevent data corruption, ensure data integrity, and protect against power outages or sudden system shutdowns.

Importance of Enterprise Performance

1. Uninterrupted Business Operations

For businesses, uninterrupted operations are essential to maintain productivity and meet customer demands. By utilizing an enterprise-grade SSD like the HPE P08693-001, organizations can rely on its high performance and endurance to handle heavy workloads without compromising speed or reliability. This ensures that critical applications run smoothly and data is readily accessible, minimizing any potential disruptions.

2. Increased Productivity

The enterprise performance offered by the HPE P08693-001 SSD translates into increased productivity for businesses. With faster access to data, employees can complete tasks more efficiently, reducing waiting times and improving overall workflow. Whether it's running complex business software or accessing large databases, the SSD's performance enables employees to work more effectively, resulting in enhanced productivity and ultimately, improved business outcomes.

In conclusion, the HPE P08693-001 SSD with its 960GB capacity provides users with ample storage space, improved performance, and future-proofing capabilities. The SATA-6Gbps interface offers faster data transfer speeds, compatibility, and ease of use. Finally, the enterprise performance of this SSD ensures reliability, endurance, and advanced data protection for critical business applications. With these features combined, the HPE P08693-001 SSD is a powerful storage solution that meets the needs of professionals and businesses alike.
