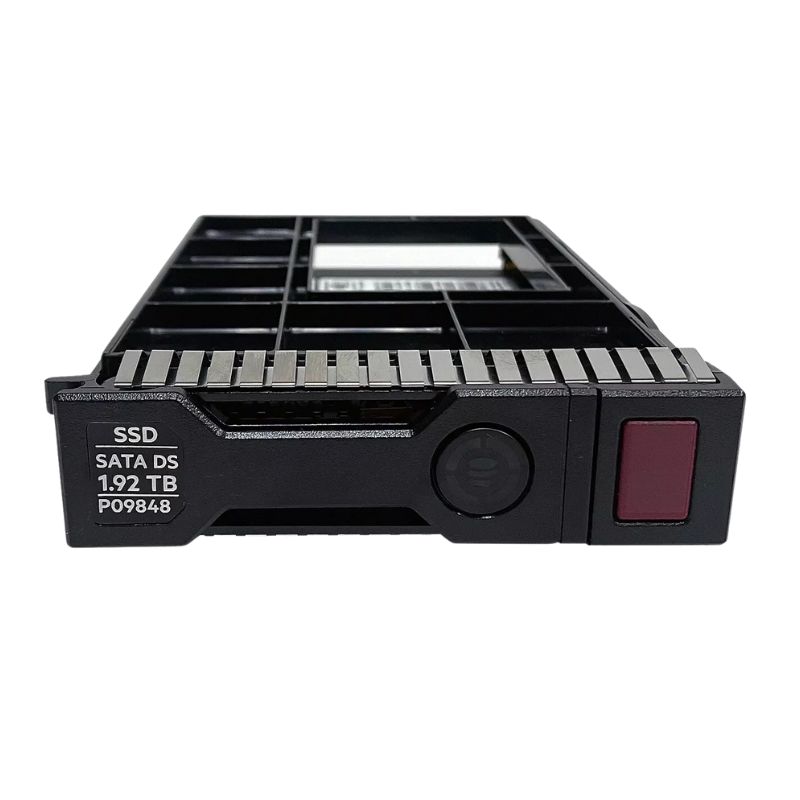

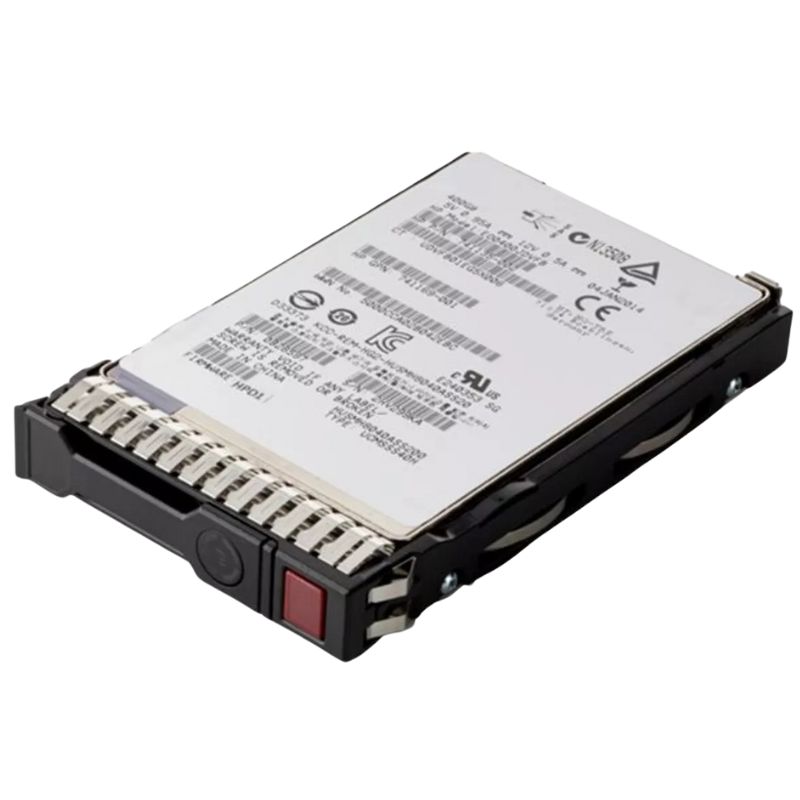

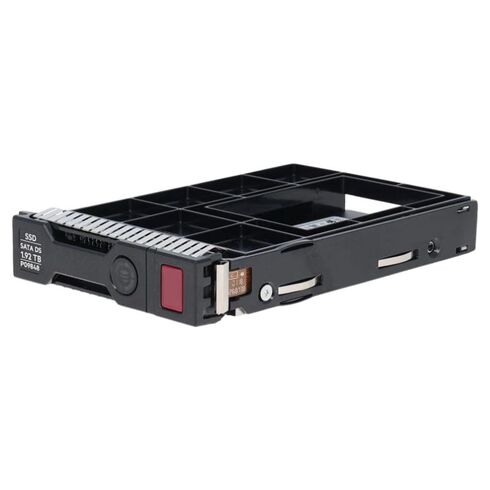

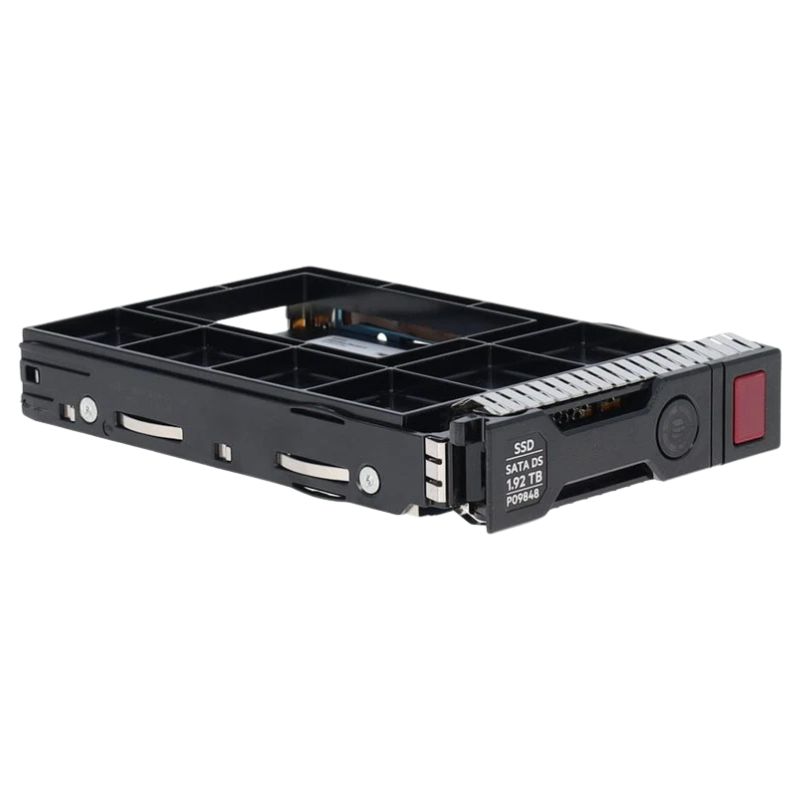

HPE P09693-H21 1.92TB 3.5in DS SATA-6GBPS SC RI SSD

HPE 1.92TB Hot-Swap SSD - Advanced Storage Solution

Product Overview

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Model Number/SKU: P09693-H21
• Device Type: Solid State Drive (SSD) - Hot-Swap
• Capacity: 1.92 TB, designed for data-heavy applications
• Form Factor: 3.5 inch LFF (Large Form Factor)
• Interface: SATA 6Gbps for high-speed connectivity
• Key Features: Digitally signed firmware for enhanced security
• Carrier Type: Smart Carrier Converter included
• Plug Type: Hot Plug for easy installation and maintenance
• Optimal Workload Type: Read Intensive workloads
• Bundled With: HPE Smart Carrier Converter

Performance Specifications

• External Drive Transfer Rate: 6 Gb/sec
• Lifetime Writes: 2,400 TB
• Endurance: 0.8 DWPD (Drive Writes Per Day)
• Random Read IOPS: 64,000 (4KB block size)
• Random Write IOPS: 30,000 (4KB block size)
• Maximum Random Read IOPS: 73,000 (4KB block size)
• Maximum Random Write IOPS: 30,000 (4KB block size)

Power Consumption Details

• Maximum Power Usage: 2.65 Watts
• Random Read Power: 2.22 Watts
• Random Write Power: 2.22 Watts
• Sequential Read Power: 1.78 Watts
• Sequential Write Power: 2.65 Watts

Dimensions and Weight

• Height: 5.63 inches
• Width: 3.75 inches
• Depth: 7.00 inches
• Weight: 1.35 lbs

Compatibility Information

Supported HPE ProLiant DL Series

• DL325 Gen10 (3.5 inch)
• DL325 Gen10 Entry (3.5 inch)
• DL325 Gen10 Performance (3.5 inch)
• DL325 Gen10 SMB Solution (3.5 inch)
• DL360 Gen10 (3.5 inch)
• DL360 Gen10 Base (3.5 inch)
• DL360 Gen10 Entry (3.5 inch)
• DL360 Gen10 High Performance (3.5 inch)
• DL360 Gen10 Low (3.5 inch)
• DL360 Gen10 Performance (3.5 inch)
• DL360 Gen10 Solution (3.5 inch)
• DL360 Gen9 (3.5 inch)
• DL360 Gen9 Base (3.5 inch)
• DL360 Gen9 CMS (3.5 inch)
• DL360 Gen9 Entry (3.5 inch)
• DL360 Gen9 Performance (3.5 inch)
• DL360 Gen9 Special Server (3.5 inch)
• DL380 Gen10 (3.5 inch)
• DL380 Gen10 Base (3.5 inch)
• DL380 Gen10 Entry (3.5 inch)
• DL380 Gen10 High Performance (3.5 inch)
• DL380 Gen10 Performance (3.5 inch)
• DL380 Gen10 Solution (3.5 inch)
• DL380 Gen9 (3.5 inch)
• DL380 Gen9 Base (3.5 inch)
• DL380 Gen9 Entry (3.5 inch)
• DL380 Gen9 High Performance (3.5 inch)
• DL380 Gen9 Performance (3.5 inch)
• DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block (3.5 inch)
• DL380 Gen9 Special (3.5 inch)
• DL385 Gen10 (3.5 inch)
• DL385 Gen10 Base (3.5 inch)
• DL385 Gen10 Entry (3.5 inch)
• DL385 Gen10 High-Performance (3.5 inch)
• DL385 Gen10 Performance (3.5 inch)
• DL385 Gen10 Solution (3.5 inch)

Supported HPE ProLiant ML Series

• ML30 Gen9 (3.5 inch)
• ML30 Gen9 Base (3.5 inch)
• ML30 Gen9 Entry (3.5 inch)
• ML30 Gen9 Performance (3.5 inch)
• ML30 Gen9 Solution (3.5 inch)

Capacity: 1.92TB

The Power of High Capacity Storage

In today's fast-paced digital world, where data is constantly being generated and consumed, having sufficient storage capacity is crucial. The HPE P09693-H21 SSD offers an impressive capacity of 1.92TB, ensuring that you have ample space to store your valuable data.

Store More Data

With 1.92TB of storage, you can store an extensive amount of data without worrying about running out of space. Whether you are a professional photographer with a vast collection of high-resolution images or a video editor working with large video files, the generous capacity of this SSD allows you to keep all your files in one place.

Improved Efficiency and Productivity

Having a high-capacity SSD like the HPE P09693-H21 means that you can access your data quickly and easily. This eliminates the need for constantly transferring files between different storage devices, saving you time and increasing your overall productivity.

Seamless Multitasking

By providing 1.92TB of storage space, this SSD enables you to run multiple applications simultaneously without experiencing any slowdowns or performance issues. Whether you are running resource-intensive software or handling complex tasks, the ample capacity ensures that your system can handle it all.

Future-Proof Your Storage Needs

As technology continues to evolve and file sizes continue to increase, having a high-capacity SSD becomes even more important. By investing in the HPE P09693-H21 with its 1.92TB capacity, you can future-proof your storage needs and ensure that you have enough space for your growing data requirements.

Form Factor: 3.5in

A Perfect Fit for Your System

The HPE P09693-H21 SSD features a form factor of 3.5in, making it an ideal choice for various systems and applications. This form factor offers several benefits and ensures compatibility with a wide range of devices.

Easy Installation and Integration

The 3.5in form factor is a standard size used in many desktop and server systems, making the installation process a breeze. Whether you are upgrading your existing system or building a new one, the HPE P09693-H21 will seamlessly integrate into your setup without requiring any additional adapters or modifications.

Optimal Cooling and Heat Dissipation

The larger form factor of 3.5in allows for better airflow within your system, helping to keep the SSD cool during operation. This ensures that the HPE P09693-H21 performs optimally without overheating, leading to improved longevity and reliability.

Expandable Storage Capacity

With the 3.5in form factor, you have the flexibility to expand your storage capacity in the future. If you find that you need more storage space down the line, simply add additional HPE P09693-H21 SSDs without worrying about compatibility issues or space constraints.

Compatible with Various Systems

The 3.5in form factor is widely supported by different operating systems and hardware configurations. Whether you are using Windows, macOS, or Linux, you can be confident that the HPE P09693-H21 will work seamlessly with your system, providing you with reliable and high-performance storage.

Interface: SATA-6GBPS

Blazing Fast Data Transfer Speeds

The HPE P09693-H21 SSD utilizes the SATA-6GBPS interface, offering lightning-fast data transfer speeds. This interface provides numerous benefits to users, ensuring a smooth and efficient data storage experience.

Enhanced Performance

With a SATA-6GBPS interface, the HPE P09693-H21 allows for significantly faster data transfer rates compared to traditional hard drives. This means that you can access your files and applications more quickly, leading to improved overall system performance.

Seamless Multimedia Experience

Whether you are editing videos, working with large image files, or playing graphics-intensive games, the SATA-6GBPS interface ensures that your system can handle the demands of multimedia applications. You can enjoy smooth playback, quick rendering, and reduced loading times, enhancing your overall multimedia experience.

Efficient File Transfers

Transferring large files or backing up your data can be time-consuming with slower interfaces. The SATA-6GBPS interface of the HPE P09693-H21 SSD allows for rapid file transfers, saving you valuable time and ensuring that your data is backed up or transferred seamlessly.

Compatibility and Versatility

The SATA-6GBPS interface is a widely supported standard in the industry, ensuring compatibility with a wide range of devices. Whether you are using a desktop computer, laptop, or server, you can connect the HPE P09693-H21 without any compatibility issues, providing you with versatile storage options.

Intended Use: Read Intensive

A Reliable Solution for Read-Intensive Workloads

The HPE P09693-H21 SSD is specifically designed for read-intensive workloads, making it an excellent choice for applications that require frequent data access. This intended use offers several benefits and ensures optimal performance in demanding environments.

Faster Data Retrieval

Read-intensive workloads often involve accessing large amounts of data from storage devices. With the HPE P09693-H21, you can expect faster data retrieval speeds, allowing your applications to access the required information quickly. This is particularly beneficial for tasks such as data analysis, content delivery, and virtualization.

Improved Endurance and Reliability

The HPE P09693-H21 is engineered to handle read-intensive workloads, resulting in enhanced endurance and reliability. The SSD's architecture and firmware optimizations enable it to withstand continuous read operations without compromising performance or longevity. This ensures that your data remains safe and accessible even during intense usage.

Reduced Power Consumption

Read-intensive workloads often involve constant data retrieval, leading to increased power consumption. The HPE P09693-H21 SSD is designed to minimize power usage during read operations, helping to reduce energy costs and prolong battery life in portable devices.

Enhanced Data Security

Data security is critical in any environment, especially when dealing with read-intensive workloads. The HPE P09693-H21 features advanced security features such as self-encrypting drives (SED) that protect your data from unauthorized access. This ensures that your sensitive information remains secure, even in demanding usage scenarios.

In conclusion, the HPE P09693-H21 SSD offers a combination of high capacity, versatile form factor, fast interface, and optimized performance for read-intensive workloads. Whether you are a professional user or a casual consumer, these features provide numerous benefits such as ample storage space, seamless integration, improved system performance, faster data transfer speeds, compatibility with various systems, and enhanced endurance. With the HPE P09693-H21 SSD, you can confidently store and access your data while enjoying a reliable and efficient storage solution.
