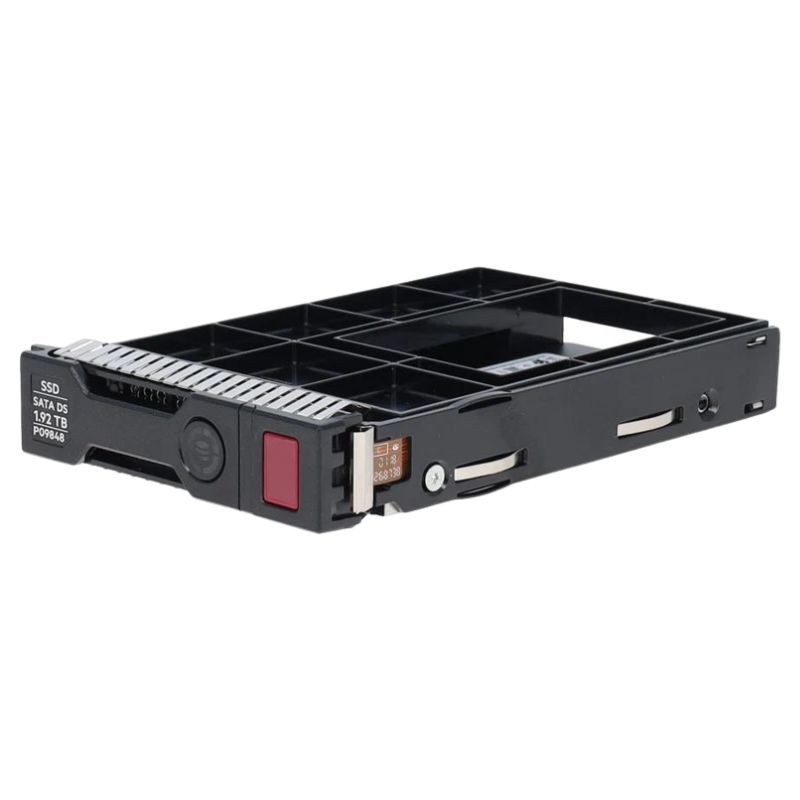

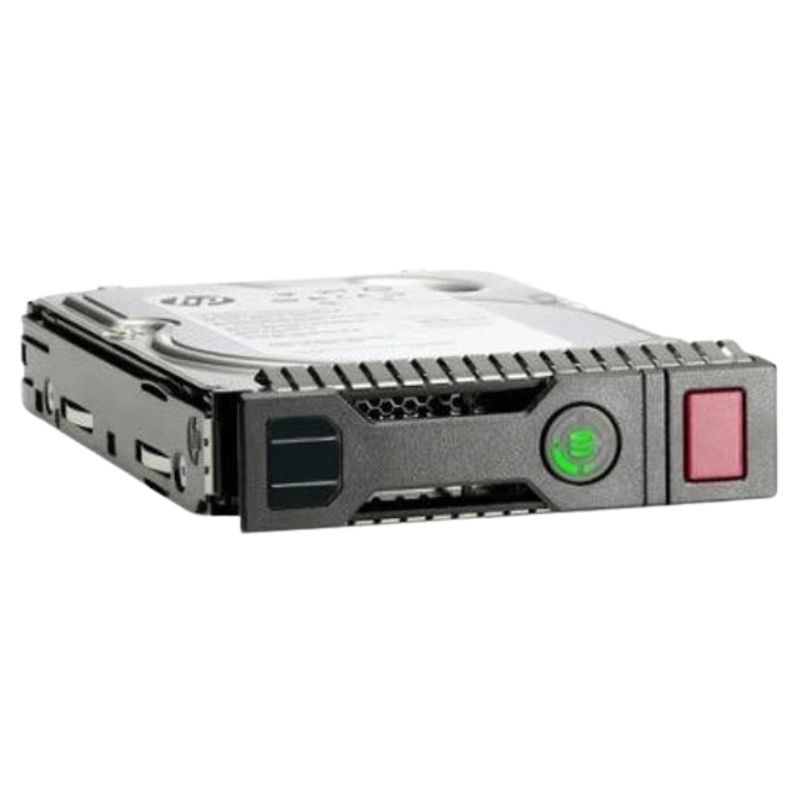

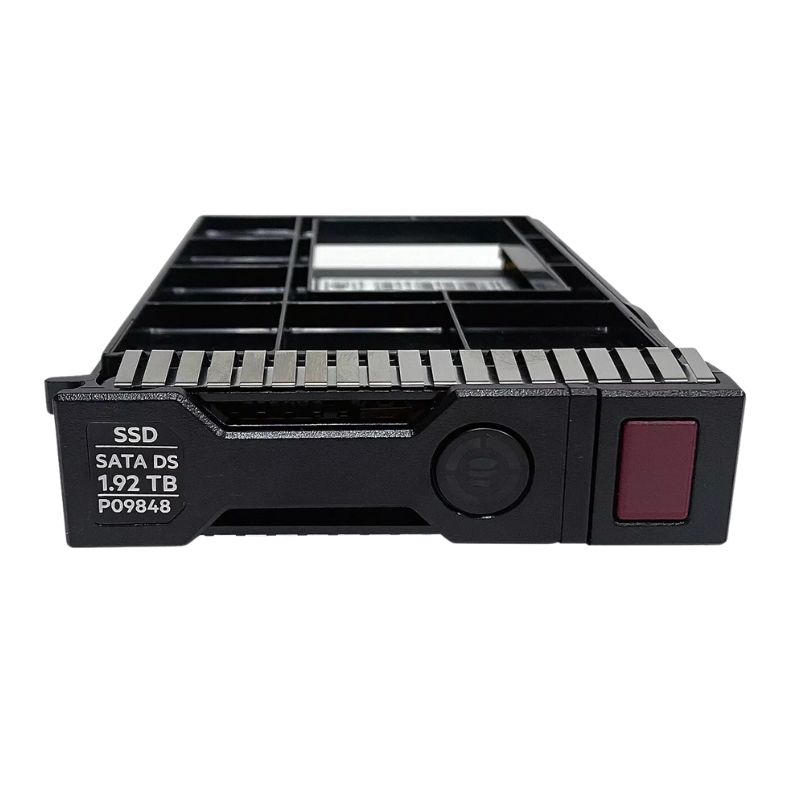

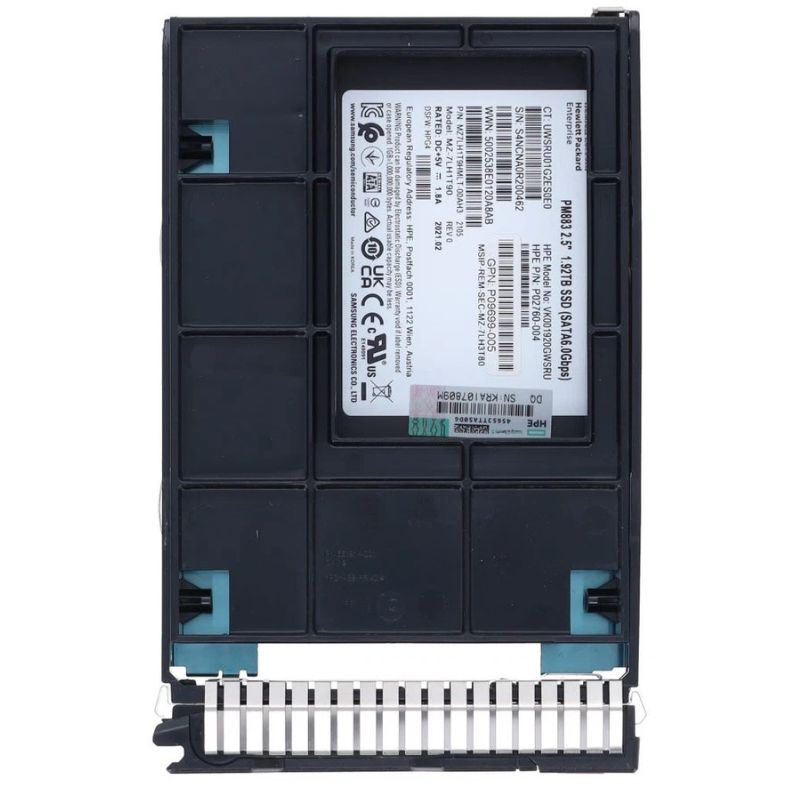

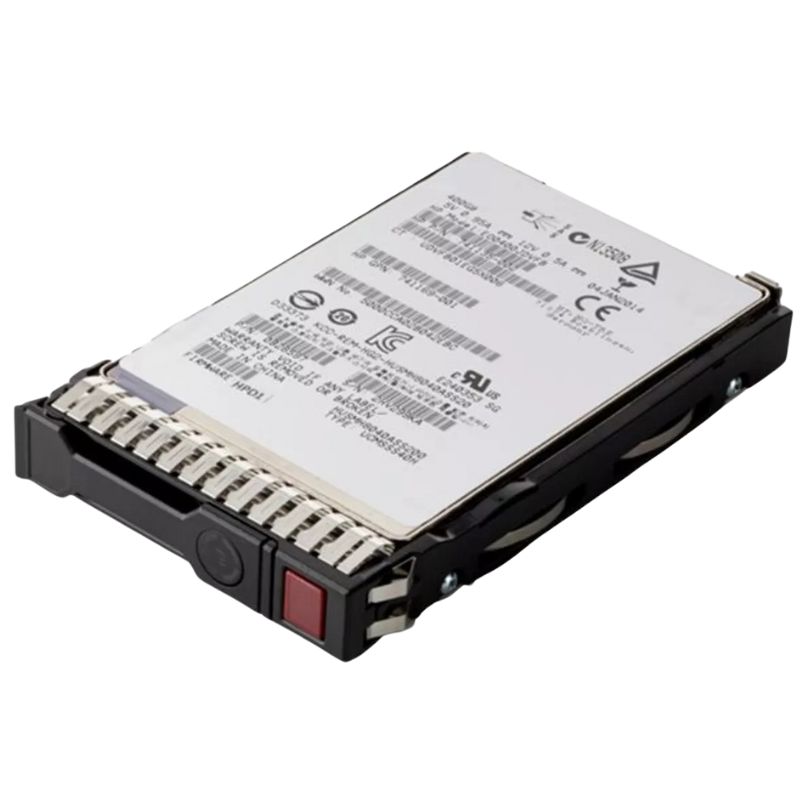

HPE P09693-K21 1.92TB DS SATA-6GBPS SC RI SSD

HPE 1.92TB Hot-Swap SSD - Comprehensive Details

Essential Information

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Model Number/SKU: P09693-K21
• Device Category: Solid State Drive (SSD) - Hot-Swap capability
• Storage Capacity: 1.92 TB for extensive data management
• Form Factor: 3.5 inch LFF (Large Form Factor)
• Connection Interface: SATA-6Gbps for superior data transfer speeds
• Key Features: Includes Digitally Signed Firmware for security assurance
• Carrier Type: Comes with Smart Carrier Converter
• Plug Type: Hot Plug functionality for seamless operation
• Workload Classification: Optimized for Read Intensive tasks
• Included Accessories: HPE Smart Carrier Converter

Performance Metrics

• External Drive Transfer Rate: 6 Gb/sec
• Lifetime Writes: 2,400 TB
• Endurance Rating: 0.8 DWPD (Drive Writes Per Day)
• Random Read IOPS: 64,000 (4KB block size)
• Random Write IOPS: 30,000 (4KB block size)
• Maximum Random Read IOPS: 73,000 (4KB block size)
• Maximum Random Write IOPS: 30,000 (4KB block size)

Power Consumption Specifications

• Maximum Power Consumption: 2.65 Watts
• Random Read Power Usage: 2.22 Watts
• Random Write Power Usage: 2.22 Watts
• Sequential Read Power Consumption: 1.78 Watts
• Sequential Write Power Consumption: 2.65 Watts

Physical Dimensions and Weight

• Height: 5.63 inches
• Width: 3.75 inches
• Depth: 7.00 inches
• Weight: 1.35 lbs

Compatibility Overview

Supported HPE ProLiant DL Series

• DL325 Gen10 (3.5 inch)
• DL325 Gen10 Entry (3.5 inch)
• DL325 Gen10 Performance (3.5 inch)
• DL325 Gen10 SMB Solution (3.5 inch)
• DL360 Gen10 (3.5 inch)
• DL360 Gen10 Base (3.5 inch)
• DL360 Gen10 Entry (3.5 inch)
• DL360 Gen10 High Performance (3.5 inch)
• DL360 Gen10 Low (3.5 inch)
• DL360 Gen10 Performance (3.5 inch)
• DL360 Gen10 Solution (3.5 inch)
• DL360 Gen9 (3.5 inch)
• DL360 Gen9 Base (3.5 inch)
• DL360 Gen9 CMS (3.5 inch)
• DL360 Gen9 Entry (3.5 inch)
• DL360 Gen9 Performance (3.5 inch)
• DL360 Gen9 Special Server (3.5 inch)
• DL380 Gen10 (3.5 inch)
• DL380 Gen10 Base (3.5 inch)
• DL380 Gen10 Entry (3.5 inch)
• DL380 Gen10 High Performance (3.5 inch)
• DL380 Gen10 Performance (3.5 inch)
• DL380 Gen10 Solution (3.5 inch)
• DL380 Gen9 (3.5 inch)
• DL380 Gen9 Base (3.5 inch)
• DL380 Gen9 Entry (3.5 inch)
• DL380 Gen9 High Performance (3.5 inch)
• DL380 Gen9 Performance (3.5 inch)
• DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block (3.5 inch)
• DL380 Gen9 Special (3.5 inch)
• DL385 Gen10 (3.5 inch)
• DL385 Gen10 Base (3.5 inch)
• DL385 Gen10 Entry (3.5 inch)
• DL385 Gen10 High Performance (3.5 inch)
• DL385 Gen10 Performance (3.5 inch)
• DL385 Gen10 Solution (3.5 inch)

Supported HPE ProLiant ML Series

• ML30 Gen9 (3.5 inch)
• ML30 Gen9 Base (3.5 inch)
• ML30 Gen9 Entry (3.5 inch)
• ML30 Gen9 Performance (3.5 inch)
• ML30 Gen9 Solution (3.5 inch)

Capacity

The HPE P09693-K21 SSD is equipped with a generous capacity of 1.92TB, making it an ideal storage solution for users who require ample space to store their data. Whether you are a professional who deals with large files or a casual user who wants to keep all their media files in one place, this SSD has got you covered.

Benefits of 1.92TB Capacity

Having a large capacity like 1.92TB offers several benefits that enhance your overall user experience.

Ample Storage Space

The primary advantage of a high-capacity SSD is the ability to store a vast amount of data. With 1.92TB at your disposal, you can store numerous files, including documents, photos, videos, and games, without worrying about running out of space. This ensures that you have all your important data accessible whenever you need it.

Seamless Multitasking

A larger capacity SSD allows for seamless multitasking. You can run multiple applications simultaneously without experiencing any slowdowns or performance issues. This is especially beneficial for professionals who work with resource-intensive software or individuals who enjoy running demanding applications and games.

Quick Data Access

The 1.92TB capacity enables faster access to your stored data. With more space available, the SSD can efficiently organize and locate files, reducing the time it takes to retrieve them. This means that you can access your files quickly, boosting productivity and saving valuable time.

Importance of 1.92TB Capacity

The importance of having a 1.92TB capacity cannot be overstated, particularly in today's data-driven world where the volume of digital content is rapidly increasing. Here are a few reasons why this capacity is crucial:

Future-Proofing

Investing in a high-capacity SSD like the HPE P09693-K21 ensures that you have enough space to accommodate future data growth. As file sizes continue to increase due to higher resolution images, videos, and complex software, having 1.92TB will provide you with peace of mind, knowing that you won't run out of storage space anytime soon.

Reduced Need for External Storage

With 1.92TB of storage, you can significantly reduce or eliminate the need for external storage devices. This not only saves you money but also simplifies your setup by keeping all your files in one place. You can enjoy the convenience of having everything readily accessible without the hassle of managing multiple storage devices.

Interface

The HPE P09693-K21 SSD features a SATA-6GBPS interface, providing users with a high-speed and reliable connection to their system. The SATA-6GBPS interface is widely used and offers numerous benefits for users seeking optimal performance and compatibility.

Benefits of SATA-6GBPS Interface

The SATA-6GBPS interface brings several advantages that enhance the overall performance of your system.

Fast Data Transfer Speeds

One of the primary benefits of the SATA-6GBPS interface is its fast data transfer speeds. It allows for data to be transferred at up to 6Gbps (gigabits per second), significantly faster than its predecessor, the SATA II interface. This means that you can transfer large files or perform backups quickly, saving you valuable time.

Compatibility

The SATA-6GBPS interface is widely supported by most modern computers and motherboards. This ensures that the HPE P09693-K21 SSD can easily be integrated into your system without compatibility issues. Whether you have a desktop, laptop, or server, chances are it will have a SATA-6GBPS port available for seamless installation.

Hot Swapping

The SATA-6GBPS interface supports hot swapping, allowing you to connect or disconnect the SSD while the system is running. This feature is particularly useful in scenarios where you need to quickly replace or upgrade your storage without shutting down your computer. It adds convenience and flexibility to your workflow.

Importance of SATA-6GBPS Interface

The importance of the SATA-6GBPS interface lies in its ability to provide users with a fast and reliable connection to their system. Here are a few reasons why this interface is important:

Optimal Performance

With data transfer speeds of up to 6Gbps, the SATA-6GBPS interface ensures that you can fully utilize the speed capabilities of the HPE P09693-K21 SSD. This results in faster application and file load times, smoother multitasking, and an overall improved user experience.

Easy Integration

The widespread compatibility of the SATA-6GBPS interface makes it easy to integrate the HPE P09693-K21 SSD into your existing system. You won't have to worry about finding specific connectors or adapters, as most modern systems already support this interface. This simplifies the installation process and allows for a hassle-free upgrade.

Intended Use

The HPE P09693-K21 SSD is specifically designed for read-intensive workloads, making it an ideal choice for users who prioritize fast data retrieval and access. This SSD's read-intensive nature offers several benefits that cater to the needs of various users.

Benefits of Read Intensive SSD

Choosing a read-intensive SSD like the HPE P09693-K21 provides users with numerous advantages that enhance performance and reliability.

Fast Data Retrieval

A read-intensive SSD prioritizes read operations, resulting in faster data retrieval times. This is particularly beneficial in scenarios where you frequently access large files or need to quickly load applications. The HPE P09693-K21 ensures that you can access your data promptly, improving overall productivity and user experience.

Enhanced Endurance

Read-intensive SSDs are designed to handle a high volume of read operations, resulting in enhanced endurance. This means that the HPE P09693-K21 can withstand prolonged usage without experiencing significant wear or performance degradation. It is an excellent choice for users who require a reliable storage solution that can handle continuous data retrieval.

Cost-Effective Solution

Read-intensive SSDs are typically more cost-effective than write-intensive counterparts. They are optimized for read-heavy workloads, making them an affordable option for users who primarily focus on data access rather than extensive write operations. The HPE P09693-K21 allows you to enjoy the benefits of an SSD without breaking the bank.

Importance of Read Intensive SSD

The importance of a read-intensive SSD like the HPE P09693-K21 lies in its ability to cater to specific user requirements and provide performance benefits. Here are a few reasons why this feature is important:

Faster Data Access

By prioritizing read operations, a read-intensive SSD ensures that you can access your data quickly. This is particularly crucial for professionals who deal with large datasets or frequently access files for their work. The HPE P09693-K21 allows you to reduce downtime and complete tasks more efficiently.

Reliability for Continuous Access

A read-intensive SSD's enhanced endurance ensures that it can handle continuous data retrieval without compromising on performance or reliability. This makes it an ideal choice for servers, databases, and other applications that require constant access to data. The HPE P09693-K21 ensures that you can rely on your storage solution even under heavy workloads.

In conclusion, the HPE P09693-K21 SSD offers a generous capacity of 1.92TB, providing ample space for storing various types of data. Its SATA-6GBPS interface ensures fast data transfer speeds and compatibility with most modern systems. The read-intensive nature of this SSD prioritizes fast data retrieval, enhancing performance and reliability. Whether you are a professional seeking high-performance storage or a casual user in need of a reliable and spacious SSD, the HPE P09693-K21 is an excellent choice.
