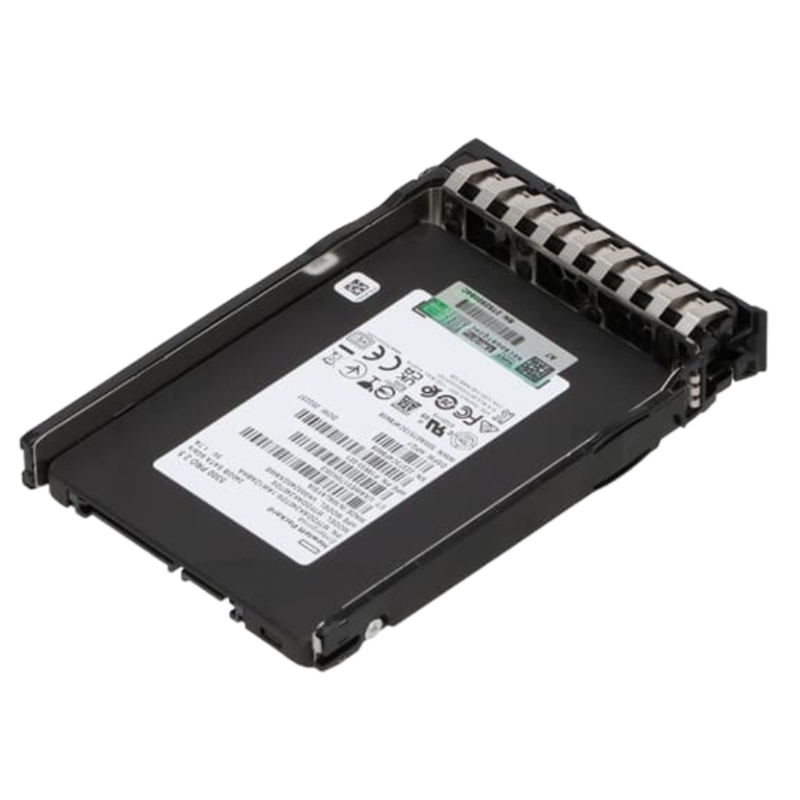

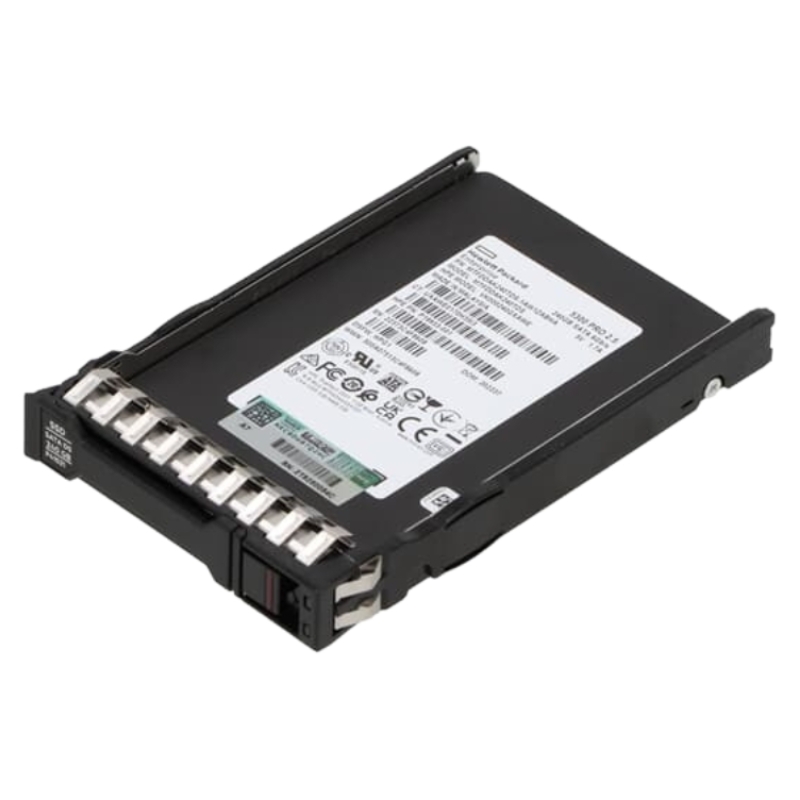

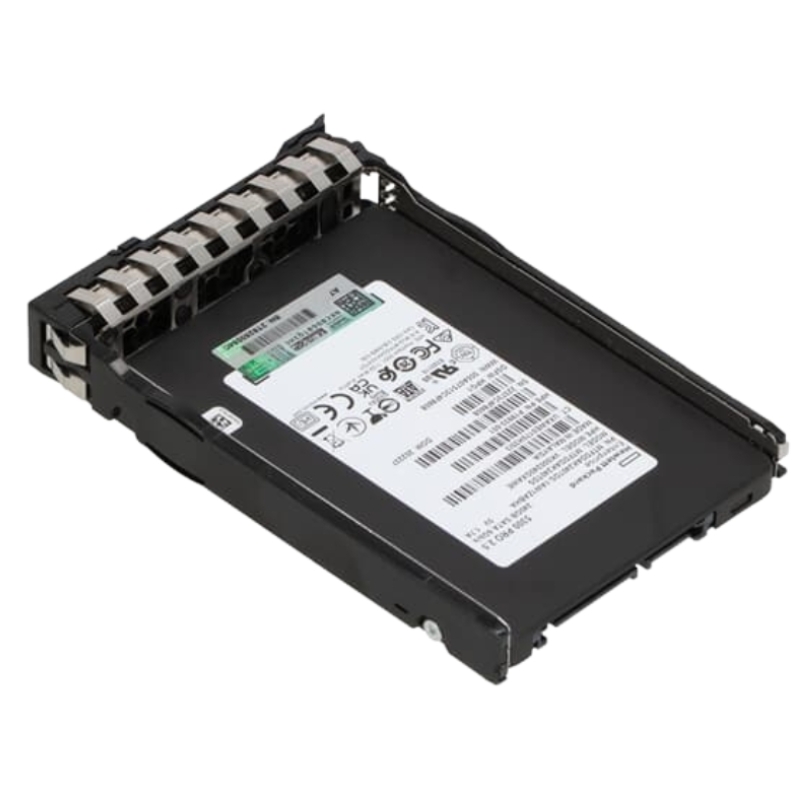

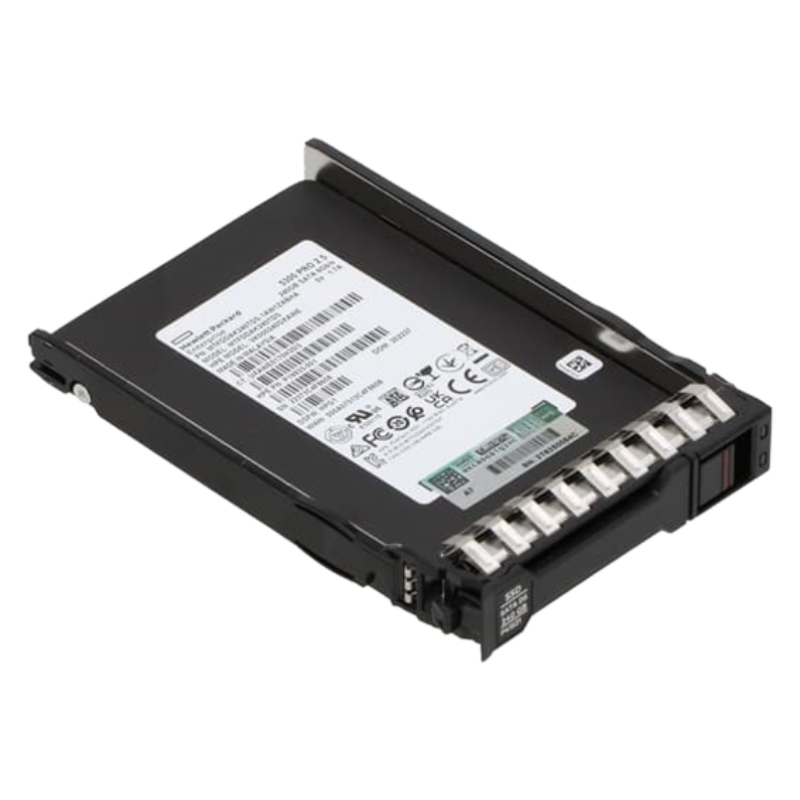

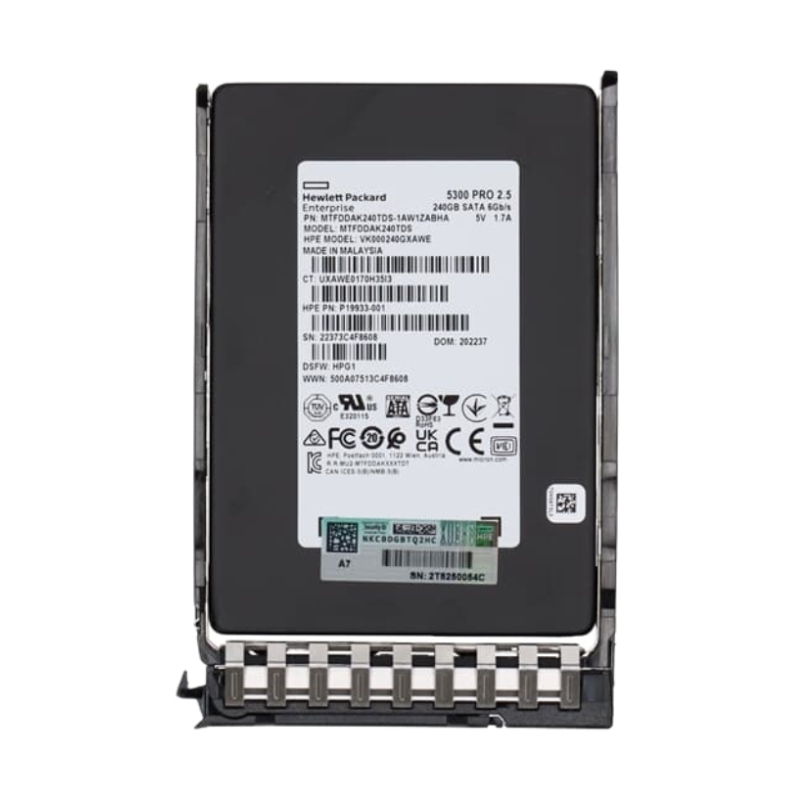

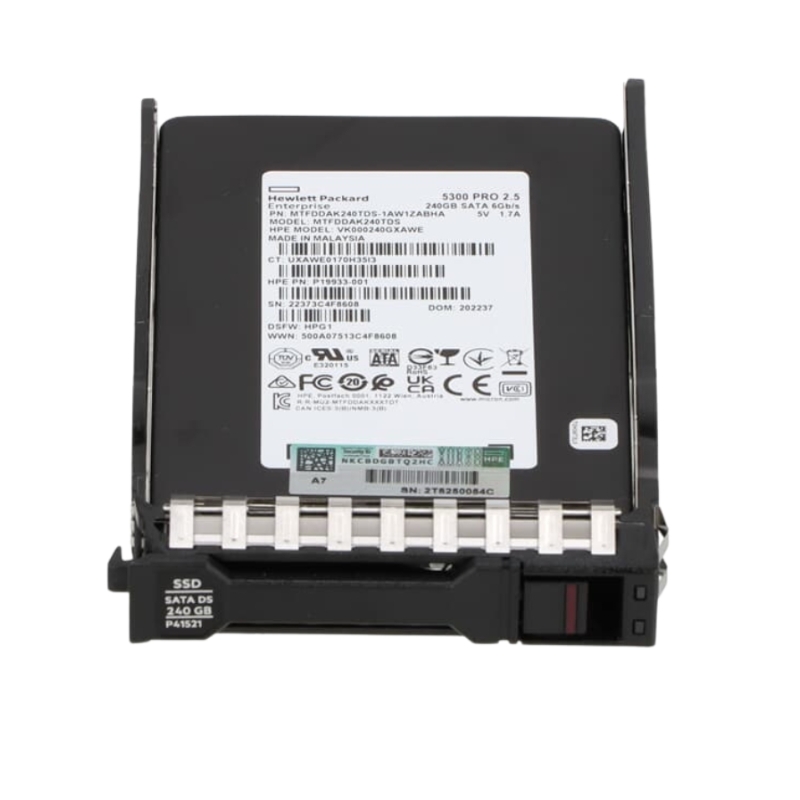

HPE P18420-X21 240GB SATA 6GBPS SC Read Intensive DS 2.5in SFF SSD
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Same product also available in:
SKU/MPN | Warranty | Price | Condition | You save |
---|---|---|---|---|
P18420-X21 | Six-Month (180 Days) | $83.27 | Excellent Refurbished | You save: $50.38 (38%) |
P18420-X21 | Six-Month (180 Days) | $147.26 | Factory-Sealed New in Original Box (FSB) | You save: $80.89 (35%) |
Product Overview
Manufacturer Details
- Brand: Hewlett Packard Enterprise (HPE)
- Model Number: P18420-X21
- Spare Part Number: P18481-001
- SKU: P18420-X21
Drive Specifications
- Drive Type: Hot-Swap Solid State Drive
- Interface Type: SATA-6GBPS
- Storage Capacity: 240 GB
- Form Factor: 2.5 inch SFF
- NAND Flash Memory: Triple-Level Cell (TLC)
- Connectivity: Single Port
- Hot Pluggable: Yes
- Carrier Type: Smart Carrier (SC)
- Workload Classification: Read Intensive
- Included: HPE Smart Drive Carrier (SC)
- Firmware Features: Digitally Signed Firmware (DS), Multi-Vendor SSD Compatibility
- Supported Platforms: HPE ProLiant Rack/Tower/BladeSystem Servers, Synergy
Performance Metrics
Write and Endurance Ratings
- Lifetime Writes: 350 TBW
- Endurance (DWPD): 1 Drive Writes Per Day
Data Transfer Rates
- External Transfer Rate: 6 GB/s
- Random Read IOPS (4KiB, Q=16): 57,000
- Max Random Read IOPS (4KiB): 65,000 @ Q32
- Random Write IOPS (4KiB, Q=16): 14,000
- Max Random Write IOPS (4KiB): 10,500 @ Q1
- Maximum Sequential Read Throughput: 505 MiB/s
- Maximum Sequential Write Throughput: 255 MiB/s
- Random Read Average Latency: 203 µSec (4KiB, Q1)
- Random Write Average Latency: 121 µSec (4KiB, Q1)
Power Specifications
Power Consumption
- Idle State: 1.23 Watts
- Random Read Operation: 2.48 Watts
- Random Write Operation: 2.48 Watts
- Sequential Read: 2.21 Watts
- Sequential Write: 2.44 Watts
- Random Read/Write: 2.48 Watts
- Maximum Consumption: 2.48 Watts
Dimensions and Weight
- Height: 0.63 inches
- Width: 3.10 inches
- Depth: 5.45 inches
- Weight: 1.50 lbs
Compatibility
Supported HPE ProLiant DL Series
- DL160 Gen10 (2.5 inch)
- DL180 Gen10 (2.5 inch)
- DL325 Gen10 (2.5 inch)
- DL360 Gen10 (2.5 inch)
- DL380 Gen10 (2.5 inch)
- DL580 Gen10 (2.5 inch)
Supported HPE ProLiant ML Series
- ML110 Gen10 (2.5 inch)
- ML30 Gen10 (2.5 inch)
Supported HPE Synergy Series
- 480 Gen10 Compute Module (2.5 inch)
- 660 Gen10 Compute Module (2.5 inch)
Capacity: 240GB
When it comes to storage capacity, the HPE P18420-X21 SSD stands out with its impressive 240GB storage space. This feature plays a crucial role in determining the overall performance and functionality of the solid-state drive.
Increased Storage Space
The 240GB capacity offers ample room to store a wide range of files, applications, and data. Whether you are a casual user or a professional who deals with large files and heavy workloads, this SSD provides sufficient storage space to meet your needs.
With the increasing size of multimedia files, such as high-definition videos and high-resolution images, having a larger capacity becomes essential. The 240GB capacity ensures that you can store a significant amount of these files without worrying about running out of space.
Improved Performance
Aside from the convenience of having ample storage space, the 240GB capacity also contributes to improved performance. When a solid-state drive has more free space available, it allows for better wear leveling and improved overall performance.
Wear leveling is a process that evenly distributes data across the SSD to prevent excessive wear on specific memory cells. With more storage space available, wear leveling becomes more effective, leading to enhanced durability and longevity of the drive.
Furthermore, having a larger capacity allows for faster read and write speeds. This means that you can expect quick access to your files and applications, resulting in reduced loading times and improved productivity.
Flexibility for Different Users
The 240GB capacity strikes a balance between affordability and functionality. It caters to a wide range of users, including individuals, small businesses, and professionals who require a reliable storage solution without breaking the bank.
For individuals, the 240GB capacity offers enough space to store personal files, documents, and multimedia content. It can easily accommodate the average user's needs, including gaming, media consumption, and everyday computing tasks.
Small businesses can also benefit from this capacity as it provides sufficient storage for important files and applications. With the ability to store critical data securely, businesses can ensure smooth operations and prevent any potential information loss.
Importance of the 240GB Capacity
The 240GB capacity is crucial for users who require a balance between storage space, performance, and affordability. Whether you are a casual user or a professional, having adequate storage is essential to handle your daily computing needs.
Additionally, the 240GB capacity ensures compatibility with various devices and operating systems. It allows you to seamlessly integrate the SSD into your existing setup without any compatibility issues.
Conclusion
The HPE P18420-X21 SSD's 240GB capacity provides users with ample storage space while delivering improved performance and flexibility. Whether you need to store personal files or run demanding applications, this SSD ensures that you have sufficient storage without compromising on speed or reliability.
Interface: SATA 6Gbps
One of the standout features of the HPE P18420-X21 SSD is its SATA 6Gbps interface. This interface plays a crucial role in determining the speed and efficiency of data transfer between the solid-state drive and other components of your system.
Enhanced Data Transfer Speeds
The SATA 6Gbps interface offers significantly faster data transfer speeds compared to its predecessors. With a maximum transfer rate of 6 gigabits per second, this interface ensures quick and efficient communication between the SSD and your computer.
Thanks to the fast transfer speeds, you can expect reduced loading times and improved overall system responsiveness. Whether you are transferring large files, running demanding applications, or booting up your system, the SATA 6Gbps interface ensures smooth and lag-free performance.
Backward Compatibility
Another advantage of the SATA 6Gbps interface is its backward compatibility with previous SATA versions. This means that the HPE P18420-X21 SSD can be easily integrated into systems that support SATA 3Gbps or even SATA 1.5Gbps.
With backward compatibility, you can upgrade your system's storage without worrying about compatibility issues. This flexibility allows you to use the SSD in a wide range of devices, including laptops, desktops, and external storage enclosures.
Improved System Efficiency
The SATA 6Gbps interface not only enhances data transfer speeds but also improves overall system efficiency. By providing a faster and more reliable connection between the SSD and other components, it eliminates potential bottlenecks and ensures optimal performance.
Whether you are a gamer who requires quick loading times or a professional who deals with large datasets, the SATA 6Gbps interface ensures that your system operates at its full potential. It allows for seamless multitasking and smooth execution of resource-intensive tasks.
Conclusion
The HPE P18420-X21 SSD's SATA 6Gbps interface offers fast data transfer speeds, backward compatibility, and improved system efficiency. Whether you need to transfer files quickly or enhance your system's performance, this interface provides the necessary speed and flexibility for a seamless computing experience.
Form Factor: 2.5inch SFF
The form factor of a solid-state drive is an essential consideration when choosing the right storage solution for your needs. The HPE P18420-X21 SSD features a 2.5inch SFF (Small Form Factor) design, which offers several benefits in terms of compatibility, installation, and flexibility.
Compatibility with Various Devices
The 2.5inch SFF form factor is widely recognized and supported by a vast range of devices, including laptops, desktops, servers, and external storage enclosures. This compatibility ensures that you can use the HPE P18420-X21 SSD in various systems without any issues.
Whether you are upgrading your laptop's storage or adding additional storage capacity to your server, the 2.5inch SFF form factor allows for seamless integration. This versatility makes the HPE P18420-X21 SSD a suitable choice for both personal and professional use.
Easy Installation
The 2.5inch SFF form factor offers a straightforward and hassle-free installation process. Most devices that support this form factor feature dedicated drive bays or slots specifically designed to accommodate 2.5inch drives.
With a simple plug-and-play installation, you can quickly upgrade your system's storage capacity without the need for any additional adapters or modifications. This convenience saves you time and effort, allowing you to focus on using your newly installed SSD immediately.
Flexibility in Configuration
The 2.5inch SFF form factor provides flexibility when it comes to configuring your storage setup. Whether you prefer a single drive or a RAID array, this form factor allows you to choose the configuration that best suits your needs.
If you require additional storage space in the future, the 2.5inch SFF form factor allows for easy expansion. You can add more drives to your system without having to reconfigure or modify the existing setup significantly.
Conclusion
The 2.5inch SFF form factor of the HPE P18420-X21 SSD offers compatibility with various devices, easy installation, and flexibility in configuration. Whether you are upgrading your laptop or expanding your server's storage capacity, this form factor provides convenience and versatility.
Intended Use: Read Intensive
The HPE P18420-X21 SSD is specifically designed for read-intensive workloads. This designation makes it an ideal choice for applications that involve frequent reading of data, such as content delivery networks, data analytics, and media streaming.
Optimized Read Performance
As a read-intensive SSD, the HPE P18420-X21 excels in delivering exceptional read performance. It focuses on providing fast and efficient access to stored data, enabling quick retrieval and processing.
This optimized read performance is crucial for applications that heavily rely on accessing large datasets or streaming content in real-time. With the HPE P18420-X21 SSD, you can expect smooth playback of high-definition videos, rapid data retrieval for analytics, and responsive browsing experiences.
Enhanced Reliability
Read-intensive SSDs are designed to handle repetitive read operations effectively. The HPE P18420-X21 SSD utilizes advanced error correction algorithms and wear-leveling techniques to ensure data integrity and maximize drive lifespan.
By prioritizing read operations, this SSD reduces the wear on memory cells, resulting in improved durability. This enhanced reliability is essential for applications that require constant access to stored data without compromising on performance or risking data loss.
Energy Efficiency
The HPE P18420-X21 SSD's read-intensive design offers energy efficiency benefits. Since read operations consume less power compared to write operations, this SSD minimizes energy consumption while providing high performance.
For organizations that operate large-scale data centers or rely on multiple SSDs, the energy-efficient design of the HPE P18420-X21 can lead to substantial cost savings. It reduces power usage, lowers cooling requirements, and contributes to a greener and more sustainable IT infrastructure.
Conclusion
The HPE P18420-X21 SSD's read-intensive designation ensures optimized read performance, enhanced reliability, and energy efficiency. Whether you are in the content delivery industry, data analytics field, or require responsive media streaming, this SSD is designed to meet your specific read-intensive needs.
