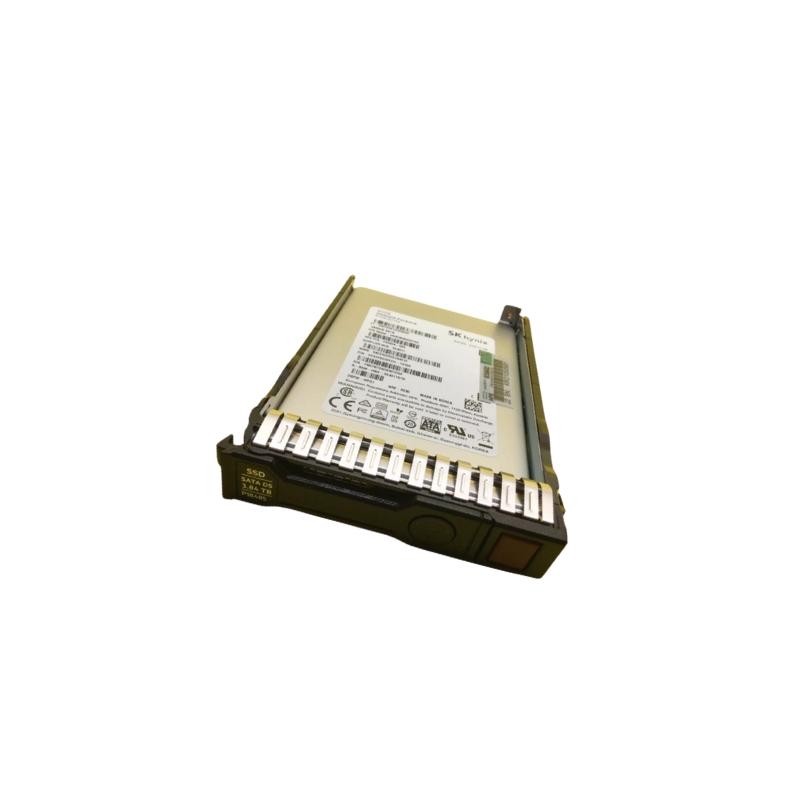

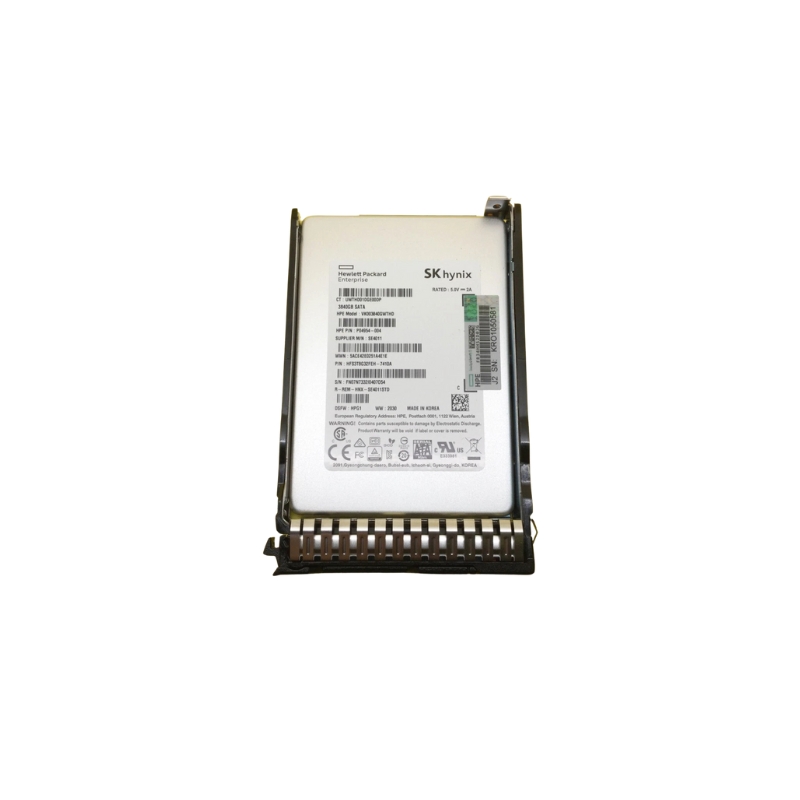

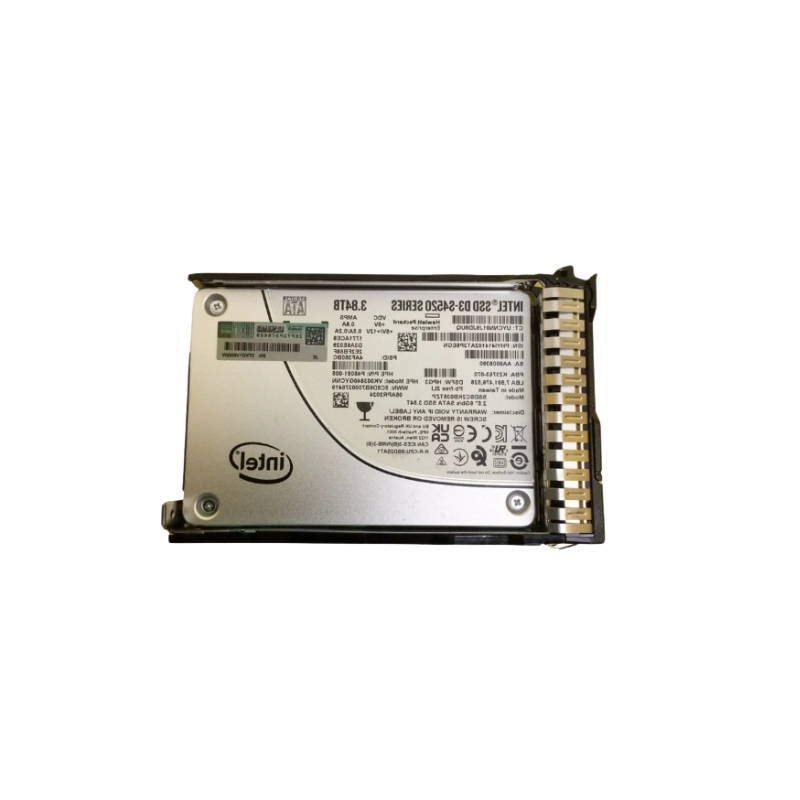

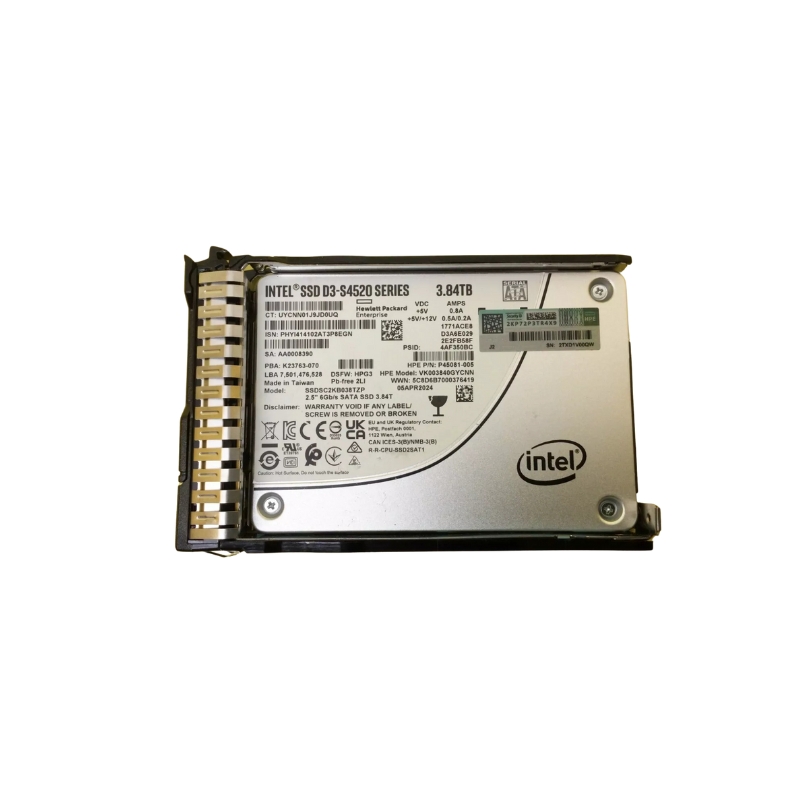

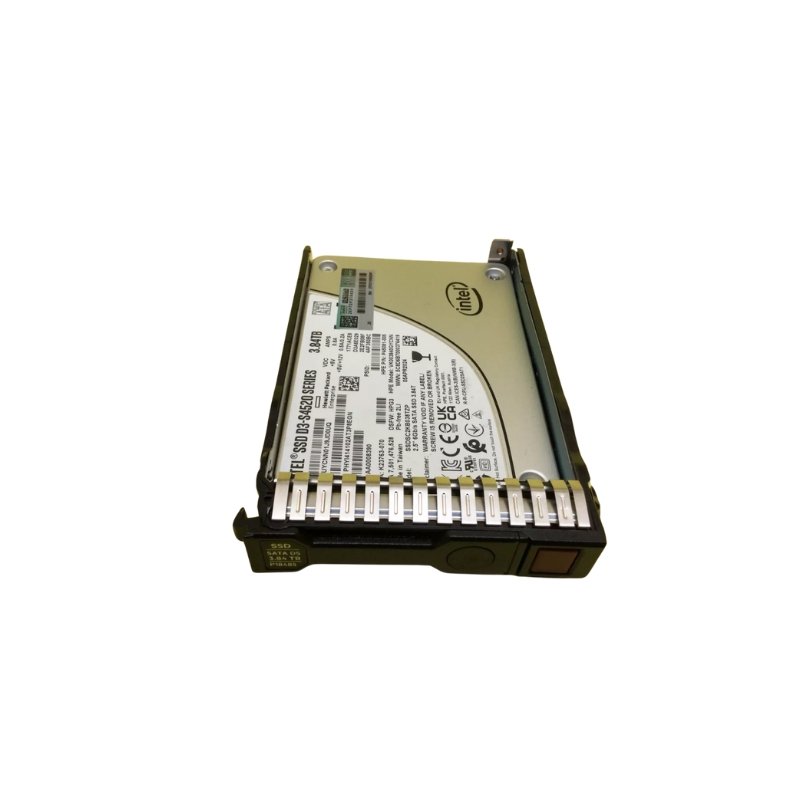

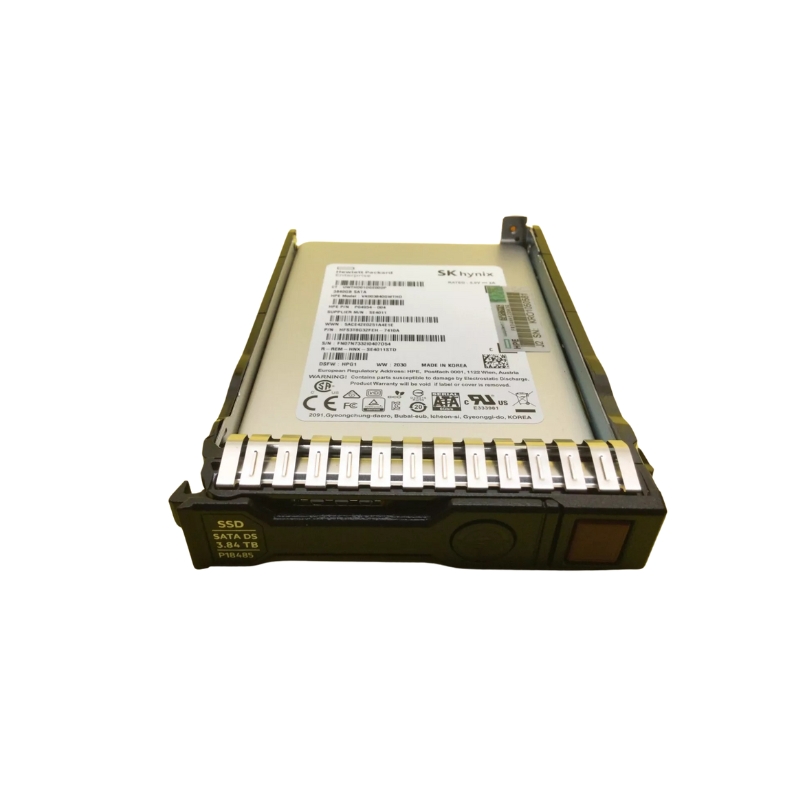

HPE P19953-H21 3.84TB SATA-6GBPS Mixed Use SSD

P19953-H21
Hover on image to enlarge

Brief Overview of P19953-H21

HPE 3.84TB SATA-6GBPS Mixed Use SSD P19953-H21. New Sealed in Box (NIB) 3 Years Warranty
QR Code of HPE P19953-H21 3.84TB SATA-6GBPS Mixed Use SSD
$1,374.30
$920.45
You save: $453.85 (33%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNP19953-H21Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Manufacturer Warranty3 Years Warranty from Original Brand Product/Item ConditionFactory-Sealed New in Original Box (FSB) ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30
Description

HPE P19953-H21 3.84TB 2.5in SATA-6G SC Mixed Use G10 SSD

Key Specifications and Features

  • Manufacturer: HPE
  • Model: P19953-H21
  • Type: Solid State Drive (SSD)
  • Capacity: 3.84TB
  • Form Factor: 2.5-inch SFF
  • Interface: SATA-6Gbps
  • Design: Hot-pluggable, equipped with HPE’s Smart Carrier

Advanced Technology & Build

  • Flash Memory: Triple-level cell (TLC) NAND technology for durability and performance
  • Compatibility: Optimized for HPE ProLiant Rack/Tower Servers, BladeSystem, and Synergy
  • Firmware: Digitally signed for enhanced security
  • Connectivity: Single port SATA connection

Performance Metrics

  • Sequential Read Speed: Up to 510 MiB/s
  • Sequential Write Speed: Up to 490 MiB/s
  • Random Read Latency: Average 125 μs (4KiB, Q=1)
  • Random Write Latency: Average 39 μs (4KiB, Q=1)
  • Drive Writes Per Day (DWPD): 3.50 DWPD, allowing up to 24,531 GB in 30 days

Input/Output Operations Per Second (IOPS)

  • Max Random Read IOPS: 77,000 IOPS at Q32
  • Max Random Write IOPS: 35,000 IOPS at Q4
  • Random Read (Q16): 67,000 IOPS
  • Random Write (Q16): 34,000 IOPS

Physical Dimensions and Weight

  • Height: 5.75 inches (14.61 cm)
  • Width: 8.63 inches (21.92 cm)
  • Depth: 9.00 inches (22.86 cm)
  • Weight: 1.508 lbs (0.68 kg)

Power Consumption

  • Idle Power Usage: 1.21 watts
  • Random Read/Write: 1.59 watts
  • Sequential Read: 2.45 watts
  • Maximum Power Draw: 2.98 watts

Compatibility and System Support

Supported HPE Solutions

  • HPE Nimble Storage dHCI: Large, Medium, and Small solutions with HPE ProLiant DL380, DL325, and DL360 Gen10 series
  • ProLiant DL Series: Compatible with models including DL160, DL180, DL20, DL325, DL360, DL380, DL385, and DL560 Gen10 series with 2.5-inch drive bays
  • ProLiant ML Series: Suitable for ML350 Gen10 configurations, including High Performance, SMB, and Special Server models
  • Synergy Series: 480 Gen10 Plus Base Compute Module (2.5-inch)

Optimized Usage Scenarios

  • Mixed-Use Workloads: Ideal for applications requiring a balance of read/write operations
  • Enterprise Storage: Robust storage performance for data-intensive environments like virtualization and cloud computing
  • Data Security: Secure firmware prevents unauthorized data access

Capacity

The HPE P19953-H21 SSD offers an impressive storage capacity of 3.84TB. This high capacity makes it an ideal choice for users who require ample space to store and manage their data. Whether you are a business professional dealing with large amounts of data or a casual user who wants to store a vast collection of media files, this SSD can accommodate your needs.

Benefits of 3.84TB Capacity

Having a 3.84TB capacity in a single SSD brings numerous benefits to users:

1. Ample Storage Space

The primary advantage of a high-capacity SSD like the HPE P19953-H21 is the ability to store a vast amount of data. With 3.84TB at your disposal, you can store and manage large files, including high-resolution videos, photos, and complex software applications, without worrying about running out of space.

2. Enhanced Productivity

When you have plenty of storage space, you can keep all your files and applications in one place, making it easier to access and manage them efficiently. With the HPE P19953-H21 SSD's 3.84TB capacity, you can store your entire digital workspace on a single drive, eliminating the need for multiple storage devices and streamlining your workflow.

3. Future-Proof Investment

The demand for storage space continues to grow rapidly as technology advances and file sizes increase. By investing in the HPE P19953-H21 SSD with its 3.84TB capacity, you future-proof your storage needs, ensuring that you won't quickly outgrow your device and need to upgrade or purchase additional storage solutions.

Importance of 3.84TB Capacity

The importance of a 3.84TB capacity in the HPE P19953-H21 SSD cannot be overstated:

1. Flexibility for Various Users

Whether you are a professional dealing with large data sets, a content creator working with high-resolution media files, or an avid gamer with a vast library of games, the 3.84TB capacity provides the flexibility you need to store all your files and applications without compromises.

2. Cost-Efficient Solution

By opting for a single storage device with a high capacity like the HPE P19953-H21 SSD, you save money compared to purchasing multiple smaller capacity drives. Consolidating your data into one drive not only reduces costs but also simplifies your storage setup and reduces power consumption.

Interface

The HPE P19953-H21 SSD features the SATA-6GBPS interface, which provides fast and reliable data transfer speeds. This interface is crucial in ensuring seamless communication between the SSD and the host system, resulting in efficient data access and improved overall performance.

Benefits of SATA-6GBPS Interface

The SATA-6GBPS interface offers several benefits to users:

1. High Data Transfer Speeds

SATA-6GBPS, also known as SATA III or SATA 6.0 Gbps, provides a maximum data transfer rate of 6 gigabits per second (Gbps). This high-speed interface allows for rapid transmission of data between the SSD and the host system, reducing file transfer times and improving overall system responsiveness.

2. Backward Compatibility

The SATA-6GBPS interface is backward compatible with previous SATA versions, allowing the HPE P19953-H21 SSD to work seamlessly with older systems that support SATA II or SATA I. This compatibility ensures that you can upgrade your storage without worrying about compatibility issues or the need for additional hardware upgrades.

3. Wide Industry Adoption

The SATA-6GBPS interface is widely adopted in the industry, making it a standard feature in many devices and systems. This widespread adoption ensures compatibility and availability of compatible devices, making it easier for users to find compatible components and expand their storage infrastructure as needed.

Importance of SATA-6GBPS Interface

The importance of the SATA-6GBPS interface in the HPE P19953-H21 SSD cannot be overlooked:

1. Improved System Performance

With its high data transfer speeds, the SATA-6GBPS interface significantly improves system performance by reducing data access and transfer times. This results in faster application loading times, quicker boot-up sequences, and smoother overall system operation.

2. Seamless Integration

The widespread adoption of the SATA-6GBPS interface ensures seamless integration with various devices and systems. Whether you are upgrading an existing system or building a new one, you can easily incorporate the HPE P19953-H21 SSD into your setup without compatibility concerns, providing a hassle-free storage solution.

Use

The HPE P19953-H21 SSD is designed for mixed use, making it suitable for a wide range of applications and workloads. Whether you are running demanding business applications or engaging in intensive multimedia tasks, this SSD delivers consistent performance and reliability.

Benefits of Mixed Use

The mixed use capability of the HPE P19953-H21 SSD offers several benefits:

1. Versatility

Mixed use SSDs like the HPE P19953-H21 are versatile enough to handle a variety of workloads. They are designed to provide both high performance for demanding tasks and endurance for continuous usage. This versatility makes them suitable for a wide range of applications, from business computing to content creation and gaming.

2. Consistent Performance

The mixed use design of the HPE P19953-H21 SSD ensures consistent performance even under heavy workloads. Whether you are running multiple applications simultaneously or performing data-intensive tasks, this SSD maintains stable read and write speeds, preventing performance degradation and ensuring smooth operation.

3. Longevity

Mixed use SSDs are built to withstand the demands of continuous usage. With enhanced endurance and durability, the HPE P19953-H21 SSD can handle frequent read and write operations without compromising its performance or lifespan. This longevity is essential for users who rely on their storage devices for critical tasks and need a reliable solution.

Importance of Mixed Use

The mixed use capability of the HPE P19953-H21 SSD is of significant importance:

1. Optimal Performance for Varied Tasks

Users with diverse workloads can benefit from the mixed use design of the HPE P19953-H21 SSD. Whether you are engaged in office productivity tasks, multimedia editing, or complex data analysis, this SSD delivers the performance you need without sacrificing endurance.

2. Reliability for Critical Workloads

For users who rely on their storage devices for critical workloads, such as database management or server applications, the mixed use capability ensures consistent performance and reliability. The HPE P19953-H21 SSD can handle the demands of continuous usage, providing peace of mind and minimizing the risk of data loss or system failures.

Features
Manufacturer Warranty:
3 Years Warranty from Original Brand
Product/Item Condition:
Factory-Sealed New in Original Box (FSB)
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
