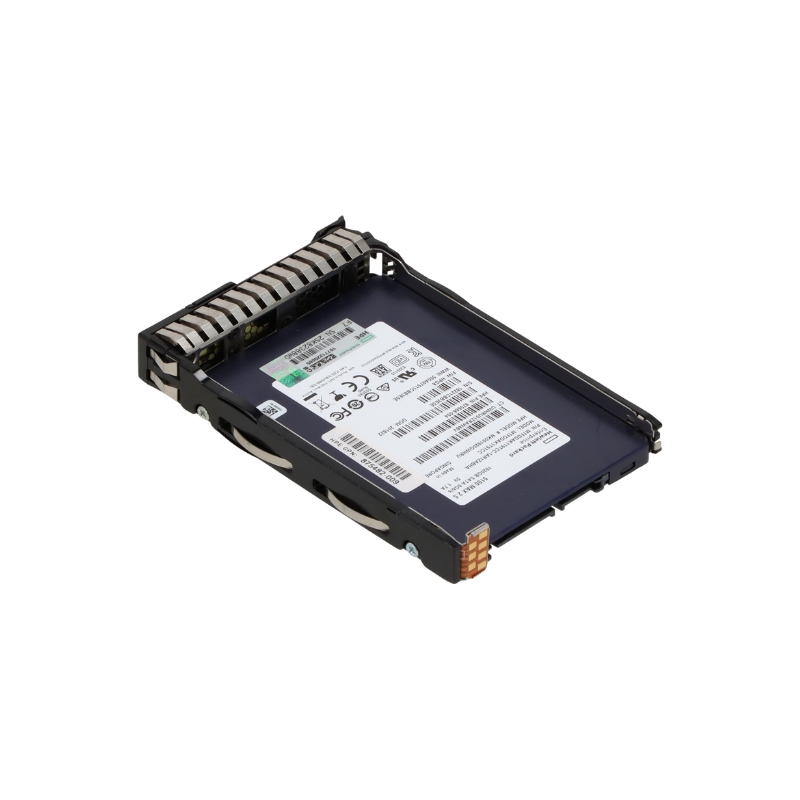

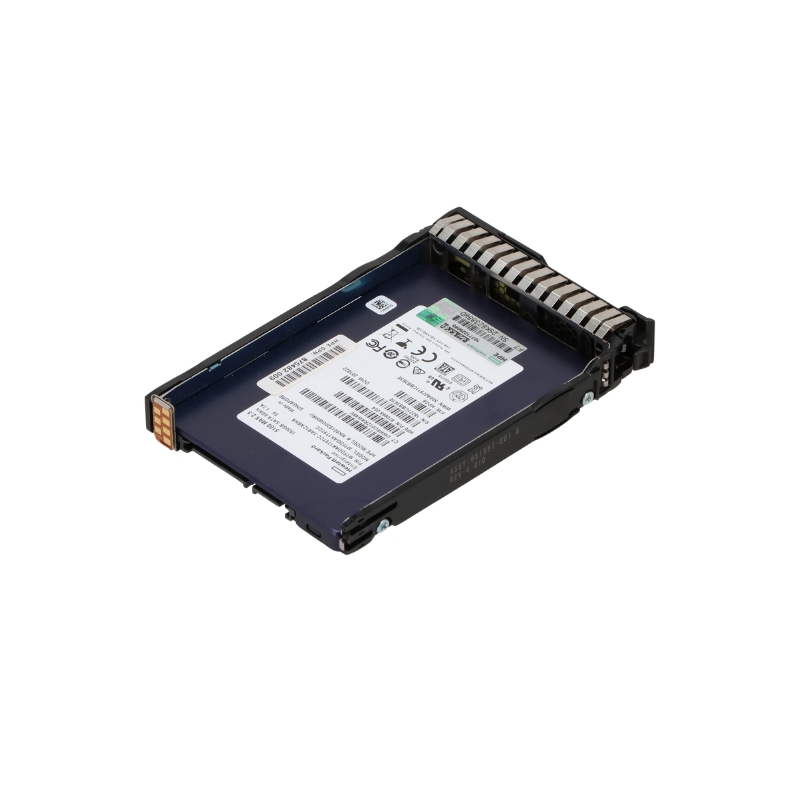

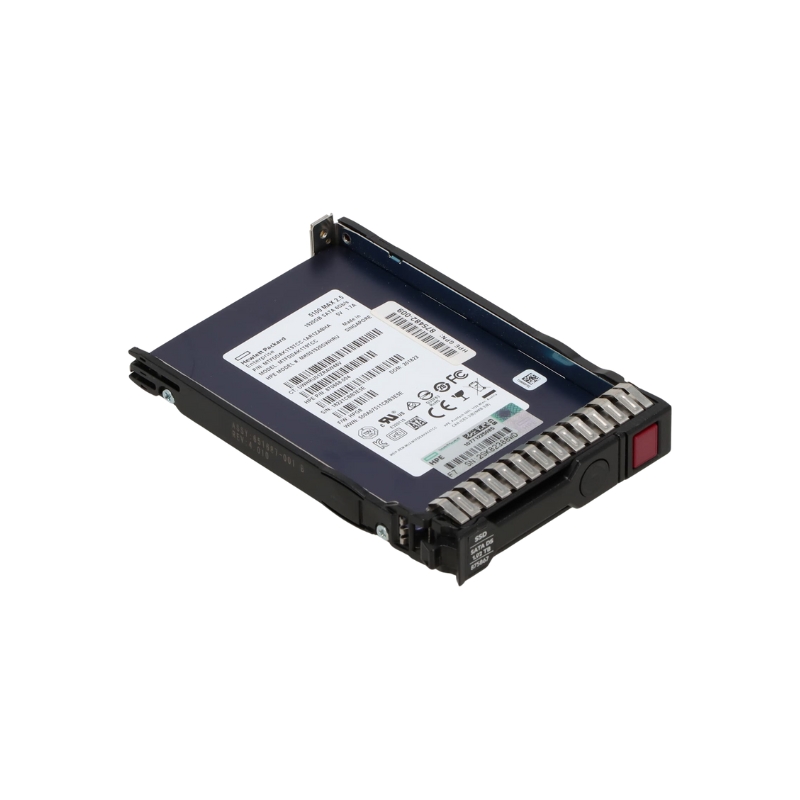

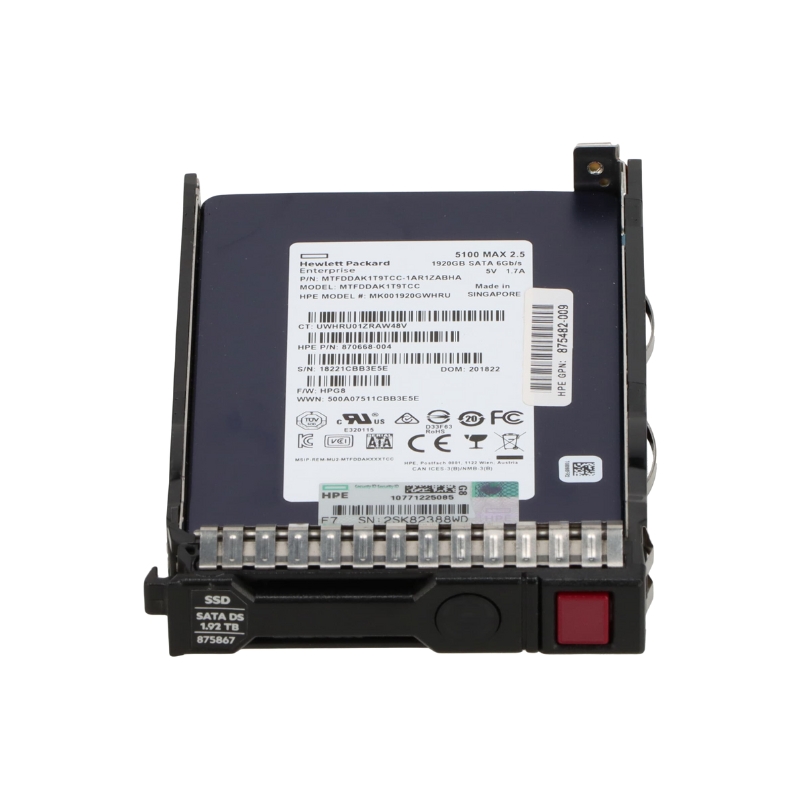

HPE P19976-H21 Smart Carrier Mixed Use SSD SATA 6GBPS 1.92TB

HPE P19976-H21 1.92TB 3.5in DS SATA-6G LPC Read Intensive G10 SSD

Overview of the HPE P19976-H21 Solid State Drive

• Brand: HPE
• Part Number (SKU): P19976-H21
• Device Type: Solid State Drive (SSD)
• Interface Type: SATA-6Gbps

Specifications

Storage Capacity & Design

• Capacity: 1.92 TB, perfect for read-intensive workloads
• Form Factor: 3.5 inch LFF
• Profile: Low Profile Converter (LPC)
• Plug Type: Hot Pluggable, ideal for quick swaps
• Flash Memory Type: Triple-Level Cell (TLC) NAND

Performance Capabilities

• Drive Transfer Rate: Up to 600 MBps (external)
• MAX Sequential Read Throughput: 520 MiB/s
• MAX Sequential Write Throughput: 495 MiB/s
• Random Read Latency: 125 μSec (4KiB, Q1)
• Random Write Latency: 38 μSec (4KiB, Q1)
• Random Read IOPS: 67,000 (4KiB, Q=16)
• Random Write IOPS: 31,000 (4KiB, Q=16)
• Max Random Read IOPS: 76,000 (4KiB, Q=32)
• Max Random Write IOPS: 33,000 (4KiB, Q=32)
• Endurance (DWPD): 1.50
• 30 Days Writes: 5,256

Expansion & Compatibility

• Interface: 1 x SATA 6 Gb/s for reliable data transfer
• Compatible Bay: 3.5" LFF form factor
• Bundled Accessory: HPE Low Profile Converter

Power Efficiency

Power Usage in Various Modes

• Idle Power Consumption: 1.21 W
• Random Read Power: 1.51 W
• Random Write Power: 1.51 W
• Sequential Read Power: 2.20 W
• Sequential Write Power: 2.88 W
• Maximum Power Draw: 2.88 W

Physical Dimensions

Product Measurements

• Height: 5.75 inches (14.61 cm)
• Width: 8.63 inches (21.92 cm)
• Depth: 9.00 inches (22.86 cm)
• Weight: 1.508 lbs (0.68 kg)

Device Compatibility

Supported Systems

• Compatible with HPE Apollo AR44z 1U and AR64z 2U Nodes with 3.5-inch bays
• Works with HPE ProLiant DL Series: DL160 (Gen10) and DL325 (Gen10)
• Suitable for HPE ProLiant ML Series: ML110 (Gen10) and ML350 (Gen10)

Interface: SATA 6Gbps

The HPE P19976-H21 SSD is equipped with the SATA 6Gbps interface, which is a crucial feature that enhances the performance and usability of the storage device. SATA, which stands for Serial Advanced Technology Attachment, is a widely used interface for connecting storage devices like solid-state drives (SSDs) to the motherboard of a computer.

Benefits of SATA 6Gbps

1. Improved Data Transfer Speeds: One of the primary advantages of the SATA 6Gbps interface is its ability to deliver faster data transfer speeds compared to its predecessors. With a maximum transfer rate of 6 gigabits per second (Gbps), this interface ensures that data can be read from or written to the SSD at a significantly higher speed, resulting in reduced loading times and improved overall system performance.

2. Compatibility: The SATA 6Gbps interface is backward compatible with previous versions, such as SATA 3Gbps and SATA 1.5Gbps. This means that the HPE P19976-H21 SSD can be easily integrated into existing systems without any compatibility issues. Users can seamlessly upgrade their storage solution without having to replace other components of their computer system.

3. Plug-and-Play Installation: Another benefit of the SATA interface is its plug-and-play functionality. Users can effortlessly connect the HPE P19976-H21 SSD to their computer's motherboard using a SATA cable, making it a convenient and user-friendly solution. There is no need for complex configurations or driver installations, allowing for a hassle-free setup process.

Importance of SATA 6Gbps for Users

By leveraging the SATA 6Gbps interface, users can experience significant improvements in their computing experience. Whether it's for home use, office tasks, or resource-intensive applications, the benefits of this feature are noteworthy.

Enhanced Gaming Performance

For gamers, the SATA 6Gbps interface plays a vital role in reducing game loading times and improving overall gaming performance. With faster data transfer speeds, game assets can be loaded quickly, allowing gamers to experience seamless gameplay without frustrating lags or delays. Additionally, the improved read and write speeds enable faster installation of games and updates, minimizing the wait time and maximizing playtime.

Boosted Productivity

In professional settings where time is of the essence, the speed advantage offered by the SATA 6Gbps interface can greatly enhance productivity. Tasks such as software installation, data backup, and file transfers can be completed in a fraction of the time compared to older SATA interfaces. Users can spend less time waiting for processes to complete and focus more on their work, resulting in increased efficiency and productivity.

Seamless Multimedia Streaming and Editing

The ability to read and write data at higher speeds is particularly beneficial for multimedia enthusiasts and professionals. Whether it's streaming high-definition videos or editing large media files, the SATA 6Gbps interface ensures smooth playback and seamless editing capabilities. Users can enjoy uninterrupted streaming without buffering issues, while video editors can work with high-resolution footage without experiencing performance bottlenecks.

Capacity: 1.92TB

The HPE P19976-H21 SSD offers a generous storage capacity of 1.92TB, making it an ideal choice for users who require ample space to store their data-intensive files and applications.

Benefits of 1.92TB Capacity

1. Ample Storage Space: With a capacity of 1.92TB, users can store a vast amount of data, including documents, photos, videos, and software applications. This capacity allows for the consolidation of multiple storage devices into a single SSD, eliminating the need for additional drives and simplifying data management.

2. Future-Proofing: As data continues to grow exponentially, having ample storage capacity becomes increasingly important. The 1.92TB capacity of the HPE P19976-H21 SSD offers users room to accommodate their expanding data needs without worrying about running out of space in the near future. This future-proofing aspect ensures that users can rely on the SSD for an extended period without requiring immediate upgrades.

3. High-Speed Performance: While capacity is important, it's equally crucial to maintain high-speed performance even with large amounts of data stored on the drive. The HPE P19976-H21 SSD's 1.92TB capacity is complemented by its advanced technology and optimized firmware, ensuring that users can access their data quickly and efficiently.

Importance of 1.92TB Capacity for Users

The 1.92TB capacity of the HPE P19976-H21 SSD provides users with numerous advantages and opens up opportunities for various use cases.

Seamless Multimedia Storage

For multimedia enthusiasts, content creators, and professionals working with large media files, a high-capacity SSD is essential. The 1.92TB capacity allows for the storage of numerous high-definition videos, RAW images, and audio files without having to compromise on quality or constantly juggle between external drives. Users can conveniently access their multimedia files directly from the SSD, saving time and streamlining their workflow.

Efficient Virtualization

In virtualized environments where virtual machines (VMs) are used, the 1.92TB capacity is valuable for storing multiple VMs, their associated data, and snapshots. This capacity ensures that users have enough space to deploy and manage numerous VMs without worrying about storage limitations. It enables smooth operation, improves VM performance, and allows for more efficient utilization of resources.

Flexible Application Deployment

With the increasing adoption of containerization and the need for agile application deployment, having ample storage capacity is crucial. The 1.92TB capacity of the HPE P19976-H21 SSD allows users to host a wide range of applications and their respective data without worrying about storage constraints. This flexibility enables organizations to scale their application infrastructure seamlessly and meet evolving business requirements.

Use: Mixed Use

The HPE P19976-H21 SSD is designed for mixed use, making it suitable for a wide range of applications that require both read and write operations at high speeds.

Benefits of Mixed Use

1. Versatility: Mixed use SSDs are designed to handle a diverse workload, making them suitable for various applications and use cases. Whether it's everyday computing, gaming, content creation, or server environments, the HPE P19976-H21 SSD can effectively meet the demands of these workloads without compromising on performance or reliability.

2. Balanced Performance: Mixed use SSDs strike a balance between read and write operations, ensuring that both functions perform optimally. This balance is particularly important in scenarios where the workload involves a combination of sequential and random read/write operations. With the HPE P19976-H21 SSD's mixed use capability, users can experience consistent performance across a wide range of tasks.

3. Enhanced Endurance: The mixed use design of the HPE P19976-H21 SSD enables it to withstand heavy workloads and extended usage without compromising its lifespan or reliability. This endurance is crucial for applications that involve continuous read and write operations, such as databases, virtualization, and content delivery networks (CDNs).

Importance of Mixed Use for Users

The mixed use feature of the HPE P19976-H21 SSD offers users several advantages, making it a versatile and reliable storage solution.

Optimized Gaming Performance

Gamers can benefit from the mixed use capability of the HPE P19976-H21 SSD as it ensures optimal performance while gaming. With a combination of read and write operations, the SSD can handle game installations, updates, and game data caching efficiently. This results in improved load times, reduced stutters, and an overall smoother gaming experience.

Efficient Content Creation

For content creators working with large multimedia files, a mixed use SSD is essential. The HPE P19976-H21 SSD's capability to handle both read and write operations ensures that content creation applications, such as video editing software or 3D modeling tools, can perform at their best. Users can experience faster rendering times, smooth scrubbing through high-resolution footage, and quicker file saving.

Reliable Server Performance

In server environments where consistent performance is critical, mixed use SSDs play a vital role. With their ability to handle a mix of workloads, these SSDs ensure that server applications, databases, and virtual machines can operate smoothly without performance bottlenecks. The HPE P19976-H21 SSD's mixed use capability provides reliability and endurance required in demanding server deployments.
