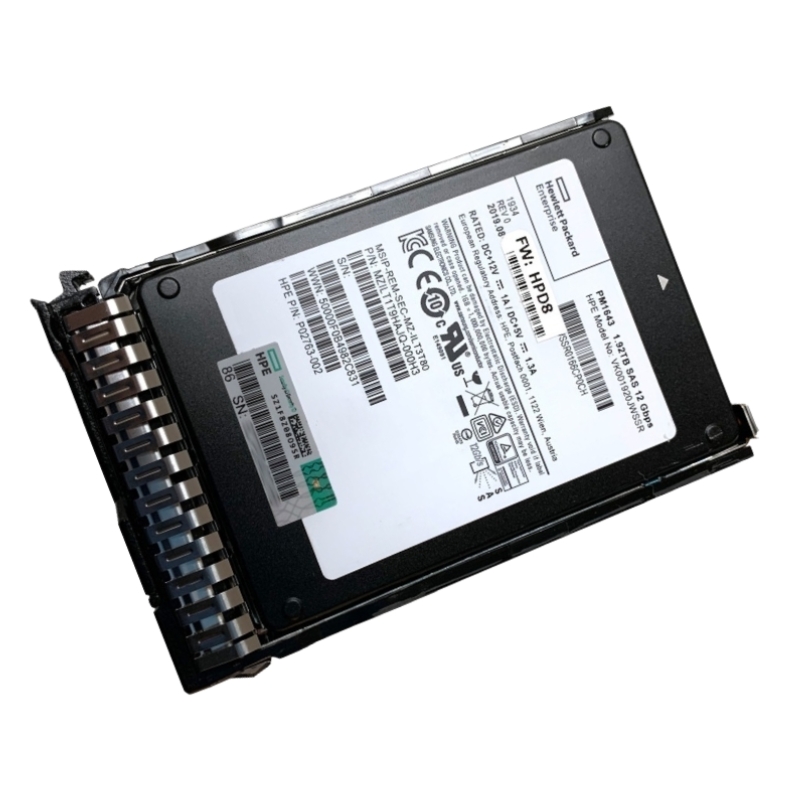

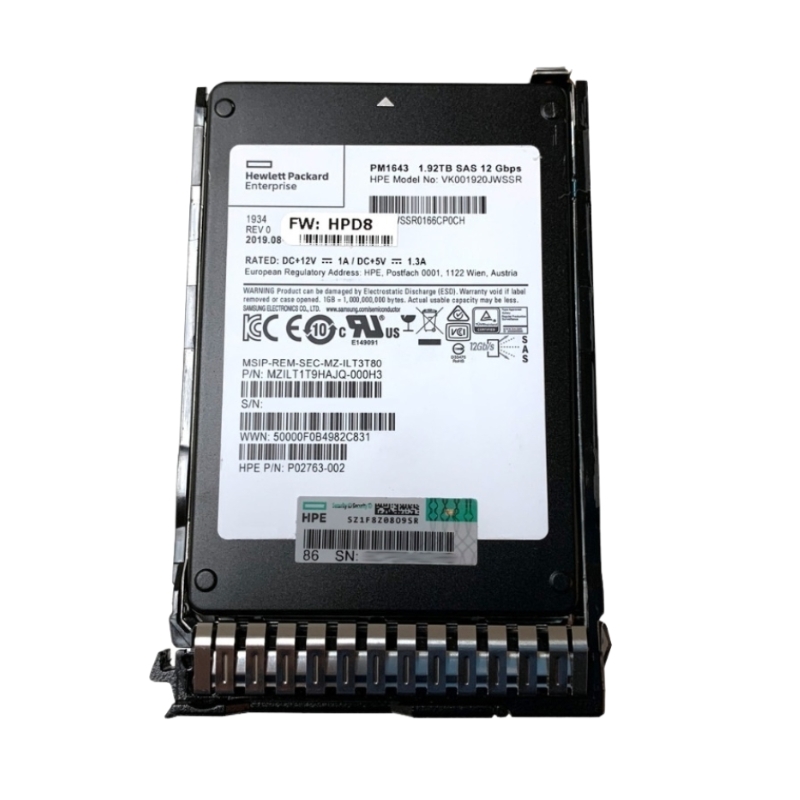

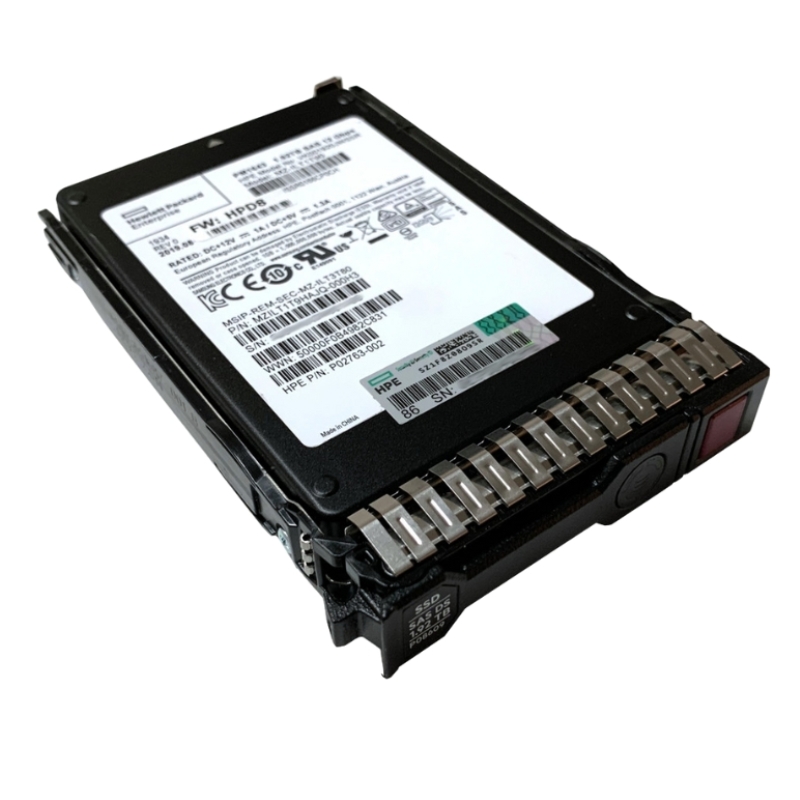

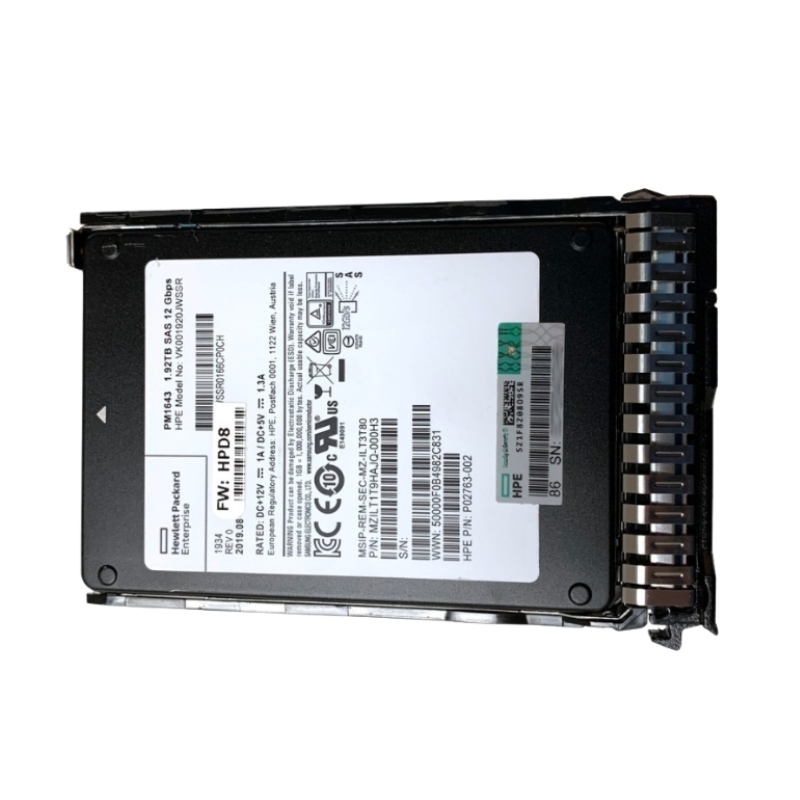

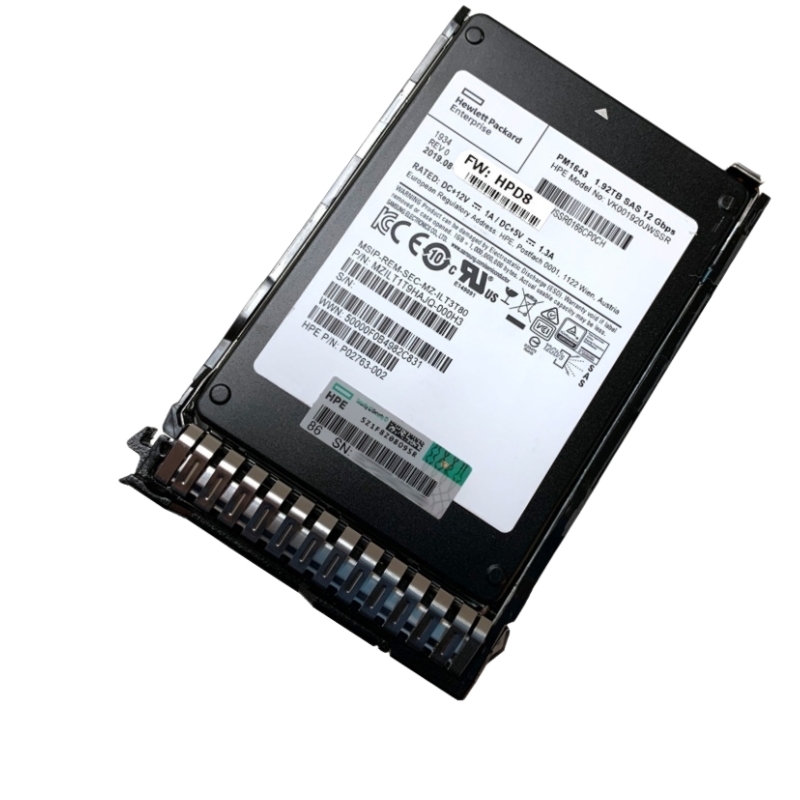

HPE P21141-X21 1.92TB Smart Carrier SSD 2.5" SFF SAS 12GBPS

Product Details of 2.5inch SFF SAS 12GBPS SSD

The HPE P21141-X21 is a high-performance hot-swap solid-state drive designed to optimize storage solutions. Below are the key specifications and features of this drive.

General Specifications

• Manufacturer: HPE
• Model Number: P21141-X21

Technical Features

Drive Characteristics

• Type: Hot-Swap Solid State Drive
• Capacity: 1.92 TB
• Form Factor: 2.5 Inch SFF
• Interface: SAS 12GBPS
• Plug Type: Hot Pluggable
• Carrier Type: Smart Carrier (SC)
• Workload Type: Read Intensive
• Firmware: Digitally Signed Firmware (DS)
• Included: HPE Smart Carrier (SC)

Performance Metrics

• Lifetime Writes: 3424
• Endurance (DWPD): 1 (Drive Writes Per Day)
• Transfer Rate: 12 GB/sec (External)
• Random Read IOPS (4KiB, Q=16): 130,000
• Max Random Read IOPS (4KiB): 210,000 @ Q256
• Random Write IOPS (4KiB, Q=16): 80,000
• Max Random Write IOPS (4KiB): 80,000 @ Q64

Power Consumption Details

Operating Power Requirements

• Idle State: 3.69 Watts
• Random Read: 6.47 Watts
• Random Write: 6.47 Watts
• Sequential Read: 6.13 Watts
• Sequential Write: 8.52 Watts
• Random Read/Write: 6.47 Watts
• Maximum Consumption: 8.52 Watts

Dimensions and Weight

Physical Specifications

• Height: 0.63 Inches
• Width: 3.10 Inches
• Depth: 5.45 Inches
• Weight: 1.50 lbs

Compatibility with HPE ProLiant Series

Supported Models

• DL160 Gen10 (2.5 Inch)
• DL180 Gen10 (2.5 Inch)
• DL20 Gen10 (2.5 Inch)
• DL325 Gen10 (2.5 Inch)
• DL360 Gen10 (2.5 Inch)
• DL385 Gen10 (2.5 Inch)
• DL560 Gen10 (2.5 Inch)
• DL580 Gen10 (2.5 Inch)

Compatibility with HPE ML Series

Supported Models

• ML350 Gen10 (2.5 Inch)
• ML350 Gen10 Base (2.5 Inch)
• ML350 Gen10 Performance (2.5 Inch)
• ML350 Gen10 High Performance (2.5 Inch)
• ML350 Gen10 SMB (2.5 Inch)

Form Factor: 2.5inch SFF

The HPE P21141-X21 SSD is designed with a compact and versatile form factor of 2.5 inches, specifically the Small Form Factor (SFF) variant. This form factor is highly advantageous for users in various ways, providing a range of benefits and ensuring ease of use and compatibility with a wide array of devices and systems.

Optimal Space Utilization

The 2.5-inch SFF form factor allows for efficient utilization of limited space within servers, laptops, and other computing devices. It offers a smaller physical size compared to larger form factors, enabling system builders to maximize storage capacity within a smaller footprint. This is particularly beneficial in compact server racks or densely populated data centers where space optimization is crucial.

Compatibility with Standard Drive Bays

The 2.5-inch SFF form factor is commonly used in standard drive bays found in servers, workstations, and storage systems. This compatibility ensures easy integration of the HPE P21141-X21 SSD into existing infrastructure without the need for additional adapters or modifications. It simplifies the upgrade process by allowing users to seamlessly replace traditional hard disk drives (HDDs) with high-performance SSDs.

Enhanced Flexibility

With its compact size, the 2.5-inch SFF form factor provides enhanced flexibility for various deployment scenarios. It can be utilized in a wide range of devices, including laptops, All-in-One PCs, embedded systems, and industrial applications. This versatility allows users to leverage the benefits of the HPE P21141-X21 SSD across different computing environments, meeting their specific performance and storage requirements.

Hot-Pluggable Capability

The HPE P21141-X21 SSD in the 2.5-inch SFF form factor supports hot-pluggable capability, which enables users to insert or remove the drive while the system is powered on. This feature is particularly valuable in enterprise environments where continuous operation and minimal downtime are essential. It allows for easy drive replacement or maintenance without interrupting critical workloads or affecting overall system performance.

Improved Reliability and Durability

The 2.5-inch SFF form factor offers improved reliability and durability compared to larger form factors. Its smaller size reduces the risk of mechanical failures and enhances shock resistance during transportation or accidental drops. Additionally, SSDs in the 2.5-inch SFF form factor typically consume less power, generate less heat, and produce lower noise levels compared to their larger counterparts, contributing to overall system stability and longevity.

Efficient Cooling

The compact size of the 2.5-inch SFF form factor allows for efficient cooling within systems. It facilitates better airflow and thermal management, reducing the risk of overheating and ensuring optimal performance even in demanding environments. This advantage is particularly critical for high-density server deployments where effective cooling is paramount for maintaining consistent performance and preventing hardware failures.

Interface: SAS

The HPE P21141-X21 SSD utilizes the SAS (Serial Attached SCSI) interface, offering significant advantages for users in terms of performance, reliability, and compatibility with enterprise-grade systems and storage architectures.

High-Speed Data Transfer

The SAS interface provides high-speed data transfer capabilities, allowing for faster read and write operations compared to traditional SATA interfaces. With a maximum data transfer rate of 12Gbps (gigabits per second), the HPE P21141-X21 SSD ensures quick access to data, enabling faster application loading times, reduced latency, and improved overall system responsiveness. This performance boost is especially beneficial for demanding workloads, such as databases, virtualization, and data analytics.

Scalability and Expandability

SAS is widely adopted in enterprise environments due to its scalability and expandability features. It supports the connection of multiple drives in a daisy-chain configuration, allowing users to expand storage capacity rapidly without compromising performance or requiring significant hardware changes. The SAS interface is highly compatible with RAID (Redundant Array of Independent Disks) setups, enabling users to create fault-tolerant storage configurations for enhanced data protection and improved system availability.

Enterprise-Grade Reliability

Designed for enterprise applications, the SAS interface offers enhanced reliability compared to consumer-grade interfaces like SATA. It incorporates advanced error detection and correction mechanisms, ensuring the integrity of data during transmission. The HPE P21141-X21 SSD with SAS interface provides end-to-end data protection, minimizing the risk of data corruption or loss and ensuring the availability of critical information in mission-critical environments.

Compatibility with Existing Infrastructure

The SAS interface has been widely adopted in enterprise storage systems and server architectures. It ensures compatibility with a vast range of hardware components, including RAID controllers, HBAs (Host Bus Adapters), and backplanes. This compatibility allows for seamless integration of the HPE P21141-X21 SSD into existing infrastructure, enabling users to leverage their current investments while benefiting from the advantages of SAS-based storage solutions.

Robust Signal Integrity

The SAS interface provides robust signal integrity, minimizing the potential for data errors or signal degradation. Its design includes features like differential signaling, impedance matching, and noise cancellation techniques. These characteristics enable reliable data transmission over longer cable distances and ensure consistent performance in high-noise environments. The robust signal integrity of SAS makes it an ideal choice for enterprise-grade storage systems that demand uninterrupted data access and high-speed communication.

Speed: 12Gbps

The HPE P21141-X21 SSD delivers exceptional speed with its impressive 12Gbps (gigabits per second) data transfer rate. This speed offers numerous benefits to users, enhancing overall system performance and enabling efficient handling of demanding workloads.

Accelerated Data Processing

The 12Gbps speed of the HPE P21141-X21 SSD ensures accelerated data processing, resulting in faster application load times, improved file transfers, and reduced system boot times. It enables users to complete tasks quickly and efficiently, enhancing productivity and user experience. This advantage is particularly valuable in environments where time-sensitive operations and real-time data processing are critical, such as financial institutions, scientific research facilities, and content creation studios.

Support for High-Bandwidth Applications

The high-speed 12Gbps data transfer rate facilitates seamless support for high-bandwidth applications that generate and process large volumes of data. This includes resource-intensive tasks like virtualization, database management, video editing, and 3D rendering. The HPE P21141-X21 SSD ensures smooth and uninterrupted operation in these scenarios, reducing latency and bottlenecks that can hinder performance and user productivity.

Improved System Responsiveness

The increased speed provided by the 12Gbps data transfer rate significantly improves system responsiveness. It reduces the time required for data retrieval, allowing users to access files, applications, and databases rapidly. This enhanced responsiveness enhances multitasking capabilities, minimizes waiting times, and enables seamless execution of concurrent processes, ultimately leading to a more efficient and productive computing experience.

Future-Proof Investment

The 12Gbps speed of the HPE P21141-X21 SSD ensures compatibility with future storage technologies and system advancements. It offers a higher bandwidth ceiling compared to previous SAS generations, allowing users to take advantage of upcoming storage innovations without the need for immediate hardware upgrades. This future-proofing capability translates into cost savings by extending the lifespan of the SSD and reducing the frequency of hardware replacements.

Seamless Data Migration

The high-speed 12Gbps data transfer rate simplifies the process of data migration or system upgrades. It allows for swift and efficient transfer of large amounts of data between storage devices or systems, minimizing downtime and ensuring continuity of operations. Users can take advantage of this feature when migrating to new storage platforms, expanding existing storage configurations, or implementing data consolidation strategies.

Capacity: 1.92TB

The HPE P21141-X21 SSD offers an impressive storage capacity of 1.92TB (terabytes). This high capacity provides users with ample space to store and manage their data, applications, and digital content efficiently, catering to a wide range of storage requirements.

Enhanced Data Storage

The 1.92TB storage capacity of the HPE P21141-X21 SSD ensures users have ample space to store large files, documents, media files, and databases. It is ideal for handling data-intensive applications and workloads that demand extensive storage capabilities, such as video editing, data analytics, and cloud computing. With this capacity, users can avoid the need for frequent storage upgrades or external drives, streamlining their workflows and reducing operational complexities.

Improved System Efficiency

The high capacity of 1.92TB allows users to consolidate their data onto a single drive, promoting better organization and efficient data management. It eliminates the need for multiple drives or RAID configurations in many scenarios, simplifying system architecture and reducing overall hardware costs. This improved system efficiency translates into easier maintenance, reduced power consumption, and streamlined backup and recovery processes.

Scalability for Growing Demands

The generous storage capacity of 1.92TB ensures scalability for future growth and expanding storage needs. It provides room for businesses to accommodate increasing data volumes without major infrastructure changes or interruptions in operations. Users can scale their storage configurations seamlessly by adding additional HPE P21141-X21 SSDs to meet evolving demands, enabling them to adapt quickly to changing business requirements while maintaining optimal performance.

Space-Saving Solution

The 1.92TB capacity of the HPE P21141-X21 SSD offers an excellent balance between storage space and physical size. It allows users to store a significant amount of data within a compact form factor, eliminating the need for large physical storage devices that occupy valuable space. This space-saving advantage is particularly valuable in environments with limited real estate, such as small offices, workstations, or mobile computing devices.

Data Protection and Redundancy

The 1.92TB capacity of the HPE P21141-X21 SSD enables users to allocate sufficient space for implementing robust data protection mechanisms like RAID configurations or automated backup routines. It ensures redundancy and safeguards critical data against potential drive failures or data corruption. This capacity allows for more comprehensive data redundancy strategies, minimizing the risk of data loss and enhancing overall system reliability.
