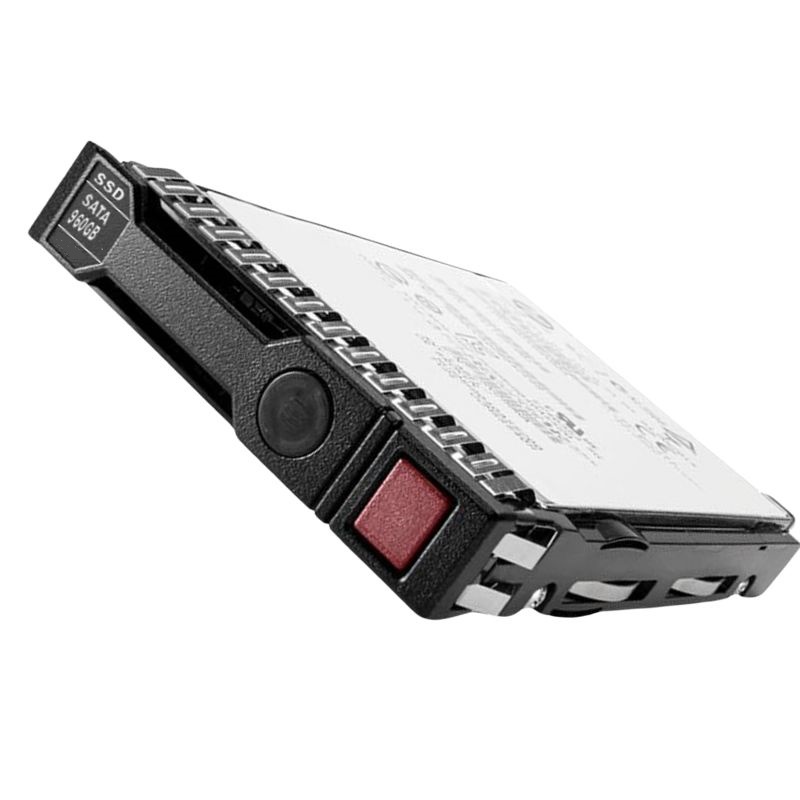

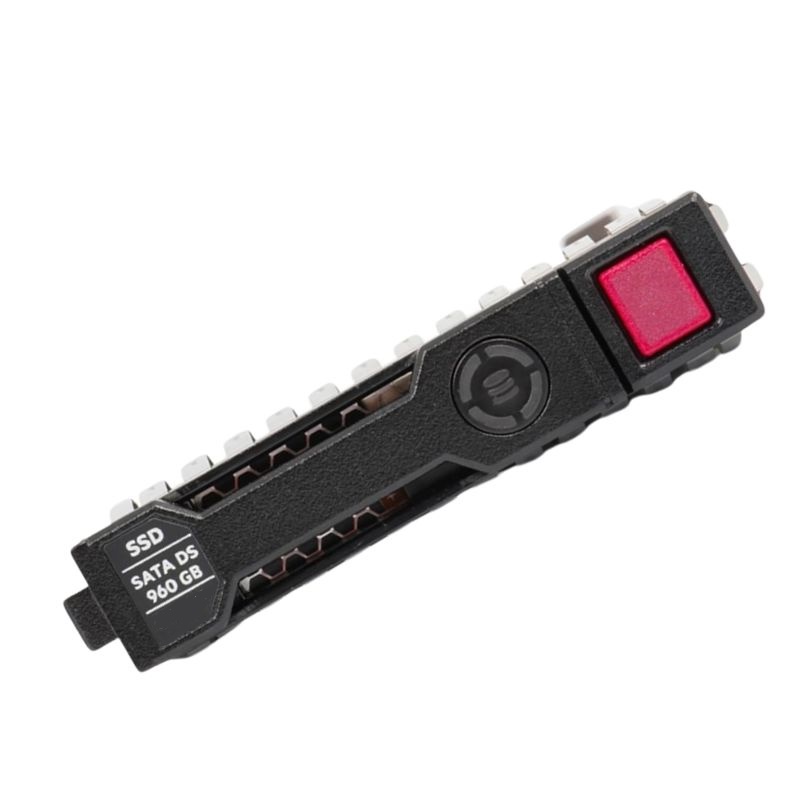

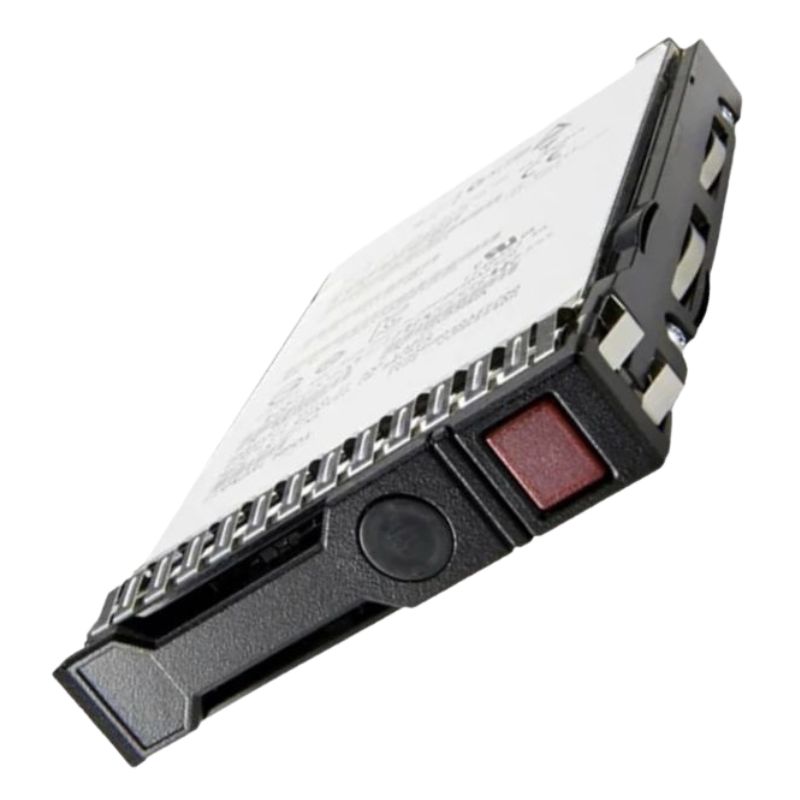

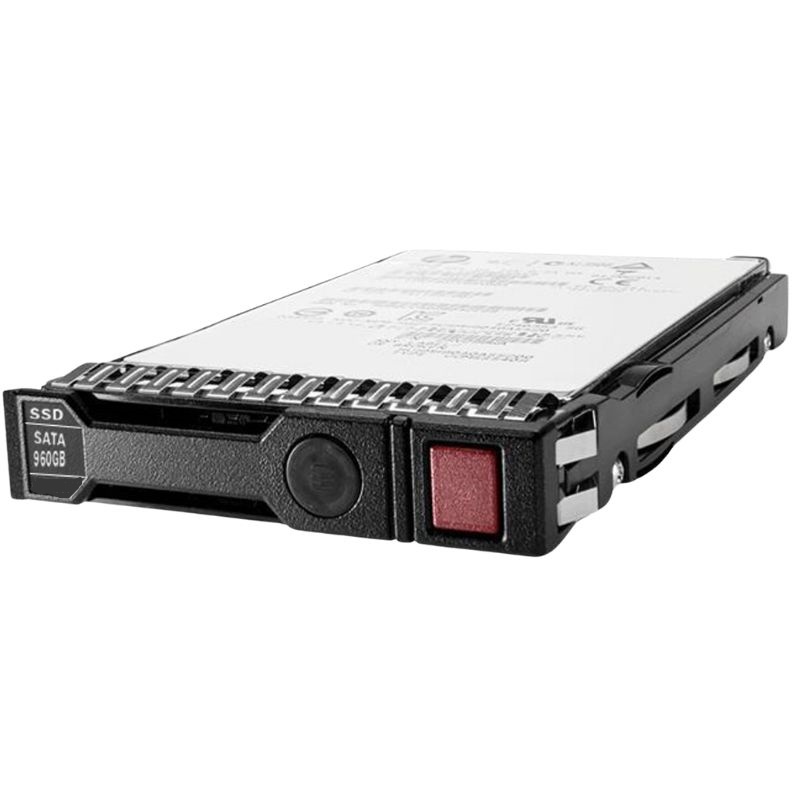

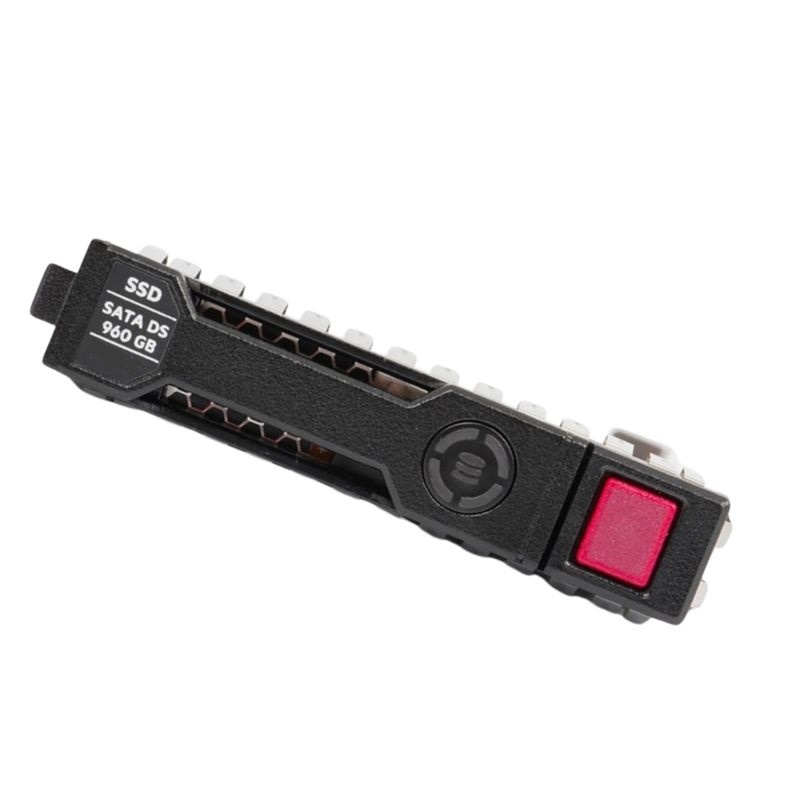

HPE P40503-B21 960GB SATA SSD SFF Mixed Use

P40503-B21
Hover on image to enlarge

Brief Overview of P40503-B21

960GB SATA 6GBPS Solid State Drive SFF Mixed Use HPE P40503-B21. Factory-Sealed New in Original Box (FSB) with 3 Years Warranty

QR Code of HPE P40503-B21 960GB SATA SSD SFF Mixed Use
$695.25
$473.00
You save: $222.25 (32%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNP40503-B21Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Manufacturer Warranty3 Years Warranty from Original Brand Product/Item ConditionFactory-Sealed New in Original Box (FSB) ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30

Same product also available in:

Description

Product Overview of HPE P40503-B21

Key Specifications

  • Brand Name: HPE
  • Model Number: P40503-B21
  • Option Part Code: P40503-B21
  • Spare Part Code: P41528-001

General Features

  • Type: Hot-Swap Solid State Drive
  • Storage Capacity: 960 GB
  • Physical Dimensions: 2.5 inch SFF Form Factor
  • Connection Interface: SATA 6Gbps
  • NAND Technology: Triple-Level Cell (TLC)
  • Plug Configuration: Hot Pluggable
  • Connectivity: Single Port
  • Carrier Style: Basic Carrier (BC)
  • Use Case: Mixed Workload
  • Included Accessories: HPE Basic Carrier (BC)
  • Special Features: Digitally Signed Firmware (DS)
  • Supported Platforms: Mainstream Compute Systems
  • Height: 7.00 mm

Performance Metrics

Drive Endurance

  • 30-Day Write Volume (TB): 6000 TB
  • Drive Writes Per Day (DWPD): 3.40

Transfer Rates

  • External Data Rate: 6 Gbps
  • Max Sequential Read: 520 MiB/s
  • Max Sequential Write: 480 MiB/s

Random Access Performance

  • Random Read Latency (uSec, 4KiB, Q1): 125 µs
  • Random Write Latency (uSec, 4KiB, Q1): 50 µs
  • Random Read IOPS (4KiB, Q=16): 61,000 IOPS
  • Random Write IOPS (4KiB, Q=16): 31,000 IOPS
  • Max Random Read IOPS (4KiB): 72,000 @ Q32
  • Max Random Write IOPS (4KiB): 31,000 @ Q4

Connectivity and Expansion

Interface Details

  • Interface Type: 1 x SATA 6 Gb/s
  • Compatible Drive Bay: 2.5" SFF

Energy Consumption

  • Idle Power Usage: 1.37 Watts
  • Power During Random Read: 2.81 Watts
  • Power During Random Write: 2.81 Watts
  • Sequential Read Power: 3.09 Watts
  • Sequential Write Power: 3.93 Watts
  • Random Read/Write Power: 2.81 Watts
  • Maximum Power Usage: 3.93 Watts

Physical Dimensions and Weight

  • Height: 5.50 inches (13.97 cm)
  • Width: 5.75 inches (14.61 cm)
  • Depth: 8.75 inches (22.23 cm)
  • Weight: 1.10 lbs (0.50 kg)

Part Number: P40503-B21

Introduction

The HPE 960GB SATA 6GBPS Solid State Drive SFF Mixed Use is a high-performance storage solution designed to meet the demanding needs of modern data centers. With its advanced features and impressive performance, this solid-state drive is perfect for businesses that require reliable and efficient storage solutions. One of the key features that sets this product apart is its part number, P40503-B21. In this section, we will explore the benefits and importance of this specific part number for users.

What is a Part Number?

A part number is a unique identifier assigned to a specific product or component. It helps in identifying and distinguishing different variants of a product, especially when multiple versions or configurations are available. In the case of the HPE 960GB SATA 6GBPS Solid State Drive SFF Mixed Use, the part number P40503-B21 signifies the specific model and variant of this solid-state drive.

Uniqueness and Compatibility

The part number P40503-B21 ensures the uniqueness of this particular solid-state drive model. It allows users to easily identify and differentiate it from other similar products in the market. Furthermore, it plays a crucial role in ensuring compatibility with other hardware components, such as servers and storage systems. By referencing this specific part number, users can confidently select and integrate this solid-state drive into their existing IT infrastructure without compatibility concerns.

Product Recognition and Support

The part number P40503-B21 acts as a universal identifier for the HPE 960GB SATA 6GBPS Solid State Drive SFF Mixed Use. It simplifies product recognition and support processes, making it easier for users to seek assistance or obtain relevant information about this specific model. Whether it's searching for online resources, contacting technical support, or browsing documentation, referring to the part number ensures accurate identification of the product and helps in accessing the right resources and support channels.

Benefits of the Part Number P40503-B21

Enhanced Performance

The part number P40503-B21 represents a specific variant of the HPE 960GB SATA 6GBPS Solid State Drive SFF Mixed Use that offers enhanced performance capabilities. Users can expect faster data transfer rates, reduced latency, and improved overall system responsiveness. This makes it an ideal choice for applications that require high-speed data access and processing, such as databases, virtualization, and content delivery systems.

Reliability and Durability

With the part number P40503-B21, users can be assured of the reliability and durability of this solid-state drive. It undergoes rigorous testing and quality control processes to ensure maximum performance and longevity. The specific variant represented by this part number is designed for mixed-use workloads, making it suitable for a wide range of applications that demand both read and write operations.

Optimized Storage Efficiency

The HPE 960GB SATA 6GBPS Solid State Drive SFF Mixed Use with the part number P40503-B21 incorporates advanced technologies to optimize storage efficiency. With features like data compression and deduplication, this solid-state drive maximizes available storage space while minimizing data redundancy. This results in improved storage utilization, reduced costs, and increased overall efficiency for businesses.

Scalability and Flexibility

The part number P40503-B21 signifies a scalable and flexible storage solution. Users can easily integrate multiple drives with this specific part number to meet their growing storage requirements. Whether it's expanding existing server configurations or building new storage systems, this solid-state drive variant allows for seamless scalability, ensuring businesses can adapt to changing data storage needs without significant disruptions.

Conclusion

The part number P40503-B21 is a key feature of the HPE 960GB SATA 6GBPS Solid State Drive SFF Mixed Use. It provides users with a unique identifier for this specific model, ensuring compatibility, recognition, and support. Additionally, this part number represents a variant of the solid-state drive that offers enhanced performance, reliability, optimized storage efficiency, and scalability. By choosing the HPE 960GB SATA 6GBPS Solid State Drive SFF Mixed Use with the part number P40503-B21, users can enjoy the benefits of a high-performance storage solution tailored to their needs.
