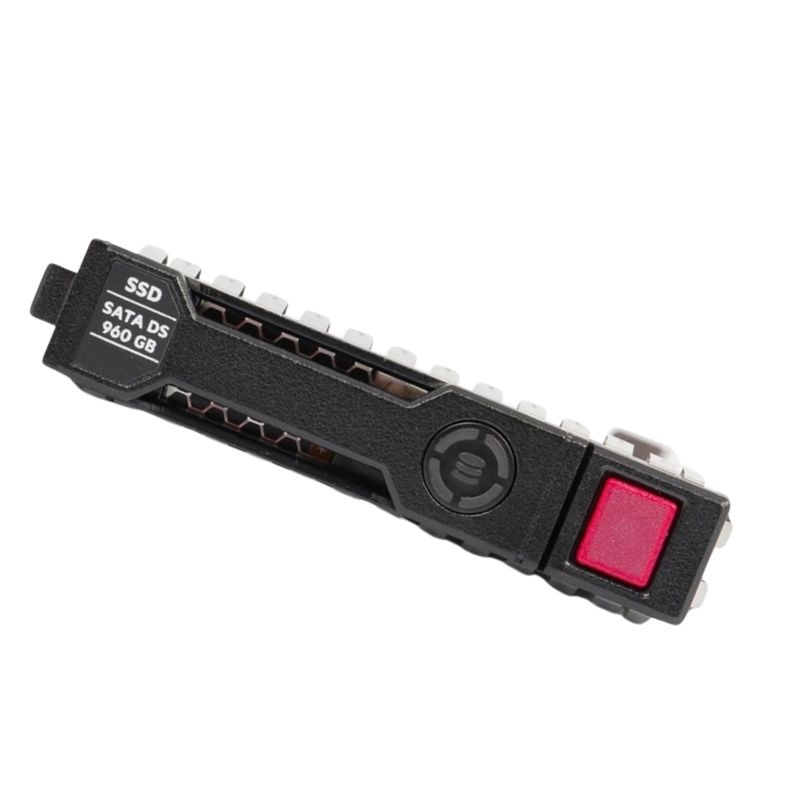

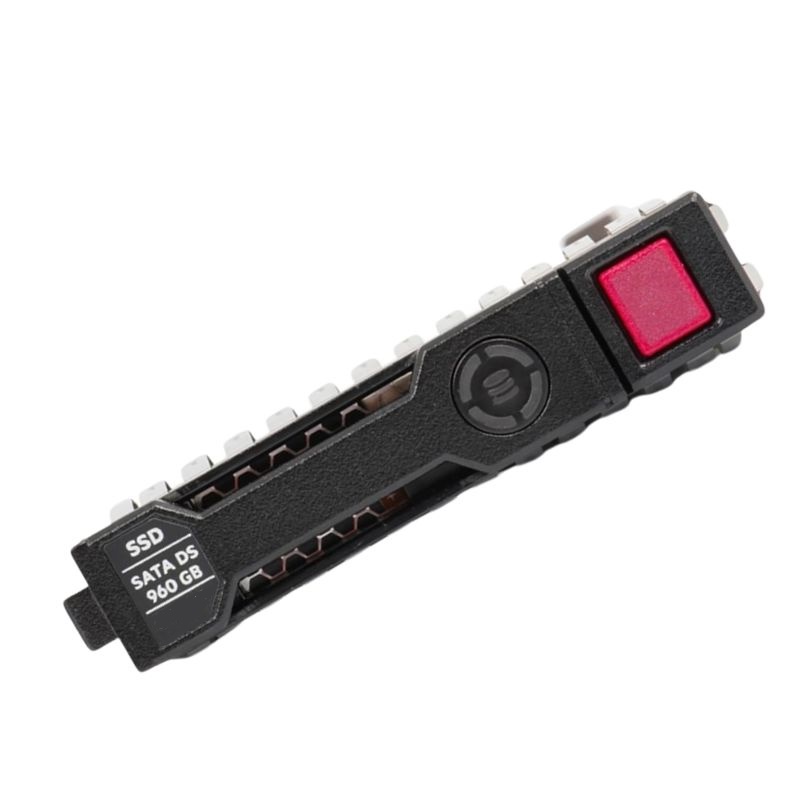

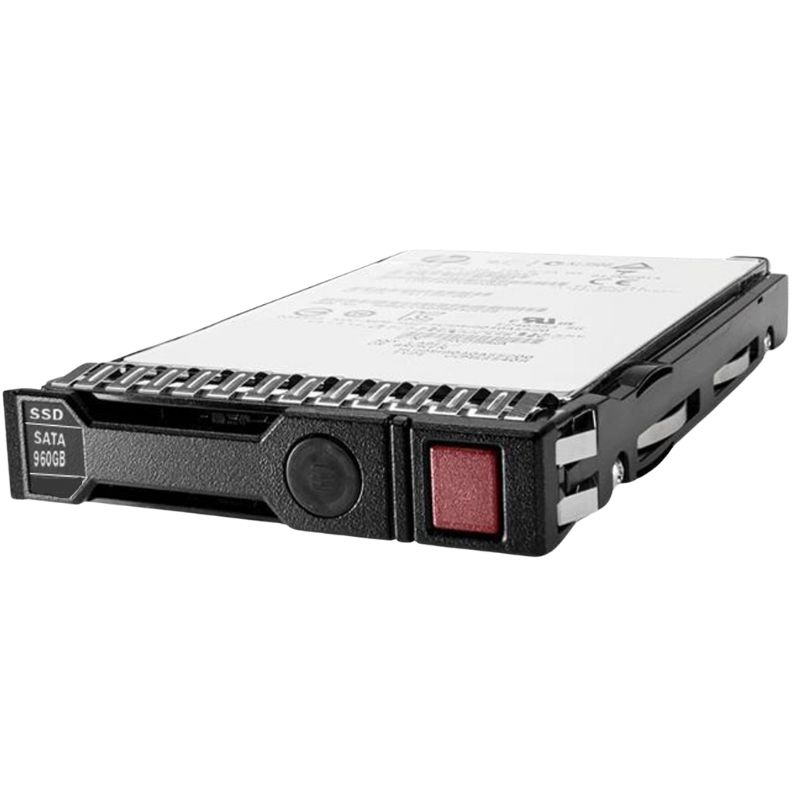

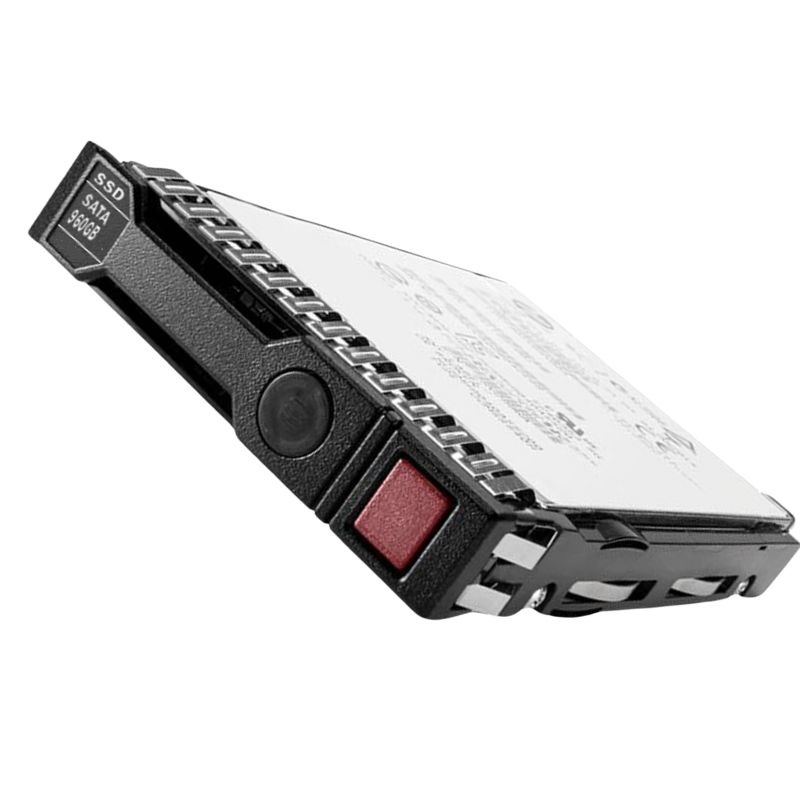

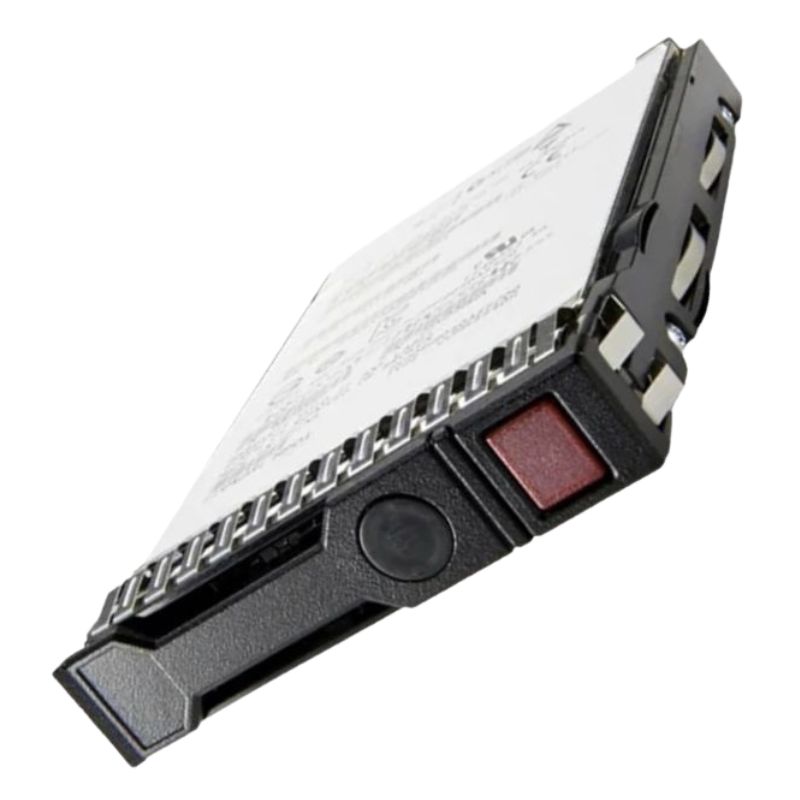

HPE P40503-K21 960GB SFF TLC SSD SATA 6GBPS

P40503-K21
Hover on image to enlarge

Brief Overview of P40503-K21

960GB SFF TLC Single Port DS SATA 6GBPS BC SSD HPE P40503-K21. New Sealed in Box (NIB) 3 Years Warranty
QR Code of HPE P40503-K21 960GB SFF TLC SSD SATA 6GBPS
$523.80
$373.00
You save: $150.80 (29%)
Ask a question
+
Quote
Additional 7% discount at checkout
SKU/MPNP40503-K21Availability✅ In StockProcessing TimeUsually ships same day ManufacturerHPE Manufacturer Warranty3 Years Warranty from Original Brand Product/Item ConditionFactory-Sealed New in Original Box (FSB) ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30
Description

Product Overview Of HPE P40503-K21

Brand and Model Information

  • Manufacturer: HPE
  • Model Number: P40503-K21
  • Option Part Number: P40503-K21
  • Spare Part Number: P41528-001

General Features

  • Type of Device: Hot-Swap Solid State Drive
  • Storage Capacity: 960 GB
  • Form Factor: 2.5 inch SFF
  • Interface Standard: SATA 6Gbps
  • NAND Flash Technology: Triple-level cell (TLC)
  • Plug Type: Hot Pluggable
  • Connectivity: Single Port
  • Carrier Type: Basic Carrier (BC)
  • Optimal Workload: Mixed Use
  • Included Accessories: HPE Basic Carrier (BC)
  • Firmware: Digitally Signed Firmware (DS)
  • Supported Platforms: Mainstream Compute Platforms
  • Drive Height: 7.00 mm

Performance Metrics

Write and Endurance Specifications

  • 30-Day Write Total (TB): 6000
  • Endurance (DWPD): 3.40

Data Transfer Rates

  • Drive Transfer Rate: 6 Gbps (external)
  • Maximum Sequential Read Throughput: 520 MiB/s
  • Maximum Sequential Write Throughput: 480 MiB/s

IOPS and Latency Performance

  • Random Read Average Latency: 125 µSec (4KiB, Q1)
  • Random Write Average Latency: 50 µSec (4KiB, Q1)
  • Random Read IOPS: 61,000 (4KiB, Q=16)
  • Random Write IOPS: 31,000 (4KiB, Q=16)
  • Max Random Read IOPS: 72,000 @ Q32 (4KiB)
  • Max Random Write IOPS: 31,000 @ Q4 (4KiB)

Expansion & Connectivity Options

Interface and Compatibility

  • Interface Type: 1 x SATA 6 Gb/s
  • Compatible Bay: 2.5" SFF

Power Consumption Specifications

  • Idle Consumption: 1.37 Watts
  • Random Read Power: 2.81 Watts
  • Random Write Power: 2.81 Watts
  • Sequential Read Power: 3.09 Watts
  • Sequential Write Power: 3.93 Watts
  • Random Read/Write Power: 2.81 Watts
  • Maximum Power Consumption: 3.93 Watts

Dimensions and Weight

  • Height: 5.50 inches (13.97 cm)
  • Width: 5.75 inches (14.61 cm)
  • Depth: 8.75 inches (22.23 cm)
  • Weight: 1.10 lbs (0.50 kg)

Capacity: 960GB

The HPE P40503-K21 SSD is equipped with an impressive storage capacity of 960GB. This substantial amount of storage space allows users to store a vast amount of data, ranging from important documents and files to multimedia content such as videos, photos, and music. Whether you are a professional who needs to store large files or a casual user who wants to keep their digital life organized, the 960GB capacity ensures that you have ample space to accommodate your needs.

1. Efficient Data Storage

With 960GB of storage capacity, users can efficiently store and access their data without worrying about running out of space. Whether you are working on complex projects or managing a large media library, you can rest assured that there will be enough room for all your files and applications.

Improved Workflow

The generous storage capacity of 960GB enables users to work seamlessly without constantly worrying about running out of space. This eliminates the need for frequent data transfers or the hassle of deleting files to free up storage. By having all your data readily available on the SSD, you can focus on your tasks without any interruptions, ultimately improving your workflow and productivity.

Reduced Clutter

By having a high-capacity SSD like the HPE P40503-K21 with 960GB, users can avoid cluttering their devices with external storage solutions. This not only saves physical space but also eliminates the need for additional cables and devices, providing a clean and organized workspace.

Seamless Multimedia Experience

If you are someone who enjoys capturing memories through photos and videos or indulging in high-definition multimedia content, the 960GB capacity ensures that you have enough space to store all your media files. You can preserve your precious moments and enjoy a seamless multimedia experience without worrying about limited storage.

Interface: SATA 6GBPS

The HPE P40503-K21 SSD features a SATA 6GBPS interface, which offers fast and reliable data transfer speeds. This interface is widely recognized and supported by various devices, making it compatible with a wide range of systems and ensuring a seamless user experience.

1. Fast Data Transfer

The SATA 6GBPS interface provides significantly faster data transfer speeds compared to its predecessors. This means that you can quickly transfer large files or access data stored on the SSD without experiencing any lag or delays. Whether you are transferring files between internal drives or external devices, the high-speed interface ensures swift and efficient data transfer.

Improved System Responsiveness

The fast data transfer speeds offered by the SATA 6GBPS interface contribute to improved system responsiveness. Applications load faster, and the overall performance of your system is enhanced, allowing for a smooth and uninterrupted user experience. Whether you are running resource-intensive software or multitasking between various applications, the high-speed interface ensures that your system operates efficiently.

Seamless Multimedia Playback

If you are someone who enjoys streaming high-definition videos or playing graphics-intensive games, the SATA 6GBPS interface ensures a seamless multimedia playback experience. The fast data transfer speeds enable smooth streaming and loading of multimedia content, eliminating buffering and reducing load times.

Compatibility with Various Systems

The SATA 6GBPS interface is widely supported by various systems, including desktops, laptops, and servers. This compatibility ensures that the HPE P40503-K21 SSD can easily be integrated into your existing system without requiring any additional hardware or software modifications.

Form Factor: SFF

The HPE P40503-K21 SSD features a Small Form Factor (SFF), making it compact and ideal for space-constrained environments. The SFF design allows for easy installation in a variety of systems, providing flexibility and convenience to users.

1. Space-Saving Design

The SFF form factor is specifically designed to occupy minimal space within a system. This compact design is particularly beneficial for small form factor PCs, ultra-thin laptops, and server environments where space is limited. By choosing the HPE P40503-K21 SSD with the SFF form factor, you can maximize the available space and efficiently utilize the storage capacity without compromising on performance.

Flexibility in System Configuration

The SFF form factor allows for easy integration into a wide range of systems. Whether you need to upgrade your existing desktop or install the SSD in a server rack, the compact size of the HPE P40503-K21 ensures compatibility and flexibility in system configuration. This adaptability enables users to customize their systems according to their specific requirements.

Improved Airflow and Cooling

Due to its small size, the SFF form factor promotes better airflow within a system. This helps in maintaining optimal operating temperatures for both the SSD and other components, reducing the risk of overheating and potential performance issues. By selecting an SSD with the SFF form factor, users can ensure efficient cooling and prolong the lifespan of their system.

Ease of Installation

The compact size and standardized design of the SFF form factor make it easy to install the HPE P40503-K21 SSD. Whether you are a novice user or an IT professional, the straightforward installation process allows for quick integration into your system, saving you time and effort.

Technology: TLC

The HPE P40503-K21 SSD utilizes Triple-Level Cell (TLC) technology, which offers a balance between performance, capacity, and cost-effectiveness. This cutting-edge technology provides users with a reliable and efficient storage solution for their data-intensive tasks.

1. Enhanced Storage Efficiency

TLC technology enables higher levels of data storage within each memory cell compared to previous generations of NAND flash memory. This increased storage density allows for more efficient utilization of the available storage capacity, resulting in improved performance and cost-effectiveness.

Optimized Performance

By utilizing TLC technology, the HPE P40503-K21 SSD delivers optimized performance for a wide range of applications. Whether you are performing data-intensive tasks or running resource-demanding software, the SSD can handle the workload efficiently, ensuring smooth and responsive performance.

Cost-Effective Solution

The use of TLC technology in the HPE P40503-K21 SSD offers a cost-effective storage solution without compromising on performance. The increased storage density allows for larger capacity drives at a competitive price point, making it an ideal choice for users who require ample storage space without breaking the bank.

Reliable Data Storage

TLC technology ensures reliable data storage by implementing advanced error correction techniques. This helps in minimizing data corruption and ensures the integrity of stored information. Whether you are storing critical business data or personal files, the HPE P40503-K21 SSD with TLC technology provides a secure and dependable storage medium.

Port: Single Port

The HPE P40503-K21 SSD features a single port design, which simplifies connectivity and ensures compatibility with various systems. This streamlined design offers convenience and ease of use for users in different environments.

1. Simplified Connectivity

The single port design of the HPE P40503-K21 SSD simplifies the connectivity process. Whether you are connecting the SSD to a desktop computer, laptop, or server, you only need to deal with a single port, reducing the complexity of cable management and eliminating the need for additional adapters.

Compatibility with Different Systems

The single port design ensures compatibility with a wide range of systems, including those with limited connectivity options. Whether you are using an older system or a modern device, the HPE P40503-K21 SSD can easily be integrated into your setup without any compatibility issues.

Streamlined Installation Process

The single port design simplifies the installation process, making it user-friendly even for those who are not tech-savvy. By eliminating the need for multiple connections or complex configurations, users can quickly and effortlessly install the HPE P40503-K21 SSD into their system.

Convenient Hot-Swapping

The single port design allows for convenient hot-swapping of the HPE P40503-K21 SSD. This means that users can easily remove and replace the SSD without shutting down the system. This feature is particularly useful in scenarios where continuous operation is critical, such as servers or high-demand workstations.

Features
Manufacturer Warranty:
3 Years Warranty from Original Brand
Product/Item Condition:
Factory-Sealed New in Original Box (FSB)
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
