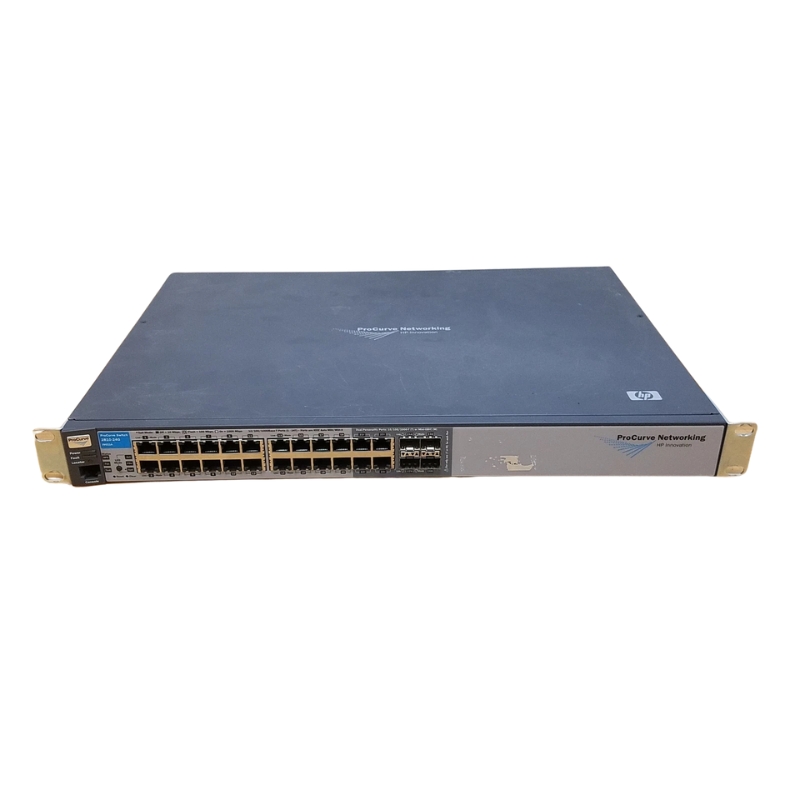

HPE ProCurve J9021A#ABB 2810-24G 24 Ports LAN Managed Ethernet Switch

Ports

The HPE ProCurve 2810-24G Managed Ethernet Switch is equipped with 24 ports, making it an ideal choice for small to medium-sized businesses that require a reliable and efficient network infrastructure. These ports offer numerous benefits and play a crucial role in ensuring seamless connectivity and data transfer within the network.

Overview of the HPE J9021A#ABB 24-Port Switch

Product Identification

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Part Number (SKU): J9021A#ABB
• Product Type: Network Switch
• Port Configuration: 24 Ports

Technical Specifications

Form Factor

• Design: External
• Size: 1U Rackmount

Port Details

• Total Ports: 24
• Port Types: Ethernet 10Base-T, Ethernet 1000Base-T, Ethernet 100Base-X
• Empty Slots: 4 x Shared SFP (Mini-GBIC)

Features

• Layer 2 Switching
• BOOTP Support
• VLAN Support
• Auto-Uplink (Auto MDI/MDI-X)
• Manageable

Standards Compliance

• IEEE 802.1Q (VLAN Tagging)
• IEEE 802.1P (Priority Queuing)
• IEEE 802.3AD (Link Aggregation)
• IEEE 802.1X (Port-Based Network Access Control)
• IEEE 802.1S (Multiple Spanning Tree Protocol)
• IEEE 802.1AB (Link Layer Discovery Protocol)

Networking Capabilities

Data Transfer Rates

• Maximum Rate: 1 Gbps

Protocols

• Data Link: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: SNMP (v1, v2c, v3), RMON (v1, v2, v3, v9), Telnet, HTTP

Connectivity

• Technology: Wired
• Switching Protocol: Ethernet
• MAC Address Table: 8,000 Entries

Expansion and Connectivity

Expansion Slots

• Total Slots: 4 x SFP (Mini-GBIC)

Interfaces

• Network Ports: 24 x Ethernet 10Base-T/100Base-TX/1000Base-T (RJ-45)
• Console Port: 1 x Serial (RJ-45)

Processor and Memory

Processor

• Type: MIPS
• Speed: 264 MHz

Memory

• RAM: 64 MB SDRAM
• Flash Memory: 16 MB

Power Specifications

Power Supply

• Type: Internal Power Supply
• Voltage Required: AC 120/230 V (50/60 Hz)
• Power Consumption: 60 Watts (Operational)

Increased Connectivity

With 24 ports, this switch allows for simultaneous connections to multiple devices such as computers, servers, printers, and other network-enabled devices. This increased connectivity is particularly advantageous in environments where a large number of devices need to be connected to the network simultaneously.

Flexibility and Scalability

The 24 ports on the HPE ProCurve 2810-24G Managed Ethernet Switch provide users with the flexibility to expand their network as their business grows. This scalability ensures that the switch can accommodate future network expansion without the need for additional hardware investments. It offers a cost-effective solution for businesses looking to meet their immediate networking needs while also planning for future growth.

Improved Network Performance

Each port on the switch operates at gigabit speeds, enabling high-speed data transfer and minimizing latency. This allows for faster file transfers, smoother streaming, and improved overall network performance. With 24 gigabit ports, users can enjoy uninterrupted connectivity without experiencing bottlenecks or slowdowns.

Enhanced Productivity

The increased number of ports on the HPE ProCurve 2810-24G Managed Ethernet Switch promotes collaboration and productivity within the workplace. Employees can connect their devices directly to the switch and access network resources effortlessly. This eliminates the need for additional networking equipment or complex configurations, streamlining workflows and enhancing productivity.

LAN

The HPE ProCurve 2810-24G Managed Ethernet Switch features one LAN (Local Area Network) interface. This LAN interface serves as a connection point for devices within a specific geographic area, such as an office building or campus. The LAN feature plays a vital role in establishing a reliable and secure network infrastructure.

Localized Network Communication

The LAN interface enables devices within a specific area to communicate with each other seamlessly. It allows for the sharing of resources, such as printers and servers, and facilitates efficient data transfer between connected devices. This localized network communication enhances collaboration and fosters a productive work environment.

Improved Security

By utilizing a LAN interface, the HPE ProCurve 2810-24G Managed Ethernet Switch ensures enhanced network security. Devices within the LAN are isolated from external networks, reducing the risk of unauthorized access and potential security breaches. This feature is particularly important for businesses that handle sensitive data and need to comply with strict security regulations.

Reduced Network Congestion

The LAN interface on the switch helps reduce network congestion by keeping local traffic separate from external traffic. This segregation ensures that bandwidth is efficiently allocated within the LAN, preventing unnecessary bottlenecks and slowdowns. As a result, users experience improved network performance and uninterrupted connectivity.

Efficient Resource Management

With a dedicated LAN interface, businesses can effectively manage their network resources. IT administrators can easily monitor and control network traffic within the LAN, ensuring optimal resource allocation and preventing unauthorized access. This efficient resource management translates into improved network efficiency and better utilization of available resources.

Managed

The HPE ProCurve 2810-24G Managed Ethernet Switch is designed to be a managed switch, offering advanced features and capabilities that provide users with greater control and flexibility over their network infrastructure.

Advanced Configuration Options

As a managed switch, the HPE ProCurve 2810-24G allows users to access advanced configuration options. IT administrators can customize various network settings, such as VLANs (Virtual Local Area Networks), QoS (Quality of Service), and security protocols. This level of control enables businesses to tailor their network infrastructure to meet their specific requirements and optimize performance.

Remote Management

One of the key benefits of a managed switch is the ability to manage and monitor the network remotely. With the HPE ProCurve 2810-24G, IT administrators can remotely access and configure the switch, eliminating the need for physical presence at the device's location. This remote management capability simplifies network administration and troubleshooting, saving time and resources.

Enhanced Network Security

Managed switches offer enhanced security features compared to unmanaged switches. The HPE ProCurve 2810-24G allows for the implementation of advanced security protocols, such as Access Control Lists (ACLs) and port authentication. These features help protect the network from unauthorized access, ensuring that only authorized devices and users can connect to the network.

Improved Network Performance

By providing greater control over network settings, a managed switch like the HPE ProCurve 2810-24G enables businesses to optimize their network performance. Prioritizing critical traffic, implementing QoS policies, and configuring VLANs help ensure that important applications and services receive sufficient bandwidth, resulting in improved network performance and reduced latency.

Ethernet

The HPE ProCurve 2810-24G Managed Ethernet Switch utilizes Ethernet technology to establish reliable and high-speed connections within a network infrastructure. Ethernet is a widely adopted networking standard that offers several benefits for businesses of all sizes.

Universal Compatibility

Ethernet is a universally recognized networking standard, ensuring compatibility with a wide range of devices. The HPE ProCurve 2810-24G can seamlessly connect to computers, servers, printers, IP cameras, and other Ethernet-enabled devices. This universal compatibility simplifies network integration and allows for the easy addition of new devices to the network.

High-Speed Data Transfer

Ethernet technology offers high-speed data transfer capabilities, allowing for efficient communication between connected devices. The HPE ProCurve 2810-24G supports gigabit Ethernet, which provides data transfer rates of up to 1000 Mbps. This high-speed connectivity ensures fast and reliable data transfer, enabling businesses to handle large file transfers, multimedia streaming, and bandwidth-intensive applications with ease.

Scalability and Future-Proofing

The Ethernet standard is highly scalable, making it suitable for businesses looking to expand their network infrastructure. The HPE ProCurve 2810-24G can accommodate future network growth without requiring significant hardware upgrades or changes. This scalability ensures that businesses can adapt to increasing network demands and take advantage of emerging technologies without disrupting their existing infrastructure.

Reliability and Stability

Ethernet has a proven track record of reliability and stability in networking environments. The HPE ProCurve 2810-24G utilizes Ethernet technology to provide a stable and robust network connection, minimizing downtime and maximizing productivity. The reliability of Ethernet makes it an ideal choice for businesses that rely heavily on continuous network connectivity.

Switch

The HPE ProCurve 2810-24G is a switch designed to facilitate the seamless transfer of data between connected devices within a network infrastructure. It offers several features and benefits that enhance network performance, reliability, and management.

Efficient Data Transfer

The primary function of a switch is to enable efficient data transfer between devices within a network. The HPE ProCurve 2810-24G utilizes advanced switching technology to ensure fast and reliable data transfer. It can handle high data loads and effectively route traffic between connected devices, minimizing latency and optimizing network performance.

Network Segmentation

Switches allow for network segmentation, which involves dividing a large network into smaller, more manageable segments. The HPE ProCurve 2810-24G supports VLANs, enabling businesses to create separate virtual networks within their physical network infrastructure. Network segmentation enhances security, improves overall network performance, and simplifies network management.

Quality of Service (QoS)

The HPE ProCurve 2810-24G offers Quality of Service (QoS) capabilities, allowing businesses to prioritize certain types of network traffic over others. QoS ensures that critical applications and services receive sufficient bandwidth and low latency, improving the overall user experience. By prioritizing important traffic, businesses can ensure that essential operations run smoothly without being affected by other less critical network activities.

Centralized Network Management

Managed switches like the HPE ProCurve 2810-24G provide centralized network management capabilities. IT administrators can monitor and control the switch's performance, configure settings, and troubleshoot issues from a central location. This centralized management simplifies network administration, reduces the risk of errors, and improves overall network efficiency.

PartNumber

The HPE ProCurve 2810-24G Managed Ethernet Switch is identified by its unique PartNumber, which in this case is J9021A#ABB. The PartNumber serves as a reference point for identifying the specific model and variant of the switch and offers several benefits for users.

Accurate Identification

The PartNumber acts as a unique identifier for the HPE ProCurve 2810-24G switch. It ensures accurate identification of the specific model and allows users to easily differentiate it from other similar switches in the market. This accurate identification is crucial when purchasing, troubleshooting, or seeking support for the switch.

Compatibility and Interchangeability

The PartNumber provides information about the specific variant of the switch, including any hardware or software modifications. This information ensures compatibility and interchangeability with other devices and components within the network infrastructure. Users can confidently integrate the HPE ProCurve 2810-24G into their existing network without concerns about compatibility issues.

Warranty and Support

The PartNumber is linked to warranty and support services provided by the manufacturer. Users can easily reference the PartNumber when seeking technical assistance or warranty claims. This streamlined process ensures a smooth customer experience and timely resolution of any issues that may arise.

Product Documentation and Resources

The PartNumber is often used as a reference point in product documentation, user manuals, and online resources. Users can quickly locate relevant information about the HPE ProCurve 2810-24G by referencing its PartNumber. This easy access to product documentation enables users to make the most of the switch's features, troubleshoot problems, and optimize its performance.
