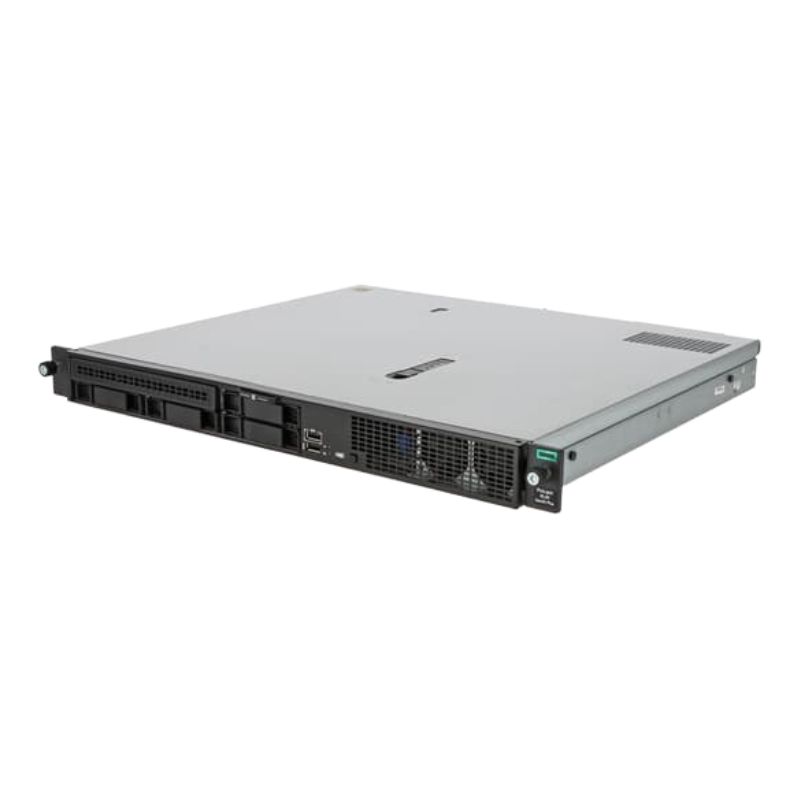

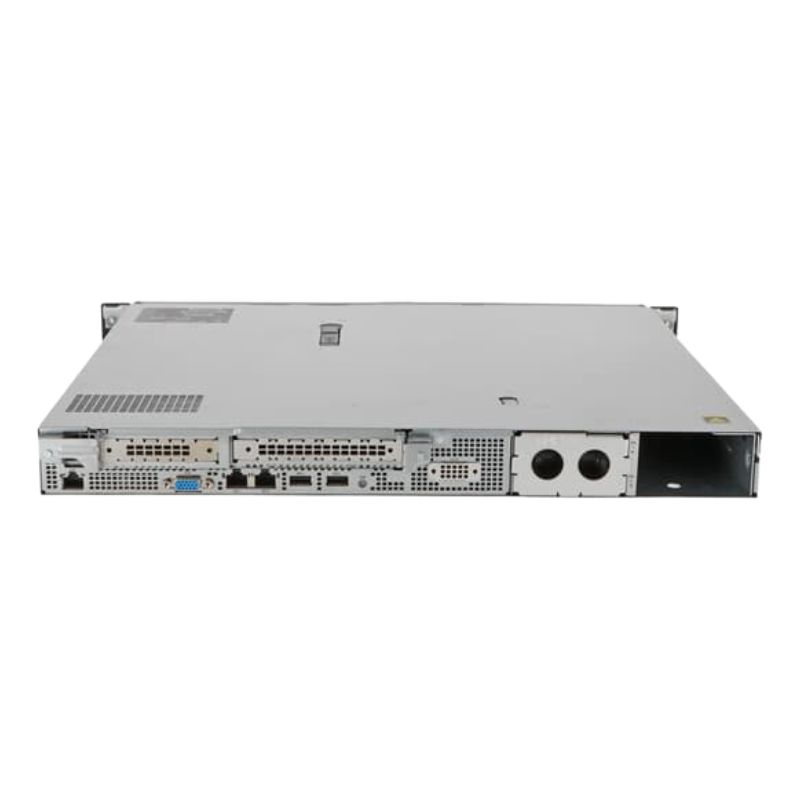

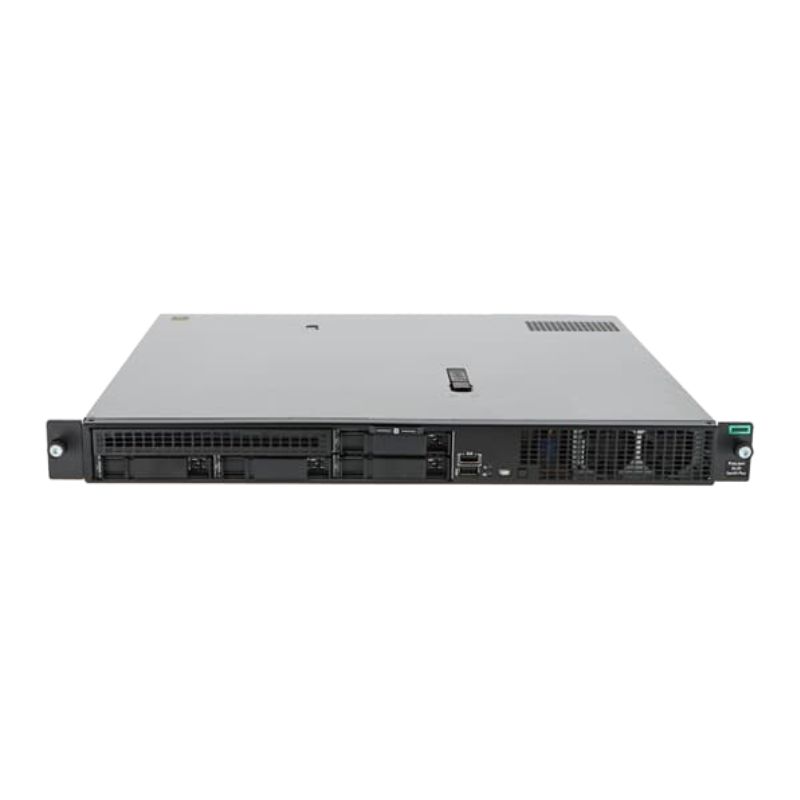

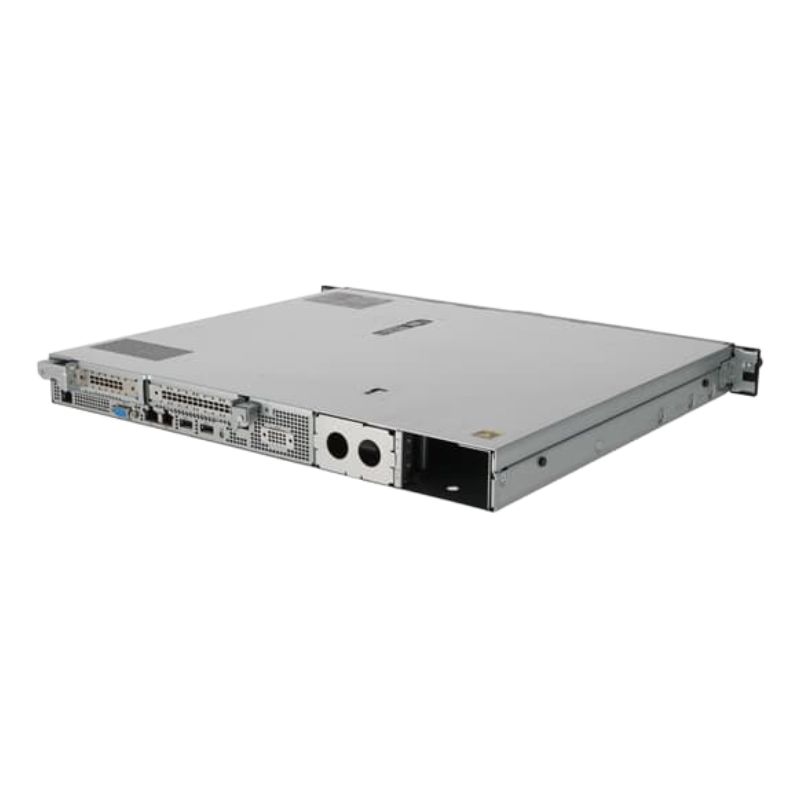

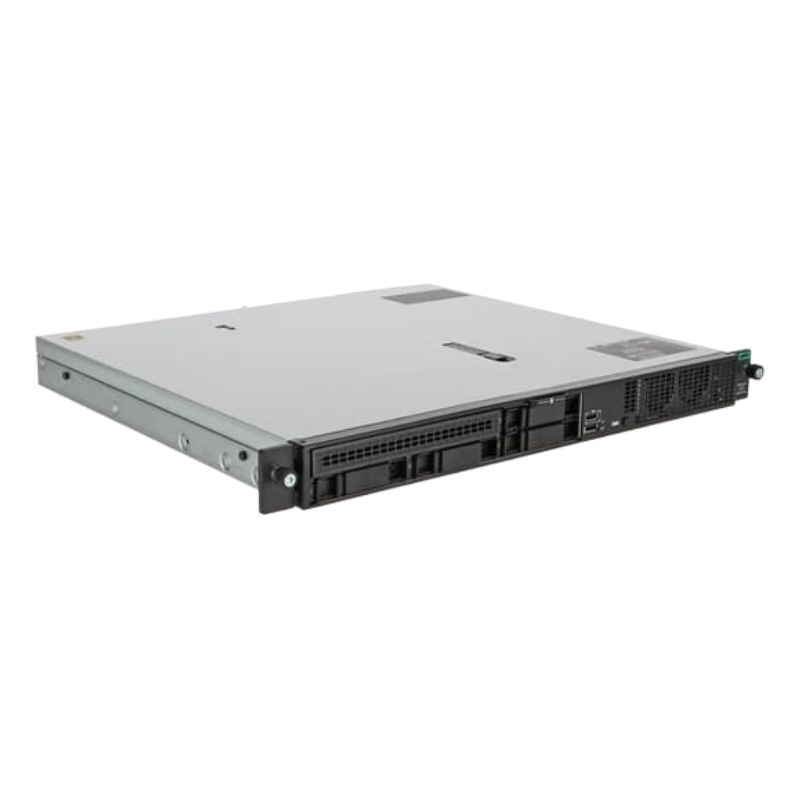

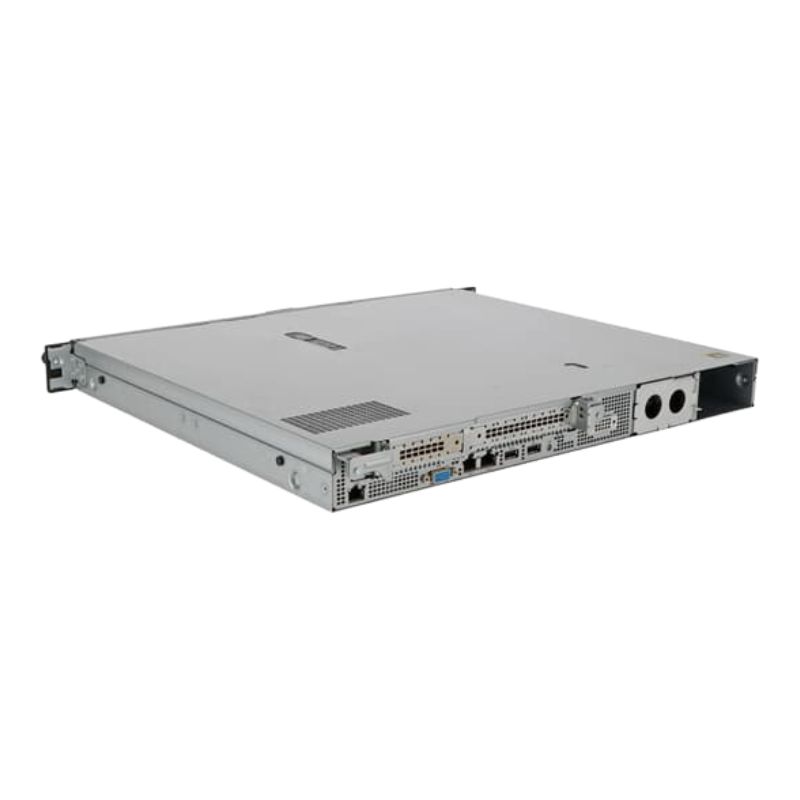

HPE Proliant DL20 P44113-B21 Server Intel Xeon Quad-Core Gen10+ E-2314

Processor

The HPE Proliant DL20 Server is equipped with the powerful Intel Xeon Quad-Core Gen10+ E-2314 processor, which offers an exceptional performance and reliability for small and medium-sized businesses. This processor is specifically designed to handle demanding workloads and provide a seamless computing experience.

General Overview of P44113-B21

• Manufacturer: Hewlett Packard Enterprise
• Part Number: P44113-B21
• Server Scalability: Single-processor
• Rack Unit Height: 1U
• Product Name: DL20 Gen10+ E-2314 1P 16GB 2LFF Server (Base Model)

Processor & Chipset Details

• CPU Model: Intel Xeon E-2314
• Base Clock Speed: 2.8 GHz
• Max Turbo Speed: 4.5 GHz
• Core Count: Quad-core
• CPU Quantity: 1
• Max CPU Support: 1
• CPU Upgradability: Upgradeable
• Main CPU Features: Intel Turbo Boost Technology 2
• Chipset Type: Intel C256

Cache Memory

• Installed Cache Size: L3 Cache - 8 MB
• Cache Per Processor: 8 MB

Memory Specifications

• Installed Memory: 16 GB (Expandable up to 128 GB)
• Memory Technology: DDR4 SDRAM with ECC
• Effective Memory Speed: 3200 MHz
• Rated Memory Speed: 3200 MHz
• Form Factor: DIMM 288-pin
• Total Slots: 4
• Empty Slots: 3
• Memory Features: Unbuffered
• Configuration: 1 x 16 GB

Storage Information

• Hard Drive Type: No HDD

Storage Controllers

• Controller Type: 1 x RAID
• Interface Type: SATA 6Gb/s
• Channel Quantity: 6
• RAID Levels Supported: RAID 0, RAID 1, RAID 5, RAID 10

Graphics and Video

• Graphics Processor: Matrox G200
• Video Interfaces: VGA

Networking and Communication

• Ethernet Ports: 2 x Gigabit Ethernet
• Ethernet Controller: Broadcom BCM5720
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: SNMP v3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Additional Features: Wake On LAN (WOL), PXE Support

Expansion and Connectivity

• Internal Bays: 2 x 3.5" LFF (Free: 2)
• External Bays: 1 (Free: 1)
• PCIe Slots:
  • 1 x PCIe 4.0 x16 (Half-length, Full-height, x8 Mode) (Free: 1)
  • 1 x PCIe 4.0 x8 (Low-profile) (Free: 1)
• Interfaces:
  • 1 x VGA
  • 2 x Gigabit Ethernet
  • 1 x HPE iLO
  • 4 x USB 3.2 Gen 1 (1 Front, 2 Rear, 1 Internal)
  • 1 x USB (Service Port)

Miscellaneous Features

• Included Accessories: HPE Short Friction Rail Kit, 3 Non-hot Plug Non-redundant Fans, LFF Drive Blanking Panel
• Compliance Standards: EMC, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, UEFI, ACPI 6.3

Power Specifications

• Device Type: Power Supply
• Installed Quantity: 1
• Voltage Requirement: AC 100-120V / 200-240V (50/60 Hz)
• Power Output: 290 Watts
• 80 Plus Certification: 80 Plus Platinum
• Efficiency: 92%

Dimensions & Weight

• Width: 17.1 inches
• Depth: 15 inches
• Height: 1.7 inches
• Weight: 22.05 lbs

Exceptional Performance

The Intel Xeon Quad-Core Gen10+ E-2314 processor delivers outstanding performance that can handle multiple tasks simultaneously. With a base clock speed of 3.4 GHz and a turbo frequency of up to 4.8 GHz, this processor ensures that applications run smoothly and efficiently. Whether you are running resource-intensive applications, virtualization, or data-intensive workloads, the E-2314 processor can handle it all with ease.

Improved Efficiency

Efficiency is a critical factor for businesses, as it directly impacts productivity and cost-effectiveness. The E-2314 processor is built with advanced technologies that enhance efficiency. With Intel's Turbo Boost Technology 2.0, the processor can dynamically increase its clock speed when additional power is required, ensuring optimal performance when you need it the most. This means faster data processing, reduced waiting times, and improved overall system responsiveness.

Enhanced Reliability

Reliability is crucial for any server, as downtime can result in significant losses for businesses. The E-2314 processor is engineered to provide exceptional reliability and stability, allowing your server to operate continuously without any interruptions. With Intel's advanced error-correcting code (ECC) memory support, any potential errors are immediately detected and corrected, ensuring data integrity and minimizing the risk of system crashes or data loss.

Optimized Virtualization

Virtualization has become an essential aspect of modern IT infrastructure, enabling businesses to maximize their server resources and improve scalability. The E-2314 processor is designed to deliver exceptional virtualization performance, allowing you to run multiple virtual machines concurrently with minimal performance degradation. This ensures efficient utilization of resources, improved server consolidation, and lower costs.

Future-Proof Technology

Investing in future-proof technology is crucial for businesses looking to stay ahead in the rapidly evolving digital landscape. The Intel Xeon Quad-Core Gen10+ E-2314 processor offers the latest advancements in processing power and efficiency, ensuring that your server can handle the demands of tomorrow's applications and workloads. This means you can rely on your HPE Proliant DL20 Server to support your business growth and adapt to changing requirements.

Security Features

In today's digital landscape, security is a top priority for businesses. The E-2314 processor incorporates Intel's advanced security technologies to protect your server and data from potential threats. With features like Intel Software Guard Extensions (Intel SGX) and Intel Trusted Execution Technology (Intel TXT), you can have peace of mind knowing that your server is equipped with robust security measures.

Energy Efficiency

Energy efficiency is not only environmentally friendly but also helps businesses reduce their operational costs. The E-2314 processor is designed to deliver high performance while keeping power consumption in check. With Intel's power-saving technologies, such as Enhanced SpeedStep Technology and Advanced Vector Extensions 2 (AVX2), the processor intelligently adjusts its power usage based on workload requirements, resulting in optimized energy efficiency without compromising performance.

Conclusion

The Intel Xeon Quad-Core Gen10+ E-2314 processor is a standout feature of the HPE Proliant DL20 Server, offering exceptional performance, improved efficiency, enhanced reliability, and optimized virtualization capabilities. With its future-proof technology and robust security features, this processor ensures that your server can handle the demands of today and tomorrow while keeping your data safe. Additionally, its energy-efficient design helps reduce operational costs. Invest in the HPE Proliant DL20 Server with the Intel Xeon Quad-Core Gen10+ E-2314 processor and experience a powerful and reliable server solution for your business.
