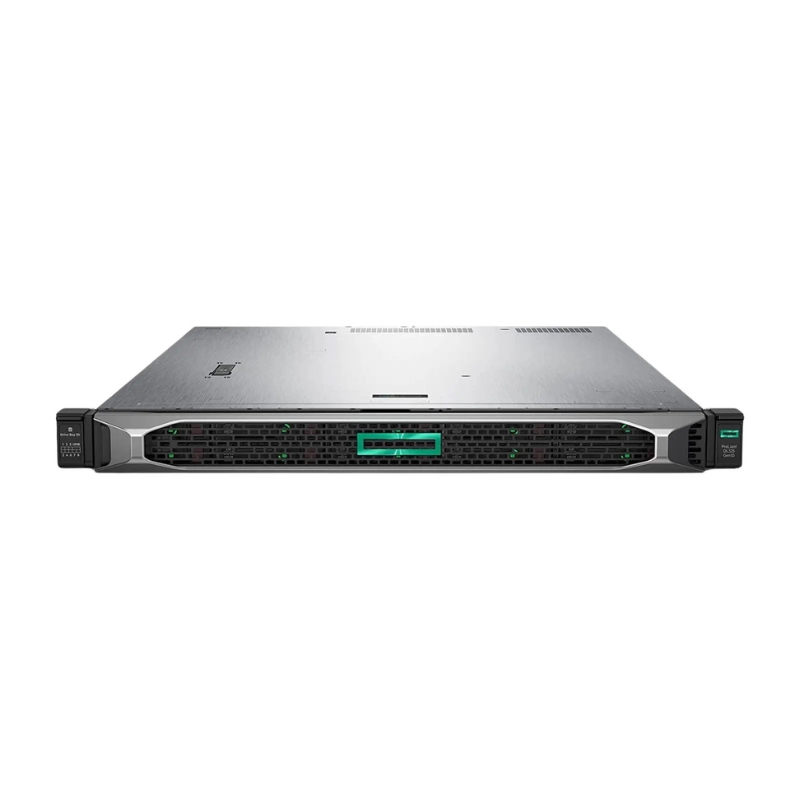

HPE Proliant DL325 Gen10 AMD EPYC 7313P Server, 32GB DDR4, P38477-B21

Processor

The HPE Proliant DL325 Gen10 Server is equipped with an impressive AMD EPYC 7313P processor running at a clock speed of 3.0 GHz. This powerful processing unit offers exceptional performance and efficiency, making it an ideal choice for businesses and organizations that require high computing power.

General Overview of P38477-B21

• Manufacturer: Hewlett Packard Enterprise
• Part Number: P38477-B21
• Server Type: 2-way Rack Mountable
• Rack Height: 1U
• Product Model: ProLiant DL325 Gen10 - 1U Base Model

Processor & Chipset

• Model: AMD EPYC 7313P
• Base Frequency: 3.0 GHz
• Max Turbo Speed: 3.7 GHz
• Cores: 16
• Quantity Installed: 1
• Maximum CPUs Supported: 1
• Upgrade Capability: Yes
• Socket Type: SP3

Cache Memory

• Total Cache Size: 128 MB (L3 Cache)
• Cache per Processor: 128 MB

Memory Specifications

• Standard Size: 32 GB
• Maximum Capacity: 1 TB
• Type: DDR4 RDIMM
• Effective Speed: 3200 MHz
• Compliance: PC4-25600
• Form Factor: DIMM 288-pin
• Total Slots: 16 (1 used, 15 available)
• Features: Registered, HPE SmartMemory
• Configuration: 1 x 32 GB
• Supported RAM: PC4-25600 - 1 TB Registered / 4 TB Load-Reduced

Storage

• Hard Drive: None
• Optical Drive: None

Storage Controllers

• Type: RAID Controller
• Interface: SATA 6 Gb/s / SAS 12 Gb/s
• Controller Model: HPE Smart Array P408i-a
• Channels: 8
• RAID Levels: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
• Cache Size: 2 GB

Display & Graphics

• Video Memory: 16 MB
• Video Interface: VGA

Networking & Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: SNMP v3, SMASH CLP
• Features: Wake On LAN (WOL), PXE Support

Expansion & Connectivity

• Total Bays: 8 (All free)
• Bays Type: Hot-swap 2.5” SFF

Slots

• PCIe 4.0 x16 (Full-Length, Full-Height): 1 (Free)
• PCIe 4.0 x16 (Low-Profile): 1 (Free)
• PCIe 4.0 x16 / OCP Mezzanine 3.0: 1 (Occupied)

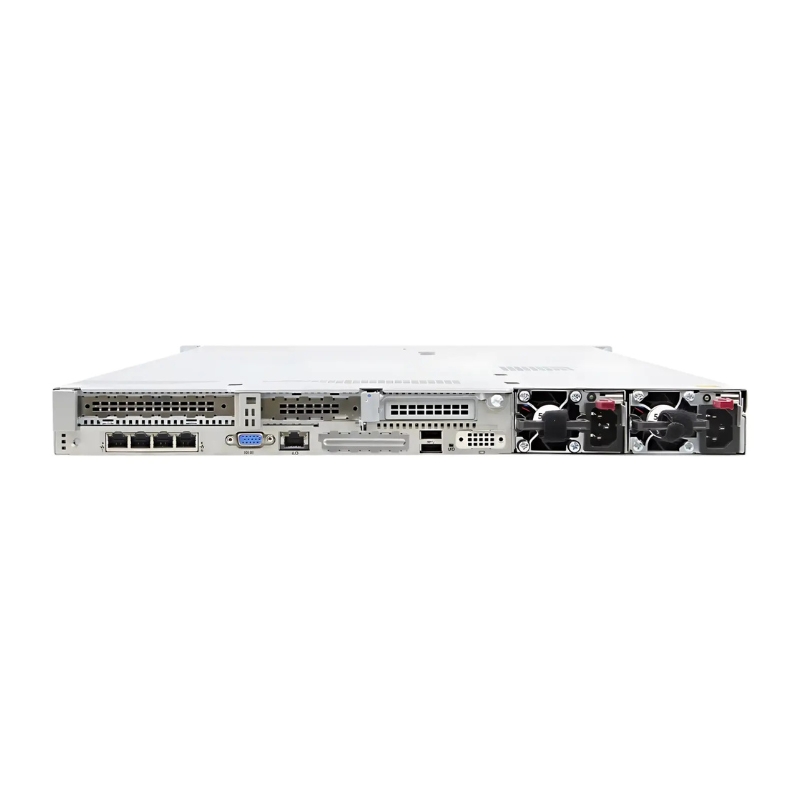

Interfaces

• VGA Port: 1
• HPE iLO Ports: 1 (Front), 1 (Service Port)
• USB 3.1 Gen 1 Ports: 4 (1 Front, 2 Rear, 1 Internal)
• LAN Ports: 4 x Gigabit Ethernet

Miscellaneous

• 8 x Standard Fans
• SFF Easy Install Rails

Theft/Intrusion Protection

• Chassis Intrusion Sensor

Compliant Standards

• ACPI 6.1
• Redfish API
• UEFI
• SMBIOS 3.1

Power Specifications

• Power Supply Type: Hot-Plug
• Power Redundancy: Optional
• Redundancy Scheme: 1+1 (with Optional Power Supply)
• Installed Quantity: 1
• Max Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 500 Watts

Dimensions & Weight

• Width: 25.4 inches
• Depth: 17.1 inches
• Height: 1.7 inches
• Weight: 26.87 lbs

Unmatched Performance

The AMD EPYC 7313P is designed to deliver unmatched performance, enabling users to handle demanding workloads with ease. With 16 cores and 32 threads, this processor can tackle complex tasks efficiently, ensuring smooth and seamless operation even in the most resource-intensive environments. Whether you're running virtual machines, performing data analysis, or handling heavy computational workloads, the AMD EPYC 7313P will provide the performance you need.

Enhanced Efficiency

In addition to its impressive performance capabilities, the AMD EPYC 7313P processor also offers enhanced efficiency. Built on a highly efficient architecture, this processor ensures optimal power consumption without compromising performance. This means that you can achieve higher levels of productivity while keeping your energy costs in check.

Advanced Security Features

Security is a top concern for businesses today, and the AMD EPYC 7313P processor addresses this by incorporating advanced security features. With built-in encryption capabilities and secure boot functionality, this processor helps safeguard your data and protect your system from unauthorized access. This level of security is crucial for businesses that deal with sensitive information or need to comply with strict data protection regulations.

Future-Proof Technology

Investing in a server with the AMD EPYC 7313P processor ensures that you're equipped with future-proof technology. AMD's commitment to innovation means that you'll benefit from ongoing advancements in performance and efficiency as new updates and technologies are released. This ensures that your server will remain relevant and capable of handling emerging workloads for years to come.

Memory

The HPE Proliant DL325 Gen10 Server comes with a generous 32GB DDR4 memory capacity. This ample amount of memory provides several benefits to users, enabling them to optimize their server performance and handle demanding workloads efficiently.

Improved Multitasking

With 32GB of DDR4 memory, users can effortlessly handle multiple tasks simultaneously without experiencing any performance degradation. This is particularly important for businesses that rely on their servers to run various applications or virtual environments concurrently. The ample memory capacity ensures that each task receives the required resources, resulting in smooth multitasking and enhanced productivity.

Faster Data Access

The high-speed DDR4 memory featured in the HPE Proliant DL325 Gen10 Server allows for faster data access, reducing latency and improving overall system responsiveness. This is particularly beneficial for applications that require frequent data retrieval or manipulation, such as databases or analytics platforms. With faster data access, you can process information more quickly, enabling quicker decision-making and improved business outcomes.

Scalability and Future Expansion

The 32GB DDR4 memory capacity of the HPE Proliant DL325 Gen10 Server provides ample room for scalability and future expansion. As your business grows and your workload demands increase, you can easily upgrade your server's memory to accommodate higher requirements. This scalability ensures that your server remains capable of handling evolving workloads, allowing you to stay ahead in a constantly changing business environment.

Reliability and Data Integrity

Reliability is a key consideration when it comes to server memory. The HPE Proliant DL325 Gen10 Server's DDR4 memory offers exceptional reliability and data integrity, minimizing the risk of data corruption or loss. This is crucial for businesses that handle critical data, ensuring that your valuable information remains secure and accessible at all times.

Part Number

The HPE Proliant DL325 Gen10 Server features the part number P38477-B21. This unique identifier holds significance for users, providing valuable information and ensuring compatibility with other hardware components.

Easy Identification

The part number P38477-B21 allows for easy identification of the HPE Proliant DL325 Gen10 Server. With numerous server models available in the market, having a specific part number simplifies the process of finding the exact server you need. This ensures that you can quickly locate the appropriate server model when making purchasing decisions or seeking technical support.

Compatibility Assurance

The part number P38477-B21 also guarantees compatibility with other hardware components and accessories manufactured by HPE. When expanding or upgrading your server, it's crucial to ensure that all components work together seamlessly. By using the specified part number, you can be confident that the server is designed to integrate smoothly with other HPE products, reducing compatibility issues and potential downtime.

Warranty and Support

The part number P38477-B21 is associated with a specific warranty and support package provided by HPE. This ensures that users have access to technical assistance, troubleshooting, and repairs if needed. By using the designated part number when purchasing or seeking support, you can enjoy peace of mind knowing that your server is backed by reliable manufacturer support.

Product Documentation and Resources

When searching for product documentation, user manuals, or additional resources related to the HPE Proliant DL325 Gen10 Server, using the part number P38477-B21 can significantly streamline your search. It helps you locate the relevant information specific to your server model quickly. This saves time and enables you to access the necessary resources to maximize the potential of your server.
