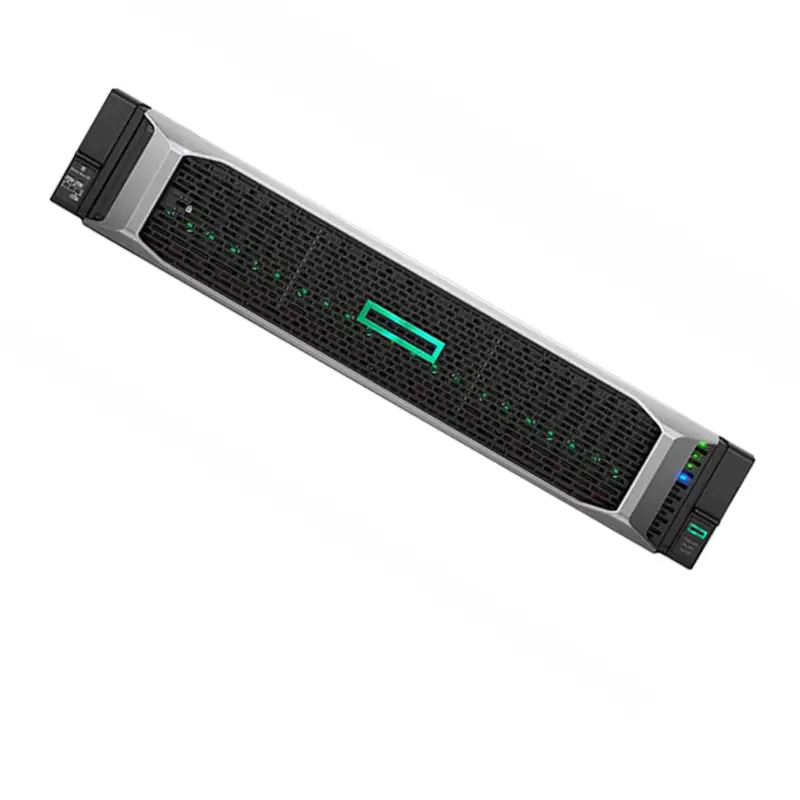

HPE Proliant Dl360 Gen10 Server Intel Xeon 2.1 GHz 12-core P55241-B21

Processor Speed: 2.1 GHz

When it comes to choosing a server, one of the most critical factors to consider is the processor speed. In the case of the HPE DL360 Server Intel Xeon, you can rest assured knowing that it offers an impressive processor speed of 2.1 GHz. This means that your server is equipped with a high-performing processor that can handle even the most demanding tasks with ease.

General Overview of Server Intel

• Manufacturer: Hewlett Packard Enterprise
• Part Number: P55241-B21

Server Specifications

• Scalability: 2-way
• Rack Units: 1U
• Hot-swap Bays: 8
• Model Name: HPE Proliant DL360 Gen10 Plus 4310 2.1GHz 12-core 1P 32GB-R MR416i-a NC 8SFF 800W PS Server (Pre-configured)

Processor & Chipset

• Processor: Intel Xeon Silver 4310
• Base Clock Speed: 2.1 GHz
• Max Turbo Speed: 3.3 GHz
• Core Count: 12 cores
• Quantity: 1 (upgradable to 2)
• Socket Type: FCLGA4189
• Chipset: Intel C621A

Cache Memory

• Installed Size: 18 MB L3 Cache
• Cache per Processor: 18 MB

Memory Specifications

• Installed Memory: 32 GB
• Maximum Capacity: 4 TB
• Memory Technology: DDR4 SDRAM
• Effective Speed: 2667 MHz
• Rated Speed: 3200 MHz
• Form Factor: DIMM 288-pin
• Memory Slots: 32 total, 31 available
• Features: Registered, Dual Rank, HPE SmartMemory

Storage & Storage Controller

• RAID Configuration: 1x RAID
• Controller Interface: SATA 6Gb/s, SAS 12Gb/s, PCIe 4.0 (NVMe)
• Controller Name: HPE Smart Array MR416i-a
• Channels: 16
• RAID Levels Supported: 0, 1, 5, 6, 10, 50, 60
• Buffer Size: 4 GB

Graphics Controller

• Video Memory: 16 MB
• Video Interfaces: VGA

Network & Communication

• Bus Type: Open Compute Project Mezzanine (OCP) 3.0
• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Ethernet Controller: Broadcom BCM57416
• Data Link Protocol: 10 Gigabit Ethernet
• Remote Management Protocol: Integrated Lights-Out 5
• Features: Wake On LAN (WOL), PXE Support

Expansion & Connectivity

• Total Bays: 8
• Hot-swap Bays: 8 x 2.5 SFF

Slots

• PCIe Slots: 1 x PCIe 4.0 x16 Full-height (x16 Mode), 1 x PCIe 4.0 x16 Low-profile (x16 Mode)

Interfaces

• USB Ports: 3 x USB 3.0 (1 Front, 2 Rear), 1 x USB 2.0 (Front)
• Other Interfaces: 1 x HPE iLO (Front), 1 x VGA
• LAN Ports: 2 x 10 Gigabit Ethernet

Power Description

• Device Type: Hot-plug Power Supply
• Redundancy: Optional, 1+1 (with optional power supply)
• Installed Quantity: 1
• Max Supported Quantity: 2
• Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 800 Watt
• 80 Plus Certification: 80 Plus Platinum

Dimensions & Weight

• Width: 17.1 inches
• Depth: 27.8 inches
• Height: 1.7 inches
• Weight: 28.75 lbs

Miscellaneous

• Included Accessories: HPE Easy Install Rails, CPU Standard Heatsink, 7 x High-Performance Fans, 31 x DIMM Blanks
• Compliance Standards: WEEE, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, UEFI, ACPI 6.3, SMBIOS 3.0

Enhanced Performance

The 2.1 GHz processor speed of the HPE DL360 Server Intel Xeon provides enhanced performance and responsiveness. Whether you're running resource-intensive applications, managing large databases, or handling heavy workloads, this server's processor speed ensures smooth and efficient operations.

Efficient Multitasking

In today's fast-paced business environment, multitasking has become the norm. With the HPE DL360 Server's 2.1 GHz processor speed, you can effortlessly handle multiple tasks simultaneously without experiencing any slowdowns. This enables your business to operate efficiently and ensures that you can meet deadlines and deliver results promptly.

Improved User Experience

A faster processor speed translates into an improved user experience. Whether your employees are accessing applications, managing data, or performing other tasks on the server, they will benefit from reduced wait times and increased productivity. The seamless performance of the HPE DL360 Server Intel Xeon allows your team to work more efficiently, ultimately driving your business forward.

Reduced Downtime

With a powerful processor speed of 2.1 GHz, the HPE DL360 Server is capable of handling high volumes of data and complex computations without breaking a sweat. This means that your server is less likely to experience slowdowns or crashes, resulting in reduced downtime. Minimizing downtime is crucial for any business as it ensures uninterrupted operations and prevents potential revenue loss.

Future-Proofing your Business

Investing in a server with a high processor speed like the HPE DL360 Server Intel Xeon with 2.1 GHz ensures that your business is future-proofed. As technology continues to advance and applications become more resource-intensive, having a server that can keep up with these demands is essential. By choosing a server with a powerful processor, you are equipping your business with the capabilities it needs to thrive in the long run.

Number Of Cores: 12

Unleashing Performance with Multiple Cores

The HPE DL360 Server Intel Xeon boasts an impressive 12 cores, making it a powerhouse when it comes to performance. The number of cores plays a significant role in determining how efficiently a server can handle multiple tasks simultaneously. With 12 cores at its disposal, this server can tackle even the most demanding workloads with ease.

Parallel Processing

One of the primary advantages of having 12 cores in the HPE DL360 Server Intel Xeon is the ability to perform parallel processing. Each core can handle a separate task simultaneously, allowing for faster execution and improved overall performance. This means that your server can process multiple requests, run various applications, and manage extensive databases without experiencing any bottlenecks or slowdowns.

Optimized Resource Allocation

The 12-core architecture of the HPE DL360 Server enables optimized resource allocation. Each core can be assigned specific tasks, ensuring efficient utilization of processing power. This results in a balanced distribution of workload and prevents any single core from becoming overloaded. By effectively managing resources, the server can deliver exceptional performance and handle workload spikes without compromising on speed or responsiveness.

Improved Virtualization

In today's virtualized environments, having a server with ample cores is crucial. The HPE DL360 Server Intel Xeon's 12 cores allow for efficient virtualization, enabling you to run multiple virtual machines simultaneously. Whether you're hosting virtual desktops, deploying cloud services, or running virtualized applications, the server's robust core count ensures smooth and responsive performance.

Enhanced Scalability

The 12 cores of the HPE DL360 Server Intel Xeon provide enhanced scalability for your business. As your organization grows and demands increase, having a server that can scale alongside your needs is essential. With its abundant core count, this server can accommodate expanding workloads and ensure that your operations run smoothly, even as your business evolves.

Improved Efficiency and Cost Savings

The HPE DL360 Server's 12 cores not only deliver exceptional performance but also contribute to improved efficiency and cost savings. By efficiently utilizing processing power and handling multiple tasks simultaneously, the server reduces the need for additional hardware. This translates into cost savings as you can achieve more with fewer servers, reducing power consumption, cooling requirements, and overall maintenance costs.

Generation: Gen10

The Power of Gen10

The HPE DL360 Server Intel Xeon belongs to the Gen10 generation, which represents the latest advancements in server technology. This generation introduces a host of features and improvements that enhance performance, reliability, and security.

Unparalleled Performance

The Gen10 architecture of the HPE DL360 Server Intel Xeon guarantees unparalleled performance. With advancements in processor technology, memory capacity, and storage capabilities, this server is designed to handle even the most demanding workloads. Whether you're running resource-intensive applications, managing complex databases, or handling virtualization, the Gen10 generation ensures that your server delivers exceptional performance and responsiveness.

Enhanced Security

Security is a top concern for any business, and the Gen10 generation addresses this with improved security features. The HPE DL360 Server Intel Xeon incorporates advanced security technologies that protect your data from unauthorized access and potential threats. From secure boot to firmware protection, this server ensures that your critical business information remains safeguarded.

Reliability and Availability

The Gen10 architecture of the HPE DL360 Server prioritizes reliability and availability. With features like redundant power supplies, hot-swappable drives, and advanced fault tolerance mechanisms, this server minimizes downtime and ensures uninterrupted operations. This reliability is crucial for businesses that cannot afford to experience disruptions or loss of data.

Scalability for Future Growth

The Gen10 generation provides scalability options that allow your server to grow alongside your business. The HPE DL360 Server Intel Xeon's Gen10 architecture enables easy expansion of memory, storage, and processing power, ensuring that your server can accommodate increased demands as your organization evolves. This scalability eliminates the need for frequent hardware upgrades and allows you to make the most of your investment.

Efficient Management

The Gen10 architecture introduces efficient management capabilities to the HPE DL360 Server Intel Xeon. With advanced management tools like iLO 5 (Integrated Lights-Out), you can remotely manage and monitor your server from anywhere in the world. This simplifies administration tasks, reduces downtime associated with maintenance, and improves overall operational efficiency.

Part Number: P55241-B21

Identifying the HPE DL360 Server

The part number plays a crucial role in identifying and distinguishing the HPE DL360 Server Intel Xeon. The P55241-B21 part number is unique to this specific server model and provides essential information for procurement, support, and compatibility purposes.

Procurement Made Easy

When procuring servers for your business, having a unique part number simplifies the process. The P55241-B21 part number allows you to easily identify and select the HPE DL360 Server Intel Xeon from suppliers, resellers, and online marketplaces. This streamlines the procurement process and ensures that you receive the correct server model that meets your business requirements.

Compatibility Assurance

The P55241-B21 part number ensures compatibility with the appropriate components and accessories specific to the HPE DL360 Server Intel Xeon. When expanding or upgrading your server, it is crucial to select compatible parts to avoid compatibility issues or performance bottlenecks. By referring to the part number, you can confidently choose the right components that seamlessly integrate with your server.

Technical Support and Warranty

The part number serves as a reference for technical support and warranty purposes. When seeking assistance or warranty coverage for your HPE DL360 Server Intel Xeon, providing the P55241-B21 part number allows support personnel to quickly identify your specific server model and ensure that you receive accurate assistance or warranty coverage.

Future Proofing with Part Numbers

Part numbers like P55241-B21 are essential for future proofing your business. As technology evolves and newer server models are introduced, having a unique part number ensures that you can easily identify and procure replacement servers or compatible components. This enables you to maintain consistency in your IT infrastructure and ensures that you can seamlessly upgrade or expand your server capabilities as your business grows.

Easy Documentation and Asset Management

The P55241-B21 part number simplifies documentation and asset management for your HPE DL360 Server Intel Xeon. By referring to the unique part number, you can accurately record and track information related to your server, such as warranty details, purchase date, and configuration. This facilitates efficient asset management and simplifies future audits or upgrades.
