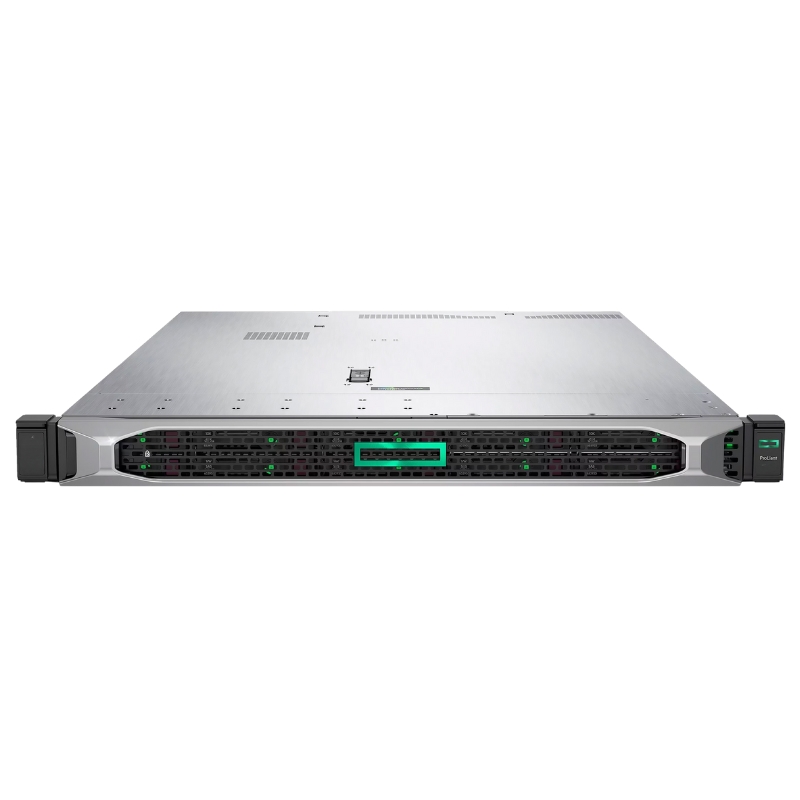

HPE Proliant DL360 Gen10 Server Xeon Gold 6242 2.8GHz 32GB DDR4 P19180-B21

Processor

The HPE Proliant DL360 Server Gen10 is equipped with a powerful 16-Core Xeon Gold 6242 processor, running at a clock speed of 2.8GHz. This processor is a game-changer for businesses, offering exceptional performance and reliability. Let's delve into the benefits and importance of this feature for users.

General Information

Manufacturer Details

• Manufacturer: Hewlett Packard Enterprise
• Manufacturer Part Number: P19180-B21

Product Overview

• Product Name: HPE Proliant DL360 Gen10
• Form Factor: Rack-mountable
• Processor: Intel Xeon Gold 6242, 2.8GHz
• Memory: 32GB

Processor & Chipset

Processor Specifications

• Type: Intel Xeon Gold 6242
• Base Speed: 2.8GHz
• Max Turbo Speed: 3.9GHz
• Core Count: 16-core
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Upgrade Potential: Yes
• Chipset Type: Intel C621

Cache Memory

Cache Details

• Cache Type: L3 Cache
• Total Cache Size: 22MB
• Cache per Processor: 22MB

RAM Specifications

Installed Memory

• Installed RAM Size: 32GB
• Maximum Supported RAM: 768GB
• Memory Technology: DDR4 SDRAM
• Form Factor: DIMM 288-pin
• Total Slots: 12
• Available Slots: 11
• Features: Registered, HPE SmartMemory
• Configuration: 1 x 32GB
• Supported RAM Types:
  • PC4-20800 - 768GB Registered
  • PC4-20800 - 3TB Load-reduced
  • PC4-20800 - 192GB Non-volatile

Storage & Controllers

Hard Drive and Controller

• Hard Drive: None
• Controller Type: RAID
• Interface Types: SATA 6Gb/s, SAS 12Gb/s
• Controller Name: HPE Smart Array P408i-a
• Channel Quantity: 8
• RAID Levels:
  • RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
• Buffer Size: 2GB

Card Reader

Specifications

• Type: Card Reader
• Supported Memory Cards: MicroSD

Graphics Controller

Video Specifications

• Video Memory: 16MB
• Video Interfaces: VGA

Networking

Network Connectivity

• Ethernet Ports: 2 x 10/25 Gigabit Ethernet SFP28
• Ethernet Controller: HPE 640FLR
• Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet
• Remote Management Protocols: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Additional Features: Wake On LAN (WOL), PXE Support

Expansion & Connectivity

Bay and Slot Configurations

• Bays:
  • 1 x External Universal Media Bay (Free)
  • 8 x Hot-swap 2.5" SFF (Free)
• Slots:
  • 1 x PCIe 3.0 x16 (Three-quarter-length, Full-height)
  • 1 x PCIe 3.0 x8 (Low-profile)
  • 1 x FlexibleLOM (Three-quarter-length, Full-height, Low-profile)
  • 1 x MicroSD Card (Internal)
  • 1 x PCIe x16 (Full-height)
• Interfaces & Ports:
  • 1 x HPE iLO - Type A (Front)
  • 1 x HPE iLO - RJ-45 (Rear)
  • 5 x USB 3.0 (1 Front, 2 Rear, 2 Internal)
  • 1 x VGA (Rear)
  • 2 x LAN (10/25 Gigabit Ethernet) (SFP28)

Miscellaneous

Compliance Standards

• AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2
• ASHRAE Class A4, ASHRAE Class A3
• WEEE 2002/95/EC, ACPI 6.1

Power Specifications

Power Supply Details

• Type: Hot-plug / Redundant
• Redundancy: Optional
• Redundancy Scheme: 1+1 (with Optional Power Supply)
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230V (50/60Hz)
• Power Provided: 800 Watts
• 80 Plus Certification: 80 Plus Platinum

Dimensions & Weight

Physical Specifications

• Width: 17.1 inches
• Depth: 27.8 inches
• Height: 1.7 inches
• Weight: 28.75 lbs

Enhanced Performance

With 16 cores, the Xeon Gold 6242 processor delivers unparalleled processing power. It enables the server to handle complex tasks, data-intensive applications, and virtualization with ease. This means faster response times, improved productivity, and reduced latency for users. Whether you are running resource-intensive databases, performing data analytics, or hosting critical applications, this processor will ensure optimal performance.

Scalability

The DL360 Server Gen10's processor supports Intel's Hyper-Threading technology, which allows each physical core to handle two threads simultaneously. This effectively doubles the number of available threads and enhances the server's ability to multitask efficiently. It also provides scalability for future growth and ensures that the server can handle increased workloads as your business expands.

Advanced Security Features

Intel's Xeon processors come equipped with advanced security features that protect your server and its data from potential threats. The Xeon Gold 6242 processor includes built-in encryption capabilities, such as Intel AES-NI (Advanced Encryption Standard - New Instructions). This feature ensures that sensitive data is encrypted in real-time, safeguarding it from unauthorized access or interception.

Energy Efficiency

In addition to its impressive performance capabilities, the Xeon Gold 6242 processor is designed with energy efficiency in mind. It utilizes Intel's Turbo Boost technology to dynamically adjust its clock speed based on workload demands. This results in optimized power consumption, reducing energy costs and minimizing the server's environmental footprint. With this processor, you can enjoy high-performance computing while being conscious of energy consumption.

Reliability and Redundancy

The DL360 Server Gen10's processor is built to provide exceptional reliability and redundancy. It features Intel's Run Sure technology, which includes error-correcting code (ECC) memory support. ECC memory detects and corrects errors in real-time, ensuring data integrity and minimizing the risk of system crashes or data corruption. This level of reliability is crucial for businesses that rely on continuous operation and cannot afford downtime.

Memory

The HPE Proliant DL360 Server Gen10 is equipped with 32GB DDR4 memory, offering significant benefits for users in terms of performance, scalability, and reliability.

Enhanced Performance and Responsiveness

The 32GB DDR4 memory provides ample capacity for handling demanding workloads and resource-intensive applications. It allows the server to store and access data quickly, resulting in enhanced performance and responsiveness. Whether you are running virtual machines, hosting databases, or performing data analytics, the increased memory capacity ensures smooth operation even under heavy loads.

Improved Multitasking and Virtualization

With 32GB of memory, the DL360 Server Gen10 can efficiently handle multitasking and virtualization. It enables you to run multiple applications simultaneously without experiencing lag or performance degradation. This is particularly beneficial for businesses that require seamless multitasking across various departments or need to host multiple virtual machines for different purposes.

Scalability for Future Growth

The DL360 Server Gen10's memory capacity can be expanded to meet your growing business needs. It supports up to 768GB of DDR4 memory, allowing you to scale up as your requirements increase over time. This scalability ensures that your server can handle future workloads and allows for easy upgrades without the need for a complete system replacement.

Reliability and Data Integrity

The DDR4 memory technology utilized in the DL360 Server Gen10 offers improved reliability and data integrity. It incorporates error-correcting code (ECC) functionality, which detects and corrects memory errors in real-time. ECC memory ensures that data stored in memory is accurate and free from corruption, reducing the risk of system crashes or data loss.

Energy Efficiency

The DDR4 memory module used in the DL360 Server Gen10 is designed with energy efficiency in mind. It operates at lower voltages compared to previous generations, resulting in reduced power consumption. This not only helps lower energy costs but also contributes to a greener and more sustainable IT infrastructure.

Part Number

The HPE Proliant DL360 Server Gen10 is identified by the part number P19180-B21. This unique identifier plays a crucial role in ensuring accurate ordering, compatibility, and maintenance of your server.

Ordering Accuracy

The part number P19180-B21 allows you to precisely identify and order the DL360 Server Gen10 variant you require. With numerous server models and configurations available, having this specific part number eliminates any confusion or ambiguity during the ordering process. It ensures that you receive the exact server model with the desired specifications, preventing any potential compatibility issues.

Compatibility Assurance

The part number P19180-B21 also serves as a compatibility reference, ensuring that all components and accessories you purchase are compatible with your DL360 Server Gen10. This is crucial when expanding or upgrading your server, as using incompatible components can result in system instability or performance issues. By referencing the part number, you can be confident that any additional hardware or software you acquire will seamlessly integrate with your server.

Efficient Maintenance and Support

The part number P19180-B21 facilitates efficient maintenance and support for your DL360 Server Gen10. When contacting technical support or ordering replacement parts, providing the correct part number expedites the process and ensures that you receive the appropriate assistance or components promptly. This reduces downtime and allows you to quickly resolve any issues that may arise, keeping your server running smoothly.

Future Upgrades and Expansion

The part number P19180-B21 is essential for future upgrades or expansion of your DL360 Server Gen10. As technology advances and your business requirements evolve, you may need to add or replace components to meet new demands. By referencing the part number, you can easily identify compatible upgrades or expansion options, ensuring seamless integration and optimal performance.

Documentation and Documentation Access

The part number P19180-B21 serves as a reference point when accessing documentation related to the DL360 Server Gen10. Whether you need to download user manuals, technical specifications, firmware updates, or drivers, having the correct part number simplifies the process. It ensures that you can access the relevant documentation specific to your server model, enabling you to make informed decisions and effectively manage your server.
