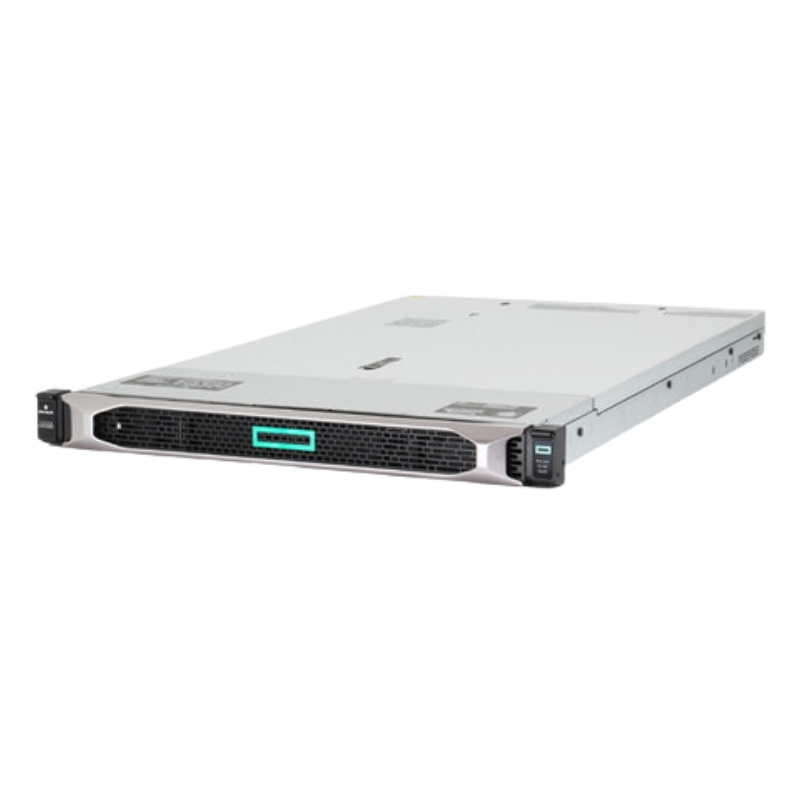

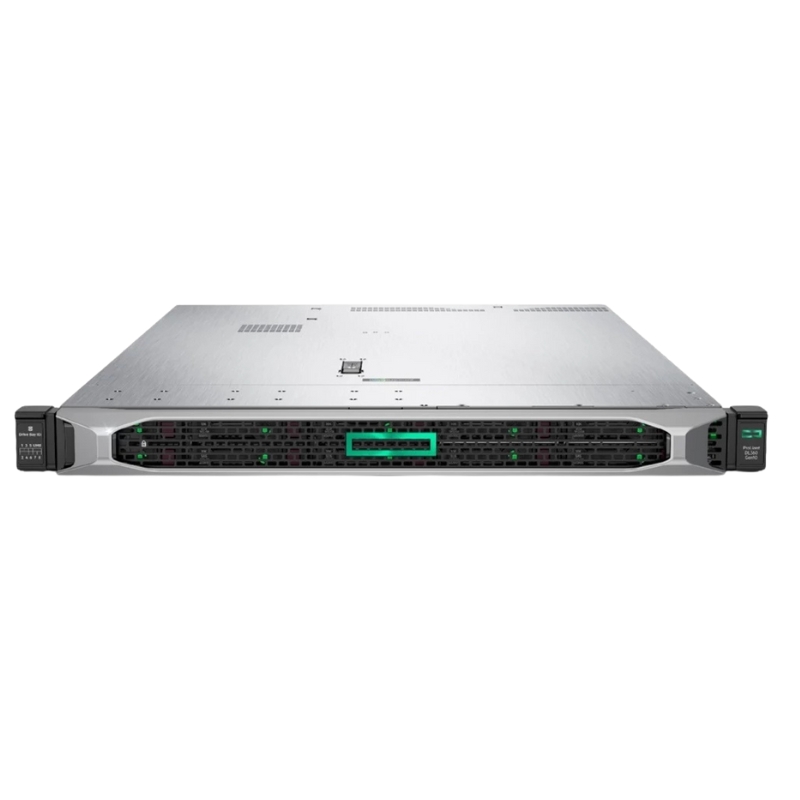

HPE Proliant DL360 Gen10 Server Xeon Silver 4110 16GB DDR4 P05520-B21

Processor

The HPE Proliant DL360 Server Gen10 is equipped with a powerful Xeon 8-core Silver 4110 processor, operating at a speed of 2.1 GHz. This high-performance processor is designed to meet the demanding needs of modern businesses and ensure smooth and efficient operations.

General Overview of Gen10 Xeon

• Manufacturer: Hewlett Packard Enterprise
• Part Number: P05520-B21
• Product: ProLiant DL360 Gen10 - 1U Rack-Mountable Server (Pre-configured Model)

Processor & Chipset

• Type: 1st Gen Intel Xeon Silver 4110
• Base Clock Speed: 2.1 GHz
• Maximum Turbo Speed: 3.0 GHz
• Cores: 8-core
• Quantity: 1 (upgradable to 2)
• Processor Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2.0
• Chipset: Intel C621

Cache Memory

• Installed Cache Size: L3 Cache - 11 MB
• Cache Per Processor: 11 MB

Memory

• Current Size: 16 GB
• Maximum Size: 384 GB

Memory Technology

• Type: DDR4 SDRAM
• Effective Memory Speed: 2400 MHz
• Rated Memory Speed: 2666 MHz
• Compliance: PC4-20800
• Form Factor: DIMM 288-pin
• Slots: 12 (total), 11 (empty)
• Features: Registered, Dual Rank, Slots 13-24 Available in Dual-Processor Configuration Only
• Configuration Example: 1 x 16 GB

Supported RAM Types

• PC4-20800 - 3.072 TB Load-Reduced
• PC4-20800 - 768 GB Registered
• PC4-20800 - 192 GB Non-Volatile

Storage

• Hard Drive: None
• Optical Drive: None

Primary Storage Controller

• Type: RAID
• Interface: SATA 6Gb/s / SAS 12Gb/s
• Model: HPE Smart Array P408i-a
• Channels: 8
• RAID Levels: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
• Buffer Size: 2 GB

Secondary Storage Controller

• Type: SATA
• Model: HPE Smart Array S100i SR Software

Network & Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Controller: HP 331i
• Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: SNMP 3, IPMI 2.0, SMASH CLP
• Controller: Integrated Lights-Out 5 (iLO 5)
• Features: Wake On LAN (WoL), PXE Support

Expansion & Connectivity

• External Universal Media Bay: 1 (total), 1 (free)
• Hot-Swap 2.5 SFF: 8 (total), 8 (free)

Slots

• FlexibleLOM Slot: 1 (total), 0 (free)
• PCIe 3.0 x16 Slot: 1 (total), 1 (free)
• PCIe 3.0 x8 Slot: 1 (total), 0 (free)
• MicroSD Card Slot: 1 (total), 1 (free)
• Additional PCIe x16 Slot: 1 (total), 1 (free)

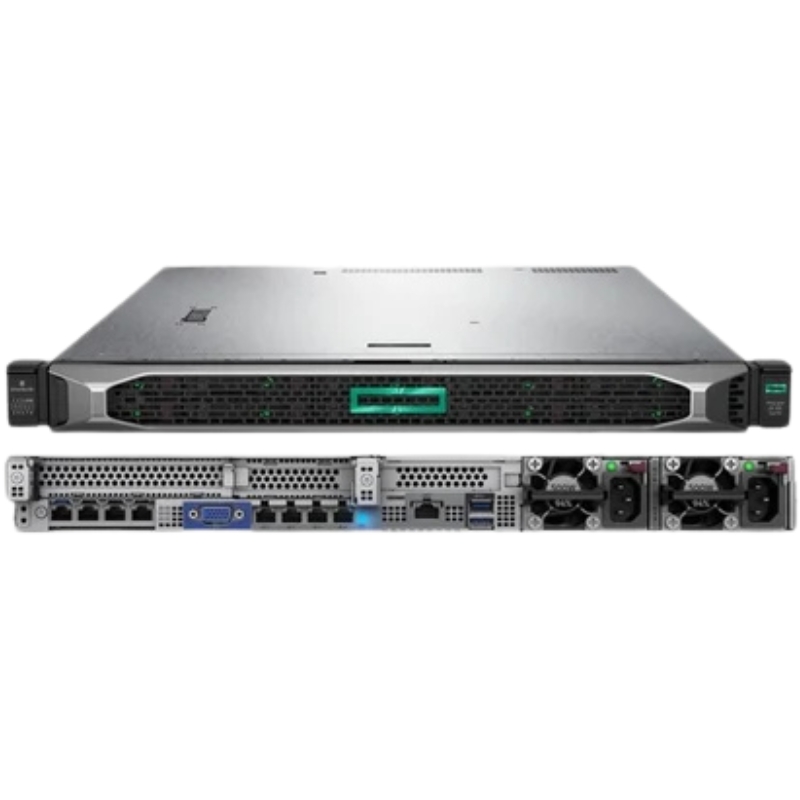

Interfaces

• HP iLO Type A: 1 (front)
• HP iLO RJ-45: 1 (rear)
• Gigabit Ethernet LAN Ports: 4 (rear)
• USB 3.0 Ports: 5 (1 front, 2 rear, 2 internal)
• VGA Port: 1 (rear)

Miscellaneous

• HPE Easy Install Rails
• HPE Standard Heatsink
• 5 x Standard Hot Plug Fans

Cables Included

• Power Cable

Compliant Standards

• AES
• FIPS 140-2
• IPv6 Ready
• PCI DSS
• TLS v1.2
• ASHRAE Class A4
• ASHRAE Class A3
• WEEE 2002/95/EC
• ACPI 6.1

Manufacturer Selling Program

• HPE Smart Buy

Power Description

• Type: Power Supply - Hot-plug
• Redundancy: Optional
• Redundancy Scheme: 1+1 (with Optional Power Supply)
• Installed Quantity: 2
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 500 Watt

Dimensions & Weight

• Width: 17.1 inches
• Depth: 27.8 inches
• Height: 1.7 inches
• Weight: 28.75 lbs

Enhanced Performance

With the Xeon 8-core Silver 4110 processor, users can experience enhanced performance and productivity. The eight cores provide ample processing power to handle multiple tasks simultaneously, allowing for faster data processing and improved overall system performance. This means that users can run resource-intensive applications and perform complex calculations without experiencing any lag or slowdown.

Increased Efficiency

The 2.1 GHz clock speed of the processor further enhances its efficiency. The higher clock speed enables faster data retrieval and execution, resulting in reduced wait times and increased efficiency. This is especially beneficial for businesses that rely on real-time data processing or require quick response times for critical operations.

Optimized Workloads

The Xeon 8-core Silver 4110 processor is built with Intel's advanced technologies, including Intel Turbo Boost Technology 2.0, Intel Hyper-Threading Technology, and Intel Virtualization Technology (VT-x). These features optimize workloads by dynamically increasing the clock speed when needed, enabling better multitasking capabilities, and providing hardware support for virtualization.

Seamless Scalability

Another remarkable advantage of the Xeon 8-core Silver 4110 processor is its scalability. The DL360 Gen10 server allows for easy expansion and upgrades, making it ideal for businesses with growing needs. Users can add more processors to their server as their workload increases, ensuring that their system can handle future demands without any hassle.

RAM

The HPE Proliant DL360 Server Gen10 comes with 16GB of DDR4 SDRAM, providing ample memory capacity for efficient data processing and multitasking. This high-performance RAM ensures that the server can handle a wide range of applications and workloads with ease.

Improved Performance

The 16GB DDR4 SDRAM offers significant performance improvements over its predecessors. The DDR4 technology provides higher data transfer rates and lower power consumption, resulting in faster and more efficient memory operations. This translates into improved overall system performance and responsiveness, allowing users to work seamlessly without any delays.

Enhanced Multitasking

With 16GB of RAM, the DL360 Gen10 server can handle multiple tasks simultaneously without compromising performance. This is particularly important for businesses that rely on running multiple applications or virtual machines concurrently. The ample memory capacity ensures that each task receives the necessary resources, minimizing bottlenecks and maximizing efficiency.

Future-Proofing

The 16GB RAM capacity of the DL360 Gen10 server provides ample room for future upgrades. As business needs grow and applications become more demanding, users can easily expand the server's memory by adding more DIMMs (Dual In-Line Memory Modules). This scalability ensures that the server can adapt to changing requirements without the need for a complete system overhaul.

Reliability and Data Integrity

The use of DDR4 SDRAM also enhances data integrity and reliability. The advanced error correction capabilities of DDR4 memory help detect and correct errors in real time, reducing the likelihood of data corruption or system crashes. This is crucial for businesses that handle sensitive data or require uninterrupted operation to avoid potential financial losses or reputational damage.

Part Number

The HPE Proliant DL360 Server Gen10 is identified by its unique part number - P05520-B21. This alphanumeric code plays a crucial role in identifying, ordering, and managing the server, making it an essential feature for users and IT administrators.

Efficient Inventory Management

The part number serves as a unique identifier for the DL360 Gen10 server, making it easier for businesses to manage their inventory. With the part number, IT administrators can quickly identify and track the specific server model, simplifying the procurement process and ensuring that the right equipment is ordered when needed.

Compatibility Assurance

The part number also ensures compatibility with various server components and accessories. When ordering additional parts or upgrades for the DL360 Gen10 server, users can simply provide the part number to ensure that the components are compatible with their specific server model. This eliminates any potential compatibility issues and saves time that would otherwise be spent researching and verifying compatibility manually.

Technical Support

When seeking technical support or troubleshooting assistance, providing the part number helps expedite the process. IT support personnel can quickly identify the exact server model based on its part number, allowing them to provide accurate and targeted assistance. This reduces downtime and ensures that issues are resolved promptly, minimizing any negative impact on business operations.

Easy Documentation and Documentation Retrieval

The part number is often referenced in product documentation, user manuals, and online resources. By having the part number readily available, users can easily access relevant information about their specific server model. This includes technical specifications, configuration guides, firmware updates, and other valuable resources that can aid in optimizing system performance or troubleshooting potential issues.

In conclusion, the HPE Proliant DL360 Server Gen10's Xeon 8-core Silver 4110 processor offers enhanced performance, increased efficiency, optimized workloads, and seamless scalability. The 16GB DDR4 SDRAM provides improved performance, enhanced multitasking capabilities, future-proofing with room for upgrades, and reliability. The part number, P05520-B21, ensures efficient inventory management, compatibility assurance, streamlined technical support, and easy access to documentation and resources. These features collectively make the HPE Proliant DL360 Server Gen10 an ideal choice for businesses seeking a powerful and reliable server solution.
