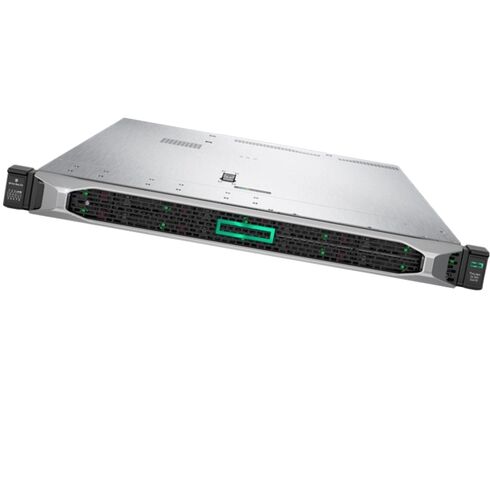

HPE Proliant DL360 Gen10 Xeon 2.1GHz P19774-B21 Server 16gb(1x16gb) Ddr4 Sdram Intel 8-core 4208 8sff

Processor

The HPE DL360 Gen10 Proliant Server is equipped with the powerful Intel Xeon 4208 8-core 2.1GHz processor, which delivers exceptional performance and reliability. This processor is specifically designed for high-demand computing environments, making it an ideal choice for businesses that require robust processing power.

Manufacturer Details

• Manufacturer: Hewlett Packard Enterprise
• Part Number: P19774-B21
• Product Name: Proliant DL360 Gen10 - 1U Rack Mountable Server (NC Model)

Processor and Chipset Specifications

CPU Details

• Processor: 2nd Gen Intel Xeon 4208
• Clock Speed: 2.1 GHz (Max Turbo Speed: 3.2 GHz)
• Core Count: 8-core
• CPU Quantity: 1 (Expandable to 2)
• Socket Type: FCLGA3647
• Chipset: Intel C621
• Features: Hyper-threading Technology, Intel Turbo Boost Technology 2

Cache Memory

• Installed Size: 11 MB L3 Cache
• Cache Per Processor: 11 MB

Memory Configuration

• Installed Memory: 16 GB (Upgradeable to 1.5 TB)
• Memory Technology: DDR4 SDRAM
• Effective Memory Speed: 2400 MHz
• Rated Memory Speed: 2933 MHz
• Form Factor: DIMM 288-pin
• Memory Slots: 24 total (23 available)
• Configuration: 1 x 16 GB
• Supported RAM: PC4-20800, Load-Reduced PC4-20800, Registered PC4-20800, Non-volatile PC4-20800

Storage Capabilities

• Hard Drive: Not Included
• Optical Drive: Not Included

Storage Controllers

• Controller Type: RAID
• Interface: SATA 6 Gb/s, SAS 12 Gb/s
• Controller Name: HPE Smart Array P408i-a
• Channels: 8
• RAID Levels: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
• Buffer Size: 2 GB

Display and Graphics

• Video Memory: 16 MB
• Video Interface: VGA

Network and Communication

Networking Features

• Interface Type: PCI Express 2.1 x4
• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HPE 366FLR
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Additional Features: Wake On LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az

Expansion and Connectivity

Bays and Slots

• Hot-Swap Bays: 8 x 2.5" SFF (All Available)
• PCIe Slots:
  • 1 x PCIe 3.0 x16 (Three-quarter-length, Full-height) - Available
  • 1 x PCIe 3.0 x8 (Low-profile) - Available
  • 1 x FlexibleLOM - Available
  • 1 x MicroSD Card (Internal) - Available

Interfaces

• 1 x HP iLO - Type A (Front)
• 1 x HP iLO - RJ-45
• 5 x USB 3.0 (1 Front, 2 Rear, 2 Internal)
• 1 x VGA
• 4 x LAN (Gigabit Ethernet) - RJ-45

Additional Information

Included Accessories

• HPE Easy Install Rails
• 5 x Standard Fans

Compliance and Standards

• WEES
• ASHRAE Class A4
• ASHRAE Class A3
• ACPI 6.1

Power Specifications

• Device Type: Hot-Plug Power Supply
• Power Redundancy: Optional (1+1 Scheme with Optional Power Supply)
• Installed Quantity: 1
• Max Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 500 Watt
• 80 Plus Certification: 80 Plus Platinum

Dimensions and Weight

• Width: 17.1 inches
• Depth: 27.8 inches
• Height: 1.7 inches
• Weight: 28.75 lbs

Enhanced Performance

The Intel Xeon 4208 processor offers enhanced performance capabilities, allowing users to handle complex tasks and demanding workloads with ease. With its eight cores and a base clock speed of 2.1GHz, this processor ensures smooth multitasking and efficient data processing.

Improved Productivity

With the Intel Xeon 4208 processor, users can experience improved productivity due to its ability to handle resource-intensive applications and processes effectively. This processor enables faster data processing, reducing the time required to complete tasks and increasing overall efficiency.

Scalability

One of the key advantages of the Intel Xeon 4208 processor is its scalability. It supports hyper-threading technology, which allows each physical core to handle two threads simultaneously. This feature significantly increases the server's multitasking capabilities and enables it to handle a larger number of simultaneous requests.

Reliability and Stability

The Intel Xeon 4208 processor is known for its exceptional reliability and stability. It is built using advanced technology and undergoes rigorous testing to ensure maximum performance and durability. This reliability ensures that the server can run continuously without any unexpected downtime, minimizing disruptions to critical business operations.

Optimized Power Efficiency

The Intel Xeon 4208 processor is designed to deliver optimum power efficiency without compromising performance. It utilizes advanced power management features that dynamically adjust power consumption based on workload requirements, resulting in reduced energy costs and environmental impact.

Future-Proofing

Investing in a server with the Intel Xeon 4208 processor ensures future-proofing for your business. Its advanced architecture and performance capabilities make it well-equipped to handle emerging technologies and software requirements, allowing your server to adapt and scale as your business grows.

Memory

The HPE DL360 Gen10 Proliant Server comes with 16GB DDR4 SDRAM, providing ample memory capacity for efficient data processing and storage. The memory plays a crucial role in the overall performance of the server, offering several benefits for users.

Fast and Responsive Performance

With 16GB of DDR4 SDRAM, the server can handle data-intensive tasks quickly and efficiently. The high-speed memory enables faster data access, reducing latency and ensuring a smooth and responsive user experience. This is particularly important for applications that require real-time data processing or large-scale database operations.

Improved Multitasking

The generous memory capacity of 16GB allows the server to handle multiple tasks simultaneously without compromising performance. Users can run resource-intensive applications, virtual machines, or databases concurrently without experiencing slowdowns or bottlenecks. This capability enhances productivity and efficiency within the organization.

Enhanced Server Virtualization

Server virtualization has become increasingly popular in modern IT environments, allowing businesses to optimize resource utilization and reduce hardware costs. The 16GB DDR4 SDRAM in the HPE DL360 Gen10 Proliant Server enables efficient server virtualization by providing enough memory for running multiple virtual machines simultaneously. This feature allows businesses to consolidate their IT infrastructure and streamline operations.

Future Expansion

The 16GB memory capacity of the server ensures room for future expansion. As your business grows and demands increase, you can easily upgrade the memory to accommodate larger workloads and more complex applications. This scalability eliminates the need for frequent hardware replacements and allows for cost-effective long-term planning.

Reliability and Data Integrity

The DDR4 SDRAM in the HPE DL360 Gen10 Proliant Server is designed to deliver excellent reliability and data integrity. It utilizes advanced error-correcting code (ECC) technology that detects and corrects memory errors in real-time. This feature ensures that data remains accurate and free from corruption, reducing the risk of system crashes or data loss.

Energy Efficiency

The 16GB DDR4 SDRAM is designed to be energy-efficient, consuming less power compared to earlier memory technologies. This not only helps reduce energy costs but also contributes to a greener IT infrastructure by minimizing the server's carbon footprint.

Storage

The HPE DL360 Gen10 Proliant Server features 8SFF (Small Form Factor) storage, providing ample storage capacity for businesses of all sizes. The storage capability plays a crucial role in data management and accessibility, offering several benefits for users.

High Storage Density

The 8SFF storage configuration allows for high storage density within a compact form factor. This means that businesses can store a large amount of data within a limited physical space, making it ideal for environments where space is a constraint. The high storage density ensures that businesses can efficiently manage their growing data requirements without the need for additional physical storage devices.

Flexible Storage Options

The 8SFF storage configuration provides flexibility in terms of storage options. Users can choose from a variety of storage drives, including solid-state drives (SSDs) or hard disk drives (HDDs), depending on their specific needs and budget. This flexibility allows businesses to optimize their storage infrastructure according to performance, capacity, and cost requirements.

Enhanced Data Accessibility

The 8SFF storage configuration enables enhanced data accessibility, allowing businesses to quickly retrieve and process stored information. The server's storage subsystem is designed to provide high-speed data transfer rates, ensuring that critical data can be accessed without delay. This feature is particularly beneficial for applications that require real-time data processing or frequent access to large datasets.

Data Redundancy and Protection

The 8SFF storage configuration supports various RAID (Redundant Array of Independent Disks) levels, offering data redundancy and protection. RAID configurations allow businesses to create mirrored or parity-based data storage setups, ensuring that data remains accessible even in the event of a drive failure. This feature minimizes the risk of data loss and provides an added layer of protection for critical business information.

Scalability and Expandability

The 8SFF storage configuration offers scalability and expandability options for businesses that anticipate future growth. As data requirements increase, additional drives can be easily added to the server to accommodate the growing storage needs. This scalability eliminates the need for immediate hardware upgrades and allows businesses to scale their storage infrastructure cost-effectively.

Improved Storage Performance

With the 8SFF storage configuration, businesses can experience improved storage performance due to enhanced data transfer rates and reduced latency. Whether it's for running applications that rely on fast data access or handling large-scale database operations, the server's storage subsystem ensures efficient and responsive performance.

Part Number

The HPE DL360 Gen10 Proliant Server has a part number of P19774-B21, which uniquely identifies this specific server model. The part number plays a crucial role in product identification, procurement, and support, offering several benefits for users.

Product Identification

The part number serves as a unique identifier for the HPE DL360 Gen10 Proliant Server model. It distinguishes this particular server from other models, allowing users and IT administrators to identify and differentiate between different server configurations accurately. This is particularly important when managing multiple servers within an organization or when procuring additional servers that match the existing infrastructure.

Procurement and Compatibility

The part number facilitates easy procurement of the HPE DL360 Gen10 Proliant Server. When ordering or purchasing the server, specifying the correct part number ensures that the supplier delivers the exact model and configuration required. Additionally, the part number helps ensure compatibility with other server components, such as memory modules or storage drives, minimizing potential compatibility issues.

Warranty and Support

The part number is essential for warranty registration and support services. By providing the part number when registering the server for warranty, users can ensure that they receive the appropriate level of support and assistance from the manufacturer or authorized service providers. The part number allows support teams to identify the correct server model and provide accurate technical support.

Documentation and Resources

The part number serves as a reference point for accessing documentation and resources related to the HPE DL360 Gen10 Proliant Server. Whether it's user manuals, technical specifications, or firmware updates, knowing the part number simplifies the process of locating relevant information online or within manufacturer-provided resources. This ensures that users have access to the latest documentation and resources for optimal server management.

Upgrade and Expansion Planning

The part number is crucial for upgrade and expansion planning within an organization. Knowing the specific model's part number allows IT administrators to accurately assess compatibility with new hardware components or expansion options. This knowledge ensures that any upgrades or expansions align with the existing infrastructure, reducing potential compatibility issues and optimizing overall system performance.

Inventory Management

For organizations managing a large number of servers, the part number is essential for inventory management. By maintaining an accurate record of server part numbers, IT departments can effectively track and manage their server assets. This includes monitoring warranty status, tracking hardware configurations, and planning for future replacement or upgrade cycles.

In conclusion, the HPE DL360 Gen10 Proliant Server offers exceptional performance and reliability with its Intel Xeon 4208 8-core 2.1GHz processor, 16GB DDR4 SDRAM memory, 8SFF storage configuration, and part number P19774-B21. These features provide enhanced processing power, efficient data management, scalability, and compatibility for businesses of all sizes. Whether it's for handling complex workloads, ensuring data accessibility, or simplifying server management, the HPE DL360 Gen10 Proliant Server is a versatile and powerful solution for modern IT environments.
