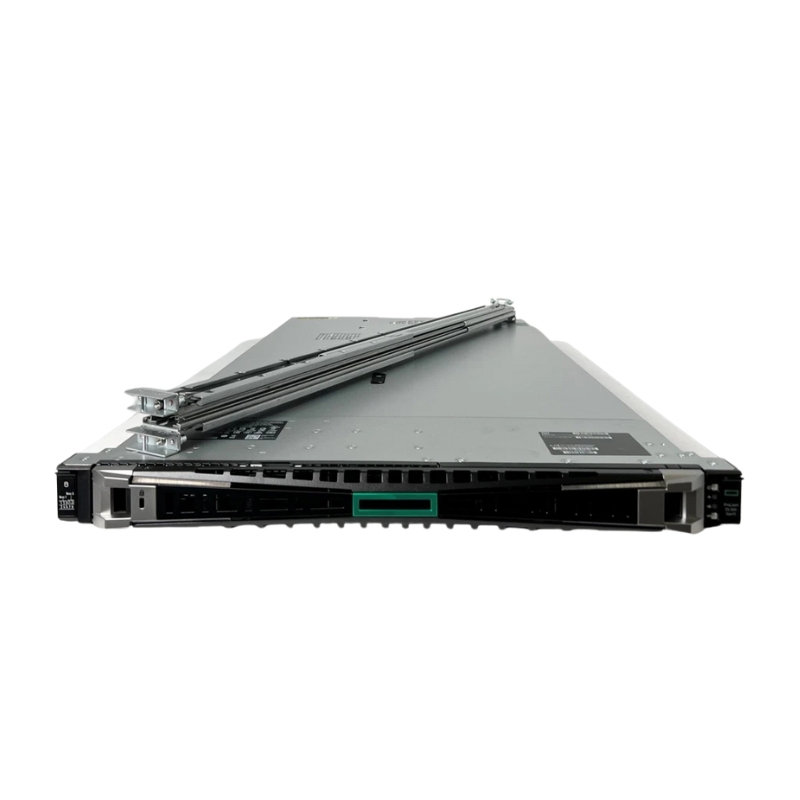

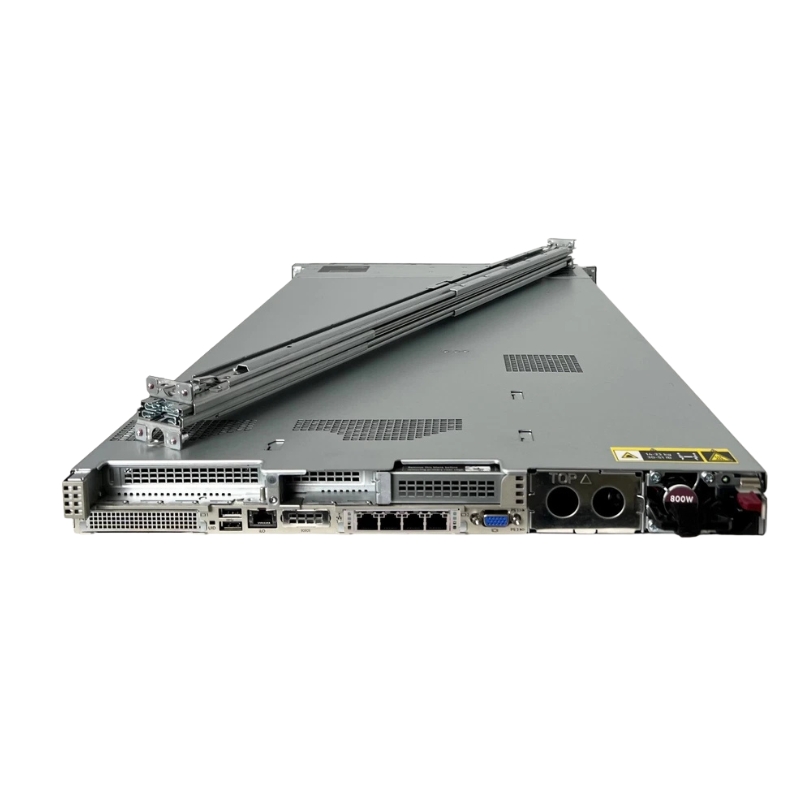

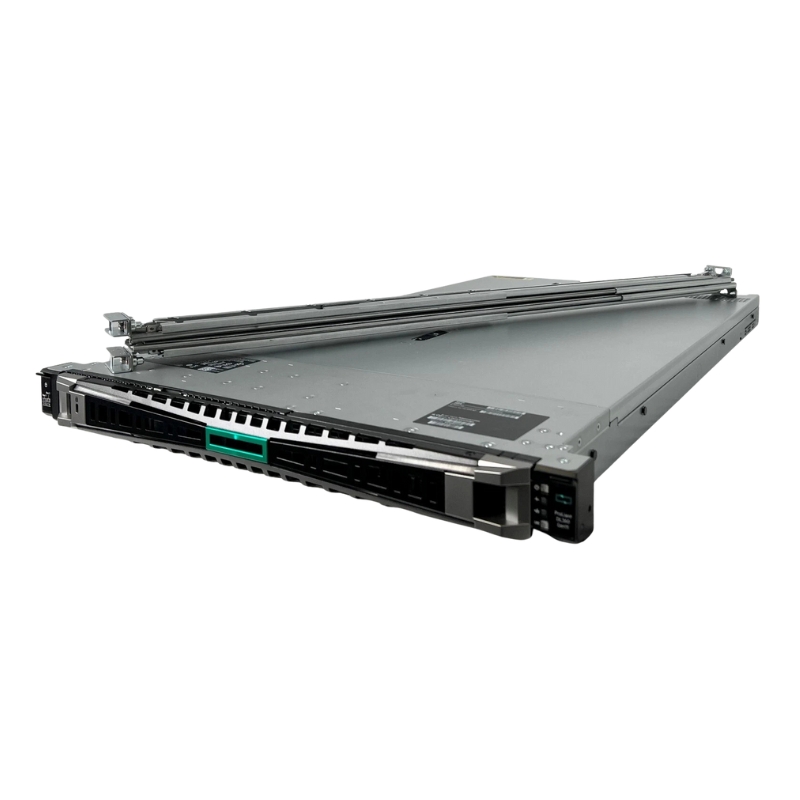

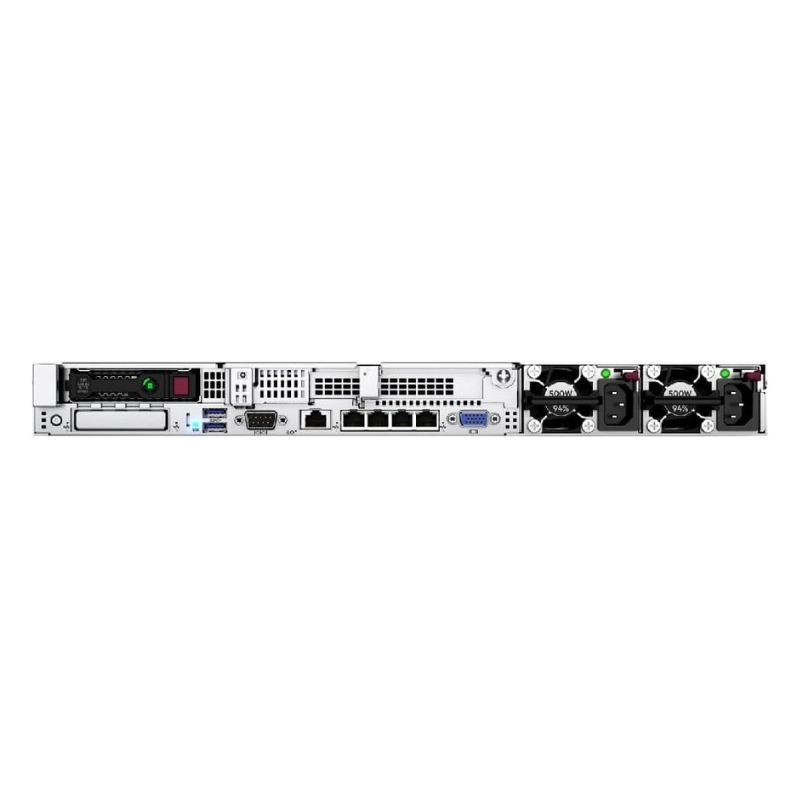

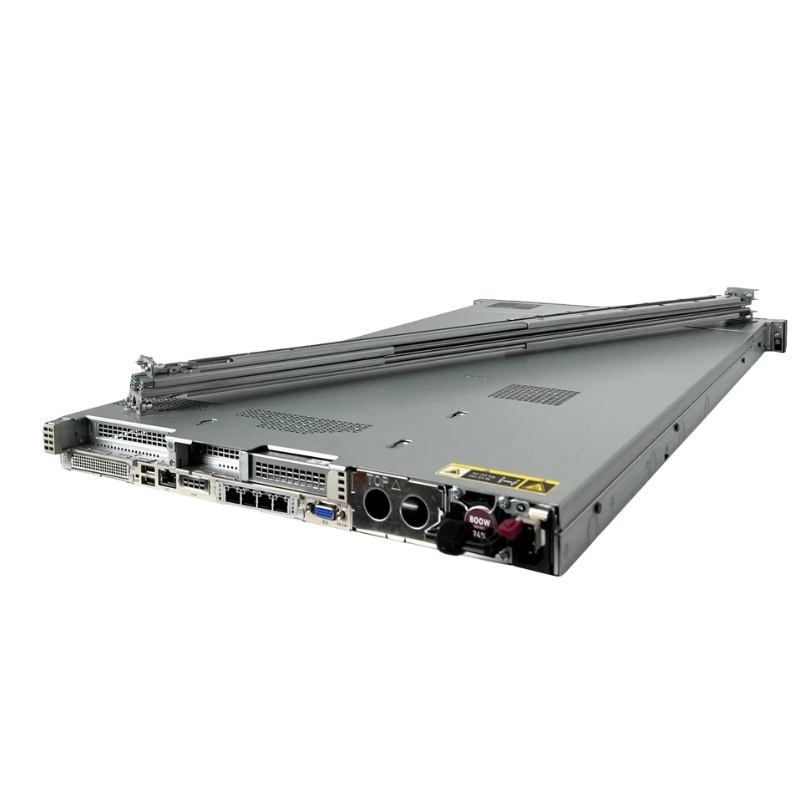

HPE Proliant DL360 Gen10 XEON 5218R/2.1GHz, 32GB DDR4 SDRAM, 8SFF - P36183-B21

Processor

The HPE Proliant DL360 Server Gen10 is equipped with a powerful XEON 20 Core 5218R processor, running at a clock speed of 2.1GHz. This processor is a game-changer when it comes to performance and efficiency, making it an essential feature for users who require high computing power and reliability.

Product Overview of P36183-B21

Discover the Hewlett Packard Enterprise Proliant DL360 Gen10, a high-performance rack mountable server designed to deliver exceptional reliability and scalability.

General Specifications

• Manufacturer: Hewlett Packard Enterprise
• Part Number: P36183-B21
• Server Scalability: 2-way
• Rack Height: 1U
• Model Name: Proliant DL360 Gen10

Processor and Chipset

• CPU Model: 2nd Gen Intel Xeon Silver 5218R
• Base Clock Speed: 2.1 GHz
• Max Turbo Speed: 4.0 GHz
• Core Count: 20-core
• CPU Quantity: 1 (upgradable to 2)
• CPU Socket Type: FCLGA3647
• Chipset: Intel C621

Cache Memory

• Installed Cache Size: 27.5 MB L3 Cache
• Cache per Processor: 27.5 MB

Memory Configuration

• Installed RAM: 32 GB, expandable up to 1.5 TB
• Memory Technology: DDR4 SDRAM with Advanced ECC
• Effective Memory Speed: 2666 MHz
• Rated Memory Speed: 2933 MHz
• Form Factor: DIMM 288-pin
• Memory Slots: 24 total (23 available)
• Memory Features: Registered, Online Spare Memory, Dual Rank, HPE SmartMemory

Supported RAM Options

• Load-reduced RAM: 3 TB
• Registered RAM: 1.54 TB
• Non-volatile Memory: 192 GB
• Persistent Memory: 6 TB

Storage and Controllers

• Hard Drive: None included

Storage Controller

• Type: RAID Controller
• Interface: SATA 6 Gb/s, SAS 12 Gb/s
• Controller Name: HPE Smart Array P408i-a
• Channels: 8
• RAID Levels Supported: RAID 0, 1, 5, 6, 10, 50, 60, RAID 1 ADM, RAID 10 ADM
• Buffer Size: 2 GB

Optical and Graphics

• Optical Drive: Not included
• Graphics Controller: VGA with 16 MB Video Memory

Networking and Communication

• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Ethernet Controller: Broadcom BCM57416
• Remote Management: Integrated Lights-Out 5

Expansion and Connectivity

• Total Expansion Bays: 8 (all available), Hot-swap 2.5" SFF

Expansion Slots

• PCIe Slots: 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x8
• FlexibleLOM Slot: 1 available
• MicroSD Card Slot: 1 available (internal)

Interfaces and Ports

• 5 x USB 3.0 (1 front, 2 rear, 2 internal)
• 1 x VGA
• 1 x HPE iLO - RJ-45
• 4 x LAN (Gigabit Ethernet)

Power and Environmental

• Type: Hot-plug Power Supply
• Power Redundancy: Optional, 1+1 with additional power supply
• Installed Qty: 1
• Max Supported Qty: 2
• Power Provided: 800 Watts
• Certification: 80 Plus Platinum

Operating Conditions

• Min Operating Temperature: 50 °F
• Max Operating Temperature: 95 °F
• Humidity Range: 8-90% (non-condensing)

Environmental Certifications

• Energy Star Certified (Version 3.0)

Dimensions and Weight

• Width: 17.1 inches
• Depth: 27.8 inches
• Height: 1.7 inches
• Weight: 28.75 lbs

Unmatched Performance

The XEON 20 Core 5218R processor is designed to deliver exceptional performance, allowing users to handle demanding workloads effortlessly. With its 20 cores and 40 threads, it can efficiently execute multiple tasks simultaneously, ensuring smooth multitasking and improved productivity.

Whether you are running resource-intensive applications, virtualization platforms, or database servers, this processor's raw power ensures that your system can handle the workload with ease. It significantly reduces processing time, enabling faster data analysis, complex calculations, and seamless execution of critical tasks.

Enhanced Efficiency

Efficiency is a crucial factor when it comes to server infrastructure. The XEON 20 Core 5218R processor incorporates advanced technologies that optimize power consumption without compromising on performance. By intelligently managing power utilization based on workload requirements, it ensures maximum efficiency while reducing energy costs.

The processor's advanced power management features allow it to dynamically adjust frequency and voltage levels according to the workload, resulting in lower power consumption during idle periods and higher performance during peak loads. This not only saves money on electricity bills but also contributes to a greener IT environment by reducing carbon footprint.

Reliability and Scalability

Reliability is paramount in any server environment, especially for enterprises and organizations that heavily rely on their IT infrastructure. The XEON 20 Core 5218R processor excels in this aspect by offering exceptional reliability and scalability.

With built-in error correction code (ECC) memory support, this processor ensures data integrity by detecting and correcting single-bit errors. It enhances system stability and reduces the risk of data corruption, making it ideal for critical applications that demand high levels of data accuracy.

Moreover, the XEON 20 Core 5218R processor supports advanced virtualization technologies, such as Intel Virtualization Technology (VT-x) and Intel Virtualization Technology for Directed I/O (VT-d). These features enable efficient workload isolation, improved security, and simplified management of virtualized environments. Whether you are running a virtualization platform or deploying multiple virtual machines, this processor provides the necessary capabilities to optimize your virtual infrastructure.

Future-Proofing

Investing in a server with the XEON 20 Core 5218R processor ensures that you are future-proofing your IT infrastructure. As technology advances and workloads become more demanding, having a powerful processor that can handle future requirements is crucial.

The XEON 20 Core 5218R processor's scalability allows for easy expansion and upgrades as your business grows. With support for higher memory capacities, increased core counts, and advanced technologies, it enables seamless migration to newer software and applications without compromising performance or reliability.

Conclusion

In conclusion, the XEON 20 Core 5218R/2.1GHz processor is a standout feature of the HPE Proliant DL360 Server Gen10. Its unmatched performance, enhanced efficiency, reliability, scalability, and future-proofing capabilities make it an essential component for users who require high computing power and stability in their server infrastructure. Whether you are a small business or a large enterprise, this processor ensures that your system can handle the most demanding workloads while optimizing energy consumption. Upgrade to the HPE Proliant DL360 Server Gen10 with the XEON 20 Core 5218R processor and experience the next level of performance and reliability in your IT environment.
