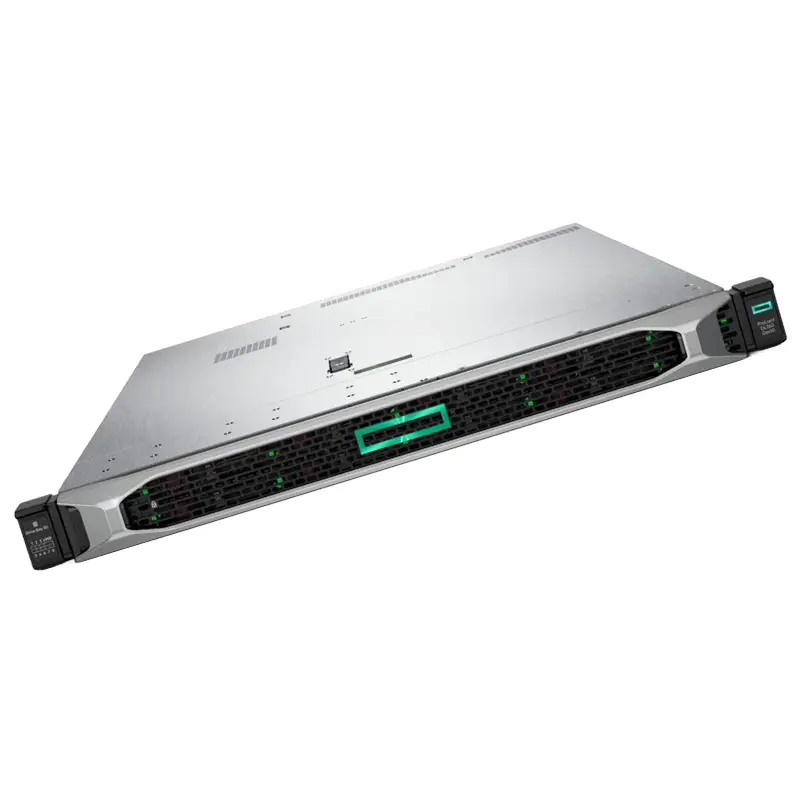

HPE Proliant DL360 Gen10 Xeon 8 Core Server 2.1GHz 32GB DDR4 8SFF P40636-B21

Processor: Xeon 8 Core 2.1GHz

The HPE Proliant DL360 Gen10 Server is equipped with a powerful Intel Xeon 8 Core 2.1GHz processor, which offers enhanced performance and efficiency for users. With eight cores and a base clock speed of 2.1GHz, this processor is designed to handle demanding workloads and deliver exceptional computing power.

Main Information of P40636-B21

• Brand: Hewlett Packard Enterprise
• Part Number: P40636-B21

Server Specifications

• Scalability: 2-way
• Height: 1U
• Model: Proliant DL360 Gen10 - Rack Mountable Server

Processor & Chipset

• Processor: 2nd Gen Intel Xeon Silver 4208
• Base Frequency: 2.1 GHz
• Max Turbo Frequency: 3.2 GHz
• Cores: 8-core
• CPU Quantity: 1 (upgradable to 2)
• Socket Type: FCLGA3647
• Chipset: Intel C621
• Features: Hyper-Threading, Intel Turbo Boost Technology 2

Cache Memory

• Installed Size: L3 Cache - 11 MB
• Cache Per Processor: 11 MB

RAM Details

• Installed Capacity: 32 GB (up to 1.5 TB max)
• Memory Technology: DDR4 SDRAM - Advanced ECC
• Effective Memory Speed: 2400 MHz
• Rated Memory Speed: 2933 MHz
• Form Factor: DIMM 288-pin
• Slots: 24 total (23 available)
• Memory Features: Registered, Dual Rank, slots 13-24 available in two-processor configuration
• Supported RAM: Up to 3 TB Load-Reduced ECC, 1.5 TB Registered ECC

Storage and Controllers

• Drive Type: No HDD

Storage Controllers

• Controller Type: RAID
• Interface: SATA 6 Gb/s / SAS 12 Gb/s
• Controller Model: HPE Smart Array P408i-a
• Channels: 8
• RAID Levels: RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
• Buffer Size: 2 GB

Optical and Graphics

• Type: No Optical Drive

Graphics Controller

• Video Memory: 16 MB
• Video Interfaces: VGA

Networking and Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: Intel I350-T4v2
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: Integrated Lights-Out 5 (iLO 5)

Expansion and Connectivity

• Total Bays: 8 (all free)
• Type: Hot-swap 2.5 SFF

Expansion Slots

• PCIe Slots:
  • 1 x PCIe 3.0 x16 (three-quarter-length, full-height)
  • 1 x PCIe 3.0 x8 (low-profile)
• FlexibleLOM Slot: 1 (free)
• MicroSD Card Slot: 1 (free, internal)

Interfaces and Ports

• 5 x USB 3.0 (1 front, 2 rear, 2 internal)
• 1 x VGA
• 1 x HPE iLO - RJ-45
• 4 x LAN (Gigabit Ethernet)

Miscellaneous Information

• HPE Standard Heatsink
• 5 x Standard Fans
• SFF Easy Install Rails

Compliance Standards

• WEEE
• ASHRAE Class A4
• ASHRAE Class A3
• ACPI 6.1

Power Specifications

• Type: Hot-plug Power Supply
• Redundancy: Optional (1+1 with additional power supply)
• Installed Quantity: 1
• Max Supported Quantity: 2
• Voltage Required: AC 120/230 V (50/60 Hz)
• Power Provided: 800 Watts
• 80 Plus Certification: 80 Plus Platinum

Operating System & Software

• Provided: No Operating System

Environmental Standards

• Energy Star Certified: Yes
• Energy Star Version: 3.0

Environmental Parameters

• Min Operating Temperature: 50 °F
• Max Operating Temperature: 95 °F
• Humidity Range: 8 - 90% (non-condensing)

Dimensions & Weight

• Width: 17.1 inches
• Depth: 27.8 inches
• Height: 1.7 inches
• Weight: 28.75 lbs

Increased Processing Power

The Xeon 8 Core processor provides users with increased processing power, allowing them to handle complex tasks and applications more efficiently. Whether you are running multiple virtual machines, performing data analysis, or managing a high-traffic website, this processor ensures smooth and responsive performance.

Improved Multi-Threaded Performance

With eight cores and support for multi-threading, the Xeon 8 Core processor excels in multi-threaded workloads. It can efficiently handle simultaneous tasks, enabling users to run resource-intensive applications without experiencing slowdowns or performance bottlenecks.

Optimized Power Consumption

The Xeon 8 Core processor is designed with power efficiency in mind. It utilizes advanced power management technologies to optimize power consumption without compromising performance. This ensures that the server operates at maximum efficiency, reducing energy costs and minimizing environmental impact.

Reduced Total Cost of Ownership (TCO)

By employing a power-efficient processor like the Xeon 8 Core, organizations can significantly reduce their total cost of ownership (TCO). The lower power consumption translates into lower electricity bills, while the improved performance allows businesses to achieve more with fewer physical servers, saving on hardware costs.

Future-Proofing and Scalability

The Xeon 8 Core processor offers future-proofing capabilities by providing ample processing power for current and future workloads. As the demands of businesses continue to grow, this processor ensures that the server can scale and adapt to evolving needs without requiring a complete hardware upgrade.

Memory: 32GB DDR4

Faster Data Access and Processing

The HPE Proliant DL360 Gen10 Server comes with 32GB of DDR4 memory, which enables faster data access and processing. With its high bandwidth and low latency, DDR4 memory delivers superior performance and responsiveness, enhancing the overall user experience.

Improved Application Performance

The 32GB DDR4 memory configuration ensures that applications can access data quickly, resulting in improved performance. Whether you are running database systems, virtual machines, or resource-intensive applications, this ample memory capacity allows for smooth multitasking and reduced latency.

Better Virtualization Capabilities

Virtualization is a key feature of modern IT infrastructures, enabling organizations to maximize resource utilization and streamline operations. The 32GB DDR4 memory in the DL360 Gen10 Server provides the necessary capacity for efficient virtual machine management, allowing businesses to consolidate workloads and achieve higher levels of efficiency.

Enhanced System Reliability

Memory failures can lead to system crashes and data loss, causing significant disruptions to business operations. With its advanced error correction capabilities, DDR4 memory reduces the likelihood of data corruption and improves overall system reliability. This ensures that critical applications and services remain available without interruptions.

Scalability for Growing Workloads

As businesses expand and their workloads increase, having sufficient memory capacity is crucial. The 32GB DDR4 memory configuration allows organizations to accommodate growing demands without compromising performance or investing in additional hardware. This scalability provides long-term value and flexibility for businesses of all sizes.

Energy Efficiency

In addition to its performance benefits, DDR4 memory is also designed with energy efficiency in mind. It operates at a lower voltage compared to previous memory technologies, reducing power consumption and contributing to a greener IT environment. This not only lowers energy costs but also aligns with sustainability goals.

Drive Bays: 8SFF

Flexible Storage Options

The HPE Proliant DL360 Gen10 Server features eight Small Form Factor (SFF) drive bays, offering users flexible storage options. These drive bays allow for the installation of up to eight hot-plug hard drives or solid-state drives (SSDs), enabling businesses to configure their storage solutions according to their specific needs.

Increased Storage Capacity

With the ability to accommodate up to eight drives, the 8SFF drive bays provide ample storage capacity for organizations of all sizes. Whether you need to store large amounts of data, host multiple virtual machines, or run databases, this feature ensures that you have enough space to meet your storage requirements.

Improved Performance and Reliability

The 8SFF drive bays enable businesses to leverage the performance and reliability benefits of modern hard drives and SSDs. By utilizing fast and robust storage technologies, organizations can experience faster data access and transfer speeds, resulting in improved application performance and reduced latency.

Hot-Plug Capabilities

Hot-plug functionality allows for the easy replacement or addition of drives without interrupting server operations. The 8SFF drive bays support hot-plug technology, enabling businesses to perform maintenance or upgrade storage configurations on the fly. This eliminates downtime and ensures continuous availability of critical applications and data.

Flexibility for Future Expansion

The 8SFF drive bays offer flexibility for future expansion as storage needs grow. With the ability to add or replace drives as required, organizations can scale their storage infrastructure without investing in additional hardware. This scalability allows for cost-effective growth and ensures that businesses can adapt to changing data storage requirements.

Efficient Data Management

The 8SFF drive bays facilitate efficient data management and organization. With multiple drive bays available, businesses can implement various storage configurations, such as RAID arrays, to optimize data protection and performance. This flexibility empowers organizations to create customized storage solutions tailored to their specific needs.

Part Number: P40636-B21

Easy Identification and Compatibility

The part number P40636-B21 uniquely identifies the HPE Proliant DL360 Gen10 Server and ensures compatibility with specific hardware components and accessories. This feature simplifies the procurement process and makes it easier for users to identify the correct server model when purchasing or upgrading their IT infrastructure.

Streamlined Maintenance and Support

Having a specific part number allows organizations to streamline maintenance and support activities. When contacting technical support or ordering replacement parts, providing the part number ensures that the correct components are delivered promptly, minimizing downtime and ensuring efficient problem resolution.

Configuration Management

The part number P40636-B21 plays a crucial role in configuration management. It helps IT teams track and manage server deployments by providing a unique identifier for each unit. This simplifies inventory management, facilitates asset tracking, and enables accurate record-keeping for maintenance, warranty, and lifecycle management purposes.

Guaranteed Compatibility with Certified Components

By referencing the part number P40636-B21, organizations can ensure that any hardware components or accessories they purchase are officially certified and compatible with the HPE Proliant DL360 Gen10 Server. This eliminates the risk of using incompatible or unsupported components, ensuring optimal performance and reliability.

Seamless Integration with HPE Ecosystem

HPE maintains a comprehensive ecosystem of products and solutions designed to work seamlessly together. The part number P40636-B21 signifies that the server is part of this ecosystem, guaranteeing compatibility with HPE software, management tools, and other infrastructure components. This integration simplifies deployment, management, and optimization of the server within the larger HPE environment.

Consistent Naming Convention

The part number P40636-B21 follows a consistent naming convention used by HPE across their product portfolio. This convention helps users identify and differentiate between different server models, configurations, and generations. Consistency in naming conventions makes it easier for IT professionals to navigate the HPE product lineup and select the right solution for their specific needs.
