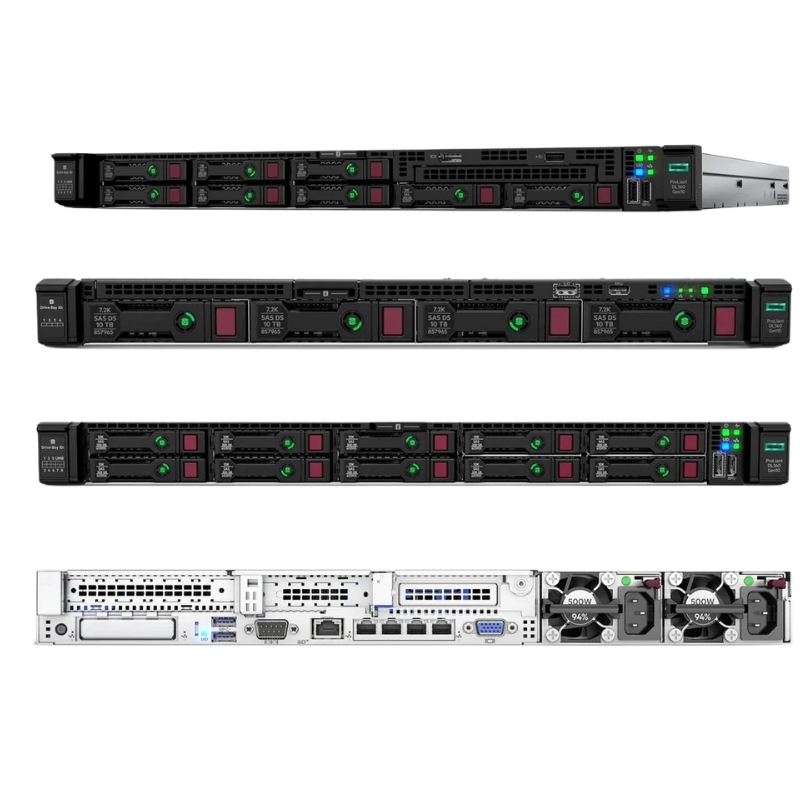

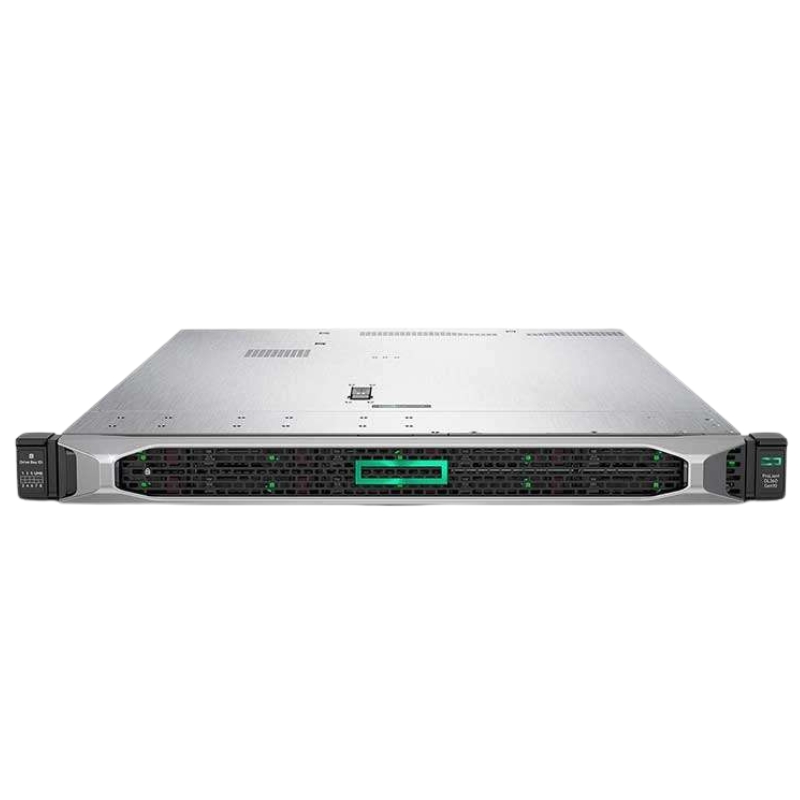

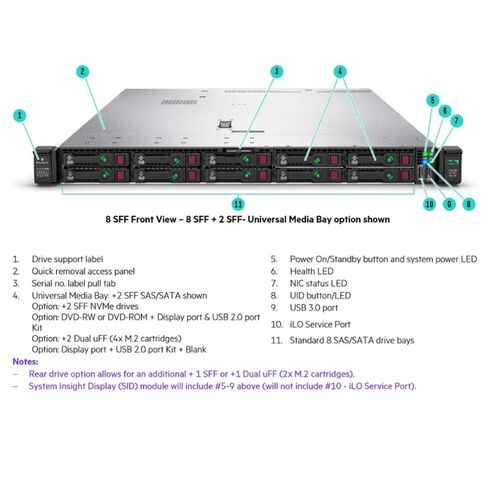

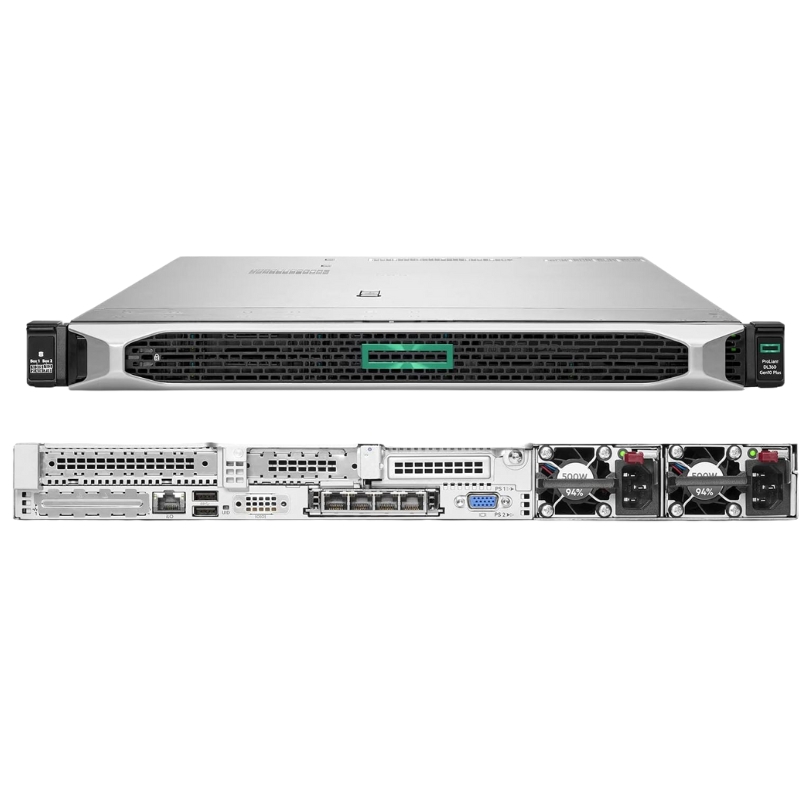

HPE Proliant DL360 Server 874460-S01 Xeon 10-core Gold 5115 / 2.4 GHz P408I-A 8SFF 2X800W /S-Buy

Processor

The HPE Proliant DL360 Server features a powerful Xeon 10-core Gold 5115 processor, running at a clock speed of 2.4 GHz. This exceptional processor is designed to meet the demanding needs of modern businesses and provides numerous benefits to users.

Main Information of 874460-S01

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 874460-S01

Product Overview

• Product Name: ProLiant DL360 Gen10 - 1U Rack-Mountable Server (Smart Buy Model)

Processor & Chipset

• Processor: 1st Gen Intel Xeon Gold 5115, 2.4 GHz
• Max Turbo Frequency: 3.2 GHz
• Core Count: 10 cores per CPU
• Number of CPUs: 2 (max)
• CPU Upgradeability: Yes, upgradeable
• Main Features: Hyper-Threading, Intel Turbo Boost Technology 2
• Chipset: Intel C621

Cache Memory

• Installed Cache Size: L3 Cache - 27.5 MB
• Cache Per Processor: 13.75 MB

Memory

• Installed Memory: 64 GB (expandable up to 768 GB)
• Memory Technology: DDR4 SDRAM with Advanced ECC
• Effective Memory Speed: 2666 MHz
• Memory Compliance: PC4-20800
• Form Factor: DIMM 288-pin
• Slots: 24 total (20 available)
• Features: Registered, Dual Rank, HPE SmartMemory, 6-channel Architecture
• Configuration: 4 x 16 GB
• Supported RAM Types: PC4-20800 up to 768 GB Registered, PC4-20800 Load-Reduced up to 3 TB, PC4-20800 Non-Volatile up to 192 GB

Storage

• Hard Drive: None included
• Optical Drive: None included

Storage Controllers

• Controller Type: 1 x RAID
• Interface: SATA 6 Gb/s, SAS 12 Gb/s
• Controller Name: HPE Smart Array P408i-a
• Channels: 8
• RAID Levels: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
• Buffer Size: 2 GB

Display & Graphics Controllers

• Video Memory: 16 MB
• Video Interfaces: VGA

Network & Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Features: Wake-On-LAN (WOL), PXE Support

Expansion & Connectivity

• External Bays: 1 (free)
• Hot-Swap Bays: 8 (all available, 2.5" SFF)

Slots

• FlexibleLOM Slot: 1 (free, three-quarter-length, full-height)
• PCIe 3.0 x16 Slot: 1 (free, full-height)
• PCIe 3.0 x8 Slot: 1 (free, low-profile)
• MicroSD Card Slot: 1 (internal, free)
• CPU Slots: 2 (occupied)
• DIMM Slots: 24 (20 available)

Interfaces

• LAN Ports: 4 x Gigabit Ethernet (RJ-45, rear)
• Powered USB 3.0: 1 (front)
• HP iLO: 1 x RJ-45 (rear), 1 x Type A (front)
• USB 3.0 Ports: 4 (2 rear, 2 internal)
• SATA/SAS Ports: 8 x SATA-600 / SAS 3.0
• VGA Port: 1 (rear)

Miscellaneous

• HP Easy Install Rail Kit
• CPU Standard Heatsink
• 7 x Standard Hot Plug Fans

Cables Included

• Power Cable

Compliance Standards

• AES
• FIPS 140-2
• IPv6 Ready
• PCI DSS
• TLS v1.2
• ASHRAE Class A4
• ASHRAE Class A3
• WEEE 2002/95/EC
• ACPI 6.1

Manufacturer Selling Program

• HPE Smart Buy

Power Description

• Device Type: Hot-plug Power Supply
• Power Redundancy: Optional (1+1 with additional power supply)
• Installed Power Supplies: 2
• Max Supported Power Supplies: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Output: 800 Watts

Dimensions & Weight

• Width: 17.1 inches
• Depth: 27.8 inches
• Height: 1.7 inches
• Weight: 28.75 lbs

Enhanced Performance

With the Xeon 10-core Gold 5115 processor, the HPE Proliant DL360 Server delivers exceptional performance, allowing businesses to handle complex workloads with ease. The 10 cores provide the ability to execute multiple tasks simultaneously, resulting in improved efficiency and faster processing times.

Increased Productivity

The high clock speed of 2.4 GHz ensures that the server can swiftly handle resource-intensive applications, enabling businesses to maximize their productivity. Whether you're running data analytics, virtualization, or database management software, the HPE Proliant DL360 Server with its powerful processor ensures smooth and uninterrupted operations.

Scalability

The Xeon 10-core Gold 5115 processor offers scalability, allowing businesses to expand their operations seamlessly. As your business grows and demands increase, this advanced processor can handle the additional workload without compromising performance. This scalability ensures that your investment in the HPE Proliant DL360 Server remains future-proof.

Reliability

Reliability is a critical aspect of any server, and the Xeon 10-core Gold 5115 processor excels in this area. Built with cutting-edge technology and rigorous testing, this processor is designed to operate flawlessly under heavy workloads and in diverse environments. Its reliability ensures uninterrupted service for your business-critical applications.

Efficient Power Consumption

In addition to its exceptional performance, the Xeon 10-core Gold 5115 processor also boasts energy efficiency. This processor employs advanced power management technologies to optimize power consumption, minimizing your server's environmental impact and reducing operational costs.

Storage

The HPE Proliant DL360 Server comes equipped with the P408I-A 8SFF storage feature, offering ample storage capacity and several benefits for users.

Ample Storage Space

With the P408I-A 8SFF storage, the HPE Proliant DL360 Server provides sufficient space for storing your critical data, applications, and files. This ample storage capacity allows businesses to consolidate their data onto a single server, simplifying management and ensuring easy access to information when needed.

Flexibility

The P408I-A 8SFF storage feature offers flexibility in terms of storage options. It supports various drive types and sizes, allowing businesses to choose the most suitable storage configuration based on their specific requirements. Whether you need high-performance SSDs or cost-effective HDDs, this server can accommodate your needs.

Data Redundancy

Data redundancy is crucial for ensuring data integrity and mitigating the risk of data loss. The P408I-A 8SFF storage feature incorporates RAID technology, which allows for data redundancy by distributing data across multiple drives. In the event of a drive failure, the redundant data ensures that no information is lost, minimizing downtime and preserving business continuity.

Hot-Swappable Drives

The HPE Proliant DL360 Server's P408I-A 8SFF storage feature supports hot-swappable drives. This means that failed drives can be replaced without shutting down the server, eliminating the need for costly downtime. Hot-swappability enhances system availability and simplifies maintenance procedures.

Power Supply

The HPE Proliant DL360 Server is equipped with two 800W power supplies, offering reliable and efficient power delivery for uninterrupted operations.

Redundancy and High Availability

The dual 800W power supplies provide redundancy, ensuring that the server remains powered even if one power supply fails. This redundancy eliminates single points of failure and enhances system availability, preventing costly downtime and potential data loss. With redundant power supplies, businesses can rely on the HPE Proliant DL360 Server for mission-critical applications.

Efficiency and Cost Savings

The 800W power supplies are designed to be highly efficient, maximizing energy utilization and minimizing wasted power. This efficiency not only reduces your server's environmental footprint but also translates into cost savings. By consuming less energy, the HPE Proliant DL360 Server helps businesses lower their operational expenses without compromising performance or reliability.

Power Redundancy Management

The HPE Proliant DL360 Server's power supplies are equipped with advanced management features that allow users to monitor power consumption, regulate voltage levels, and optimize energy usage. With comprehensive power redundancy management capabilities, businesses can ensure optimal performance while maintaining efficient and reliable power delivery.

Purchase Option

The HPE Proliant DL360 Server offers the S-Buy purchase option, providing users with a convenient buying experience and various benefits.

Cost-Effectiveness

The S-Buy purchase option is designed to offer cost-effectiveness to businesses. By choosing the S-Buy option, users can take advantage of competitive pricing without compromising on the server's quality or performance. This makes the HPE Proliant DL360 Server an attractive choice for businesses looking to optimize their IT investments.

Quick Availability

With the S-Buy purchase option, the HPE Proliant DL360 Server is readily available for immediate deployment. This allows businesses to quickly set up their infrastructure and meet their operational needs without delays. The prompt availability of the server ensures that businesses can start leveraging its capabilities as soon as possible.

Flexible Customization

The S-Buy option provides flexibility in customizing the HPE Proliant DL360 Server based on specific requirements. Users can choose from a range of configurable options to tailor the server to their exact needs, ensuring optimal performance and compatibility with existing IT infrastructure.

Reliable Warranty and Support

When opting for the S-Buy purchase option, users benefit from HPE's reliable warranty and support services. HPE is renowned for its exceptional customer service and technical expertise, offering peace of mind to users in case of any issues or inquiries. The comprehensive warranty coverage ensures that businesses can rely on the HPE Proliant DL360 Server for their critical operations.

In conclusion, the HPE Proliant DL360 Server with its Xeon 10-core Gold 5115 processor, P408I-A 8SFF storage, dual 800W power supplies, and S-Buy purchase option offers exceptional performance, scalability, reliability, storage capacity, power efficiency, cost-effectiveness, and customization options. Whether you need a server for virtualization, data analytics, database management, or any other business-critical applications, the HPE Proliant DL360 Server is an ideal choice that delivers on all fronts.
