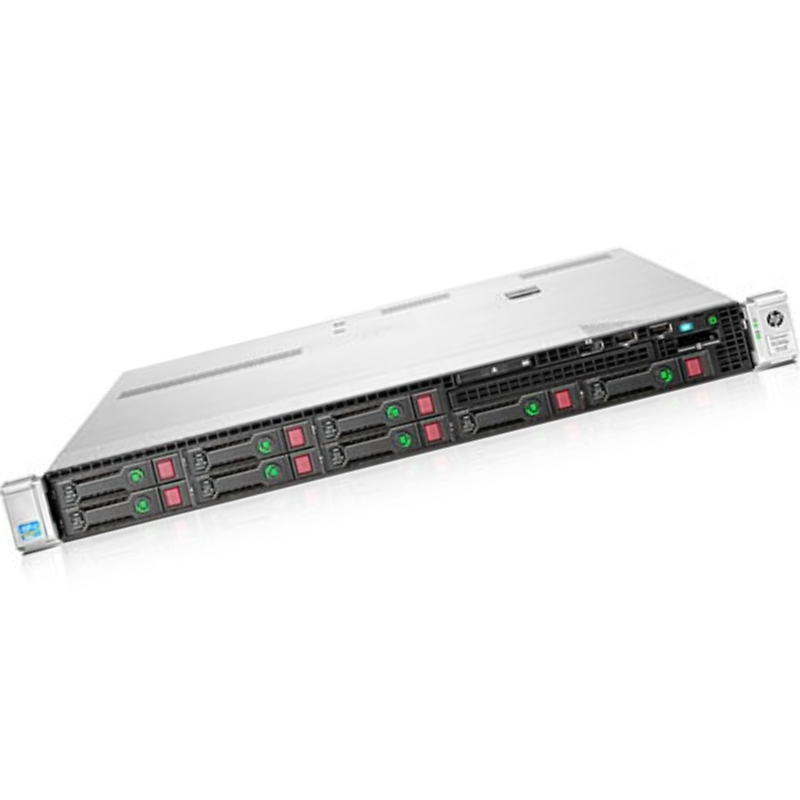

HPE ProLiant DL360p G8 646902 SAS Gigabit Ethernet Rack Server 646902-001

Interface

When it comes to the HPE ProLiant DL360p G8 646902 Rack Server, one of its standout features is its interface, specifically its SAS capability. SAS, which stands for Serial Attached SCSI, is a high-speed data transfer protocol that allows for efficient and reliable communication between the server and its storage devices. This interface plays a crucial role in enhancing the overall performance and functionality of the server.

General Information

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 646902-001
• Product Name: Proliant DL360p Gen8 - 2-Way 1U Rack Server (Base Model)

Processor & Chipset

Processor Specifications

• Processor Type: Intel Xeon E5-2640 / 2.5 GHz
• Maximum Turbo Speed: 3 GHz
• Number of Cores: 6 Cores
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• 64-bit Computing: Yes
• Upgradability: Upgradable
• Chipset: Intel C600
• Main Features: Hyper-Threading Technology, Intel QuickPath Interconnect, Intel Turbo Boost Technology 2.0

Cache Memory

• Cache Type: L3 Cache
• Installed Size: 15 MB
• Cache Per Processor: 15 MB

Memory (RAM)

RAM Specifications

• Installed Size: 16 GB (upgradable to 384 GB)
• Technology: DDR3 SDRAM
• Effective Memory Speed: 1333 MHz
• Memory Compliance: PC3-10600
• Form Factor: DIMM 240-pin
• Slots: 24 (total), 20 (empty)
• Features: Registered, Quad Channel Memory Architecture, HP SmartMemory
• Supported Configurations: 4 x 4 GB
• Supported RAM Types: PC3-12800 (384 GB Registered), PC3-10600 (768 GB Load-Reduced), PC3-10600 (128 GB Unbuffered - Advanced ECC), PC3-10600 (384 GB Hypercloud)

Storage & Optical Storage

• Hard Drive: None
• Optical Drive: None

Storage Controller

Storage Controller Features

• Type: Integrated RAID - PCIe 3.0 x8
• Controller Interface: SATA 6Gb/s / SAS 6Gb/s
• Controller Name: Smart Array P420i with 1GB FBWC
• Channel Quantity: 8
• RAID Levels: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
• Buffer Size: 1 GB

Display & Graphics

• Graphics Controller Type: Integrated
• Graphics Processor: Matrox G200
• Video Interfaces: VGA

Network & Communication

Network Specifications

• Type: Plug-in Card
• Interface (Bus) Type: PCI Express x4
• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HP 331FLR
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocol: IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake on LAN (WoL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP)

Expansion & Connectivity

Expansion Bays

• External 5.25-inch: 1 (total), 1 (free)
• Hot-Swap 2.5-inch SFF: 8 (total), 8 (free)

Expansion Slots

• DIMM 240-pin: 24 (total), 20 (free)
• CPU: 2 (total), 1 (free)
• PCIe 3.0 x16 (Half-Length, Full-Height): 1 (total), 1 (free)
• PCIe 3.0 x8 (Low-Profile): 1 (total), 1 (free)
• FlexibleLOM (X4 Mode): 1 (total), 0 (free)

Interfaces & Ports

• Serial Port: 1
• VGA Port: 1
• LAN (Gigabit Ethernet): 4
• HP iLO Port: 1
• USB 2.0 Ports: 7 (2 Front, 4 Rear, 1 Internal)

Miscellaneous

Included Accessories

• HP Easy Install Rail Kit

Features

• Administrator Password
• Power-On Password
• Serial Port I/O Control
• 80 Plus Platinum Certification

Compliant Standards

• ACPI 2.0b
• FCC Class A Certified
• EN 61000-3-2
• EN 55022
• ICES-003
• EN 61000-3-3
• EN 55024
• CISPR 22
• FCC CFR47 Part 15
• IEC 60950-1
• EN 60950-1
• WEEE
• GB 9254
• CNS 13438

Power Supply

• Device Type: Hot-Plug Power Supply
• Power Redundancy: Optional (1+1 with optional power supply)
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 460 Watts
• 80 Plus Certification: 80 Plus Platinum
• Efficiency: 94%Benefits of SAS

  1. Enhanced Performance

  SAS offers significantly higher data transfer speeds compared to its predecessor, SCSI. With transfer rates of up to 12 Gbps (gigabits per second), it enables faster read and write operations, reducing latency and improving overall system performance. This is particularly important for businesses that rely on their servers for mission-critical applications and require quick access to large amounts of data.

  2. Scalability

  SAS is designed to support a large number of devices, making it highly scalable. This means that as your business grows and demands increase, you can easily expand your storage capacity by connecting additional SAS drives or enclosures to the server. The ability to scale your storage infrastructure without compromising performance ensures that your server can adapt to your evolving needs.

  3. Reliability and Data Protection

  Data integrity is of utmost importance in any business environment. SAS provides robust error detection and correction mechanisms, ensuring that data is transferred accurately and without corruption. Additionally, SAS drives often incorporate advanced features such as RAID (Redundant Array of Independent Disks) technology, which further enhances data protection by creating redundant copies of data across multiple drives. This redundancy minimizes the risk of data loss in case of drive failures.

  4. Compatibility

  SAS is backward compatible with SATA (Serial ATA), allowing you to connect both SAS and SATA drives to the server. This flexibility provides you with a wide range of storage options, enabling you to choose the most cost-effective solution for your specific requirements. Whether you need high-performance SAS drives or more affordable SATA drives, the DL360p G8 646902 Rack Server can accommodate your needs.

  Importance of SAS for Users

  The interface is a vital component of any server, and SAS brings numerous benefits to users of the HPE ProLiant DL360p G8 646902 Rack Server. The enhanced performance, scalability, reliability, and compatibility offered by SAS contribute to an efficient and reliable computing environment.

  With faster data transfer speeds, businesses can experience improved application performance, resulting in increased productivity and reduced downtime. The scalability of SAS allows businesses to expand their storage capacity as their needs grow without sacrificing performance. This ensures that the server can handle the increasing demands of data-intensive applications and growing datasets.

  The reliability and data protection features of SAS are crucial for maintaining the integrity of critical data. Error detection and correction mechanisms minimize the risk of data corruption during transfers, while RAID technology safeguards against data loss in the event of drive failures. This level of data protection is essential for businesses that handle sensitive information or rely on their servers for continuous operations.

  Furthermore, the compatibility between SAS and SATA drives gives users the flexibility to choose the most suitable storage solution for their specific requirements. Whether they need high-performance SAS drives for demanding workloads or cost-effective SATA drives for less critical data, the DL360p G8 646902 Rack Server can accommodate their needs.

  In summary, the SAS interface is a key feature of the HPE ProLiant DL360p G8 646902 Rack Server that brings significant benefits to users. Its enhanced performance, scalability, reliability, and compatibility make it an essential component for businesses seeking a powerful and reliable server solution.

  Networking

  Another noteworthy feature of the HPE ProLiant DL360p G8 646902 Rack Server is its networking capabilities, specifically its Gigabit Ethernet support. Ethernet is the most commonly used networking technology in modern computing environments, and the Gigabit variant offers several advantages that are crucial for businesses.

  Benefits of Gigabit Ethernet

  1. Faster Data Transfer

  Gigabit Ethernet provides data transfer speeds of up to 1 Gbps (gigabits per second), which is ten times faster than traditional Fast Ethernet. This increased bandwidth allows for quicker file transfers, faster access to network resources, and improved overall network performance. Businesses can benefit from reduced transfer times and improved productivity when transferring large files or accessing data stored on network-attached storage (NAS) devices.

  2. Enhanced Workgroup Collaboration

  In a business environment, efficient collaboration among team members is essential. With Gigabit Ethernet, workgroups can share resources and collaborate seamlessly. The high-speed connectivity enables real-time data sharing, video conferencing, and simultaneous access to network resources without experiencing bottlenecks or slowdowns. This promotes teamwork and enhances productivity, ultimately leading to better business outcomes.

  3. Support for Bandwidth-Intensive Applications

  Modern businesses increasingly rely on bandwidth-intensive applications such as video streaming, VoIP (Voice over Internet Protocol), and cloud-based services. Gigabit Ethernet provides the necessary bandwidth to support these applications without degradation in performance. Users can enjoy smooth video playback, clear voice calls, and seamless cloud connectivity, ensuring a seamless user experience and uninterrupted workflow.

  4. Future-Proofing

  Investing in a server with Gigabit Ethernet support ensures future-proofing your network infrastructure. With the increasing demand for bandwidth due to emerging technologies and higher data volumes, having Gigabit Ethernet in place allows for easy scalability and adaptation to future requirements. This eliminates the need for costly network upgrades in the near future, saving businesses both time and money.

  Importance of Gigabit Ethernet for Users

  The networking capabilities of the HPE ProLiant DL360p G8 646902 Rack Server, specifically its support for Gigabit Ethernet, offer significant advantages to users. The faster data transfer speeds enable quicker access to network resources and improved productivity. Workgroups can collaborate seamlessly, ensuring efficient communication and sharing of resources.

  The ability to support bandwidth-intensive applications is crucial for businesses that rely on video streaming, VoIP, or cloud-based services. Gigabit Ethernet ensures that these applications perform smoothly without any degradation in performance, providing a seamless user experience and enabling uninterrupted workflow.

  By investing in a server with Gigabit Ethernet support, businesses future-proof their network infrastructure. This allows for easy scalability and adaptation to future demands without the need for costly upgrades. Ultimately, the networking capabilities of the DL360p G8 646902 Rack Server contribute to a robust and reliable network environment that supports the evolving needs of modern businesses.

  Part Number

  The HPE ProLiant DL360p G8 646902 Rack Server is conveniently identified by its unique part number, which in this case is 646902-001. The part number serves as a specific identifier for the server model and plays a crucial role in ensuring accurate ordering, compatibility, and maintenance of the server.

  Benefits of Part Number

  1. Accurate Ordering

  The part number acts as a reference when ordering the HPE ProLiant DL360p G8 646902 Rack Server. With numerous server models and configurations available, having a specific part number ensures that you receive the exact server you require. This eliminates any confusion or potential errors during the ordering process, saving time and preventing the hassle of returning incorrect products.

  2. Compatibility Assurance

  Each server model may have different components, specifications, and compatibility requirements. By using the part number, you can ensure that any additional components or accessories you purchase are compatible with the server. Whether it's expansion cards, storage drives, or memory modules, referencing the part number guarantees that you select components that seamlessly integrate with the DL360p G8 646902 Rack Server.

  3. Maintenance and Support

  In the event of maintenance or support requests, providing the part number allows service providers to quickly identify the specific server model and its corresponding components. This expedites troubleshooting procedures and ensures that the appropriate spare parts or firmware updates are applied accurately. The part number acts as a reliable reference point for efficient maintenance and support services.

  4. Documentation and Resources

  The part number is often used in documentation and resources provided by the manufacturer or third-party vendors. This allows users to access specific technical manuals, driver downloads, firmware updates, and compatibility matrices related to the DL360p G8 646902 Rack Server. Having easy access to these resources facilitates system management, troubleshooting, and staying up-to-date with the latest software releases.

  Importance of Part Number for Users

  The part number is an essential feature of the HPE ProLiant DL360p G8 646902 Rack Server that brings several benefits to users. It ensures accurate ordering by providing a specific identifier for the server model, preventing any confusion or errors during the purchasing process.

  The part number also guarantees compatibility by enabling users to select additional components or accessories that seamlessly integrate with the server. This ensures that users can expand or upgrade their server without encountering compatibility issues or limitations.

  In terms of maintenance and support, the part number allows service providers to quickly identify the server model and its specific components. This expedites troubleshooting procedures and ensures that the appropriate measures are taken to resolve any issues efficiently.

  Moreover, the part number serves as a reference point for accessing documentation and resources related to the DL360p G8 646902 Rack Server. This helps users stay informed about system management, troubleshooting, and software updates, ultimately enhancing their overall experience with the server.

  In conclusion, the part number is a vital feature of the HPE ProLiant DL360p G8 646902 Rack Server that offers several benefits to users. It ensures accurate ordering, compatibility assurance, efficient maintenance and support, as well as easy access to documentation and resources. By leveraging the part number, users can effectively manage, upgrade, and maintain their server, maximizing its performance and longevity.
