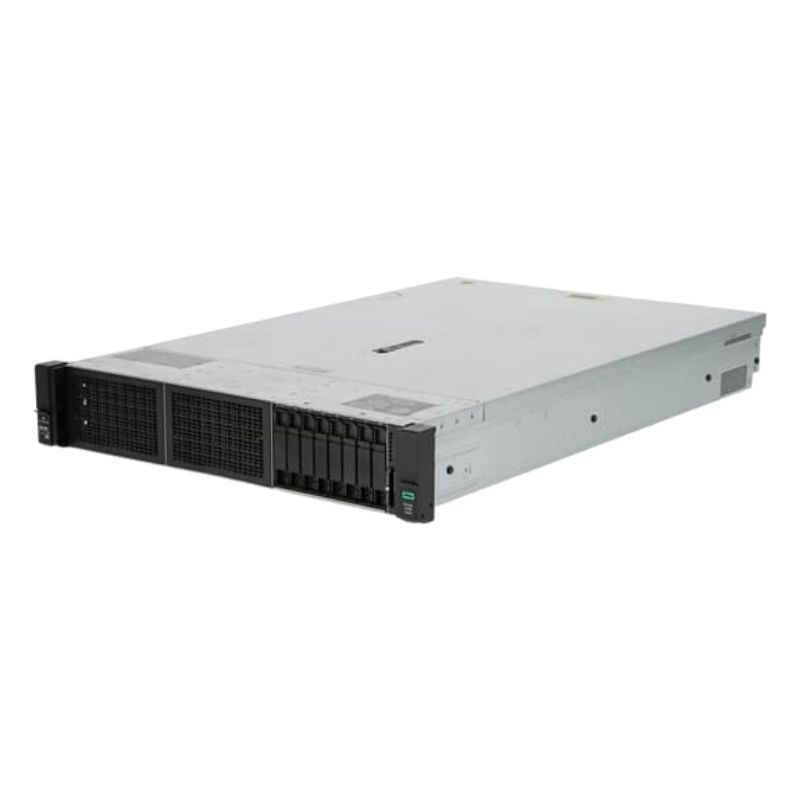

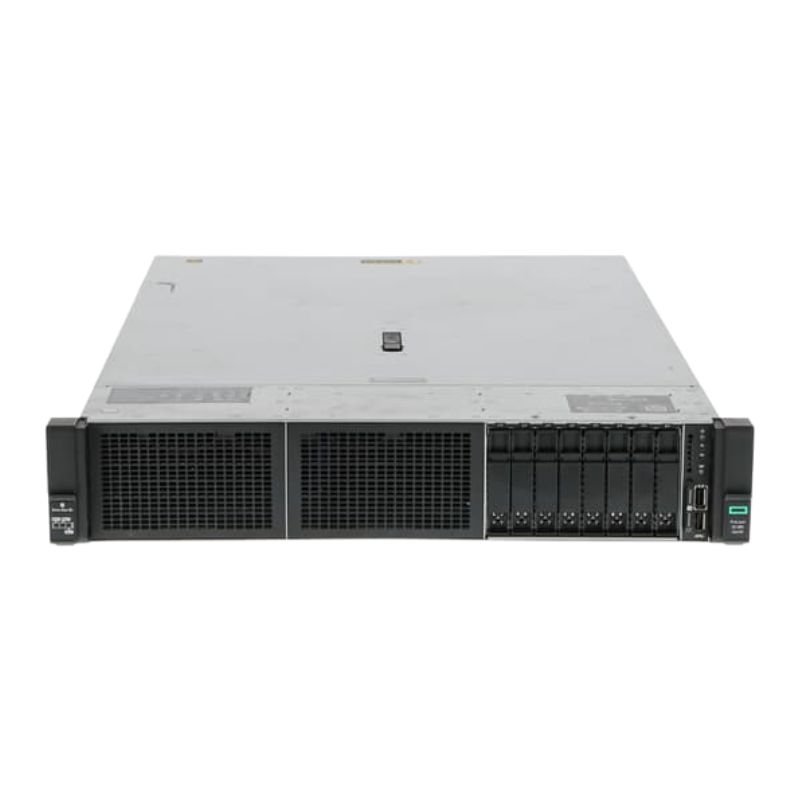

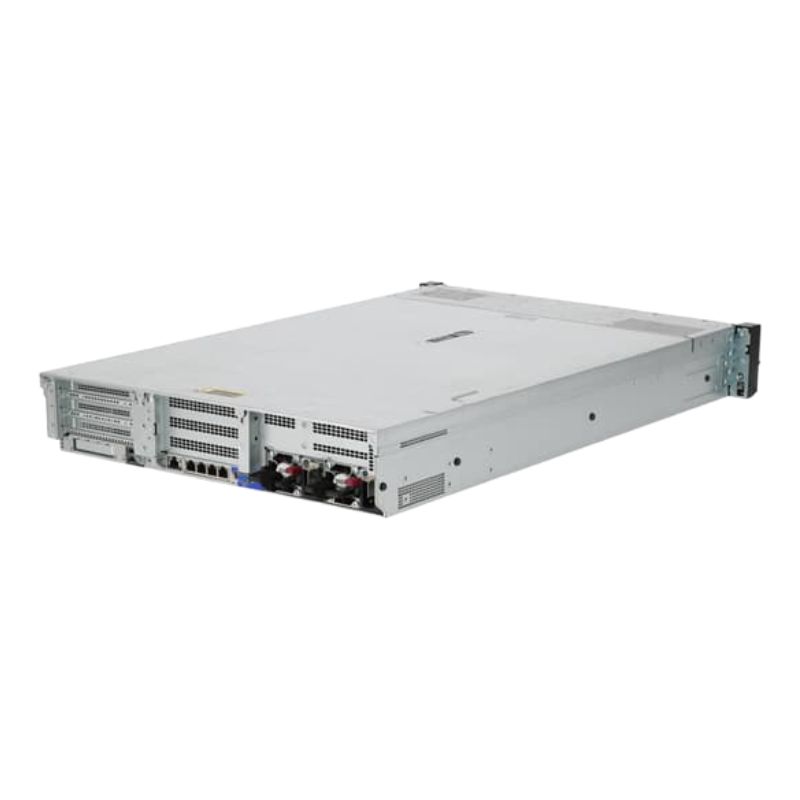

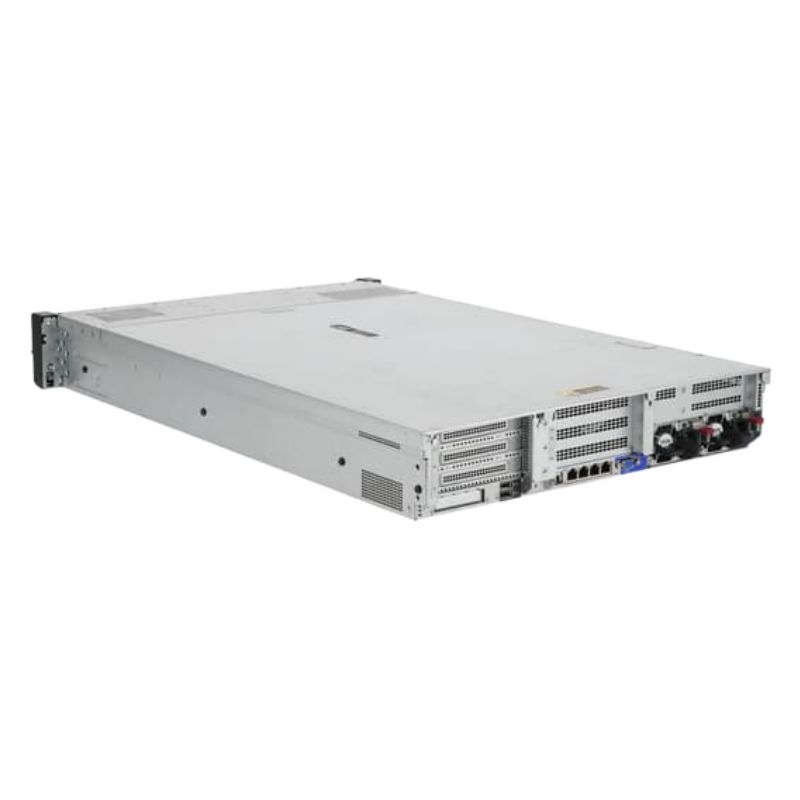

HPE Proliant DL380 8 Core Server XEON 3.2GHz P40717-B21

Processor

The HPE Proliant DL380 Server is powered by an impressive XEON 3.2GHz processor. This powerful processor is designed to provide exceptional performance and reliability for users. Let's dive into the benefits and importance of this feature in more detail.

General Overview of P40717-B21

• Manufacturer: Hewlett Packard Enterprise
• Part Number: P40717-B21
• Scalability: 2-way
• Rack Height: 2U
• Model: Proliant DL380 Gen10 - Rack Mountable Server

Processor & Chipset

• CPU: 2nd Gen Intel Xeon Silver 4215R, 3.2 GHz
• Max Turbo Speed: 4.0 GHz
• Number of Cores: 8
• CPUs Installed: 1
• Max CPUs Supported: 2
• Upgradeability: Upgradable
• Main Features: Hyper-Threading, Intel Turbo Boost Technology 2.0
• Socket Type: FCLGA3647
• Chipset: Intel C621

Cache Memory

• Installed Size: 11 MB L3 Cache
• Cache Per Processor: 11 MB

Memory Configuration

• Installed Memory: 32 GB (expandable up to 1.5 TB)
• Memory Type: DDR4 SDRAM with Advanced ECC
• Effective Speed: 2400 MHz
• Rated Speed: 2933 MHz
• Form Factor: DIMM 288-pin
• Total Slots: 24 (23 available)
• Memory Configuration Features: Registered, Dual Rank; Slots 13-24 available in a dual-processor setup
• Supported RAM: Up to 3 TB Load-reduced ECC or 1.5 TB Registered ECC

Storage Solutions

• Hard Drive Type: No HDD

Storage Controllers

• Controller Type: RAID
• Interface: SATA 6 Gb/s, SAS 12 Gb/s
• Controller Model: HPE Smart Array P408i-a SR Gen10
• Channel Quantity: 8
• RAID Levels Supported: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
• Buffer Size: 2 GB

Additional Features

• Optical Drive: Not included

Graphics and Display

• Video Memory: 16 MB
• Video Interface: VGA

Networking & Communication

• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Ethernet Controller: Broadcom BCM57416
• Data Link Protocol: 10 Gigabit Ethernet
• Remote Management: Integrated Lights-Out 5 (iLO 5)

Expansion & Connectivity

• External Universal Media Bay: 1 (free)
• Hot-Swap 2.5” SFF Bays: 8 (free)

Expansion Slots

• PCIe 3.0 x8 Slot: 1 (full-length, full-height) (free)
• PCIe 3.0 x16 Slot: 1 (full-length, full-height) (free)
• PCIe 3.0 x8 Slot: 1 (half-length, full-height) (free)
• FlexibleLOM Slot: 1 (occupied)
• MicroSD Card Slot: 1 (internal) (free)

Interfaces & Ports

• VGA Port: 1
• LAN Ports: 2 x 10 Gigabit Ethernet (SFP+)
• HPE iLO Port: 1 x RJ-45
• USB 3.0 Ports: 3 (1 front, 2 rear)

Power Specifications

• Power Supply Type: Hot-plug
• Redundancy: Optional, 1+1 with an additional power supply
• Installed Power Supply: 1
• Maximum Supported Power Supplies: 2
• Voltage Required: AC 120/230 V (50/60 Hz)
• Power Provided: 800 Watts
• 80 Plus Certification: 80 Plus Platinum

Operating System & Software

• Operating System Included: None

Environmental Standards

• Energy Star Certification: Yes, Version 3.0

Environmental Parameters

• Minimum Operating Temperature: 50°F
• Maximum Operating Temperature: 95°F
• Humidity Range: 8 - 90% (non-condensing)

Physical Dimensions

• Width: 17.5 inches
• Depth: 28.8 inches
• Height: 3.4 inches
• Weight: 32.54 lbs

Enhanced Performance

The XEON 3.2GHz processor offers outstanding performance capabilities, making it perfect for demanding tasks and resource-intensive applications. With its high clock speed, this processor can handle complex calculations and data processing with ease. Whether you are running virtual machines, handling large databases, or performing intensive computations, the XEON 3.2GHz processor ensures that your server can handle the workload efficiently.

Improved Multitasking

One of the key advantages of the XEON 3.2GHz processor is its ability to handle multitasking effortlessly. With multiple cores and threads, this processor allows you to run multiple applications simultaneously without compromising performance. This means that you can effortlessly handle various workloads, ensuring smooth operation even during peak usage.

Optimized Virtualization

Virtualization has become a vital component in modern IT infrastructures, allowing businesses to maximize their resources and increase efficiency. The XEON 3.2GHz processor is specifically optimized for virtualization, offering advanced features such as Intel Virtualization Technology (VT-x) and Extended Page Tables (EPT). These technologies enhance the performance and security of virtualized environments, ensuring smooth operation even under heavy workloads.

Improved Security

In today's digital landscape, security is of utmost importance. The XEON 3.2GHz processor comes equipped with Intel's Trusted Execution Technology (TXT), providing hardware-based security features to protect your server from unauthorized access and attacks. This feature helps safeguard your data and ensure the integrity of your system, giving you peace of mind.

Energy Efficiency

While delivering exceptional performance, the XEON 3.2GHz processor is also designed to be energy-efficient. It utilizes advanced power management technologies to optimize power consumption without compromising performance. This not only reduces your server's operating costs but also contributes to a greener and more sustainable IT infrastructure.

Cores

The HPE Proliant DL380 Server is equipped with 8 cores, providing substantial processing power for your workloads. Let's explore the benefits and importance of this feature in more detail.

Parallel Processing

Having multiple cores allows the server to perform parallel processing, which significantly enhances its overall performance. Each core can handle its own set of instructions simultaneously, enabling faster execution of tasks. Whether you are running multiple applications or performing complex calculations, the 8 cores of the DL380 server ensure efficient utilization of system resources.

Improved Scalability

Scalability is essential for businesses as their needs grow over time. The 8 cores in the DL380 server provide ample room for scalability, allowing you to handle increasing workloads without the need for a complete hardware upgrade. You can easily allocate resources to different applications or virtual machines, ensuring smooth operation even as your business expands.

Efficient Resource Allocation

The presence of multiple cores allows for efficient resource allocation within the server. With an 8-core processor, you can allocate specific cores to critical applications or processes that require dedicated resources. This ensures that these applications receive the necessary computing power, preventing any bottlenecks and maximizing overall system performance.

Improved Responsiveness

The 8 cores in the DL380 server contribute to improved responsiveness, especially in multi-user environments. With more cores available, each user or application can have dedicated processing power, resulting in a smoother and more responsive user experience. Whether you are accessing files, running applications, or performing data-intensive tasks, the 8 cores ensure that your server can handle simultaneous requests efficiently.

Optimized Virtualization Performance

Virtualization relies heavily on efficient resource allocation and parallel processing. The 8 cores of the DL380 server provide an ideal platform for virtualization, enabling you to run multiple virtual machines simultaneously without sacrificing performance. This ensures optimal utilization of resources and allows you to consolidate your physical servers into a single machine, reducing costs and simplifying management.

Part Number

The HPE Proliant DL380 Server is identified by its unique part number, P40717-B21. Let's explore the benefits and importance of this feature.

Easy Identification

The part number serves as a unique identifier for the DL380 server model. In a large IT infrastructure where multiple servers are deployed, having a distinct part number simplifies the identification process. This makes it easier for IT administrators to locate and manage specific servers within their environment.

Accurate Ordering and Inventory Management

The part number is crucial during the ordering process, ensuring that you receive the correct server model with all the desired specifications. By using the P40717-B21 part number, you can avoid any confusion or mistakes when purchasing or replacing servers. Additionally, the part number aids in inventory management, allowing you to keep track of the servers in your possession accurately.

Compatibility Assurance

HPE uses part numbers to ensure compatibility between different server components and accessories. By using the specific part number for the DL380 server, you can be confident that any additional components or upgrades you purchase will be compatible with your server model. This simplifies the process of expanding or upgrading your server's capabilities.

Warranty and Support

The part number is also essential for warranty and support purposes. By providing the part number, you can quickly seek assistance or request repairs from HPE's support team. This ensures that you receive the necessary support promptly, minimizing downtime and disruptions to your business operations.

Documentation and Resources

HPE maintains a comprehensive database of documentation, drivers, and resources for each server model. By using the part number P40717-B21, you can easily access the relevant documentation, guides, and firmware updates specific to the DL380 server. This ensures that you have access to the necessary information to properly configure, manage, and troubleshoot your server.

In conclusion, the HPE Proliant DL380 Server's XEON 3.2GHz processor, 8 cores, and unique part number P40717-B21 offer significant benefits for users. The powerful processor provides enhanced performance, improved multitasking, optimized virtualization, improved security, and energy efficiency. The 8 cores enable parallel processing, improved scalability, efficient resource allocation, improved responsiveness, and optimized virtualization performance. Lastly, the unique part number simplifies identification, ordering, inventory management, ensures compatibility, aids in warranty and support processes, and provides access to relevant documentation and resources. The combination of these features makes the HPE Proliant DL380 Server a reliable and high-performance choice for businesses of all sizes.
