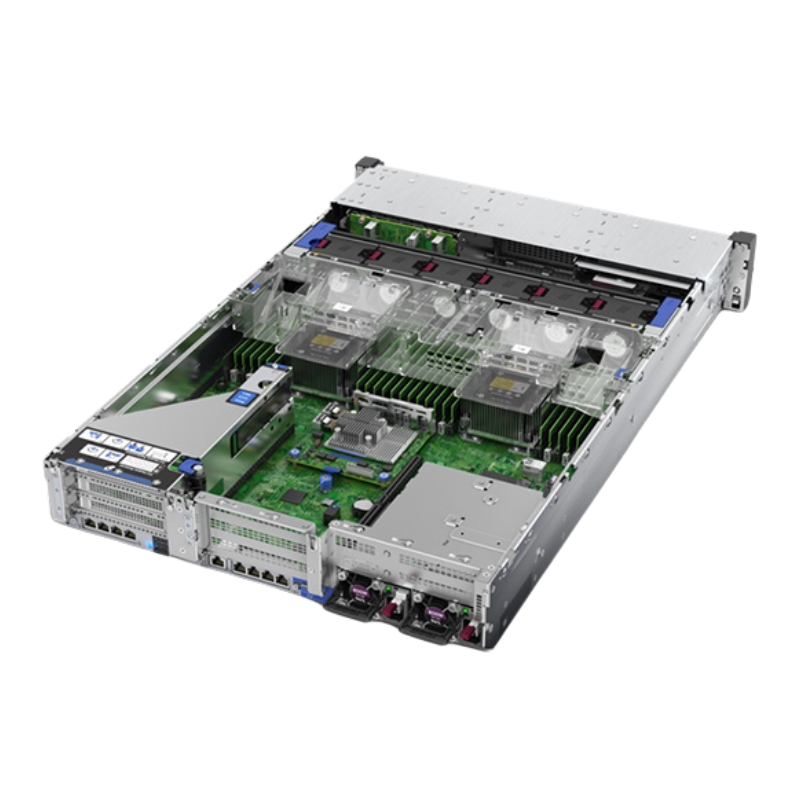

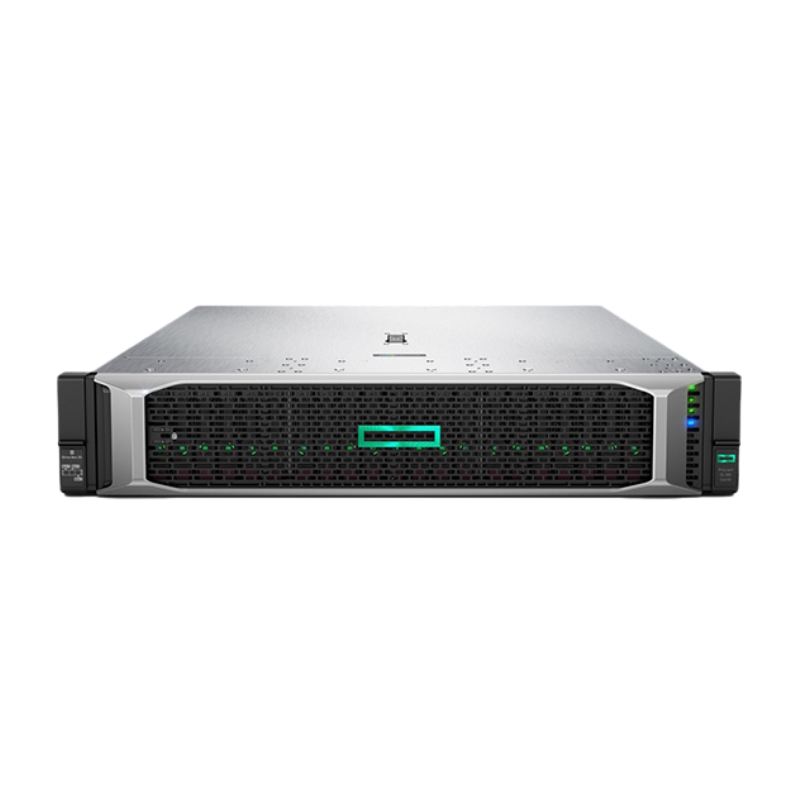

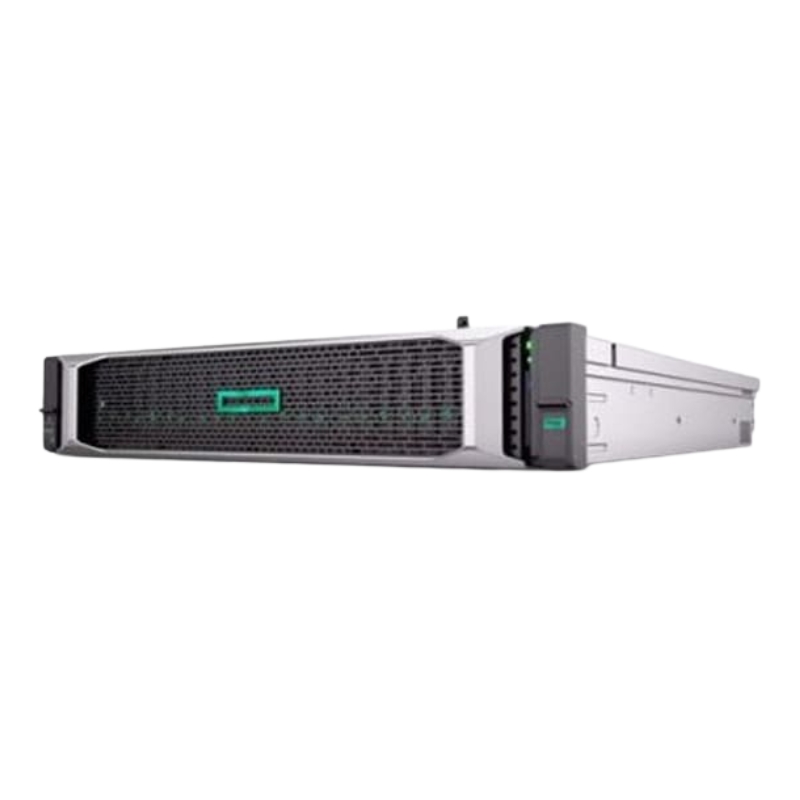

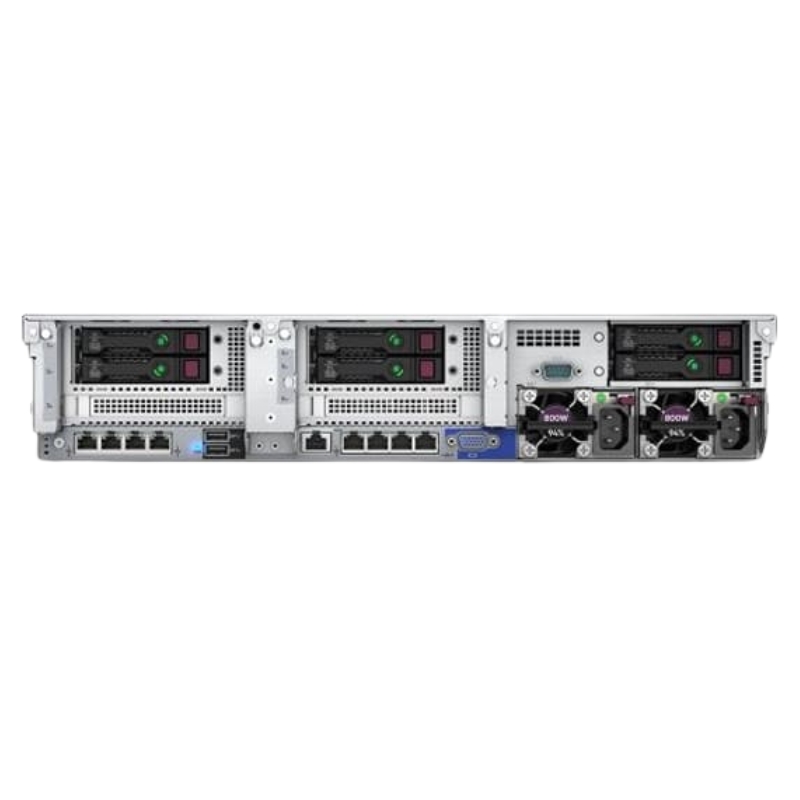

HPE Proliant DL380 G10 2U Rack Server P24844-B21 Xeon Gold 5218R 2.10GHz 32GB RAM

Processor

The HPE Proliant DL380 G10 2U Rack Server is equipped with a powerful 1 x Xeon Gold 5218R 2.10GHz processor, which provides exceptional performance and reliability for users. This processor is a key component of the server, responsible for executing all the tasks and calculations required to run applications and processes efficiently.

General Specifications

• Type: Server
• Form Factor: Rack-mountable - 2U
• Scalability: 2-way
• Hot-swap Bays: 8
• Localization Region: Worldwide

Processor and Chipset

CPU Details

• Processor: Intel Xeon Gold 5218R, 2.1 GHz
• Max Turbo Speed: 4.0 GHz
• Cores: 20-core
• Quantity: 1 (upgradable to 2)
• Socket Type: FCLGA3647
• Chipset: Intel C621
• Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2

Cache Memory

• Installed Size: L3 Cache - 27.5 MB
• Cache Per Processor: 27.5 MB

RAM Specifications

Memory Details

• Installed Size: 32 GB (expandable up to 1.5 TB)
• Memory Technology: DDR4 SDRAM - Advanced ECC
• Effective Speed: 2666 MHz
• Rated Speed: 2933 MHz
• Form Factor: DIMM 288-pin
• Slots: 24 (23 available)
• Features: Registered, Dual Rank, HPE SmartMemory
• Supported Configurations: 3 TB Load-reduced ECC, 1.5 TB Registered ECC, 192 GB Non-volatile ECC, 6 TB HPE Persistent Memory - Optane DC Persistent

Storage and Controllers

Hard Drive

• Type: No HDD

Storage Controller

• Type: RAID
• Controller Interface: SATA 6Gb/s
• Model: HPE Smart Array S100i
• Channels: 14
• RAID Levels: RAID 0, RAID 1, RAID 5, RAID 10

Optical Storage

• Type: No Optical Drive

Card Reader

• Type: Card Reader
• Supported Flash Cards: MicroSD

Networking and Connectivity

• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Ethernet Controller: HPE 562FLR-SFP+
• Data Link Protocol: 10 Gigabit Ethernet
• Remote Management: Integrated Lights-Out 5
• Additional Features: Wake On LAN (WOL), PXE Support

Expansion and Interfaces

• Bays: 8 (total) / 8 (free) x Hot-swap 2.5 SFF
• Slots:
  • 1 x MicroSD Card (internal)
  • 1 x PCIe 3.0 x8 - Full-length, Full-height
  • 1 x PCIe 3.0 x16 - Full-length, Full-height
  • 1 x PCIe 3.0 x8 - Half-length, Full-height
  • 1 x FlexibleLOM
• Interfaces:
  • 3 x USB 3.0 (1 Front, 2 Rear)
  • 1 x VGA
  • 2 x LAN (10 Gigabit Ethernet)
  • 1 x HPE iLO
  • 1 x HPE iLO (Service Port)

Miscellaneous

• Included Accessories: Cable Management Arm, SFF Easy Install Rails
• Compliance Standards: WEEE, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1

Power Specifications

• Device Type: Power Supply - Hot-plug
• Redundancy: Optional
• Redundancy Scheme: 1+1 (with Optional Power Supply)
• Installed Qty: 1
• Max Supported Qty: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 800 Watts

Dimensions and Weight

• Width: 17.5 inches
• Depth: 26.7 inches
• Height: 3.4 inches
• Weight: 32.85 lbs

Exceptional Performance

The Xeon Gold 5218R processor is designed to deliver exceptional performance, making it ideal for demanding workloads and applications. With a base clock speed of 2.10GHz, this processor can handle complex calculations and data-intensive tasks with ease. It features 16 cores and 32 threads, allowing for efficient multitasking and parallel processing.

Increased Productivity

By utilizing the power of the Xeon Gold 5218R processor, users can experience increased productivity in their day-to-day operations. The high-performance cores enable faster data processing, resulting in reduced wait times and improved overall efficiency. This is particularly beneficial for businesses that rely on fast data analysis, virtualization, or running resource-intensive applications.

Enhanced Scalability

The Xeon Gold 5218R processor also offers enhanced scalability, allowing users to scale their server infrastructure as their business needs evolve. With support for advanced technologies like Intel Turbo Boost Technology 2.0, this processor can dynamically increase its clock speed when needed, providing an extra boost of performance when handling peak workloads.

Reliability and Stability

Reliability is crucial when it comes to server hardware, as any downtime can result in significant losses for businesses. The Xeon Gold 5218R processor is known for its reliability and stability, ensuring uninterrupted operation even under heavy workloads. It features advanced error correction capabilities that help detect and correct any memory or data errors, minimizing the risk of system crashes or data corruption.

Energy Efficiency

In addition to its exceptional performance, the Xeon Gold 5218R processor is designed with energy efficiency in mind. It utilizes Intel's advanced power management technologies to optimize power consumption based on workload demands. This not only reduces operating costs but also contributes to a greener IT infrastructure by minimizing energy waste.

RAM

The HPE Proliant DL380 G10 2U Rack Server is equipped with 32GB of RAM, providing ample memory capacity for various applications and workloads. The RAM, or Random Access Memory, plays a crucial role in determining the overall performance and responsiveness of the server.

Improved Multitasking

With 32GB of RAM, users can enjoy improved multitasking capabilities on the HPE Proliant DL380 G10 server. The generous memory capacity allows for seamless switching between multiple applications and processes without experiencing any slowdowns. This is particularly beneficial for businesses that require running several resource-intensive applications simultaneously.

Efficient Data Processing

RAM acts as a temporary storage space for data that is actively being accessed by the processor. With 32GB of RAM, the server can hold a larger amount of data in its memory, reducing the need for frequent data retrieval from slower storage devices like hard drives. This results in faster data processing and improved overall system performance.

Enhanced Virtualization

Virtualization has become an essential technology for businesses, allowing them to run multiple virtual machines on a single physical server. The 32GB of RAM in the HPE Proliant DL380 G10 server enables efficient virtualization by providing sufficient memory capacity for the virtual machines to operate smoothly. This ensures that each virtual machine has enough resources to run its applications without impacting the performance of others.

Future-Proofing

Investing in a server with 32GB of RAM offers a certain level of future-proofing. As applications and workloads become more demanding over time, having sufficient memory capacity becomes crucial. With 32GB of RAM, the HPE Proliant DL380 G10 server can accommodate growing needs and can be easily upgraded in the future if required.

Reliability and Redundancy

The HPE Proliant DL380 G10 server is designed with reliability and redundancy in mind. With 32GB of RAM, users can take advantage of features like ECC (Error-Correcting Code) memory, which helps detect and correct errors in real-time. This ensures data integrity and minimizes the risk of system crashes or data corruption.

Cache

The HPE Proliant DL380 G10 2U Rack Server features a 16MB cache, which plays a crucial role in improving the overall performance and responsiveness of the server.

Faster Data Access

The cache acts as a high-speed storage area that stores frequently accessed data for quick retrieval by the processor. With a 16MB cache, the HPE Proliant DL380 G10 server can hold a larger amount of frequently accessed data closer to the processor, reducing the time it takes to fetch data from slower storage devices like hard drives. This results in faster data access and improved system responsiveness.

Reduced Latency

Latency refers to the time it takes for data to travel from one point to another within a system. The larger cache size in the HPE Proliant DL380 G10 server helps reduce latency by keeping more data readily available near the processor. This reduces the need for frequent data transfers between the processor and slower storage devices, resulting in faster data processing and improved overall performance.

Improved Workload Performance

By utilizing a 16MB cache, the HPE Proliant DL380 G10 server can deliver improved workload performance. The cache allows for faster access to frequently accessed data, which is particularly beneficial for applications that rely on repetitive data access patterns. This includes database management systems, web servers, and virtualization platforms, among others.

Optimized Resource Utilization

The cache also plays a crucial role in optimizing resource utilization within the server. By storing frequently accessed data in the cache, the server can reduce the load on other system components like memory and storage devices. This leads to more efficient resource allocation and better overall system performance.

In conclusion, the HPE Proliant DL380 G10 2U Rack Server's Processor, RAM, and Cache features are essential components that contribute to its exceptional performance and reliability. The Xeon Gold 5218R processor offers outstanding performance, enhanced scalability, and reliability, making it suitable for demanding workloads. The 32GB of RAM provides improved multitasking, efficient data processing, enhanced virtualization capabilities, and future-proofing. The 16MB cache helps deliver faster data access, reduced latency, improved workload performance, and optimized resource utilization. Together, these features ensure that the HPE Proliant DL380 G10 server meets the needs of users who require a powerful and dependable server solution.
