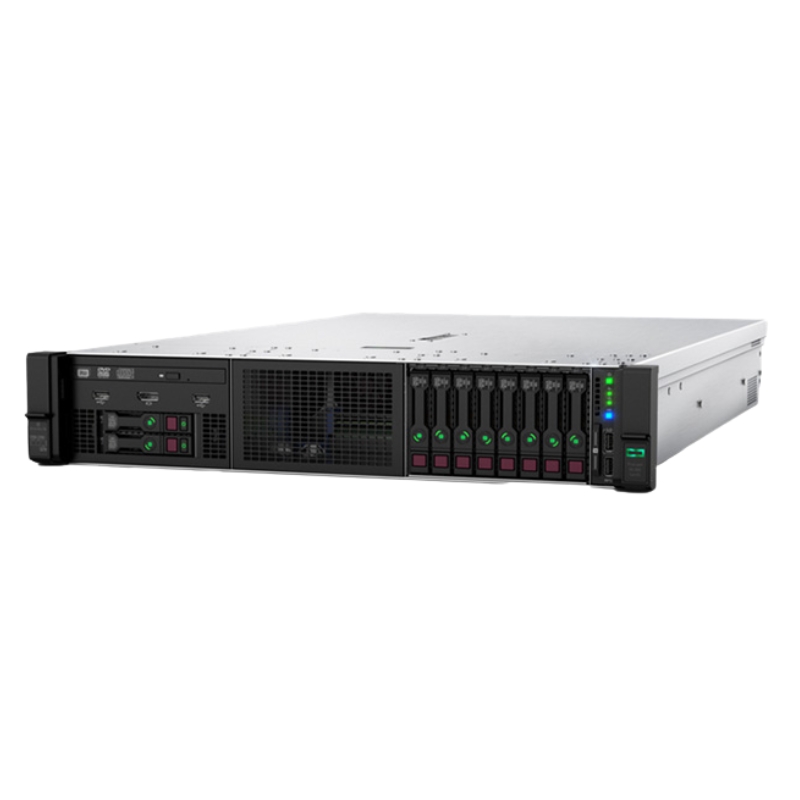

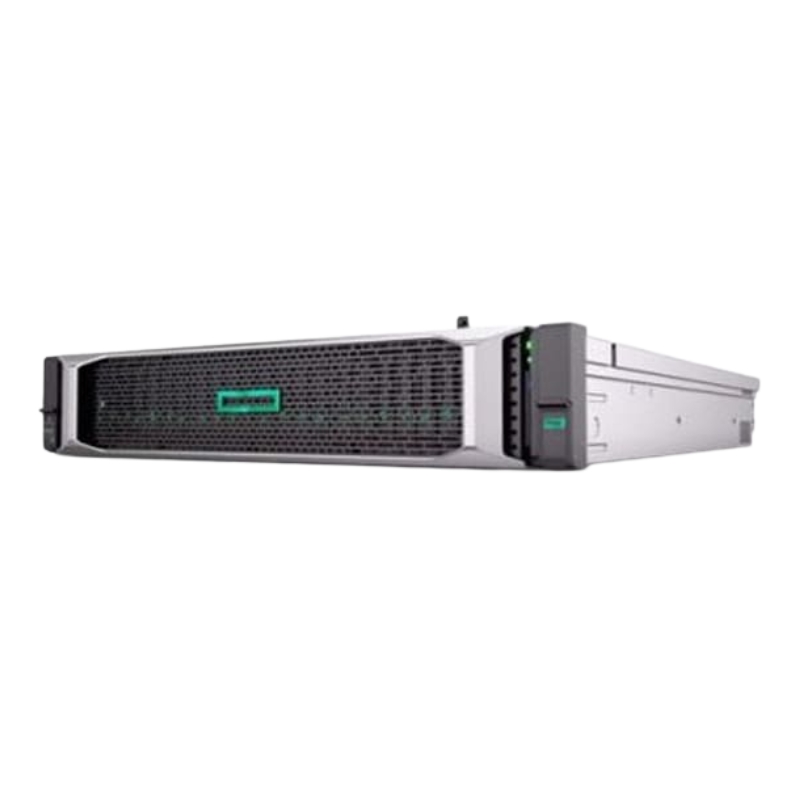

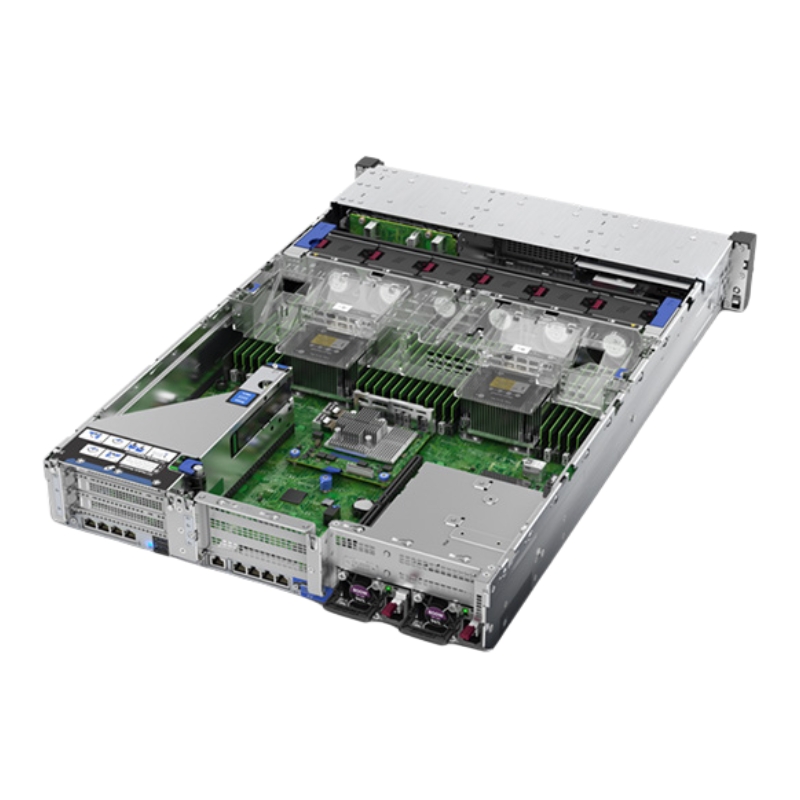

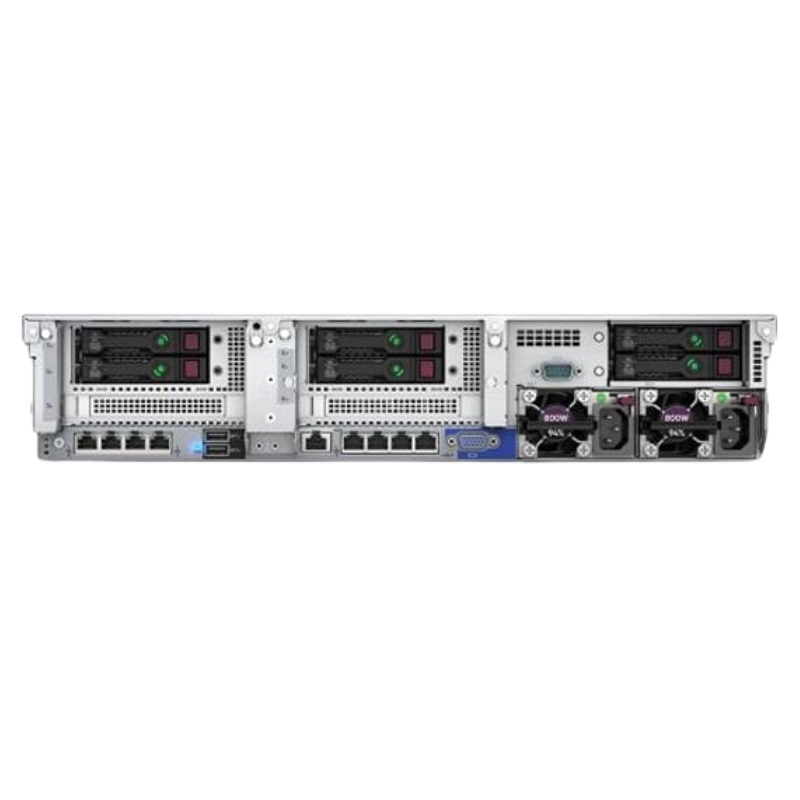

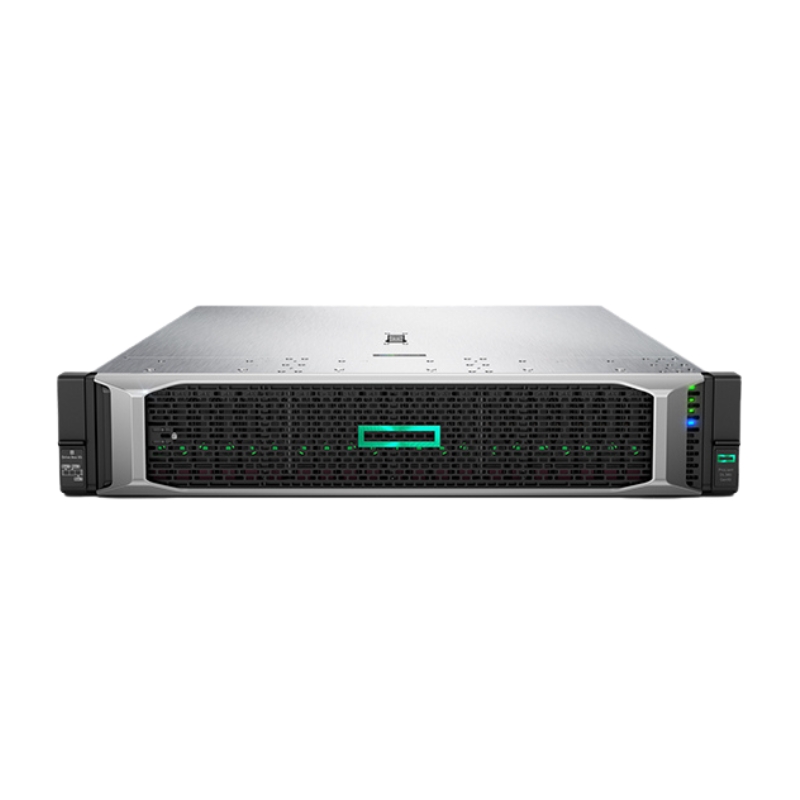

HPE Proliant DL380 G10 2U Rack Server P24845-B21 Xeon Gold 5222 3.8GHz 32GB 800W

Processor: 1 x Xeon Gold 5222 3.8GHz

The HPE Proliant DL380 G10 2U Rack Server is equipped with a powerful processor, the 1 x Xeon Gold 5222 3.8GHz. This processor is one of the key features that make this server an exceptional choice for businesses and organizations looking for reliable and high-performance computing.

Server Specifications

General Information

• Type: Rack-mountable Server
• Form Factor: 2U Rack-mountable
• Built-in Devices: Battery Included
• Scalability: 2-way Expandable
• Hot-Swap Bays: 8 Bays
• Localization: Available Worldwide

Processor and Chipset

• CPU: Intel Xeon Gold 5222 at 3.8 GHz
• Max Turbo Speed: 3.9 GHz
• Core Count: Quad-core
• CPU Quantity: 1 (upgradable to 2)
• Socket Type: FCLGA3647
• Chipset: Intel C621
• Features: Hyper-threading, Intel Turbo Boost Technology 2

Cache Memory

• Installed Size: 16.5 MB L3 Cache
• Cache per Processor: 16.5 MB

RAM Specifications

• Installed Memory: 32 GB (upgradable to 1.5 TB)
• Memory Technology: DDR4 SDRAM - Advanced ECC
• Effective Memory Speed: 2933 MHz
• Memory Form Factor: DIMM 288-pin
• Total Slots: 24 (23 available)
• Features: Registered, Dual Rank
• Configuration: 1 x 32 GB
• Supported RAM: 3 TB Load-reduced ECC, 1.5 TB Registered ECC, 192 GB Non-volatile ECC

Storage and Expansion

Hard Drive

• Type: No HDD Included

Storage Controller

• Type: RAID Controller
• Interface: SATA 6 GB/s
• Controller Name: HPE Smart Array S100i
• Channels: 14
• RAID Levels: RAID 0, RAID 1, RAID 5, RAID 10

Optical Storage

• Type: No Optical Drive Included

Card Reader

• Type: Card Reader
• Supported Cards: MicroSD

Networking and Connectivity

• Ethernet Ports: 4 x Gigabit Ethernet
• Ethernet Controller: HPE 331i
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-out 5
• Additional Features: Wake On LAN (WoL), PXE Support

Expansion and Ports

• Bays: 1 External Universal Media Bay, 8 Hot-swap 2.5 SFF Bays
• Slots: 1 FlexibleLOM, 1 PCIe 3.0 x16, 2 PCIe 3.0 x8, 1 MicroSD Card (internal)
• Interfaces: 1 HPE iLO Type A, 5 USB 3.0 (1 Front, 2 Rear, 2 Internal), 1 HPE iLO RJ-45, 4 LAN (RJ-45), 1 VGA

Miscellaneous

• Compliance Standards: AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1

Power Specifications

• Type: Hot-plug Power Supply
• Redundancy: Optional 1+1 (with optional power supply)
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 800 Watts

Dimensions and Weight

• Width: 17.5 inches
• Depth: 26.7 inches
• Height: 3.4 inches
• Weight: 32.85 lbs

Unmatched Processing Power

The Xeon Gold 5222 processor boasts an impressive clock speed of 3.8GHz, providing unmatched processing power to tackle even the most demanding workloads. With its many cores and threads, this processor is capable of handling multiple tasks simultaneously, making it ideal for virtualization, cloud computing, and database applications.

Increased Productivity and Efficiency

The high clock speed of the Xeon Gold 5222 processor allows for faster data processing and execution of tasks. This translates into increased productivity and efficiency for businesses, as it enables faster response times and reduces overall processing time. Whether you're running complex calculations or handling large datasets, this processor ensures that you can complete your tasks quickly and efficiently.

Optimized Performance for Critical Applications

Businesses that rely on critical applications such as enterprise resource planning (ERP) or customer relationship management (CRM) systems can benefit greatly from the Xeon Gold 5222 processor. Its robust performance ensures smooth operation of these applications, even during peak usage periods. This means that your business can continue to operate seamlessly without any performance bottlenecks or slowdowns.

Enhanced Security Features

Security is a top priority for any business, and the Xeon Gold 5222 processor includes advanced security features that help protect your data from potential threats. These features include hardware-enhanced encryption, which ensures that sensitive information remains secure during processing. Additionally, the processor's built-in security capabilities help safeguard against unauthorized access and data breaches.

Future-Proof Investment

Investing in a server with a powerful processor like the Xeon Gold 5222 ensures that your infrastructure is future-proof. As technology continues to advance, applications and workloads are becoming more demanding. By choosing a server with a high-performance processor, you can ensure that your infrastructure can handle the evolving needs of your business without requiring frequent upgrades.

Memory: 32GB

In addition to its powerful processor, the HPE Proliant DL380 G10 Rack Server features ample memory capacity with 32GB of RAM. This generous memory allocation plays a crucial role in the server's performance and ability to handle complex workloads efficiently.

Improved System Responsiveness

With 32GB of memory, the server can store and access frequently used data quickly, resulting in improved system responsiveness. This means that applications and processes will load faster, allowing users to work seamlessly without experiencing delays or lag. Whether you're running multiple virtual machines or data-intensive applications, the ample memory capacity ensures that your system can handle it all smoothly.

Efficient Multi-Tasking

The large memory capacity enables efficient multi-tasking by allowing the server to store and retrieve data from different applications simultaneously. This is particularly beneficial for businesses that rely on running multiple applications concurrently or need to process large datasets concurrently. With 32GB of memory, the server can efficiently allocate resources to different tasks, ensuring smooth operation without compromising performance.

Enhanced Virtualization Performance

Virtualization has become increasingly popular in modern computing environments, allowing businesses to maximize their hardware resources and improve scalability. The 32GB of memory in the HPE Proliant DL380 G10 Rack Server provides an optimal environment for virtualization, allowing for the creation and management of multiple virtual machines with ease. With ample memory, each virtual machine can have enough resources to function optimally, resulting in better overall performance.

Support for Memory-Intensive Applications

Certain applications, such as databases and big data analytics, require a significant amount of memory to process and analyze large datasets efficiently. The 32GB of memory in this server ensures that these memory-intensive applications have enough capacity to operate smoothly without encountering performance bottlenecks. This enables businesses to leverage these applications effectively and gain valuable insights from their data.

Power Supply: 1 x 800W PS

The HPE Proliant DL380 G10 Rack Server comes equipped with a reliable power supply unit (PSU) offering 800W of power. The power supply is a crucial component of any server infrastructure, providing the necessary energy for all the server's components to function optimally.

Stable Power Delivery

The 800W power supply ensures stable and reliable power delivery to the server's components, even under heavy workloads. This stability is crucial for businesses that cannot afford unexpected system failures or downtime due to power fluctuations. With a robust power supply, the server can handle peak loads without compromising performance or risking hardware damage.

Redundancy and Failover Protection

The HPE Proliant DL380 G10 Rack Server's power supply features redundant capabilities, offering an additional layer of protection against power failures. In case one power supply unit fails, the second one automatically takes over, ensuring uninterrupted operation. This redundancy is particularly important for businesses that rely on continuous uptime and cannot tolerate any disruptions in their services.

Energy Efficiency and Cost Savings

The 800W power supply unit is designed with energy efficiency in mind, helping businesses reduce their energy consumption and lower operating costs. By utilizing power supplies that are optimized for efficiency, the server can operate at peak performance while consuming less power. This not only benefits the environment by reducing carbon footprint but also translates into cost savings for businesses in the long run.

Scalability and Future Expansion

The HPE Proliant DL380 G10 Rack Server's power supply unit is designed to accommodate future expansion and scalability. As your business grows and your server infrastructure needs increase, the 800W power supply can handle additional components and higher power demands. This scalability ensures that your server can keep up with your evolving needs without requiring a complete overhaul of your power infrastructure.

Easy Maintenance and Upgrades

The server's power supply unit is designed for easy maintenance and upgrades, allowing businesses to quickly replace or upgrade components without disrupting operations. This flexibility is essential for businesses that need to scale their infrastructure or replace faulty components swiftly. With an easily accessible power supply unit, maintenance tasks can be performed efficiently, minimizing downtime and ensuring continuous operation.
