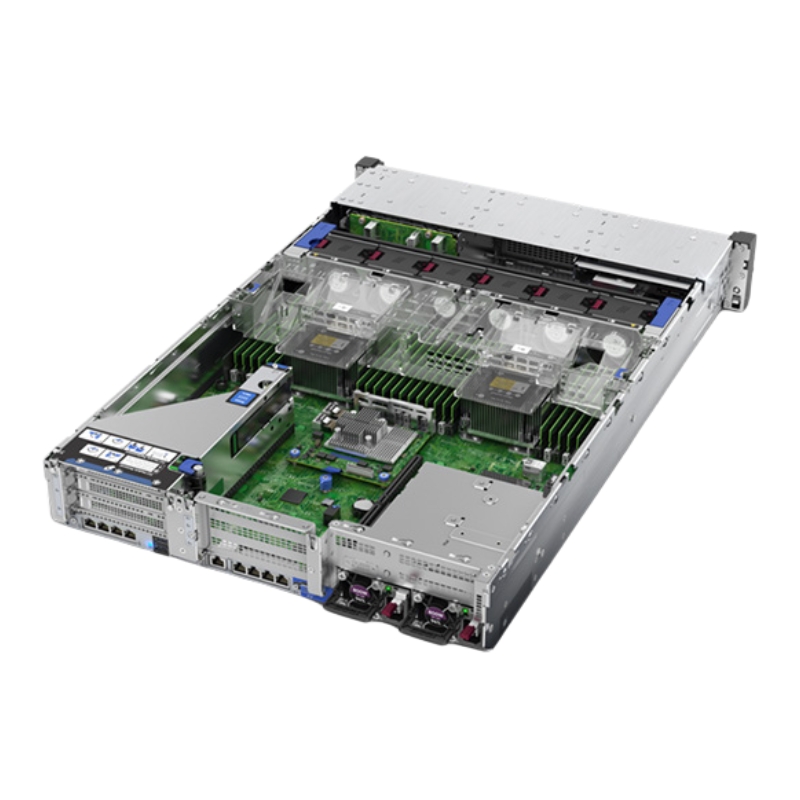

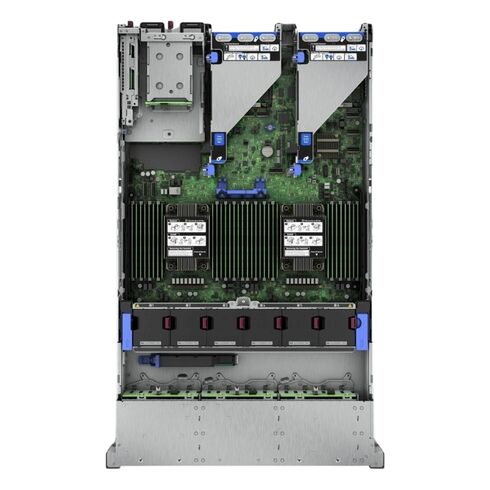

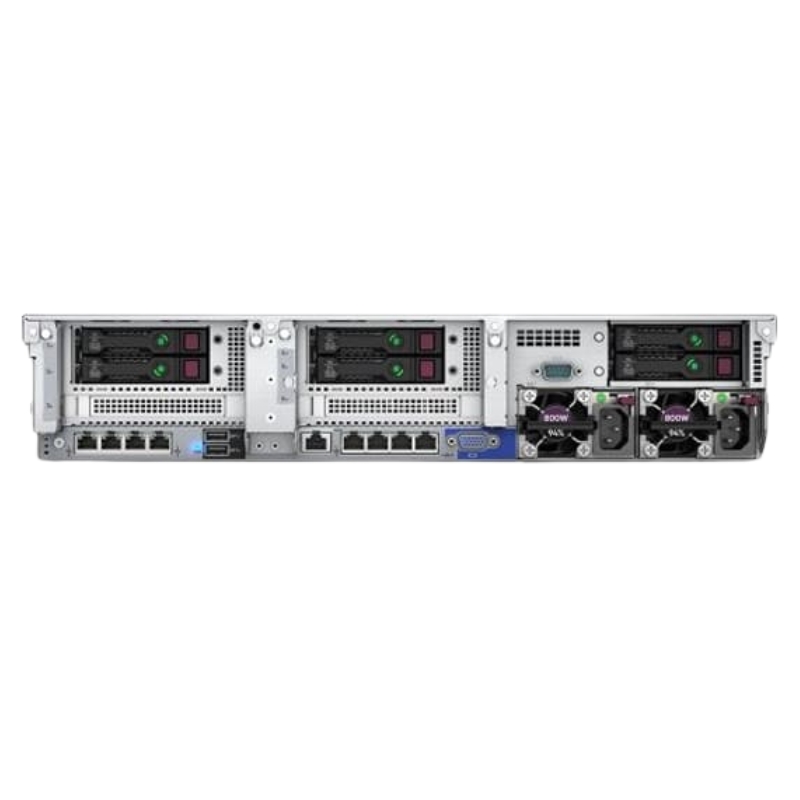

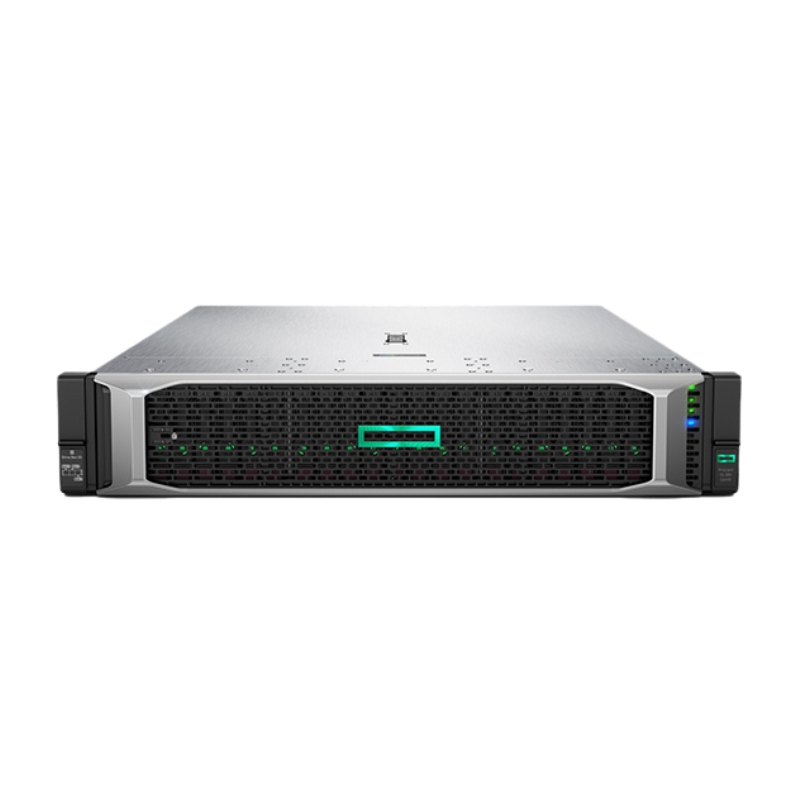

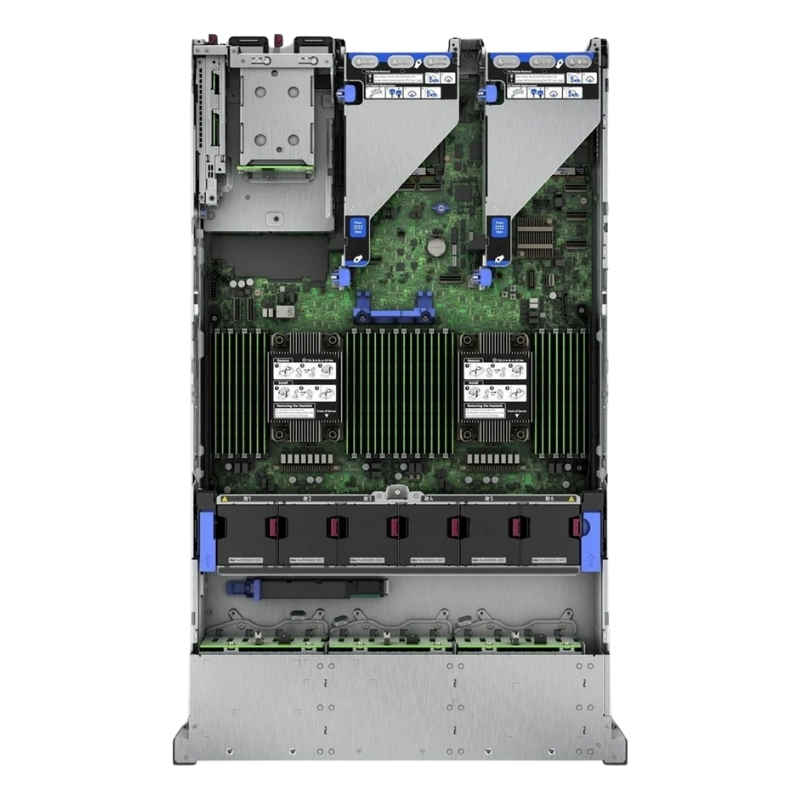

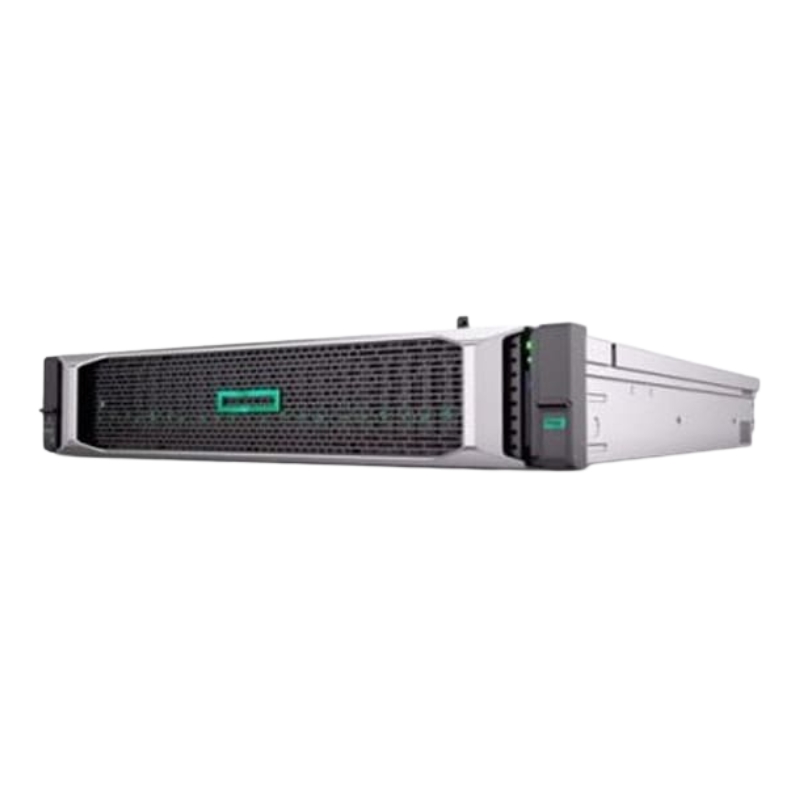

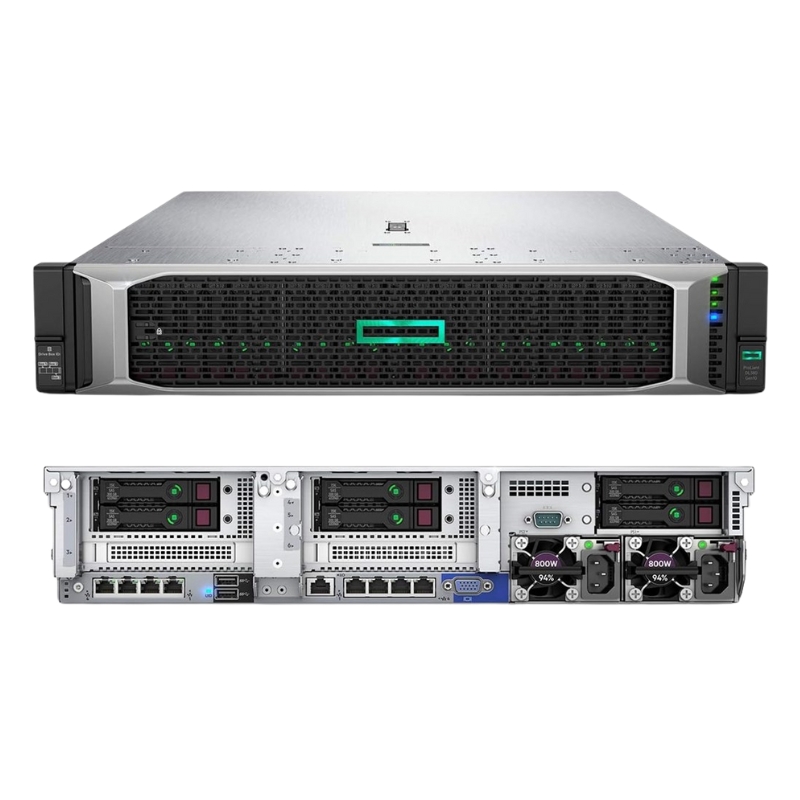

HPE Proliant DL380 G10 Server P24848-B21 Intel Xeon Silver 4215R 3.2GHz 32GB RAM

Part Number: P24848-B21

The HPE Proliant DL380 Server G10 2U is a powerful and reliable server designed to meet the demanding needs of modern businesses. One of its standout features is the Part Number, specifically the P24848-B21. In this section, we will delve into the benefits and importance of this feature for users.

General Specifications

Type and Form Factor

• Server Type: Rack-mountable
• Form Factor: 2U

Built-in Devices

• LED Panel Included

Scalability and Expansion

• Scalability: 2-way
• Hot-swap Bays: 8
• Localization: Worldwide

Processor and Chipset

CPU Specifications

• Processor: Intel Xeon Silver 4215r
• Base Clock Speed: 3.2 GHz
• Max Turbo Speed: 4 GHz
• Number of Cores: 8-core
• CPU Quantity: 1 (Max: 2)
• Socket Type: FCLGA3647
• Chipset: Intel C621

Processor Features

• Hyper-Threading Technology
• Intel Turbo Boost Technology 2

Cache Memory

• Installed L3 Cache Size: 11 MB
• Cache per Processor: 11 MB

RAM Specifications

Installed Memory

• Standard RAM Size: 32 GB
• Maximum RAM Capacity: 1.5 TB

Memory Technology

• Type: DDR4 SDRAM - Advanced ECC
• Effective Memory Speed: 2400 MHz
• Rated Memory Speed: 2933 MHz
• Compliance: PC4-23466
• Form Factor: DIMM 288-pin
• Slots: 24 total (23 available)

Configuration and Supported Memory

• Configuration: 1 x 32 GB
• Supported Memory Types: Load-reduced ECC, Registered ECC, Non-volatile ECC, HPE Persistent Memory (Optane DC Persistent)

Storage Details

Hard Drive

• Type: No HDD Installed

Storage Controller

• Controller Type: 1 x SATA - PCIe 3.0 x4
• Interface: SATA 6 Gb/s
• Controller Name: HPE Smart Array S100i SR Software
• Channels: 14
• RAID Levels: RAID 0, RAID 1, RAID 5, RAID 10

Optical Storage

• Type: No Optical Drive

Networking and Connectivity

Ethernet and Remote Management

• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Ethernet Controller: HPE 562flr-sfp+
• Data Link Protocol: 10 Gigabit Ethernet
• Remote Management Protocols: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Features: Wake on LAN (WOL), PXE Support

Expansion and Connectivity

• Bays: 1 External Universal Media Bay, 8 Hot-swap 2.5 SFF
• Slots: 1 PCIe 3.0 x8 (Full-length, Full-height), 1 PCIe 3.0 x16 (Full-length, Full-height), 1 PCIe 3.0 x8 (Half-length, Full-height)
• FlexibleLOM Slot: 1 (occupied)
• MicroSD Card Slot: 1 (internal)
• Interfaces: VGA, 2 LAN (10 Gigabit Ethernet) (SFP+), 1 HPE iLO - RJ-45, 3 USB 3.0 (1 Front, 2 Rear)

Power Supply

• Type: Hot-plug Power Supply
• Redundancy: Optional, 1+1 (with optional power supply)
• Installed Quantity: 1
• Max Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 800 Watt

Dimensions and Weight

• Width: 17.5 inches
• Depth: 26.7 inches
• Height: 3.4 inches
• Weight: 32.85 lbs

Additional Information

• Included Accessories: High-performance Heatsink, SFF Easy Install Rails
• Compliance Standards: AES, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, Redfish API, UEFI
• Manufacturer Selling Program: HPE Smart Buy

Identification and Compatibility

The Part Number serves as a unique identifier for the HPE Proliant DL380 Server G10 2U model. By referencing the Part Number, users can ensure they are purchasing the exact configuration they require. It also helps in distinguishing between different versions or variations of the server model.

Additionally, the Part Number plays a crucial role in ensuring compatibility with other hardware components and accessories. When expanding or upgrading the server, users can refer to the Part Number to ensure that the new components are compatible with their existing setup. This compatibility minimizes potential issues and ensures smooth integration of new components.

Supply Chain Management

For businesses that rely on efficient supply chain management, the Part Number is invaluable. It allows for accurate tracking and management of inventory, making it easier to order replacement parts or additional units when needed. By providing a unique identifier, the Part Number simplifies inventory management processes and reduces the risk of errors or mix-ups.

Ordering Efficiency

When ordering the HPE Proliant DL380 Server G10 2U, having the correct Part Number, such as P24848-B21, streamlines the purchasing process. Suppliers and distributors can quickly identify and fulfill orders based on the Part Number, ensuring prompt delivery and reducing delays.

Furthermore, by using the specific Part Number, users can avoid confusion between similar server models or older versions that may not offer the same performance or features. This accuracy in ordering helps businesses save time and resources by preventing the need for returns or exchanges due to incorrect models.

Warranty and Support

The Part Number also plays a vital role in warranty and support services. When contacting HPE or authorized service providers for assistance, providing the Part Number ensures that users receive the appropriate support specific to their server model. This targeted support can help resolve issues more efficiently, minimizing downtime and maximizing productivity.

Moreover, the Part Number is often required when registering the server for warranty coverage. By including the correct Part Number, users can ensure that their server is eligible for warranty protection and any associated benefits, such as extended coverage or access to firmware updates.

Processor: Intel Xeon Silver 4215R 3.2GHz

The HPE Proliant DL380 Server G10 2U is equipped with an Intel Xeon Silver 4215R 3.2GHz processor, which delivers impressive performance and reliability. In this section, we will explore the benefits and importance of this processor for users.

Powerful Performance

The Intel Xeon Silver 4215R 3.2GHz processor packs a punch when it comes to performance. Its high clock speed allows for rapid data processing, enabling quick execution of complex tasks and applications. Whether running resource-intensive software or hosting virtual machines, this processor ensures smooth and responsive performance.

Additionally, the processor's architecture and advanced features optimize multi-threaded applications, making it ideal for workloads that require parallel processing capabilities. This capability enhances overall system performance by efficiently distributing workload across multiple cores.

Enhanced Security

In today's digital landscape, security is a top concern for businesses. The Intel Xeon Silver 4215R 3.2GHz processor incorporates advanced security features to protect sensitive data and mitigate potential vulnerabilities. These features include Intel® Software Guard Extensions (Intel® SGX) and Intel® Trusted Execution Technology (Intel® TXT), which provide hardware-based security enhancements.

With Intel SGX, the processor enables the creation of secure enclaves within the system, isolating critical data and code from unauthorized access. This feature enhances data protection and confidentiality, particularly in scenarios where multiple users or applications share the same server.

Furthermore, Intel TXT ensures the integrity of the server's boot process by verifying the authenticity and integrity of firmware and software components during startup. This protection against tampering or unauthorized modifications helps safeguard the server from potential attacks and ensures a trusted computing environment.

Efficient Power Management

The Intel Xeon Silver 4215R 3.2GHz processor incorporates intelligent power management features that optimize energy consumption without sacrificing performance. This efficiency is crucial for businesses aiming to reduce their environmental footprint and minimize energy costs.

The processor dynamically adjusts its power usage based on real-time workload demands, intelligently balancing performance requirements with energy efficiency. By efficiently allocating power to individual cores and reducing power consumption during periods of low activity, the processor maximizes performance-per-watt ratio.

Moreover, this power management capability contributes to longer hardware lifespan by minimizing heat generation and reducing strain on critical components. The result is a cooler and more reliable server, ensuring consistent performance over extended periods.

Ram: 32GB

The HPE Proliant DL380 Server G10 2U is equipped with 32GB of RAM, providing ample memory capacity to handle demanding workloads efficiently. Let's explore the benefits and importance of this RAM configuration for users.

Smooth Multitasking

With 32GB of RAM, the server can handle multiple tasks simultaneously without experiencing performance bottlenecks. This capability is particularly important in environments where various applications or virtual machines are running concurrently.

By providing sufficient memory capacity, the server can efficiently allocate resources to different tasks, ensuring smooth multitasking and preventing slowdowns or crashes. This enables businesses to maximize productivity by running resource-intensive applications without compromising performance.

Scalability and Future-Proofing

The 32GB RAM configuration offers scalability for future growth and expansion. As business needs evolve and workloads increase, having adequate memory capacity becomes crucial. With 32GB of RAM, the server provides headroom for future upgrades or the addition of more memory modules to accommodate growing demands.

This scalability is particularly advantageous for businesses experiencing rapid growth or those operating in dynamic industries where computing requirements can change quickly. By investing in a server with ample RAM capacity like the HPE Proliant DL380, users can future-proof their infrastructure and avoid costly hardware replacements down the line.

Optimized Performance

The 32GB RAM configuration optimizes overall system performance by reducing the need for frequent data access from slower storage devices. When running memory-intensive applications, having sufficient RAM allows the server to store frequently accessed data in memory, significantly reducing latency and improving response times.

Furthermore, a larger RAM capacity enables efficient caching of data, enhancing overall read and write speeds. This benefit is especially evident in tasks involving databases or file servers, where quick access to frequently accessed information is critical for maintaining high performance.

In virtualized environments, the 32GB RAM configuration allows for smooth operation of multiple virtual machines simultaneously, reducing resource contention and ensuring optimal performance for each instance.

Cache: 16MB

The HPE Proliant DL380 Server G10 2U features a cache size of 16MB, providing a crucial performance boost to enhance data accessibility. In this section, we will explore the benefits and importance of this cache size for users.

Accelerated Data Retrieval

The 16MB cache size significantly improves data retrieval speeds by storing frequently accessed data closer to the processor. This proximity reduces latency and eliminates the need to fetch data from slower storage devices, resulting in faster application response times and improved overall system performance.

The cache acts as a temporary storage area for frequently accessed instructions and data. By having a larger cache size, the server can hold more data in this high-speed memory, minimizing the time it takes to retrieve information from the main memory or disk storage.

Improved Workload Efficiency

With a larger cache size, the server can leverage data locality more effectively, reducing the impact of memory and storage bottlenecks. By keeping frequently accessed data readily available in the cache, the server can process instructions and deliver results more efficiently, improving workload efficiency.

This benefit is particularly evident in scenarios involving repetitive or sequential data access patterns, such as database queries or file operations. The larger cache size helps minimize the time spent on retrieving data, allowing the server to focus on executing tasks more quickly and efficiently.

Enhanced System Responsiveness

The 16MB cache size contributes to enhanced system responsiveness by reducing the time it takes to access critical instructions and data. This benefit is especially important in real-time applications or environments where low latency is crucial, such as financial trading systems or high-performance computing clusters.

By storing frequently accessed data in the cache, the server can rapidly retrieve information without relying on slower storage devices. This responsiveness ensures that time-sensitive operations are executed promptly, preventing delays or disruptions that could negatively impact business operations.

In conclusion, the HPE Proliant DL380 Server G10 2U offers exceptional performance and reliability with its Part Number (P24848-B21), Intel Xeon Silver 4215R 3.2GHz processor, 32GB of RAM, and 16MB cache size. These features provide users with the necessary power, scalability, and efficiency to meet the demands of modern business environments. Whether it's for data-intensive applications or virtualization, this server delivers outstanding performance and ensures a seamless computing experience.
