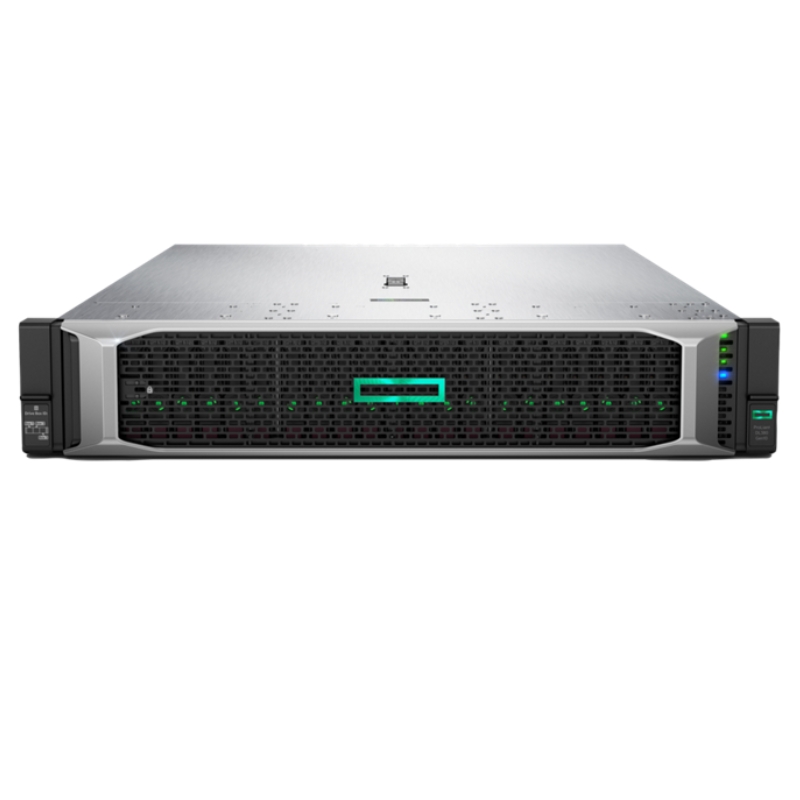

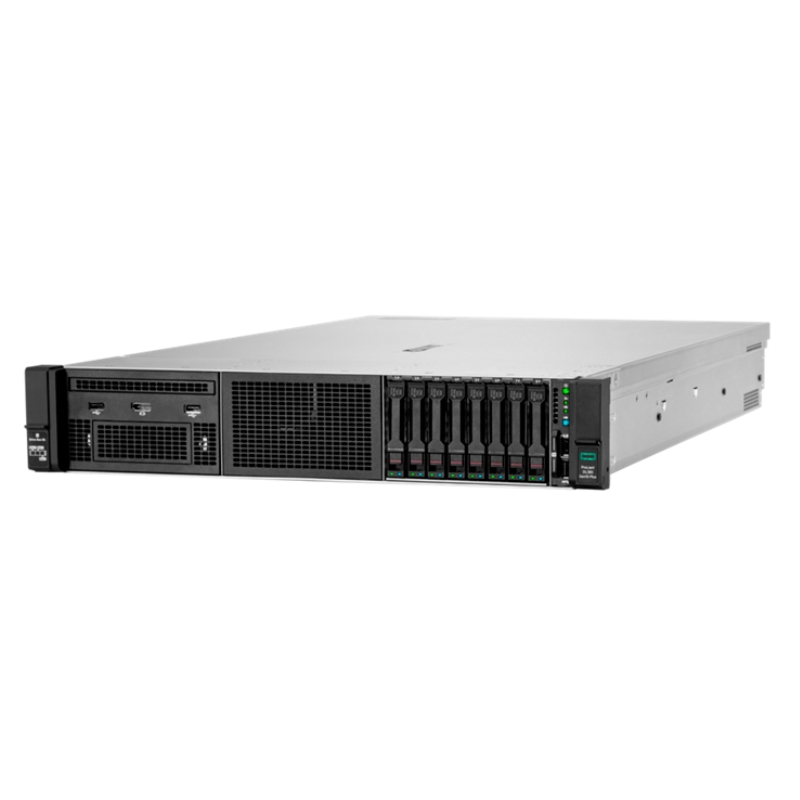

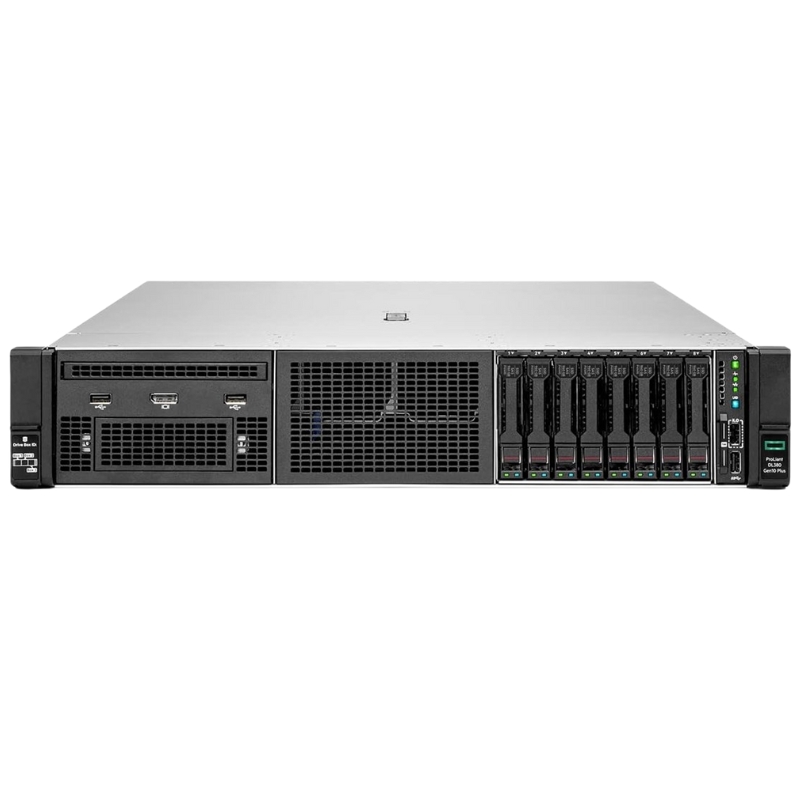

HPE Proliant DL380 Gen10 Server Xeon 2.8 GHz 8-core P55244-B21

Processor

The HPE Proliant DL380 Server is equipped with a powerful Intel Xeon processor running at 2.8 GHz and featuring 8 cores. This processor is specifically designed for server environments, delivering exceptional performance and reliability. With its advanced architecture and high clock speed, the Xeon processor ensures smooth and efficient operation, making it ideal for demanding workloads and critical applications.

General Specifications of Server Xeon

Discover the Hewlett Packard Enterprise DL380 G10+ 4309Y, a robust 2U server designed for scalability and performance.

• Manufacturer: Hewlett Packard Enterprise
• Part Number: P55244-B21
• Scalability: 2-way
• Height: 2U
• Product Name: DL380 G10+ 4309Y 1P 32G S100i 8SFF NC Server (Pre-configured)

Processor & Chipset

• Type: Intel Xeon Silver 4309Y
• Base Clock Speed: 2.8 GHz
• Max Turbo Speed: 3.6 GHz
• Core Count: 8-core
• Installed CPU Quantity: 1
• Maximum CPU Capacity: 2
• Upgradability: Yes
• Chipset: Intel C621A

Cache Memory

• Installed Size: L3 Cache - 12 MB
• Cache Per Processor: 12 MB

Memory Configuration

• Total Installed Size: 32 GB / Up to 2 TB
• Technology: DDR4 SDRAM
• Effective Memory Speed: 2933 MHz
• Rated Speed: 3200 MHz
• Form Factor: DIMM 288-pin
• Memory Slots: 32 total / 31 available
• Features: Registered, 8-channel Memory Architecture, HPE SmartMemory
• Configuration: 1 x 32 GB
• Supported RAM: 8 TB Load-Reduced, 2 TB Registered, 8 TB HPE Persistent Memory (Optane DC Persistent)

Storage and Controllers

No HDD included.

Storage Controllers

• Type: RAID - PCIe 3.0 x4
• Controller Interface: SATA 6 Gb/s
• Controller Name: HPE Smart Array S100i SR Software RAID
• Channel Quantity: 14
• RAID Levels Supported: RAID 0, RAID 1, RAID 5, RAID 10

Graphics and Network

• Video Memory: 16 MB
• Video Interface: VGA

Networking

• Bus Type: Open Compute Project Mezzanine (OCP) 3.0
• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Ethernet Controller: Broadcom BCM57412
• Data Link Protocol: 10 Gigabit Ethernet
• Remote Management: Integrated Lights-Out 5 (iLO 5)

Expansion and Connectivity

• Bays: 8 x Hot-swap 2.5 SFF (all available)
• PCIe Slots:
  • 1 x PCIe 4.0 x16 - Full-length, Full-height
  • 1 x PCIe 4.0 x16 - Half-length, Full-height (x8 Mode)
  • 1 x PCIe 4.0 x16 - Full-length, Full-height (x8 Mode)

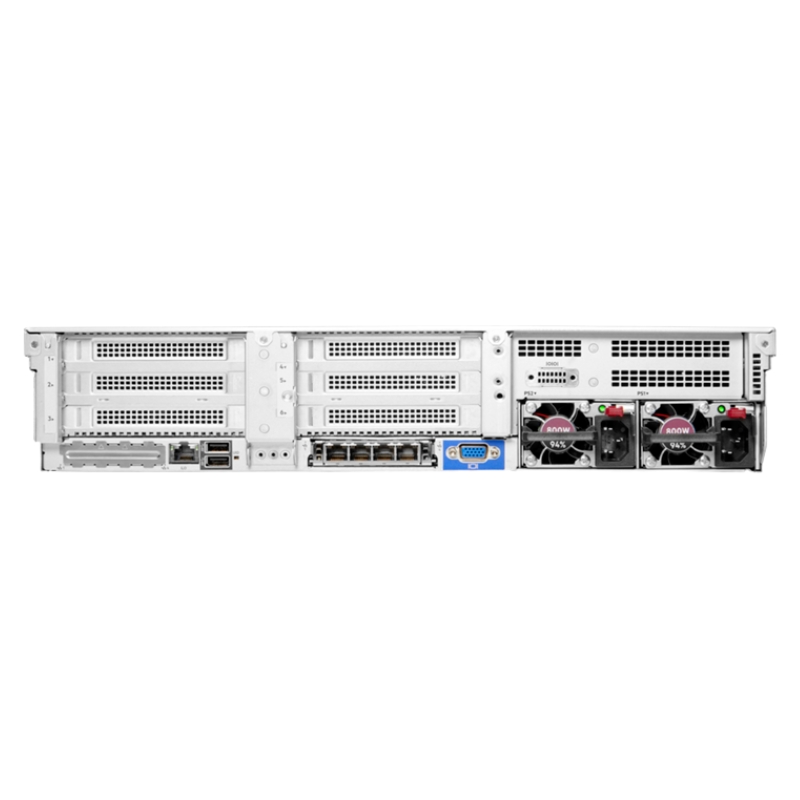

Interfaces

• 1 x HPE iLO - RJ-45
• 3 x USB 3.0 (1 front, 2 rear)
• 1 x HPE iLO (service port)
• 2 x LAN (10 Gigabit Ethernet) - SFP+
• 1 x VGA

Miscellaneous Information

• Included Accessories: 4 Standard Fans, CPU Standard Heatsink, HPE Easy Install Rails with CMA
• Compliant Standards: AES, FIPS 140-2, WEEE, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Redfish API, UEFI, ACPI 6.3, SMBIOS 3.2

Power and Dimensions

• Type: Hot-plug Power Supply
• Power Redundancy: Optional (1+1 with optional power supply)
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 800 Watt
• 80 Plus Certification: 80 Plus Platinum

Dimensions & Weight

• Width: 17.54 inches
• Depth: 28 inches
• Height: 3.44 inches
• Weight: 35.54 lbs

Increased Processing Power

The Xeon processor offers unparalleled processing power, allowing users to handle complex tasks and large datasets with ease. Whether you are running virtual machines, performing data analysis, or managing databases, the DL380 Server's processor can handle it all. The 8 cores provide enough parallel processing capabilities to handle multiple tasks simultaneously, ensuring optimal performance and reducing bottlenecks.

Enhanced Multithreading

With Intel Hyper-Threading Technology, the Xeon processor can handle multiple threads per core, effectively doubling the number of virtual cores available. This means that the DL380 Server can handle more concurrent workloads, improving productivity and reducing response times. Whether you need to run multiple virtual machines or perform parallel computing tasks, the Xeon processor's multithreading capabilities ensure smooth and efficient operation.

Improved Energy Efficiency

The Xeon processor is designed to deliver high performance while minimizing power consumption. It employs advanced power management features that dynamically adjust power usage based on workload demands. This not only reduces energy costs but also helps in creating a greener IT infrastructure. By choosing the DL380 Server with a Xeon processor, you can reduce your carbon footprint while still enjoying top-notch performance.

Generation

The HPE Proliant DL380 Server belongs to the Gen10 generation of HPE servers. This latest generation brings several advancements and improvements over its predecessors, making it an ideal choice for modern data centers.

Enhanced Performance

The Gen10 architecture is designed to deliver superior performance, allowing users to handle demanding workloads and complex applications. With its improved processing capabilities and optimized memory bandwidth, the DL380 Server can handle even the most resource-intensive tasks with ease. Whether you are running virtualization software, managing databases, or performing data analytics, the Gen10 architecture ensures smooth and efficient operation.

Higher Scalability

Scalability is a critical factor in modern data centers. The Gen10 architecture provides enhanced scalability options, allowing you to easily expand your server infrastructure as your business grows. With support for a larger number of processors, higher memory capacity, and increased storage options, the DL380 Server can accommodate your evolving needs. This ensures that your IT infrastructure remains flexible and adaptable to future requirements.

Advanced Security Features

Data security is a top priority for any organization. The Gen10 architecture incorporates advanced security features to protect your valuable data. With features like Silicon Root of Trust and Secure Recovery, the DL380 Server safeguards your critical information from unauthorized access and ensures data integrity. These built-in security capabilities provide peace of mind and help you meet compliance requirements.

Part Number

The HPE Proliant DL380 Server has a unique part number, P55244-B21, which distinguishes it from other models in the Proliant series. This part number is essential for identifying and ordering the correct server configuration for your specific requirements.

Easy Identification

The part number serves as a unique identifier for the DL380 Server model with specific configurations. By referencing the part number, you can easily communicate your server requirements to vendors or HPE support personnel. This ensures that you receive the exact server model and components you need, avoiding any confusion or compatibility issues.

Compatibility Assurance

Each part number is associated with a predefined configuration, ensuring that all included components are compatible and optimized for optimal performance. You can rely on the P55244-B21 part number to provide a server configuration that meets your specific needs without any compatibility concerns. This saves you time and effort in researching and selecting individual components, ensuring a hassle-free deployment process.

Convenient Ordering

When ordering the DL380 Server, using the part number P55244-B21 simplifies the procurement process. Vendors and resellers can quickly identify and fulfill your order based on the part number, ensuring prompt delivery. Additionally, HPE support personnel can better assist you with troubleshooting or technical inquiries related to your specific server configuration when provided with the correct part number.
