HPE Proliant DL380 Server 875760-S01 Xeon Silver 4110/2.1 GHz, 16GB DDR4

Processor

The HPE Proliant DL380 Server is equipped with the powerful Xeon Silver 8-core 4110/2.1 GHz processor. This processor is a game-changer for users who require exceptional performance and reliability in their server systems.

Overview of 875760-S01

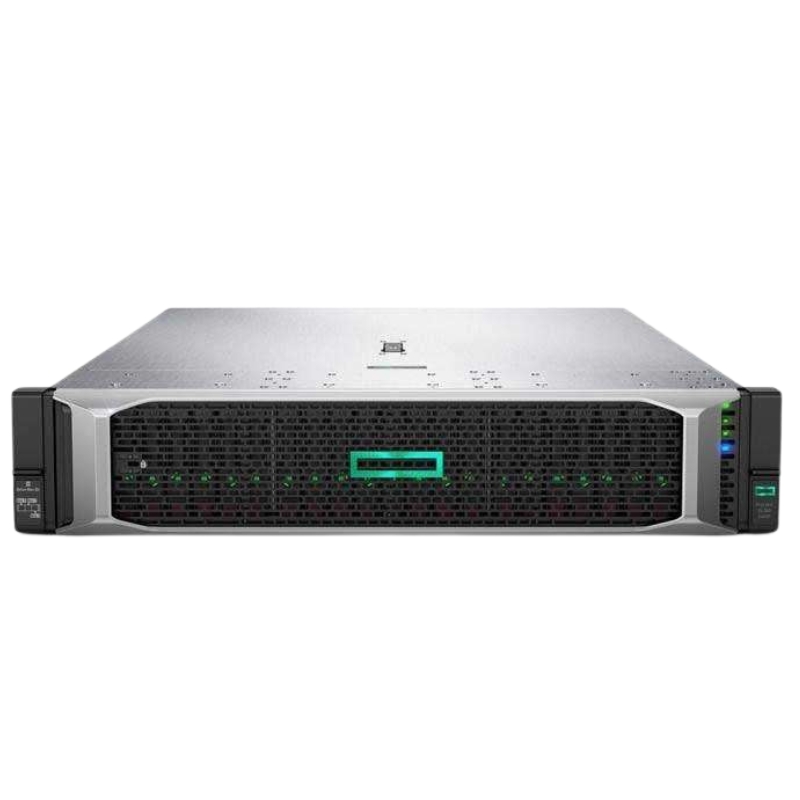

The Hewlett Packard Enterprise Proliant DL380 Gen10, model 875760-S01, is a 2U rack-mountable server, recognized for its reliability and advanced features. It is designed to meet the rigorous demands of enterprise environments.

Processor & Chipset

• Processor: Intel Xeon Silver 4110, 2.1 GHz
• Maximum Turbo Speed: 3 GHz
• Cores: 8-core
• Quantity: 1 (upgradable to 2)
• Socket: Socket P
• Chipset: Intel C621
• Features: Hyper-threading, Intel Turbo Boost Technology 2

Cache Memory

• Installed Size: 11 MB L3 Cache
• Cache per Processor: 11 MB

Memory Specifications

• Installed Size: 16 GB, expandable up to 384 GB
• Technology: DDR4 SDRAM
• Effective Memory Speed: 2400 MHz
• Rated Memory Speed: 2666 MHz
• Compliance: PC4-20800
• Form Factor: DIMM 288-pin
• Features: Registered, Dual Rank, HP SmartMemory, 6-channel Memory Architecture

Storage Configuration

• Hard Drive: None installed
• Optical Drive: None included

Storage Controllers

• Type: 1 x RAID
• Controller Interface: SATA 6 Gb/s / SAS 12 Gb/s
• Controller Name: HPE Smart Array P408i-a
• Channels: 8
• RAID Levels: 0, 1, 5, 6, 10, 50, 60, 1 ADM, 10 ADM
• Buffer Size: 2 GB

Graphics and Display

• Video Memory: 16 MB
• Video Interfaces: VGA

Network & Communication

• Ethernet Ports: 4 x Gigabit Ethernet
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Protocols: SNMP 3, IPMI 2.0, SMASH CLP
• Remote Management Controller: Integrated Lights-Out 5
• Features: Wake On LAN (WOL), PXE Support

Expansion & Connectivity

• External: 1 (total and free)
• Hot-swap 2.5 SFF: 8 (total and free)

Expansion Slots

• CPU: 2 (1 available)
• DIMM 288-pin: 12 (11 available)
• FlexibleLOM: 1 (available)
• PCIe 3.0 x16: 1 (half-length, full-height, available)
• PCIe 3.0 x8: 2 (half-length, full-height, available)
• MicroSD Card: 1 (internal, available)

Interfaces & Ports

• LAN (Gigabit Ethernet): 4 x RJ-45
• HP iLO: 1 x RJ-45 (rear), 1 x Type A (front)
• VGA: 1 (rear)
• SATA-600 / SAS 3.0: 8
• USB 3.0: 5 (1 front, 2 rear, 2 internal)

Miscellaneous

• HP Easy Install Rail Kit
• 4 Standard Hot Plug Fans
• Standard CPU Heatsink

Compliance Standards

• AES, FIPS 140-2, IPv6 Ready
• PCI DSS, TLS v1.2
• ASHRAE Class A4, A3
• WEEE 2002/95/EC, ACPI 6.1

Manufacturer Details

• Manufacturer: Hewlett Packard Enterprise
• Manufacturer Part Number: 875760-S01
• Selling Program: HPE Smart Buy

Power Specifications

• Type: Hot-plug / Redundant Power Supply
• Redundancy: 1+1
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Nominal Voltage: AC 120/230 V (50/60 Hz)
• Power Provided: 500 Watts
• 80 Plus Certification: 80 Plus Platinum
• Efficiency: 94%

Dimensions & Weight

• Width: 17.5 inches
• Depth: 28.7 inches
• Height: 3.4 inches
• Weight: 32.85 lbs

Unmatched Performance

The Xeon Silver 8-core 4110/2.1 GHz processor is designed to deliver uncompromising performance to handle demanding workloads. With its eight cores, it can efficiently handle multiple tasks simultaneously, ensuring smooth and efficient operations even during peak usage. Whether you are running resource-intensive applications or virtualization workloads, this processor provides the power needed for seamless performance.

Faster Processing Speed

Clocking at a base frequency of 2.1 GHz, the Xeon Silver 8-core 4110 processor offers lightning-fast processing speed. This enables applications to execute tasks swiftly, reducing latency and improving overall system responsiveness. Users can experience snappy performance even when dealing with complex calculations or data-intensive operations.

Enhanced Multithreading

Thanks to Intel Hyper-Threading Technology, the Xeon Silver 8-core 4110 processor can handle up to sixteen threads simultaneously. This capability significantly enhances multitasking and parallel processing, allowing users to run multiple applications concurrently without compromising performance. Whether it's running virtual machines or handling heavy database workloads, this processor ensures optimal resource utilization and improved productivity.

Reliability and Scalability

When it comes to server systems, reliability is of utmost importance. The Xeon Silver 8-core 4110/2.1 GHz processor is built with advanced features to ensure maximum uptime and stability.

ECC Memory Support

This processor supports Error-Correcting Code (ECC) memory, which helps detect and correct single-bit errors in data. By preventing memory corruption, ECC memory support enhances system stability, reducing the risk of crashes or data corruption. This is particularly crucial for businesses that rely on their servers for mission-critical tasks and cannot afford downtime.

Scalability for Growing Demands

The Xeon Silver 8-core 4110/2.1 GHz processor offers scalability to meet future demands. Its architecture allows for easy expansion and upgrades, enabling businesses to adapt to evolving workloads without the need for a complete system overhaul. This scalability ensures that the server can grow alongside your business, saving costs in the long run.

Energy Efficiency

In today's environmentally conscious world, energy efficiency plays a vital role in choosing server hardware. The Xeon Silver 8-core 4110/2.1 GHz processor is designed with power-saving features to minimize energy consumption without compromising performance.

Enhanced Power Management

This processor incorporates Intel's advanced power management technologies, such as Intel SpeedStep and Turbo Boost. These features dynamically adjust the processor's frequency and voltage based on workload demands, optimizing power usage for maximum efficiency. By intelligently reducing power consumption during idle or low-load periods, businesses can lower their energy bills while still enjoying top-notch performance during peak usage.

Reduced Carbon Footprint

With its energy-efficient design, the Xeon Silver 8-core 4110/2.1 GHz processor helps reduce the carbon footprint of your server infrastructure. By consuming less power, it not only benefits the environment but also contributes to a greener and more sustainable IT ecosystem.

Memory

The HPE Proliant DL380 Server is equipped with 16GB DDR4 SDRAM memory, providing users with ample capacity and high-speed data access.

High-Speed Data Processing

The 16GB DDR4 SDRAM memory module offers exceptional data transfer rates, allowing the server to quickly access and process large amounts of information. This high-speed data processing capability is essential for businesses that deal with data-intensive applications, such as databases, virtualization, or AI.

Improved System Responsiveness

With its high-speed memory, the HPE Proliant DL380 Server ensures improved system responsiveness. Applications can load faster, and data retrieval becomes swift, enabling users to work efficiently without any noticeable delays. This is particularly crucial for businesses that rely on real-time analytics or require instant access to critical information.

Efficient Multitasking

The 16GB DDR4 SDRAM memory module allows for efficient multitasking by providing sufficient capacity to handle concurrent tasks. Whether it's running multiple virtual machines or executing resource-intensive applications simultaneously, users can expect smooth and uninterrupted performance. This capability improves productivity and eliminates bottlenecks caused by insufficient memory resources.

Reliability and Stability

In addition to its performance benefits, the 16GB DDR4 SDRAM memory module offers reliability and stability, crucial for any server environment.

ECC Technology for Error Detection

This memory module utilizes Error-Correcting Code (ECC) technology, which detects and corrects single-bit errors in real time. By preventing data corruption caused by memory errors, ECC technology ensures system stability and protects critical data from being compromised. This feature is especially important for businesses that handle sensitive information or operate in industries where data integrity is paramount.

High-Quality Components

HPE Proliant DL380 Server's 16GB DDR4 SDRAM memory module is built with high-quality components that undergo rigorous testing. This ensures excellent reliability and durability, reducing the risk of memory-related failures or system crashes. By investing in premium memory modules, businesses can have peace of mind knowing that their server is equipped with top-notch components.

Scalability for Future Expansion

The 16GB DDR4 SDRAM memory module provides scalability options for businesses with growing demands. The server's architecture allows for easy memory upgrades, enabling businesses to increase their memory capacity as needed without replacing the entire system. This scalability ensures that the server can adapt to changing workloads and accommodate future growth, saving costs and minimizing disruptions.
