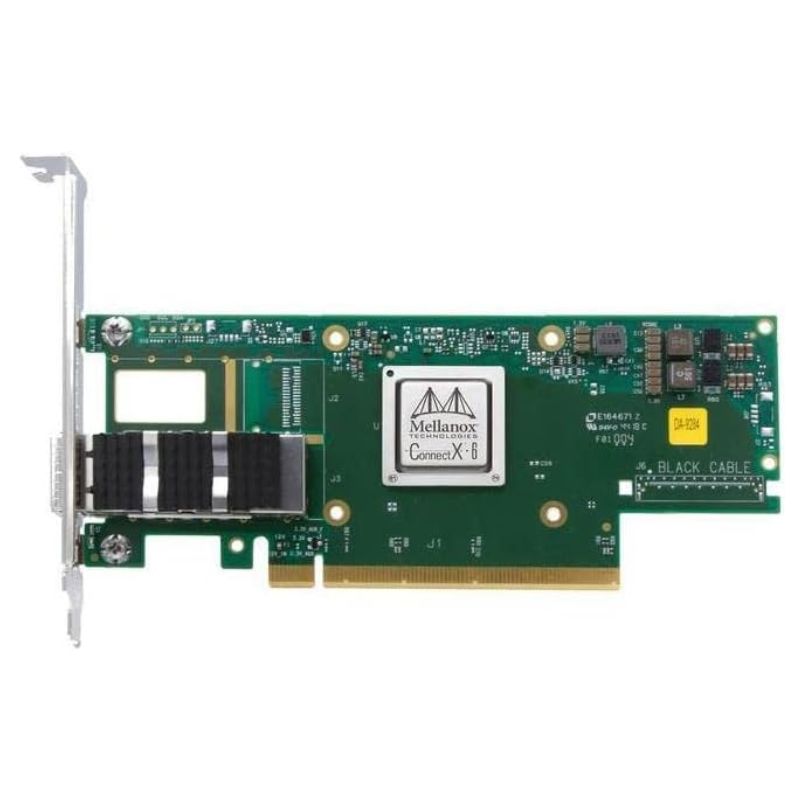

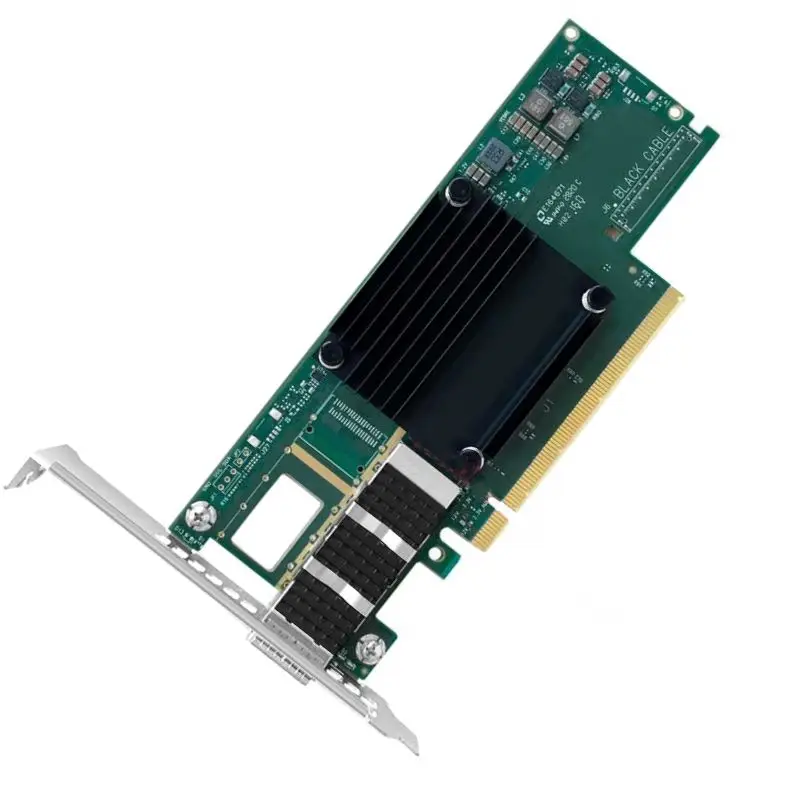

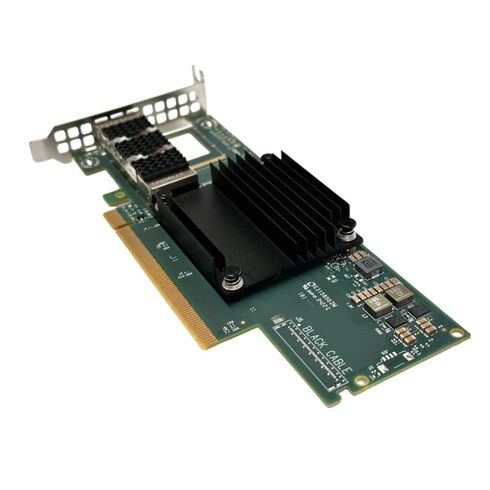

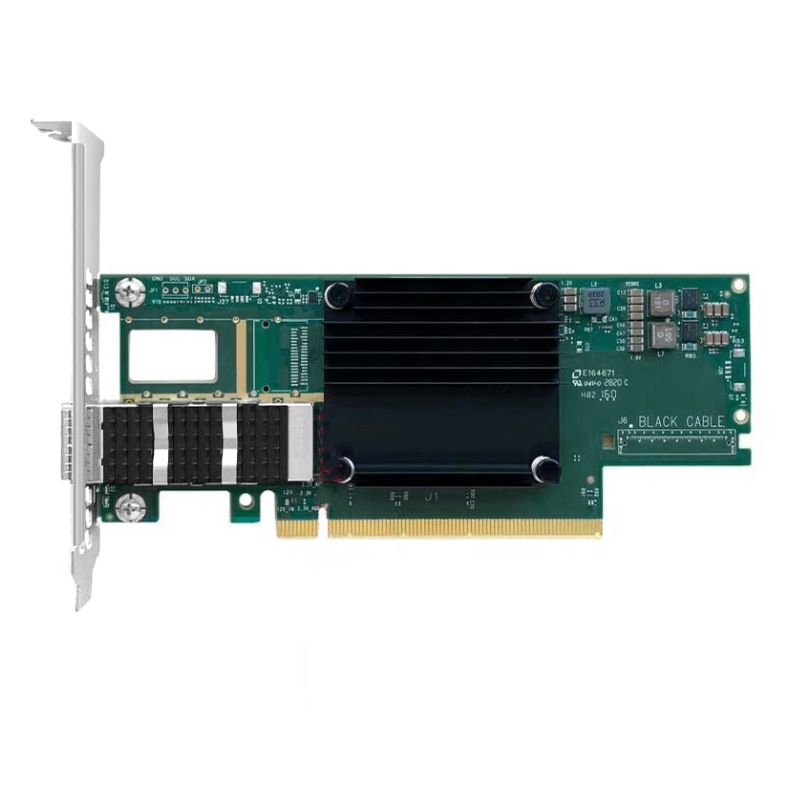

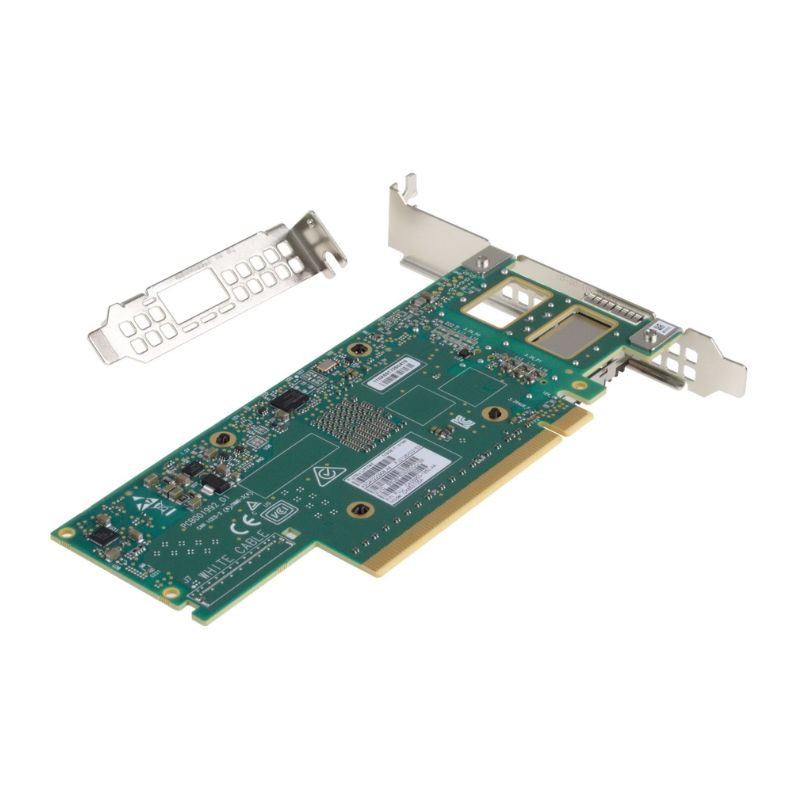

SSD-HDD TraysMellanox MCX653105A-ECAT ConnectX-6 1-Ports VPI QSFP56 PCIe 4.0x16 Adapter
MCX653105A-ECAT
Hover on image to enlarge
Brief Overview of MCX653105A-ECAT
ConnectX-6 1-Ports VPI QSFP56 PCIe 4.0x16 Network Adapter Mellanox MCX653105A-ECAT. New (Box Not Sealed) with 1-Year Replacement Warranty
Our Advantages
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
Payment Options
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
Delivery
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Please sign in so that we can notify you about a reply
Same product also available in:
Description
Product Overview
Mellanox MCX653105A-ECAT Details
The Mellanox MCX653105A-ECAT is a cutting-edge ConnectX-6 adapter card, engineered to deliver high-performance connectivity. This single-port adapter card supports both Infiniband and Ethernet, ensuring versatile network compatibility.
Key Specifications
- Manufacturer: Mellanox
- Part Number: MCX653105A-ECAT
- Device Type: Network Equipment
- Category: Network Adapters
Physical Characteristics
Dimensions
The dimensions of the adapter card are 6.6 inches by 2.71 inches (167.65mm x 68.90mm).
Connector Type
Features a single QSFP56 connector supporting both Infiniband and Ethernet, compatible with copper and optical connections.
Protocol Support
Infiniband Protocols
- IBTA V1.4 compliance
- Auto-negotiation for various rates:
- 1x/2x/4x SDR (2.5 Gb/s per lane)
- DDR (5 Gb/s per lane)
- QDR (10 Gb/s per lane)
- FDR10 (10.3125 Gb/s per lane)
- FDR (14.0625 Gb/s per lane)
- EDR (25 Gb/s per lane)
- HDR100 (50 Gb/s per lane on 2 lanes)
Ethernet Protocols
- Supports various Ethernet standards including:
- 100GBASE-CR4
- 100GBASE-SR4
- 50GBASE-R2
- 40GBASE-LR4
- 25GBASE-R
- 10GBASE-SR
Data Rate
- Infiniband: SDR, DDR, QDR, FDR, EDR, HDR100
- Ethernet: 10/25/40/50/100 Gb/s
- PCI Express Gen3/4: SerDes rates of 8.0 GT/s and 16 GT/s with X16 lanes (compatible with 2.0 and 1.1 standards)
Power and Airflow Requirements
- Voltage: 3.3 V auxiliary
- Maximum Current: 100 mA
- Typical Power Usage: 15.6 W (for passive cables)
- Maximum Power Consumption: Refer to ConnectX-6 VPI power specifications (requires NVOnline login)
- Maximum Power via QSFP56 Port: 5 W
Airflow and Temperature Ratings
- Passive cables:
- 300 LFM at 55°C (heatsink to port)
- 200 LFM at 35°C (port to heatsink)
- NVIDIA Active 4.7 W cables:
- 300 LFM at 55°C (heatsink to port)
- 200 LFM at 35°C (port to heatsink)
Environmental Conditions
Temperature Specifications
- Operational: 0°C to 55°C
- Non-Operational: -40°C to 70°C
Humidity Levels
- Operational: 10% to 85% relative humidity
- Non-Operational: 10% to 90% relative humidity
Altitude Limitations
Operational altitude is rated up to 3050 meters.
Part Number: MCX653105A-ECAT
Introduction
The Mellanox ConnectX-6 1-Ports VPI QSFP56 PCIe 4.0x16 Network Adapter is an advanced networking solution designed to enhance connectivity and performance for modern data centers and high-performance computing environments. One of the key features of this network adapter is its part number, MCX653105A-ECAT, which brings several benefits and importance for users.
Enhanced Performance
Unparalleled Speed
The MCX653105A-ECAT part number represents the specific model of the Mellanox ConnectX-6 network adapter, which is designed to provide unparalleled speed and performance. With support for PCIe 4.0x16, this adapter can deliver lightning-fast data transfer rates, allowing users to maximize their network capabilities and reduce latency.
Increased Bandwidth
By incorporating the VPI (Virtual Protocol Interconnect) QSFP56 technology, the MCX653105A-ECAT network adapter offers increased bandwidth capacity. This enables users to handle demanding workloads and large amounts of data more efficiently, ensuring smooth and uninterrupted operations even in the most demanding environments.
Flexible Connectivity Options
Versatile QSFP56 Interface
The MCX653105A-ECAT network adapter features a QSFP56 interface that supports various protocols such as Ethernet, InfiniBand, and RoCE (RDMA over Converged Ethernet). This versatility allows users to seamlessly integrate the adapter into their existing network infrastructure, regardless of the protocol requirements.
Single Port Convenience
With 1-port connectivity, the MCX653105A-ECAT network adapter offers a convenient solution for users who require a single high-speed connection. This makes it suitable for a wide range of applications, including servers, workstations, and storage systems, providing a flexible and scalable networking solution.
Advanced Features
Smart Offloading
The MCX653105A-ECAT network adapter incorporates advanced offloading capabilities that help optimize CPU utilization and improve overall system performance. By offloading tasks such as packet processing and virtualization to the network adapter, users can free up valuable CPU resources for other critical tasks, resulting in enhanced efficiency.
Adaptive Routing
Equipped with adaptive routing technology, the MCX653105A-ECAT network adapter can intelligently analyze network conditions and dynamically choose the most efficient path for data transmission. This enables improved reliability and reduced latency, ensuring smooth and responsive network performance even in complex environments.
Efficient Power Consumption
The MCX653105A-ECAT network adapter is designed with energy efficiency in mind. By utilizing advanced power management techniques, it optimizes power consumption without compromising performance. This not only reduces operating costs but also contributes to a greener and more sustainable IT infrastructure.
Reliability and Resilience
Mellanox is known for its commitment to delivering reliable and resilient networking solutions. The MCX653105A-ECAT network adapter is no exception, as it features advanced error correction mechanisms, redundant components, and robust design to ensure uninterrupted operation even in challenging environments. Users can rely on this network adapter to provide consistent and dependable connectivity when it matters most.
In conclusion, the MCX653105A-ECAT part number plays a crucial role in the Mellanox ConnectX-6 1-Ports VPI QSFP56 PCIe 4.0x16 Network Adapter. With its enhanced performance, flexible connectivity options, and advanced features, this network adapter empowers users with unparalleled speed, increased bandwidth, and efficient power consumption. Its reliability and resilience make it a valuable asset for modern data centers and high-performance computing environments. Whether you need to boost your network capabilities or handle demanding workloads, the MCX653105A-ECAT network adapter is a reliable choice.
Features
Manufacturer Warranty:
3 Years from the Original Brand
Product/Item Condition:
Factory-Sealed New in Original Box (FSB)
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
