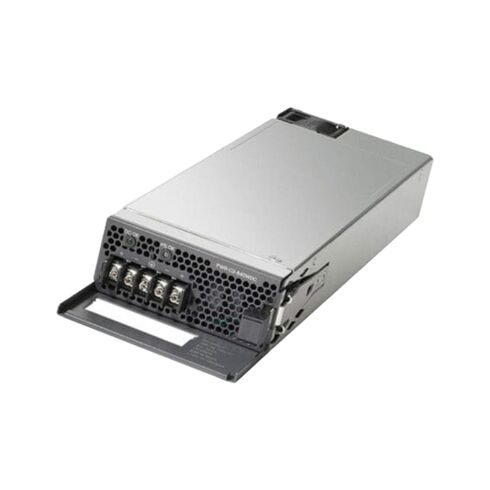

PWR-C2-640WDC Cisco DC Switching Proprietary PSU Terminal Strip

Power

The Cisco PWR-C2-640WDC Proprietary PSU Terminal Strip is equipped with a powerful 640W power supply, making it an essential component for users who require a reliable and high-performance power solution. This feature ensures that your devices receive sufficient power to operate efficiently and effectively.

Main Specifications

• Brand: Cisco
• Model Number: PWR-C2-640WDC
• Product Type: Proprietary Power Supply

Power Specifications

Input Characteristics

• Voltage Type: Direct Current (DC)
• Voltage Range: -36VDC to -72VDC
• Current Range: 10.5 A to 21 A

Output Specifications

• Output Voltage: 12V
• Output Current: 20.83A
• Additional Output: -54V at 7.36A

Power Supply Details

• Rated Power: 640 Watts
• Input Receptacles: Terminal Strip
• Power Cord Rating: 20A, 100VDC
• Protection Features: Short Circuit
• Heat Dissipation: 2188 BTU/h

Environmental Specifications

Temperature Range

• Operating Minimum: 23°F
• Operating Maximum: 176°F
• Storage Range: -40°F to 158°F (-40°C to 70°C)

Humidity Range

• Operating & Storage Humidity: 5% to 96% Non-condensing

Included Components

• Cooling Fan: Yes

Compatibility Information

Compatible Cisco Catalyst Models

• 3650-24PD-E, 3650-24PD-L, 3650-24PD-S
• 3650-24PS-E, 3650-24PS-L, 3650-24PS-S
• 3650-24PWD-S, 3650-24PWS-S
• 3650-24TD-E, 3650-24TD-L, 3650-24TD-S
• 3650-24TS-E, 3650-24TS-L, 3650-24TS-S
• 3650-48FD-E, 3650-48FD-L, 3650-48FD-S
• 3650-48FQ-E, 3650-48FQ-L, 3650-48FQ-S
• 3650-48FS-E, 3650-48FS-L, 3650-48FS-S
• 3650-48FWD-S, 3650-48FWQ-S, 3650-48FWS-S
• 3650-48PD-E, 3650-48PD-L, 3650-48PD-S
• 3650-48PQ-E, 3650-48PQ-L, 3650-48PQ-S
• 3650-48PS-E, 3650-48PS-L, 3650-48PS-S
• 3650-48TD-E, 3650-48TD-L, 3650-48TD-S
• 3650-48TQ-E, 3650-48TQ-L, 3650-48TQ-S
• 3650-48TS-E, 3650-48TS-L, 3650-48TS-S

Enhanced Performance

With a power output of 640W, this proprietary PSU terminal strip provides ample power to support multiple devices simultaneously. Whether you are powering network switches, routers, or other networking equipment, this high-wattage capability ensures consistent performance even during peak usage periods.

By delivering a stable and reliable power supply, the Cisco PWR-C2-640WDC Proprietary PSU Terminal Strip helps to prevent downtime and keeps your network running smoothly. You can trust that your critical network infrastructure will remain operational without any disruptions or performance degradation.

Scalability

The 640W power capacity of this terminal strip allows for future scalability and expansion of your network infrastructure. As your business grows and demands increase, you can easily add new devices without worrying about power limitations.

With the Cisco PWR-C2-640WDC Proprietary PSU Terminal Strip, you have the flexibility to adapt and accommodate the evolving needs of your organization. This scalability feature not only saves you money by avoiding the need for additional power supplies but also streamlines the overall management of your network.

Energy Efficiency

In addition to its robust power capabilities, this terminal strip is designed with energy efficiency in mind. It incorporates advanced technologies that optimize power usage, helping you reduce energy consumption and lower operational costs.

By using the Cisco PWR-C2-640WDC Proprietary PSU Terminal Strip, you can contribute to a more sustainable and eco-friendly environment. The energy-efficient design not only benefits your organization financially but also aligns with your corporate social responsibility goals.

Reduced Complexity

This proprietary PSU terminal strip simplifies power management by consolidating multiple power supplies into a single unit. Instead of dealing with the complexities of managing individual power sources for each device, you can centralize power distribution and streamline your infrastructure.

The reduced complexity translates into easier installation, maintenance, and troubleshooting processes. With fewer components to manage, you can save time and effort in managing your network's power requirements.

Enhanced Safety

The Cisco PWR-C2-640WDC Proprietary PSU Terminal Strip prioritizes safety to protect both your devices and personnel. It incorporates advanced safety features such as over-current protection, over-voltage protection, and short-circuit protection.

These safety mechanisms safeguard your equipment from potential damage caused by power fluctuations or surges. Additionally, the terminal strip's design ensures that it meets industry standards for electrical safety, providing peace of mind when it comes to protecting your valuable network infrastructure.

Seamless Integration

Designed specifically for compatibility with Cisco switches and other networking equipment, the Cisco PWR-C2-640WDC Proprietary PSU Terminal Strip offers seamless integration into your existing network infrastructure.

Whether you are upgrading your network or expanding it, this proprietary PSU terminal strip ensures that you can easily connect and power your Cisco devices without any compatibility issues. This compatibility feature saves you time and effort during installation and minimizes the risk of incompatibility-related problems.

DC Switching

The DC switching capability of this terminal strip allows for efficient power distribution within your network infrastructure. By utilizing DC power, you can achieve higher energy efficiency compared to alternative power supply options.

DC switching helps reduce power loss during transmission, resulting in lower operational costs and a more environmentally friendly solution. With the Cisco PWR-C2-640WDC Proprietary PSU Terminal Strip, you can optimize power usage and minimize waste.

Reliable Power Supply

The Cisco PWR-C2-640WDC Proprietary PSU Terminal Strip ensures a reliable power supply for your network devices. With DC switching, you can eliminate potential power fluctuations and disruptions that could impact your network's performance.

By utilizing this terminal strip, you can protect your critical network infrastructure from power-related issues that could lead to downtime or system failures. This reliability feature is essential for businesses that rely heavily on their networks for day-to-day operations.
