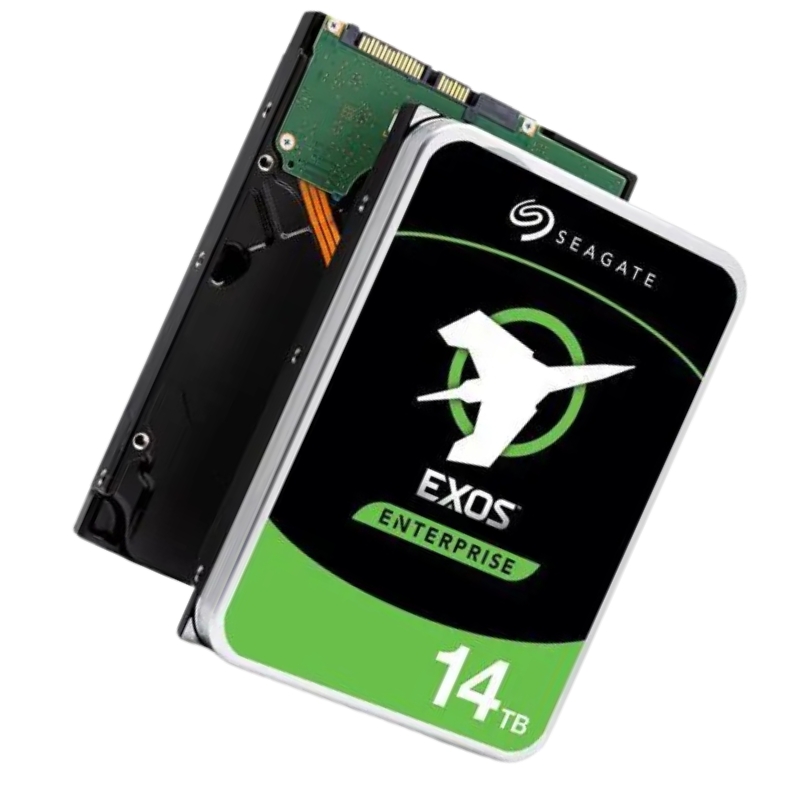

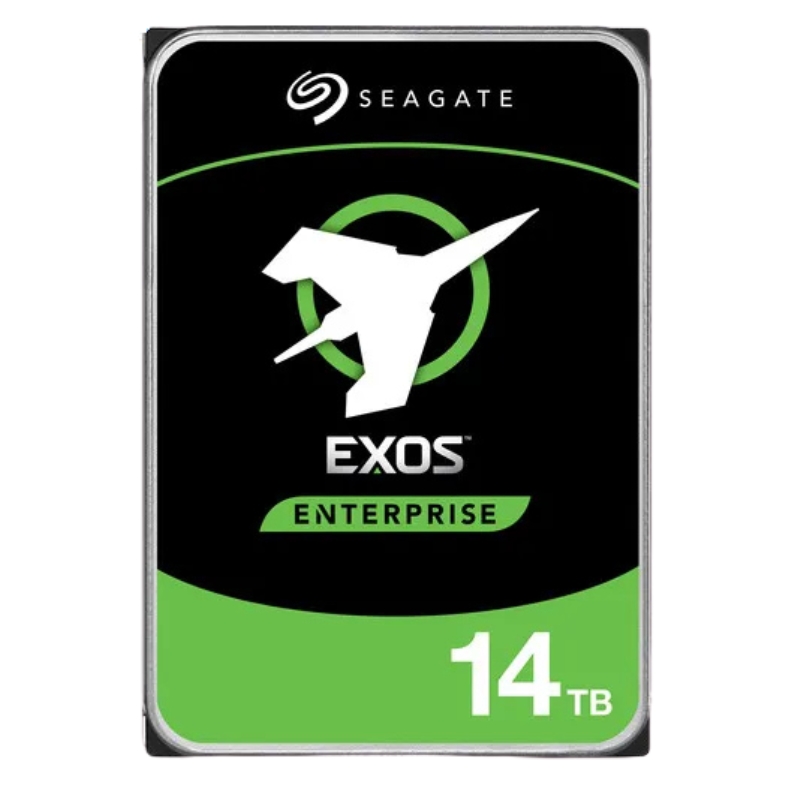

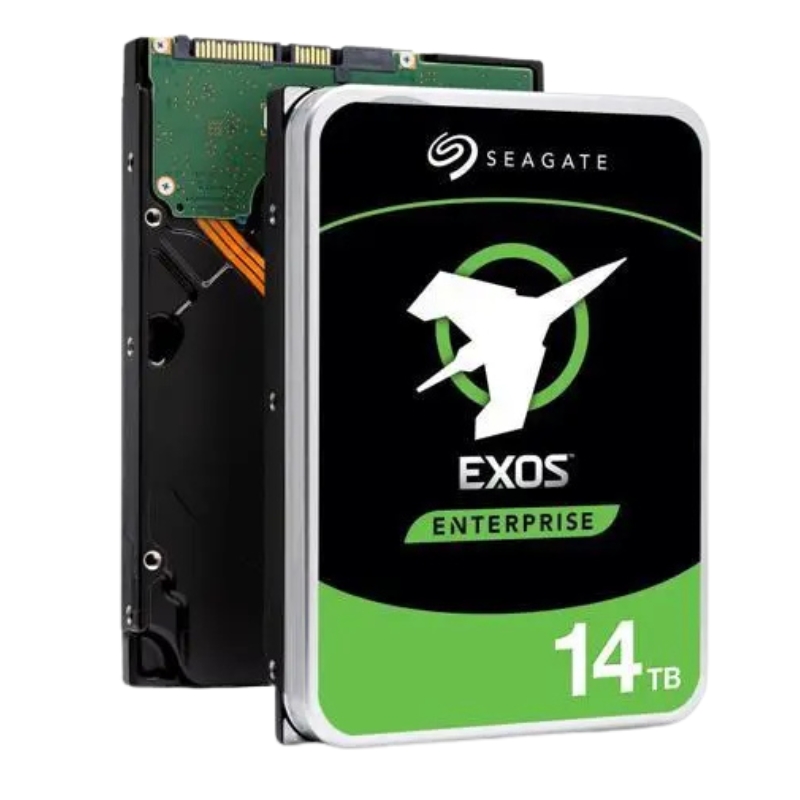

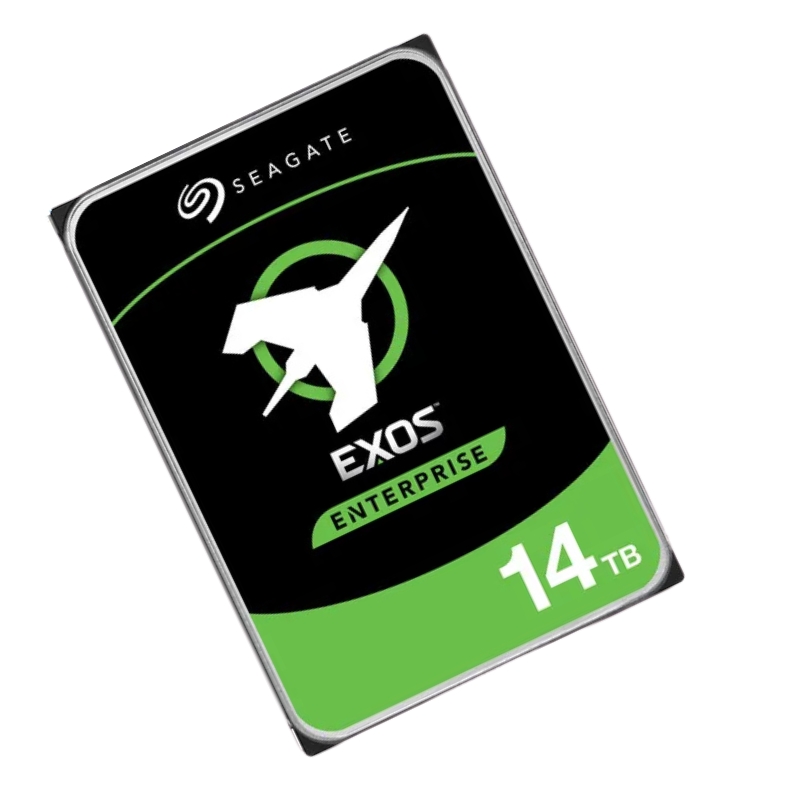

ST14000NM0168 14TB Seagate 7.2K RPM SAS 12GBPS 256MB Hard Drive

SEAGATE Exos X14 14TB Overview

General Information

• Manufacturer: SEAGATE
• Model Number: ST14000NM0168
• Product Line: Exos X14
• Product Name: Exos X14 14TB Hard Drive

Optimal Use Cases

• Hyperscale applications and cloud data centers
• Extensive scale-out data centers
• Big data solutions
• High-density RAID storage
• Mainstream enterprise external storage arrays
• Distributed file systems such as Hadoop and Ceph
• Enterprise backup and restore, including D2D and virtual tape
• Centralized surveillance systems

Key Features

• Storage Capacity: 14 TB
• Enclosure Type: Internal
• Interface: SAS 12Gb/s
• Drive Dimensions: 3.5 Inches
• Mean Time Between Failures (MTBF): 2.5 million hours
• Helium Sealed Design: Yes
• Superparity Technology: Yes
• Low Halogen Components: Yes
• PowerChoice™ Idle Power Technology: Yes
• PowerChoice™ Performance Technology: Yes
• Hot-plug Support: Yes
• Organic Solderability Preservative: Yes
• RSA 2048 Firmware Verification: Yes

Performance Specifications

• Interface Access Speed: 12.0, 6.0, and 3.0 Gb/s
• Maximum Sustained Data Transfer Rate: Up to 261 and 249 Mbps
• Random Read/Write IOPS (4K, QD16): 170/418
• Average Latency: 4.16 ms
• Interface Ports: Dual
• Buffer Size: 256 MB
• Rotational Speed: 7200 RPM

Physical Characteristics

• Dimensions (L x W x H): 147.0 x 101.85 x 26.11 mm
• Weight: 690 g

Capacity

The Seagate ST14000NM0168 Hard Drive boasts a massive storage capacity of 14TB, making it perfect for users who require vast amounts of storage space for their data-intensive applications and workloads. Whether you are a creative professional dealing with large video files, a data center manager managing huge amounts of data, or a gamer with an extensive library of games, this high-capacity hard drive ensures that you have more than enough room to store all your files and content.

Increased Storage Space

With 14TB of storage capacity, you don't have to worry about running out of space anytime soon. You can store countless hours of high-definition videos, thousands of photos, and a vast number of documents without the need for external storage devices or constantly deleting files to free up space.

Efficient Data Management

The large capacity of the Seagate ST14000NM0168 allows for efficient data management. You can consolidate your data in one place, reducing the need for multiple hard drives and simplifying your storage infrastructure. This not only saves you money but also makes it easier to access and organize your data.

Streamlined Backup Solutions

With 14TB of storage space, you can easily create comprehensive backup solutions for your important files and documents. Whether you prefer manual backups or automated backup software, this hard drive ensures that all your data is safe and readily available whenever you need it.

Scalability

The large capacity of this hard drive allows for future scalability. As your storage needs grow, you can simply add more Seagate ST14000NM0168 drives to your setup and expand your storage capacity without hassle. This makes it an excellent choice for businesses and individuals who anticipate increasing data requirements in the future.

Reduced Cost per Terabyte

With a 14TB capacity, the Seagate ST14000NM0168 offers an attractive cost per terabyte ratio. You get more storage space for your money, making it a cost-effective solution for those who require large-scale storage without breaking the bank.

Speed

The speed of a hard drive is a critical factor that determines how quickly data can be accessed and transferred. The Seagate ST14000NM0168 Hard Drive operates at 7.2K RPM (rotations per minute), providing users with fast and reliable performance for their demanding tasks.

Improved Data Transfer Rates

The 7.2K RPM speed of this hard drive ensures quick data transfer rates, allowing you to efficiently move large files between your computer and the drive. Whether you are transferring multimedia files, running applications, or performing data backups, the high-speed performance of this hard drive ensures minimal waiting times and increased productivity.

Smooth Multimedia Streaming

If you use your hard drive to store and stream multimedia content, the 7.2K RPM speed plays a crucial role in delivering a smooth streaming experience. Whether you are watching high-definition videos or listening to music, you can expect uninterrupted playback without buffering or lagging.

Faster Application Loading Times

The high rotational speed of the Seagate ST14000NM0168 enables faster loading times for applications and games. This is particularly beneficial for gamers who want to minimize waiting times and dive straight into their gaming experience. Additionally, professionals working with resource-intensive software will appreciate the reduced loading times, allowing them to work more efficiently.

Enhanced System Responsiveness

By utilizing a hard drive with high RPM, your overall system responsiveness improves. Tasks such as booting up your computer, launching applications, and accessing files become snappier, allowing you to work smoothly and efficiently without frustrating delays.

Optimized RAID Performance

The 7.2K RPM speed of this hard drive makes it an ideal choice for RAID (redundant array of independent disks) configurations. When multiple hard drives are combined in a RAID setup, the high-speed performance ensures efficient data distribution and improved overall system performance.

Interface

The Seagate ST14000NM0168 Hard Drive features a SAS 12GBPS interface, providing users with a reliable and high-speed connection between the hard drive and their system.

Fast Data Transfer

The SAS 12GBPS interface delivers exceptional data transfer speeds, allowing you to quickly move large files between your computer and the hard drive. This is particularly beneficial for tasks that require frequent data transfers, such as video editing or working with large datasets.

Reliable Connection

The SAS interface ensures a reliable and stable connection between the hard drive and your system. It offers improved signal integrity, reducing the risk of data corruption or transmission errors. This is especially important for businesses and professionals who rely on their data storage devices for critical operations.

Hot Swapping Capability

The SAS interface supports hot swapping, which means you can easily add or remove this hard drive without having to power down your system. This feature is particularly useful in environments where uninterrupted operation is essential, such as data centers or servers.

Compatibility

The SAS interface provides broad compatibility with various systems and storage architectures. Whether you are using a desktop computer, server, or storage array, the SAS 12GBPS interface ensures seamless integration and optimal performance.

Scalability and Future-Proofing

The SAS 12GBPS interface offers scalability and future-proofing capabilities. As technology advances and higher data transfer speeds become the norm, this hard drive will be ready to handle the increased demands without requiring a complete system upgrade. This ensures that your investment in the Seagate ST14000NM0168 remains relevant and usable for years to come.

Cache

The Seagate ST14000NM0168 Hard Drive is equipped with a generous 256MB cache, enhancing its performance and responsiveness for various applications and workloads.

Faster Data Access

The large cache size enables faster data access times by storing frequently accessed data closer to the read/write heads of the hard drive. This reduces the time it takes to retrieve data from the platters, resulting in improved overall performance.

Seamless Multitasking

A larger cache allows for smoother multitasking capabilities. Whether you are running multiple applications simultaneously or working with large files, the ample cache size ensures that your system can handle the workload without slowdowns or performance bottlenecks.

Improved Read and Write Performance

The 256MB cache enhances both read and write performance. When reading data from the hard drive, the cache stores frequently accessed information, minimizing latency and improving response times. Similarly, when writing data to the hard drive, the cache temporarily holds the data before writing it to the platters, resulting in faster write speeds.

Reduced Wear and Tear

The cache helps reduce wear and tear on the hard drive by optimizing data access. By accessing frequently used data from the cache instead of the platters, the number of mechanical movements is minimized, leading to less stress on the drive's components. This can contribute to a longer lifespan and improved reliability.

Enhanced Gaming Experience

Gamers can benefit greatly from the large cache size. It helps reduce loading times in games, allowing you to jump into your gaming session quickly. Additionally, open-world games with vast amounts of data can benefit from the cache, as it ensures smooth gameplay without stuttering or texture pop-in.
