Startech SFP-10G-BX-D-60-ST Transceiver Module Cisco Compatible

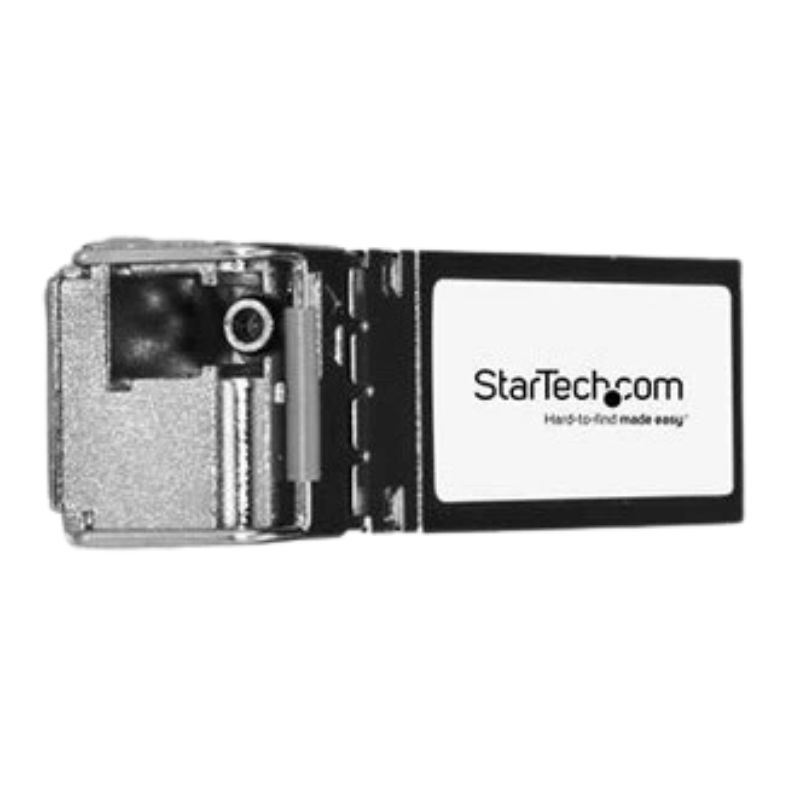

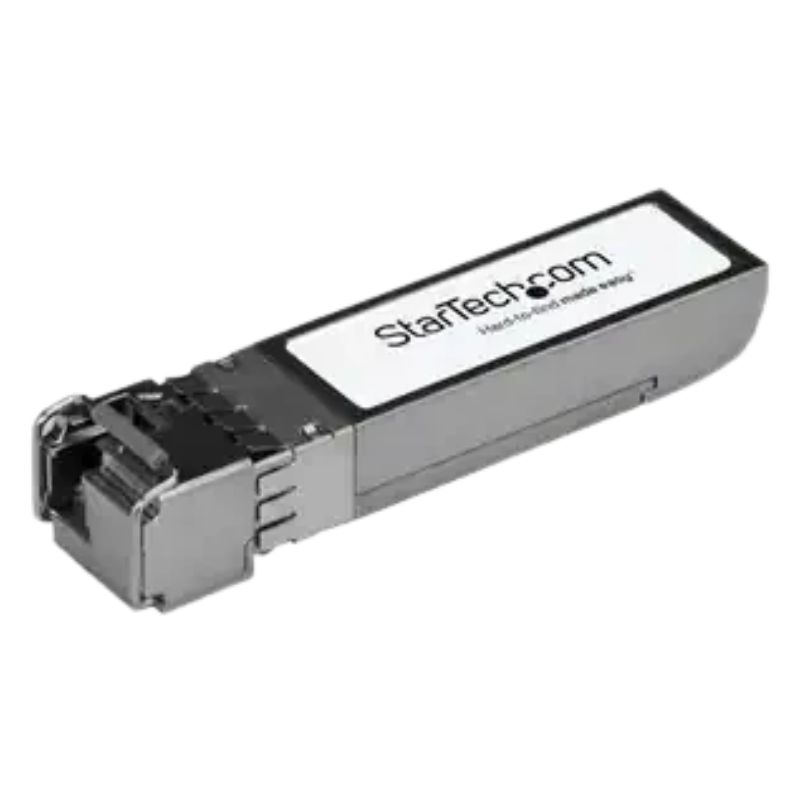

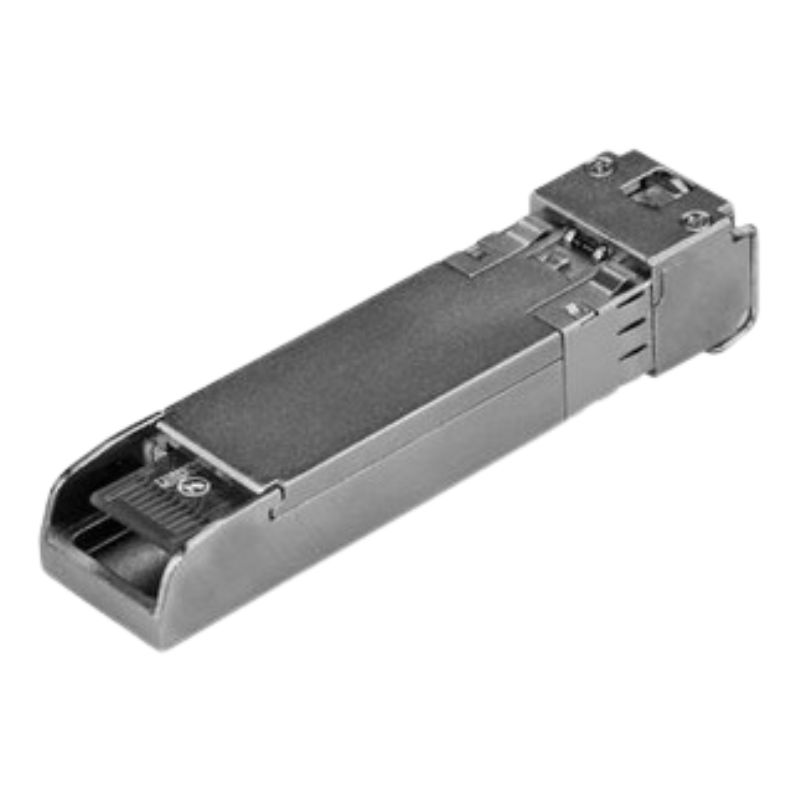

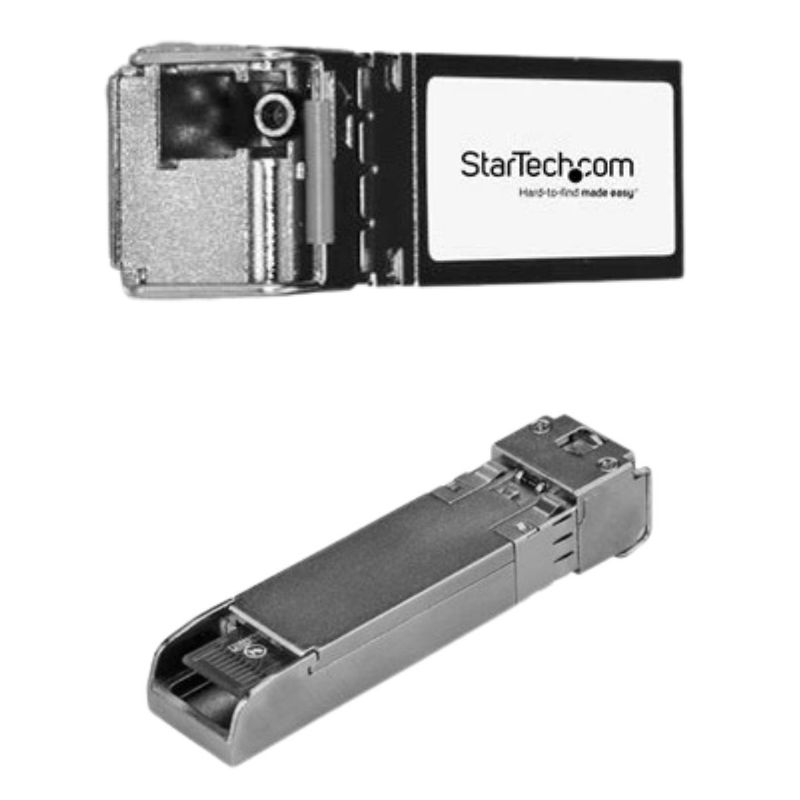

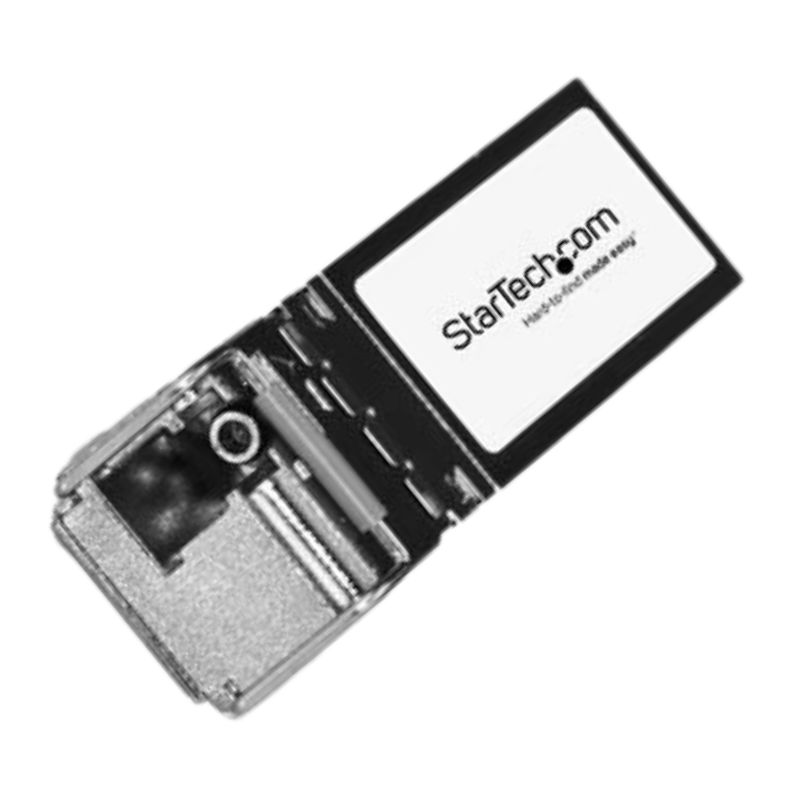

Overview of Startech SFP-10G-BX-D-60-ST Transceiver Module

The Startech Transceiver Module is a robust solution designed for high-speed data transfer across extended distances. This reliable single-mode fiber optic module ensures top-notch performance in demanding environments, making it an essential component for networking needs.

Key Manufacturer Details

• Brand: Startech
• Model Number: SFP-10G-BX-D-60-ST
• Type of Product: Fiber Optic Transceiver Module

Advanced Module Specifications

• Fiber Mode: Single Mode Fiber (SMF)
• Wavelength: 1330nm for transmission (Tx) / 1270nm for reception (Rx)
• Data Transfer Rate: Capable of transmitting data at 10 Gbps, ensuring fast and stable communication.

Performance Capabilities

• Maximum Transfer Distance: Up to 40 kilometers (24.8 miles)
• Connector Type: LC connector ensures a stable and reliable connection.

Power Efficiency and Reliability

• Power Consumption: Less than 1.6 watts
• MTBF (Mean Time Between Failures): 3,736,187 hours, providing exceptional durability.

Enhanced Monitoring Features

• DDM Support: Yes, for monitoring signal quality, temperature, and more.

Connector: LC

What is an LC Connector?

The Startech SFP-10G-BX-D-60-ST Transceiver Module comes equipped with an LC connector, which is a small form-factor fiber optic connector commonly used in networking applications. The LC connector is designed to provide a secure and reliable connection for fiber optic cables.

The Benefits of an LC Connector

1. Size and Density

One of the key benefits of an LC connector is its small size. The LC connector is half the size of traditional connectors like the SC or ST connectors, making it ideal for high-density applications where space is limited. The small form-factor of the LC connector allows for more ports to be installed in networking equipment, resulting in higher port density and improved flexibility in network design.

2. Easy Installation

Another advantage of the LC connector is its simplicity of installation. The connector features a push-pull latching mechanism, allowing for quick and easy insertion and removal of the fiber optic cable. This feature is particularly beneficial in situations where frequent moves, adds, and changes are required, as it reduces the time and effort required for installation and maintenance.

3. Low Insertion Loss

The LC connector provides low insertion loss, meaning that it minimizes the amount of signal loss that occurs when the fiber optic cable is connected. This is crucial for maintaining signal integrity and ensuring reliable data transmission over long distances. The low insertion loss of the LC connector contributes to improved network performance and reduced error rates.

4. High Return Loss

In addition to low insertion loss, the LC connector also offers high return loss. Return loss refers to the amount of reflected light or signal that comes back towards the source after being transmitted through the fiber optic cable. High return loss indicates that the connector efficiently reflects the signal back to the source, minimizing signal degradation and optimizing performance. The high return loss of the LC connector ensures that data is transmitted accurately and reliably.

Speed: 10Gbps

What is 10Gbps Speed?

The Startech SFP-10G-BX-D-60-ST Transceiver Module supports a speed of 10Gbps, which stands for 10 gigabits per second. This speed represents a significant advancement in data transmission capabilities and is commonly used in high-bandwidth applications, such as data centers, enterprise networks, and telecommunications.

The Benefits of 10Gbps Speed

1. Faster Data Transfer

The 10Gbps speed provided by the Startech SFP-10G-BX-D-60-ST Transceiver Module allows for faster data transfer rates compared to lower-speed alternatives. This is particularly important in today's digital age, where large amounts of data are generated and transmitted constantly. With 10Gbps speed, users can experience accelerated file transfers, quicker backups, and improved overall network performance.

2. Increased Bandwidth

Another advantage of 10Gbps speed is the increased bandwidth it provides. Bandwidth refers to the amount of data that can be transmitted over a network within a given time frame. With 10Gbps speed, users can enjoy a wider data pipeline, allowing for more concurrent data streams and higher capacity for simultaneous activities such as video streaming, online gaming, and cloud-based applications. The increased bandwidth offered by 10Gbps speed ensures a smooth and seamless user experience.

3. Future-Proofing

Investing in a product with 10Gbps speed ensures future-proofing your network infrastructure. As technology continues to evolve, the demand for higher data speeds will only increase. By choosing a transceiver module with 10Gbps speed, users can be confident that their network will be able to handle the growing data requirements of tomorrow. This eliminates the need for costly upgrades or replacements in the near future and provides a solid foundation for long-term network scalability.

Standard: Base-BX

What is Base-BX Standard?

The Startech SFP-10G-BX-D-60-ST Transceiver Module conforms to the Base-BX standard, which is a widely recognized specification for fiber optic communication. The Base-BX standard defines the parameters and requirements for bi-directional transmission over a single fiber using wavelength division multiplexing (WDM) technology.

The Benefits of Base-BX Standard

1. Cost-Effective Solution

The Base-BX standard offers a cost-effective solution for implementing bi-directional fiber optic communication. By utilizing wavelength division multiplexing, which enables two-way communication over a single fiber by using different wavelengths, the need for deploying multiple fibers is eliminated. This significantly reduces installation costs, as fewer fibers are required for achieving bi-directional communication.

2. Scalability and Flexibility

Base-BX standard allows for scalability and flexibility in network design. With its support for bi-directional communication, users can effectively double the capacity of their existing fiber infrastructure without the need for additional fibers. This scalability allows for easy expansion and future growth without major overhauls of the network infrastructure. Additionally, the flexibility provided by Base-BX standard simplifies network planning and deployment, as it offers multiple options for connectivity and network topology.

3. Interoperability

Another advantage of adhering to the Base-BX standard is the interoperability it provides. The standard ensures compatibility and seamless integration with other networking equipment and devices that also adhere to the same standard. This interoperability allows users to mix and match different components from various manufacturers, providing greater flexibility in equipment selection and avoiding vendor lock-in. It also simplifies troubleshooting and maintenance, as standardized components are easier to diagnose and replace if necessary.

Interface: SFP+

What is SFP+ Interface?

The Startech SFP-10G-BX-D-60-ST Transceiver Module features an SFP+ interface, which is a compact, hot-pluggable transceiver module commonly used in high-speed data communication applications. The SFP+ interface provides a versatile and efficient solution for connecting networking equipment, such as switches, routers, and servers, to fiber optic networks.

The Benefits of SFP+ Interface

1. Flexibility

The SFP+ interface offers flexibility in network design and deployment. With its small form-factor and hot-pluggable nature, SFP+ modules can be easily inserted or removed from compatible networking equipment without requiring a shutdown or reboot of the system. This flexibility allows for quick and convenient upgrades or replacements, minimizing network downtime and enhancing overall network agility.

2. High Data Rates

One of the key advantages of the SFP+ interface is its support for high data rates. The interface is specifically designed for high-speed applications, including 10Gbps Ethernet and Fibre Channel networks. With the SFP+ interface, users can achieve fast and reliable data transmission over fiber optic links, ensuring efficient communication between network devices.

3. Compatibility

Another significant benefit of the SFP+ interface is its compatibility with a wide range of networking equipment. The interface follows a standardized form-factor and electrical interface, allowing for interchangeable modules from different manufacturers. This compatibility ensures seamless integration with existing network infrastructure and simplifies equipment upgrades or expansions. Users can select the most suitable SFP+ module for their specific needs without worrying about compatibility issues.

4. Cost-Effectiveness

The SFP+ interface offers a cost-effective solution for high-speed networking. The compact size of SFP+ modules allows for higher port density, enabling more connections in the same physical space. This density optimization results in reduced equipment costs and minimized rack space requirements. Additionally, the hot-pluggable nature of SFP+ modules eliminates the need for dedicated maintenance windows, saving time and reducing operational expenses.

In summary, the Startech SFP-10G-BX-D-60-ST Transceiver Module offers the LC connector, providing advantages such as size and density, easy installation, low insertion loss, and high return loss. The 10Gbps speed ensures faster data transfer, increased bandwidth, and future-proofing capabilities. The Base-BX standard offers a cost-effective solution, scalability, flexibility, and interoperability. Finally, the SFP+ interface provides flexibility, high data rates, compatibility, and cost-effectiveness for efficient network connectivity.
