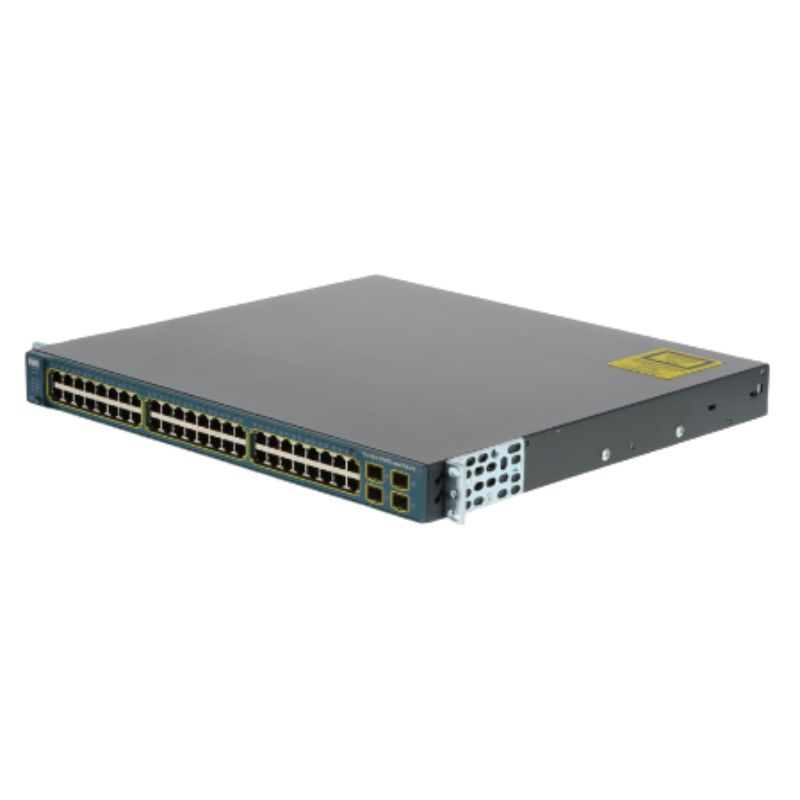

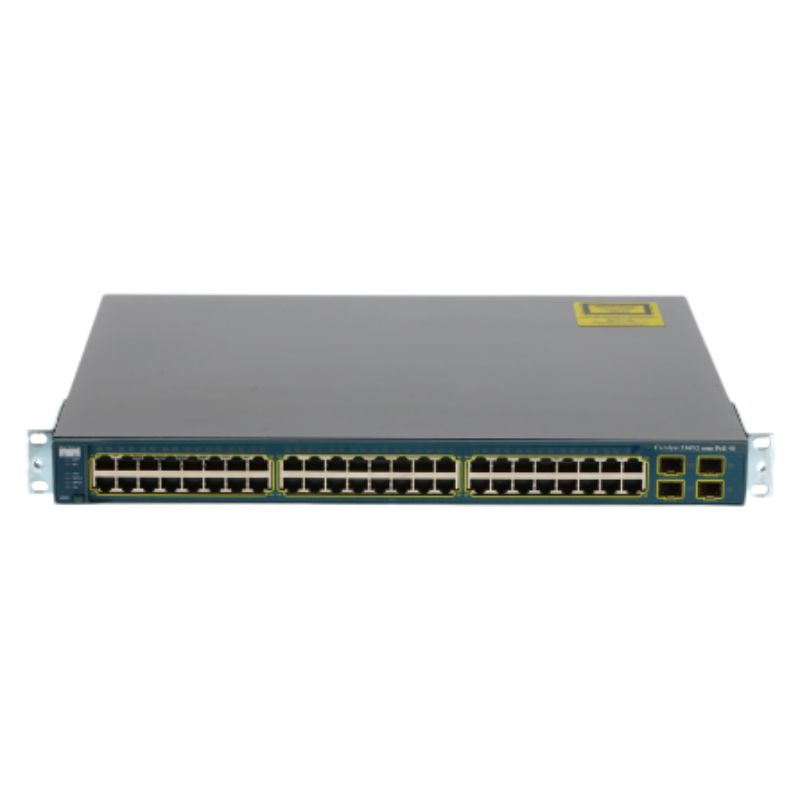

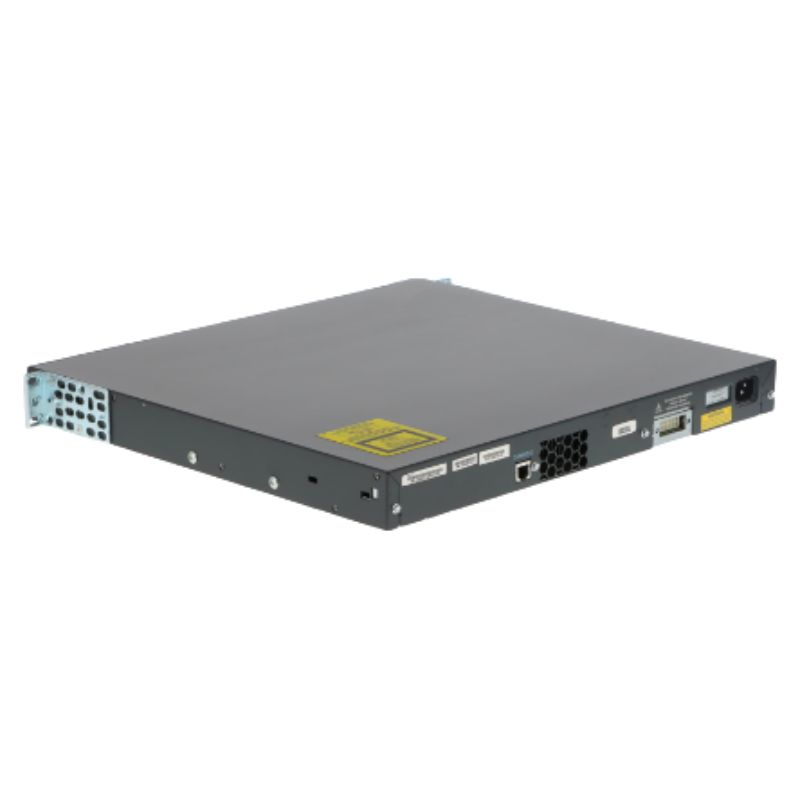

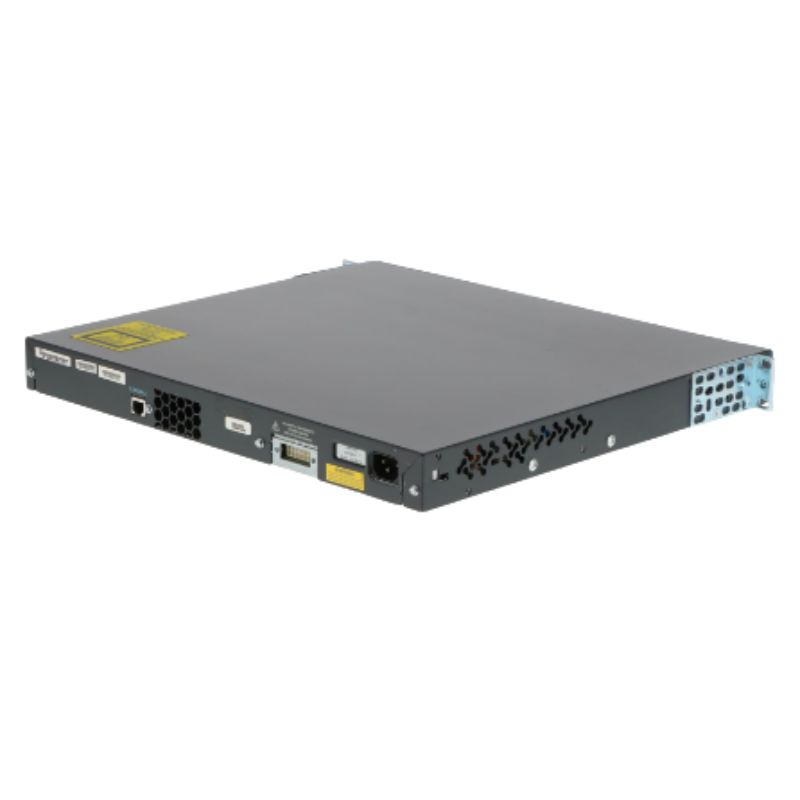

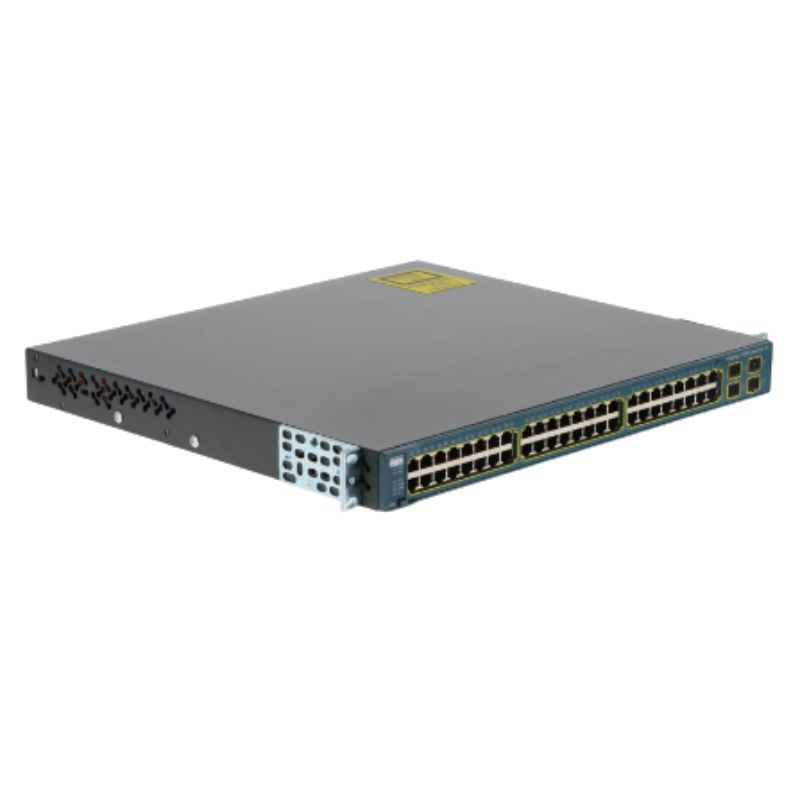

WS-C3560G-48PS-S Cisco Catalyst 3560 48-Ports Ethernet Switch

Ports

The Cisco WS-C3560G-48PS-S Ethernet Switch is equipped with an impressive 48 ports, making it an ideal choice for businesses and organizations that require a high number of network connections. This abundance of ports allows for the seamless connection of multiple devices to the network, providing users with increased flexibility and scalability.

Main Specification of Cisco WS-C3560G-48PS-S

• Manufacturer: Cisco
• Part Number: WS-C3560G-48PS-S
• Product Line: Catalyst
• Series: 3560
• Product Type: Gigabit Ethernet Switch

Key Features of WS-C3560G-48PS-S

• Designed to handle up to 48 Gigabit Ethernet ports with PoE (Power over Ethernet) capability.
• Provides reliable fixed Ethernet connections, supporting wired networking technology.
• Features high-density port capacity, ideal for robust network topologies.
• Supports four SFP uplink ports, enabling seamless network expansion.

Performance Capabilities

• Offers a forwarding rate of 38.7 Mpps for models like the Catalyst 3560G-48PS and similar configurations.
• Performance varies from 13.1 Mpps to 2.7 Mpps depending on the model, ensuring flexibility in network speed.

Advanced Switching Features

• Up to 12,000 MAC addresses can be configured, providing extensive network address management.
• Supports up to 11,000 unicast routes, ensuring efficient packet delivery.
• Capable of managing 1,000 IGMP groups and multicast routes, suitable for multicast-heavy environments.

Port and Connectivity Information

• Total Ports: 48 Ethernet (10/100/1000 Base-T) with PoE support
• Uplink Ports: 4 dedicated SFP slots
• Jumbo Frame Support: 9018 bytes for efficient data transmission
• VLAN Capacity: Handles up to 1024 VLANs and 4000 VLAN IDs for advanced network segmentation.

Expansion Slots

• Includes 4 SFP slots for uplink connections, offering modular flexibility.
• Allows for gigabit network expansion with various compatible transceivers.

Layer and Network Support

• Layer Support: Layer 4 for advanced network control
• Media Type Supported: Twisted Pair, compliant with Cat 5 standards
• Ethernet Technology: Supports Gigabit Ethernet (10/100/1000Base-T)

Network Management and Protocols

• Manageability: Fully manageable, supports remote management protocols
• Protocols Supported: SNMP (v1, v2c, v3), SSH-2, Telnet, RMON (various levels)
• Compatible with HTTP for web-based management, ensuring easy access and configuration.

Memory Specifications

• Standard Memory: 128 MB DRAM for fast data processing.
• Flash Memory: 32 MB, including a 16 MB variant in some models.

Reliability and Longevity

• MTBF: 147,000 hours, ensuring long-term durability and minimal downtime.

Power and Energy Efficiency

• Input Voltage: Compatible with 110V and 220V AC, ensuring flexibility in deployment.
• PoE Power: Provides up to 370W of available PoE power, supporting a range of connected devices.

Included Accessories

• Comes with essential accessories like rackmount ears, an AC power cord, and a console cable for a simplified setup.

Increased Connectivity

With 48 ports, this Ethernet switch offers users the ability to connect a wide range of devices to their network infrastructure. Whether it is computers, printers, servers, or other networking equipment, the ample number of ports ensures that there is no shortage of connectivity options. This is particularly beneficial for businesses with large offices or multiple departments that require a significant number of network connections.

Improved Network Performance

The abundance of ports in the Cisco WS-C3560G-48PS-S Ethernet Switch also translates into improved network performance. The switch is designed to handle high volumes of data traffic efficiently and effectively. Each port is capable of delivering high-speed data transfer rates, ensuring that users can experience smooth and uninterrupted network connectivity.

Scalability and Future-Proofing

Having 48 ports allows businesses to future-proof their network infrastructure. As technology evolves and the demand for network connectivity continues to increase, having additional ports readily available ensures that businesses can easily expand their network without the need for additional hardware investments. This scalability is crucial for businesses that anticipate growth or have dynamic networking requirements.

Flexibility in Network Design

The Cisco WS-C3560G-48PS-S Ethernet Switch's 48 ports provide network administrators with the flexibility to design their network in a way that best suits their organization's needs. With numerous ports at their disposal, administrators can create separate VLANs (Virtual Local Area Networks) to segregate and manage different departments or user groups effectively. This enhances security, improves network performance, and simplifies network management.

Streamlined Network Management

Managing a network with numerous devices can be a daunting task. However, the ample number of ports in the Cisco WS-C3560G-48PS-S Ethernet Switch simplifies network management. Administrators can easily connect and organize devices according to their requirements, making it easier to troubleshoot and perform routine maintenance tasks. This streamlined network management translates into time and cost savings for businesses.

Cost-Effective Solution

Investing in a switch with 48 ports, like the Cisco WS-C3560G-48PS-S, can be a cost-effective solution for businesses. Rather than purchasing multiple switches or investing in additional hardware to accommodate a large number of devices, this switch offers a consolidated and efficient solution. The cost savings achieved through this consolidation can be significant for businesses, especially those operating on tight budgets.

Power Over Ethernet

The Cisco WS-C3560G-48PS-S Ethernet Switch features Power over Ethernet (PoE) capability, which allows for both data and power to be transmitted over a single Ethernet cable. This feature is particularly useful for organizations that need to power network devices such as IP phones, wireless access points, and IP cameras without the need for separate power cables.

Simplified Deployment

The PoE capability of the Cisco WS-C3560G-48PS-S Ethernet Switch simplifies the deployment of network devices. With PoE, there is no need for separate power outlets or additional power cables for each device. This streamlines the installation process and reduces the clutter of cables, making it easier for network administrators to set up and manage their network infrastructure.

Flexibility in Device Placement

By providing power over the Ethernet cable, PoE eliminates the restrictions of device placement near power outlets. This flexibility allows network devices to be installed in locations that are most convenient for users and administrators. Whether it is mounting wireless access points on ceilings or placing IP cameras in strategic locations for surveillance, the PoE feature of this switch enables greater flexibility in device placement.

Cost Savings

The PoE capability of the Cisco WS-C3560G-48PS-S Ethernet Switch also offers significant cost savings. By eliminating the need for separate power cables and outlets, businesses can reduce their installation and maintenance costs. Additionally, PoE allows for more efficient power management, enabling devices to be powered off when not in use, further reducing energy consumption and lowering electricity bills.

Enhanced Reliability

With PoE, the Cisco WS-C3560G-48PS-S Ethernet Switch ensures a reliable power supply to connected devices. Power outages or fluctuations that may affect regular power outlets do not impact the PoE functionality. This enhanced reliability is particularly important for critical network devices such as security cameras or IP phones, ensuring uninterrupted operation even during power disturbances.

Centralized Power Management

The PoE feature of this switch enables centralized power management. Network administrators can monitor and manage the power consumption of connected devices from a central location. This centralized control allows for better resource allocation and helps identify potential power issues or device malfunctions quickly, improving overall network performance.

Future-Proofing

Power over Ethernet has become a standard feature in modern network devices. By investing in a switch with PoE capability like the Cisco WS-C3560G-48PS-S, businesses can future-proof their network infrastructure. As more devices adopt PoE technology, having a switch that supports this feature ensures compatibility and avoids the need for additional hardware upgrades in the future.

In conclusion, the Cisco WS-C3560G-48PS-S Ethernet Switch offers an impressive 48 ports and Power over Ethernet capability, providing users with increased connectivity, improved network performance, scalability, and streamlined network management. The 48 ports allow for flexible network design, simplified device deployment, and cost savings, while PoE enables simplified deployment, flexibility in device placement, cost savings, enhanced reliability, and centralized power management. By incorporating these features into their network infrastructure, businesses can optimize their connectivity and power management while future-proofing their investments.
