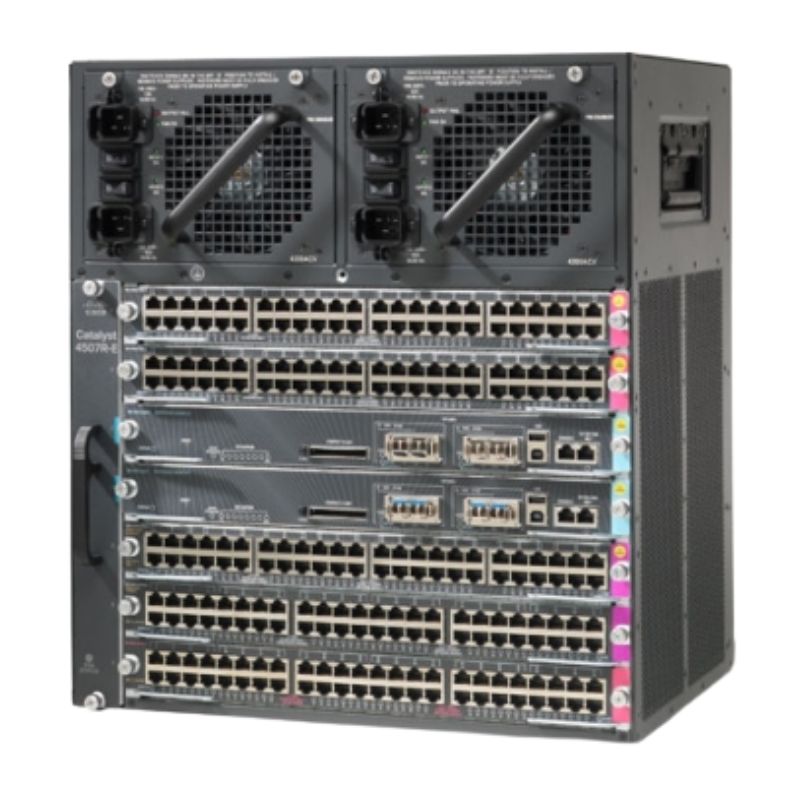

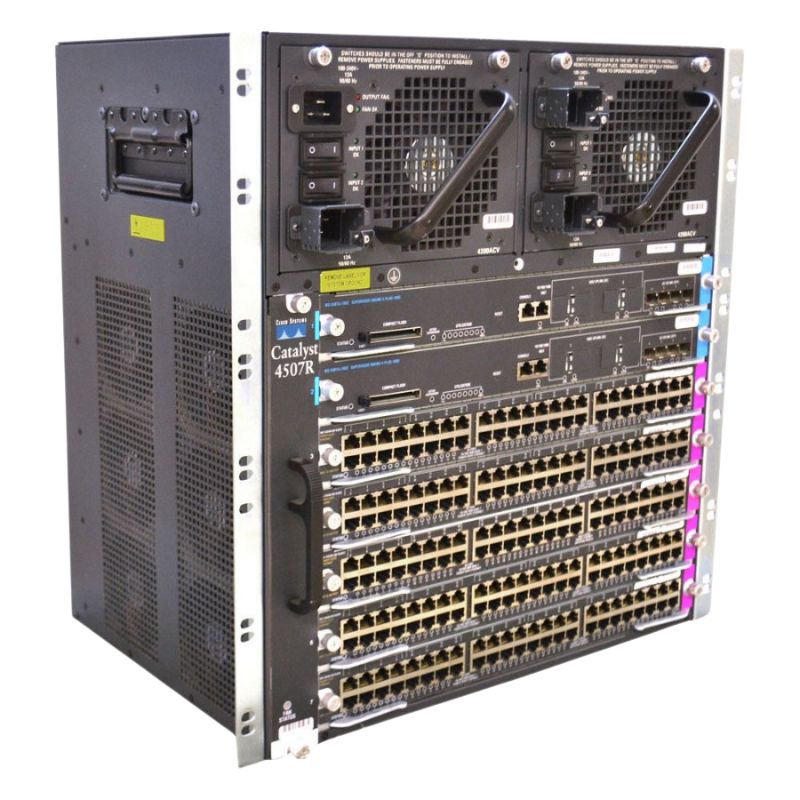

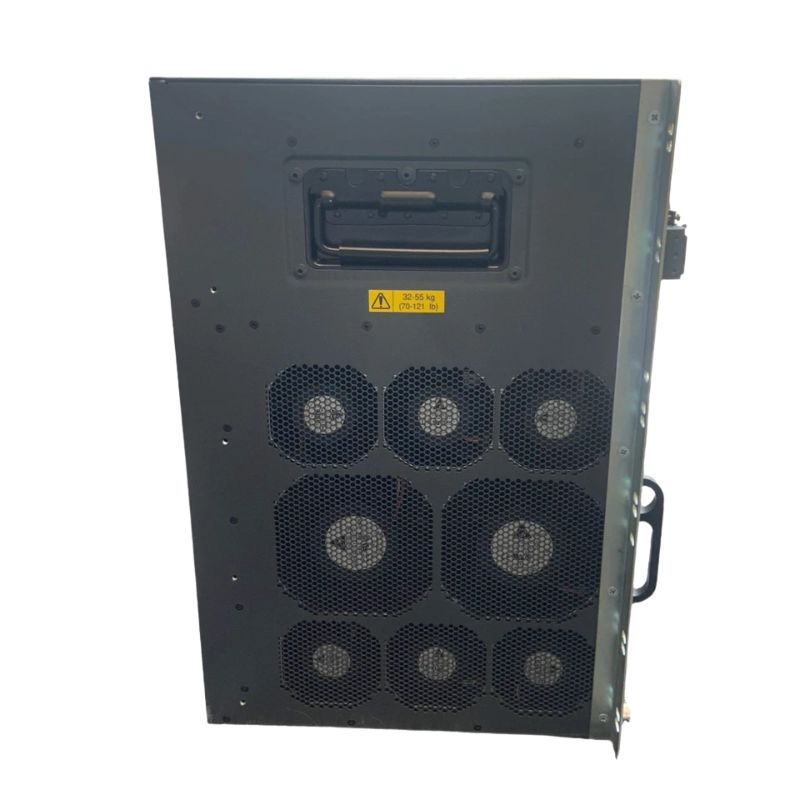

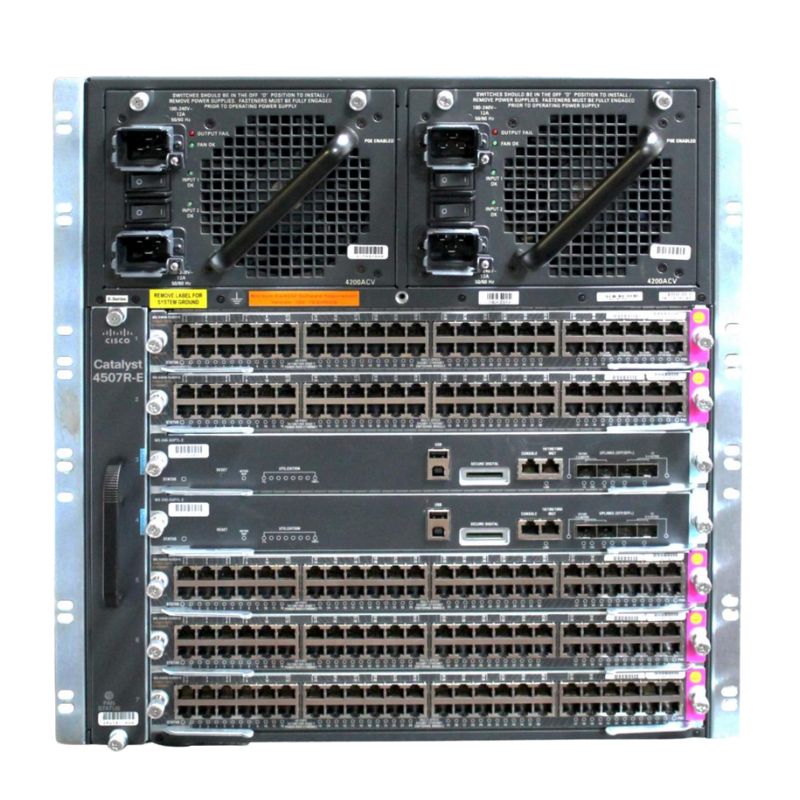

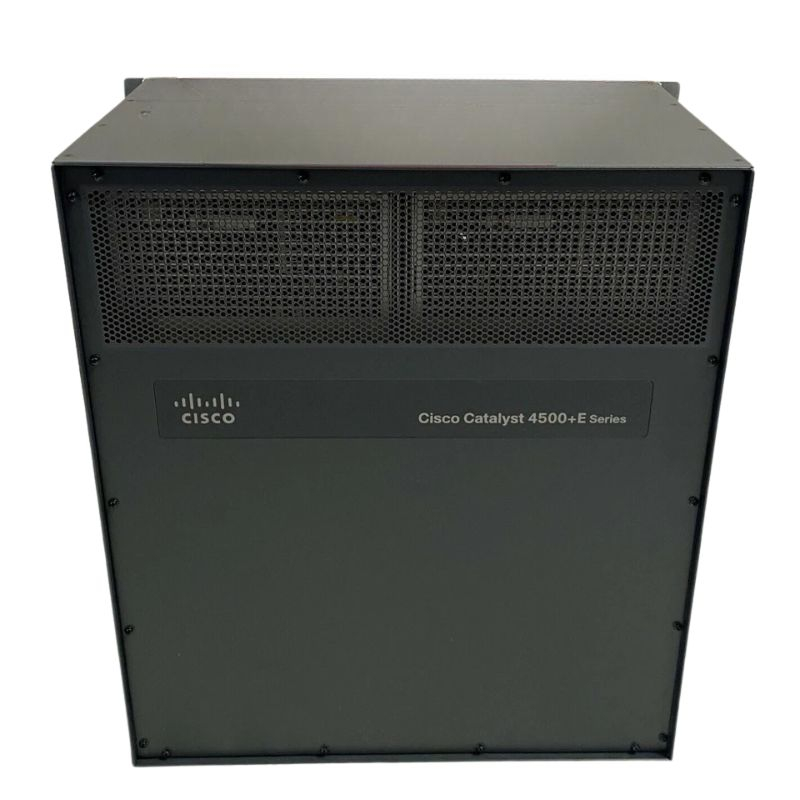

WS-C4507R+E Cisco Catalyst 4507R+E Managed Switch Chassis

Ports

The Cisco WS-C4507R+E Managed Switch Chassis is equipped with 7 slots for line cards and supervisor engines, making it an ideal choice for businesses and organizations that require a high-performance networking solution. These slots provide users with the flexibility to customize and expand their network infrastructure according to their specific needs.

Main Specifications

• Brand: Cisco
• Part Number: WS-C4507R+E
• Product Type: Catalyst Switch

Technical Specifications

• Switch Type: Ethernet Switch Chassis
• Data Link Protocol: Ethernet
• Subcategory: Network Hubs and Switches
• Supported Modules: 7

Expansion Slots and Interfaces

• Total Expansion Slots: 7
• Slot Types:
  • Line Card
  • Supervisor Engine

Network and Communication Features

• Layer Supported: Layer 4
• Manageable: Yes

Management and Protocols

• Management Tools:
  • Cisco Network Assistant
  • CiscoWorks Resource Manager Essentials (RME)
  • CiscoWorks LAN Management Solution (LMS)
• Supported Protocols:
  • IEEE 802.1p QoS
  • IEEE 802.1q VLAN
  • SNMP v2c
  • RMON
  • HTTP
  • CLI
  • MIB
  • Telnet
  • DHCP

Power Specifications

• Power over Ethernet (PoE): Supported through RJ-45 ports
• Input Voltage: Compatible with 220 V AC and 110 V AC
• Power Source: Power Supply
• Redundant Power Supply: Yes

Scalability and Flexibility

One of the key benefits of the 7 slots for line cards and supervisor engines is the scalability it offers. With these slots, users can easily add or upgrade line cards and supervisor engines to accommodate the increasing demands of their network. This ensures that the switch chassis can grow alongside the organization, preventing any bottlenecks or limitations in network performance.

Furthermore, the flexibility provided by these slots allows users to mix and match different types of line cards and supervisor engines based on their requirements. This means that organizations can choose the most suitable combination of modules to optimize their network's performance, functionality, and cost-effectiveness.

Improved Network Performance

The availability of multiple slots in the Cisco WS-C4507R+E Managed Switch Chassis translates to enhanced network performance. The line cards and supervisor engines installed in these slots contribute to the overall switching capacity and processing power of the switch chassis.

By utilizing all 7 slots, users can achieve a higher switching capacity, enabling them to handle increased data traffic and ensuring smooth communication between devices. This is especially crucial for organizations with a large number of connected devices or those experiencing rapid growth in their network requirements.

Redundancy and Resilience

Another advantage of having 7 slots is the ability to implement redundancy and resilience within the network infrastructure. Users can configure redundant line cards and supervisor engines in a failover configuration, ensuring uninterrupted network operation even in the event of a hardware failure.

By utilizing dual redundant line cards or supervisor engines, the switch chassis can automatically switch over to the backup module in case of a failure, minimizing downtime and maintaining network availability. This level of redundancy is essential for businesses and organizations that rely heavily on their network infrastructure for critical operations.

Future-Proofing

The 7 slots for line cards and supervisor engines in the Cisco WS-C4507R+E Managed Switch Chassis provide users with future-proofing capabilities. As technology evolves and network requirements change, organizations can easily upgrade their line cards and supervisor engines to keep up with the latest advancements in networking.

This future-proofing ensures that the switch chassis can support new features, protocols, and technologies as they become available, extending its lifespan and protecting the organization's investment in its network infrastructure.

Power Supply

The Cisco WS-C4507R+E Managed Switch Chassis is equipped with dual redundant power supplies, offering enhanced reliability and ensuring uninterrupted operation of the network infrastructure. This feature is crucial for businesses and organizations that cannot afford any downtime or disruptions in their network services.

Redundancy and Fault Tolerance

The dual redundant power supplies in the Cisco WS-C4507R+E Managed Switch Chassis provide a high level of redundancy and fault tolerance. In the event of a power supply failure, the switch chassis can automatically switch to the backup power supply without any interruption to the network operation.

This redundancy ensures that critical network services remain operational even if one of the power supplies fails. It minimizes the risk of downtime and ensures that businesses can continue their operations without any disruptions or loss of productivity.

Power Management

The dual redundant power supplies also enable efficient power management within the network infrastructure. Organizations can distribute the power load between the two power supplies, ensuring optimal utilization and preventing overload or overheating issues.

Furthermore, these power supplies often come with advanced features such as power monitoring and power-saving capabilities. Users can monitor the power consumption of the switch chassis and make adjustments to optimize energy usage, reducing operational costs and contributing to environmental sustainability.

High Availability

With dual redundant power supplies, the Cisco WS-C4507R+E Managed Switch Chassis can achieve a high level of availability. The backup power supply acts as a failover mechanism, ensuring that the switch chassis remains operational even if there is a power supply failure.

This high availability is especially critical for businesses and organizations that require continuous network connectivity, such as data centers, financial institutions, or healthcare facilities. It guarantees that network services remain accessible to users at all times, minimizing the impact of any potential power-related issues.

Business Continuity

The dual redundant power supplies contribute to business continuity by reducing the risk of downtime and ensuring uninterrupted network services. This is particularly important for organizations that rely heavily on their network infrastructure for critical operations or customer-facing services.

By implementing redundant power supplies, businesses can safeguard their operations against unforeseen power-related events, such as power outages or fluctuations. It provides peace of mind and reassurance to organizations, knowing that their network infrastructure will remain operational even in challenging circumstances.

Performance

The Cisco WS-C4507R+E Managed Switch Chassis boasts impressive performance capabilities with its support for up to 848 Gbps switching capacity. This high-performance feature enables businesses and organizations to handle large volumes of data traffic efficiently and ensures smooth and reliable communication across their network.

Scalable Switching Capacity

The support for up to 848 Gbps switching capacity in the Cisco WS-C4507R+E Managed Switch Chassis allows organizations to scale their network infrastructure to meet growing demands. As data traffic increases due to the proliferation of connected devices and the growth of digital applications, having a switch chassis with high switching capacity is essential to prevent congestion and maintain optimal network performance.

This scalability ensures that businesses can accommodate future growth without compromising the quality of service or experiencing performance bottlenecks. It provides the necessary foundation for organizations to adapt to evolving networking requirements and ensure a seamless user experience.

Fast and Reliable Data Transmission

The high switching capacity of the Cisco WS-C4507R+E Managed Switch Chassis enables fast and reliable data transmission across the network. With its ability to handle large volumes of data traffic, organizations can enjoy smooth and uninterrupted communication between devices, ensuring efficient collaboration and productivity.

This is particularly important for businesses that heavily rely on real-time applications, such as voice and video conferencing or cloud-based services. The switch chassis's high-performance capabilities ensure that these applications can operate without latency or interruptions, guaranteeing a seamless user experience.

Improved Network Response Time

The high switching capacity offered by the Cisco WS-C4507R+E Managed Switch Chassis translates to improved network response time. With its ability to handle large amounts of data traffic simultaneously, organizations can experience reduced latency and faster data transfer rates.

This is crucial for businesses that require instant access to critical information or real-time data processing. By minimizing network delays, organizations can enhance their operational efficiency, improve decision-making processes, and deliver better customer experiences.

Reliable Network Infrastructure

The high-performance capabilities of the Cisco WS-C4507R+E Managed Switch Chassis contribute to a reliable network infrastructure. With its ability to efficiently handle large volumes of data traffic, organizations can ensure that their network remains stable and resilient even during peak usage periods.

This reliability is essential for businesses that operate in highly competitive industries or provide mission-critical services. It guarantees that the network infrastructure can support demanding applications and services without compromising performance or compromising the integrity of the network.

Features

The Cisco WS-C4507R+E Managed Switch Chassis offers a range of advanced features that enhance network functionality and performance. These features include IPv6 support, Quality of Service (QoS), Virtual LAN (VLAN) support, and Spanning Tree Protocol (STP), providing organizations with a versatile and robust networking solution.

IPv6 Support

With the increasing adoption of IPv6, the Cisco WS-C4507R+E Managed Switch Chassis's IPv6 support is crucial for organizations transitioning to the new protocol. IPv6 offers a significantly larger address space, ensuring the availability of IP addresses for the growing number of connected devices.

By supporting IPv6, organizations can future-proof their network infrastructure and ensure compatibility with IPv6-enabled devices and applications. This ensures seamless communication and connectivity in an increasingly interconnected world.

Quality of Service (QoS)

The Quality of Service (QoS) feature in the Cisco WS-C4507R+E Managed Switch Chassis enables organizations to prioritize network traffic based on predefined rules and policies. This ensures that critical applications or services receive the necessary bandwidth and resources, guaranteeing optimal performance and user experience.

With QoS, organizations can effectively manage network congestion, reduce latency, and prevent bottlenecks in data transmission. It allows businesses to allocate network resources efficiently, ensuring that mission-critical applications receive the highest priority while less critical traffic is appropriately managed.

Enhanced User Experience

By implementing QoS in the switch chassis, organizations can enhance the user experience for their employees or customers. Critical applications such as voice or video conferencing can be prioritized, ensuring smooth communication without interruptions or delays.

This improved user experience translates into increased productivity, better collaboration, and enhanced customer satisfaction. Organizations can optimize their network infrastructure to meet specific requirements and deliver reliable and high-quality services.

Bandwidth Allocation and Traffic Management

The QoS feature also enables organizations to allocate bandwidth and manage traffic effectively. By setting different levels of priority for specific types of traffic, businesses can prevent network congestion and ensure that resources are allocated appropriately.

This bandwidth allocation and traffic management capability are particularly important for organizations with diverse network requirements, such as those handling both data-intensive applications and real-time communication. It allows for the efficient utilization of available resources, ensuring smooth and uninterrupted network performance.

Virtual LAN (VLAN) Support

The Virtual LAN (VLAN) support in the Cisco WS-C4507R+E Managed Switch Chassis enables organizations to segment their network into multiple virtual LANs, providing enhanced security, scalability, and flexibility.

By creating separate VLANs, organizations can isolate network traffic and restrict access to specific resources or services. This enhances network security by preventing unauthorized access or potential security breaches. VLANs also simplify network management by logically separating different departments or user groups, enabling more efficient network administration.

Secure Network Segmentation

With VLAN support, organizations can ensure secure network segmentation by grouping users or devices into separate virtual LANs. This prevents unauthorized access to sensitive information or critical resources, reducing the risk of data breaches or unauthorized system modifications.

Additionally, VLANs facilitate network scalability by allowing organizations to easily add or remove devices within specific VLANs without disrupting other parts of the network. This flexibility is particularly beneficial for businesses that experience frequent changes in their network infrastructure due to employee turnover or dynamic operational requirements.

Spanning Tree Protocol (STP)

The Spanning Tree Protocol (STP) feature in the Cisco WS-C4507R+E Managed Switch Chassis ensures redundant link protection and prevents network loops within the network infrastructure. STP is essential for maintaining a stable and resilient network architecture in complex environments.

Redundant Link Protection

STP enables redundant link protection by detecting and blocking redundant paths within the network. This prevents network loops, which can cause packet collisions and degrade network performance. By eliminating loops, organizations can ensure optimal network operation and minimize the risk of data loss or corruption.

Furthermore, STP provides rapid convergence in the event of link failures. It automatically recalculates the shortest path within the network, ensuring that data traffic is efficiently rerouted without any disruptions. This enhances network reliability and guarantees uninterrupted connectivity for users.

Network Stability and Resilience

The Spanning Tree Protocol contributes to network stability and resilience by preventing network loops and ensuring a consistent forwarding path. This stability is particularly important for organizations that rely on their network infrastructure to deliver critical services or support real-time applications.

By eliminating loops and maintaining a stable network topology, organizations can prevent unpredictable behavior or performance issues within their network. This enhances the overall reliability of the network infrastructure, reducing the risk of downtime and ensuring continuous operation.

In conclusion, the Cisco WS-C4507R+E Managed Switch Chassis offers a comprehensive set of features that cater to the diverse networking needs of businesses and organizations. The 7 slots for line cards and supervisor engines provide scalability, flexibility, and redundancy, enabling users to customize their network infrastructure according to their requirements. The dual redundant power supplies ensure uninterrupted operation and enhance reliability. The support for up to 848 Gbps switching capacity delivers high-performance capabilities to handle large volumes of data traffic efficiently. Finally, features such as IPv6 support, Quality of Service (QoS), Virtual LAN (VLAN) support, and Spanning Tree Protocol (STP) enhance network functionality, security, and stability. With its versatile features, the Cisco WS-C4507R+E Managed Switch Chassis proves to be a reliable and robust networking solution for organizations seeking optimal performance and scalability in their network infrastructure.
