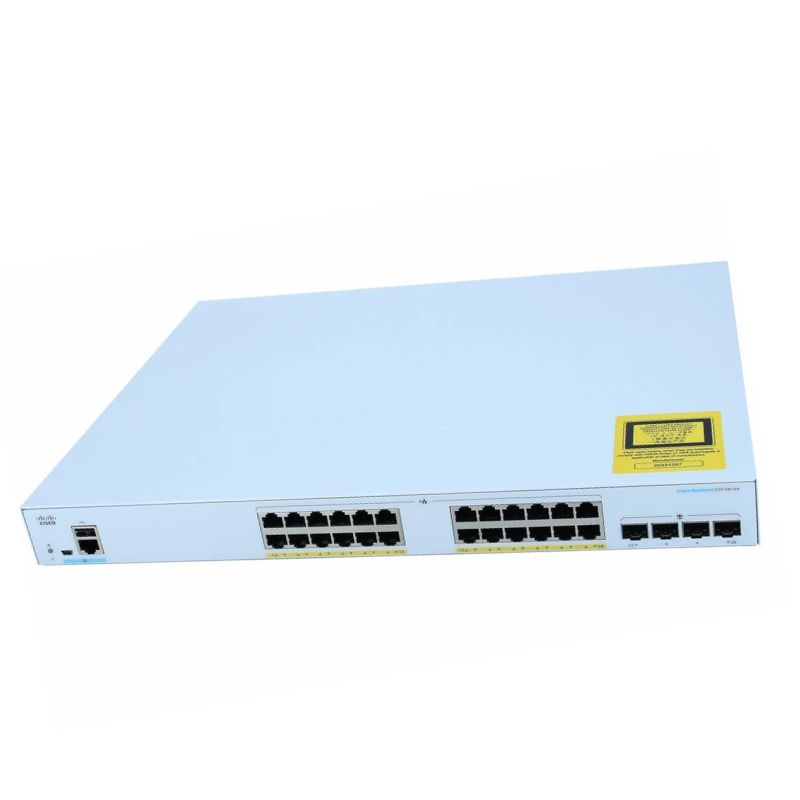

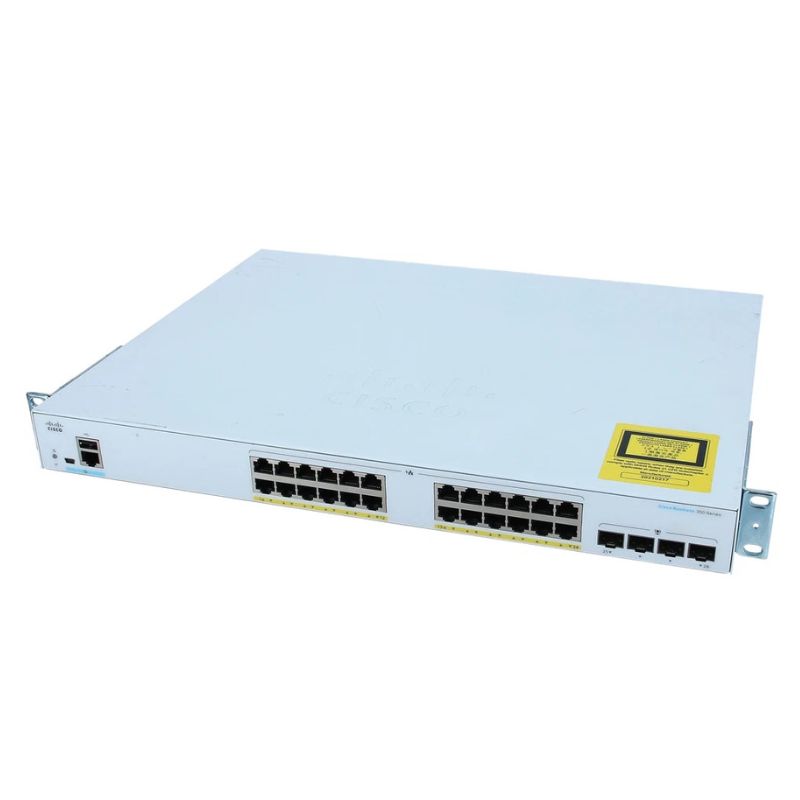

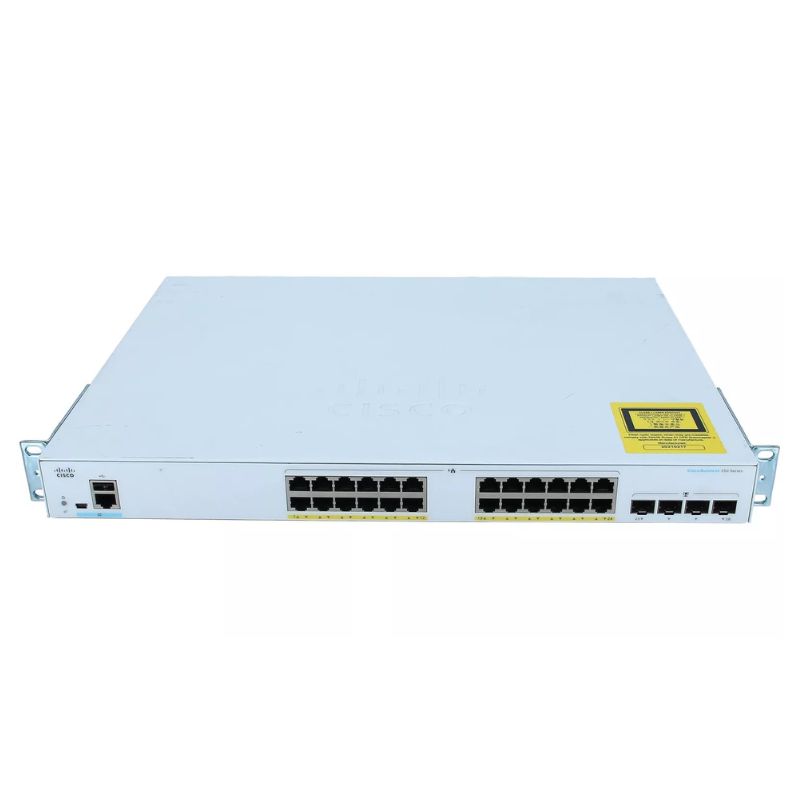

C1000-24FP-4X-L Cisco Catalyst 24 Ports Ethernet Switch

Product Summary of Cisco C1000-24FP-4X-L Catalyst Switch

The Cisco Catalyst C1000-24FP-4X-L is a reliable and enterprise-ready managed Ethernet switch designed for small to medium-sized networks. Built within Cisco’s trusted Catalyst 1000 Series, this switch delivers consistent performance, advanced management capabilities, and scalable connectivity for modern business environments.

General Specifications

• Brand: Cisco
• Model Number: C1000-24FP-4X-L
• Product Family: Catalyst
• Series: 1000
• Device Type: Managed Ethernet Switch

Ports and Connectivity

This managed switch is equipped with a versatile range of network interfaces, making it ideal for connecting access points, IP phones, and other powered devices.

Network Port Configuration

• Total available network ports: 24
• 24 x Gigabit Ethernet PoE+ ports
• Uplink support for high-bandwidth connections

Uplink and Expansion Options

• 4 x 10 Gigabit Ethernet uplink ports
• Supports modular expansion
• Designed for scalable network growth

Key Highlights of Cisco Catalyst C1000-24FP-4X-L

• 24 Gigabit Ethernet PoE+ access ports for powering network devices
• 4 high-speed 10 Gigabit Ethernet uplink ports
• Layer 2 switching for efficient traffic management
• Modular design for flexible network expansion
• Enterprise-grade reliability from Cisco

Switching Performance and Standards

The Cisco C1000-24FP-4X-L delivers dependable Layer 2 switching performance while supporting multiple Ethernet technologies to ensure compatibility across various network infrastructures.

Supported Media Types

• Twisted pair cabling
• Optical fiber connections

Ethernet and Network Technologies

• Gigabit Ethernet
• 10 Gigabit Ethernet
• 10/100/1000Base-T
• 10GBase-X

I/O Expansion Capabilities

To support high-speed data transfer and future network requirements, this Cisco switch includes multiple expansion slots.

Expansion Slot Details

• Total expansion slots: 4
• Slot type: SFP+
• Number of SFP+ ports: 4

Power and Management Features

Designed for efficient operation, the switch is powered by a dedicated internal power supply and offers full manageability for simplified network control.

• Power source: Internal power supply
• Fully manageable for centralized configuration
• Optimized for business-critical networking

Core Architecture and Hardware Specifications

At its heart, the C1000-24FP-4X-L is built on a non-blocking switching architecture that ensures all ports can forward traffic at line rate simultaneously, preventing bottlenecks in demanding network scenarios. The hardware is designed for operational longevity and stable performance in varied environmental conditions.

Port Configuration and Uplink Flexibility

The defining physical characteristic of this switch is its comprehensive port array, engineered for maximum connectivity and growth.

Downlink Port Details

The switch provides 24 Ethernet ports that operate at 10/100/1000 Mbps (1 Gigabit) speeds. Crucially, all 24 ports support IEEE 802.3at PoE+ (Power over Ethernet Plus), delivering up to 30 watts per port. This allows for the simultaneous powering and data connection of a wide array of devices, from VoIP phones and wireless access points to advanced security cameras and smart building sensors, eliminating the need for proximate electrical outlets and simplifying deployments.

High-Speed Uplink Capabilities

Beyond the access ports, the "4X-L" designation refers to the four built-in 1/10 Gigabit SFP+ (Small Form-Factor Pluggable Plus) uplink ports. These fiber or copper uplinks provide high-bandwidth aggregation to the network core or distribution layer, ensuring that traffic from the 24 Gigabit access ports has ample headroom. This design prevents uplink saturation and supports bandwidth-intensive applications and cascading of multiple switches without performance degradation.

Performance and Switching Capacity

With a high switching capacity and forwarding rate, this switch is engineered to handle the aggregated traffic of a busy office, classroom, or clinic. It supports jumbo frames, which improve data throughput efficiency for large data transfers and storage networking. The integrated hardware-based QoS (Quality of Service) and security features operate at wire speed, meaning advanced traffic management does not come at the cost of reduced performance.

Advanced Software Features and Network Management

As a fully managed switch, the C1000-24FP-4X-L offers deep control over network traffic, security policies, and monitoring. It runs on Cisco's robust IOS (Internetwork Operating System) software, providing a familiar, reliable, and feature-rich operating environment.

Comprehensive Switching and Routing

The switch operates at Layer 2 (Data Link Layer) and offers essential Layer 3 (Network Layer) features, making it a smart, routing-capable device.

Layer 2 Features for Network Segmentation

It supports a full suite of IEEE Ethernet standards, including VLANs (IEEE 802.1Q), Rapid Spanning Tree Protocol (RSTP/MSTP) for loop prevention and network resilience, and Link Aggregation Control Protocol (LACP) for bundling multiple ports into a single logical trunk, increasing bandwidth and providing redundancy.

Layer 3 Static Routing

For inter-VLAN routing, the switch supports static IPv4 and IPv6 routing. This allows traffic between different VLANs (e.g., separating guest, employee, and IoT device networks) to be routed efficiently at the access layer, offloading this task from core routers and improving local network performance and segmentation.

Enhanced Security Posture

Network security starts at the access edge. This switch incorporates a multi-layered security approach to protect the network and its data.

Access Control and Authentication

It supports IEEE 802.1X for port-based network access control (NAC), allowing user or device authentication against a central RADIUS server like Cisco ISE. This ensures only authorized entities can access the network. MAC-based authentication and web authentication provide flexibility for devices that do not support 802.1X. Additionally, Access Control Lists (ACLs) can be applied to filter traffic based on IP addresses, protocols, and ports.

Network Threat Mitigation

Features like DHCP snooping prevent rogue DHCP servers from distributing incorrect IP addresses. Dynamic ARP Inspection (DAI) guards against ARP spoofing attacks, and IP Source Guard prevents IP address spoofing. These features work in tandem to create a hardened access layer that is resistant to common LAN-based attacks.

Power over Ethernet (PoE) Management and Efficiency

The integrated PoE+ capability is a major differentiator, transforming the switch from a simple connectivity device into a power distribution platform.

Intelligent PoE Budgeting and Control

The switch features a substantial total PoE power budget, allowing administrators to power numerous high-wattage devices concurrently. Through the management interface, administrators can monitor real-time power consumption per port, set power priority levels to ensure critical devices remain powered during a budget shortfall, and remotely power cycle connected devices—a capability that can save significant time and cost in troubleshooting or managing large deployments of IP phones or APs.

Cisco EnergyWise Technology

For organizations focused on sustainability and reducing operational expenditure, the switch supports Cisco EnergyWise. This technology enables network-wide power management by measuring and controlling the energy consumption of connected PoE devices (like IP phones, monitors, and access points) and even non-PoE assets. Policies can be set to automatically power down devices during off-hours, leading to substantial energy savings.

Ideal Use Cases and Application

The specific combination of 24 PoE+ ports and 10G uplinks makes this switch exceptionally suited for several key environments where connectivity, power, and bandwidth converge.

Modern Workspace and Collaboration

In offices deploying unified communications (UC) with Cisco IP phones, video conferencing systems, and high-density wireless (with Cisco access points like the Aironet series), this switch provides the necessary power and prioritized data paths to ensure flawless collaboration experiences.

Secure and Intelligent Physical Security

For surveillance deployments, the switch can power multiple high-definition, pan-tilt-zoom (PTZ) IP cameras while providing the reliable, high-throughput connectivity needed to stream video to network video recorders (NVRs) and monitoring stations without lag or packet loss.

Educational and Healthcare Institutions

In classrooms and clinics, the switch can connect and power a diverse set of devices—from interactive displays and digital signage to medical carts and bedside telemetry—while maintaining strict network segmentation for compliance with regulations like HIPAA and providing the robustness required in critical environments.
