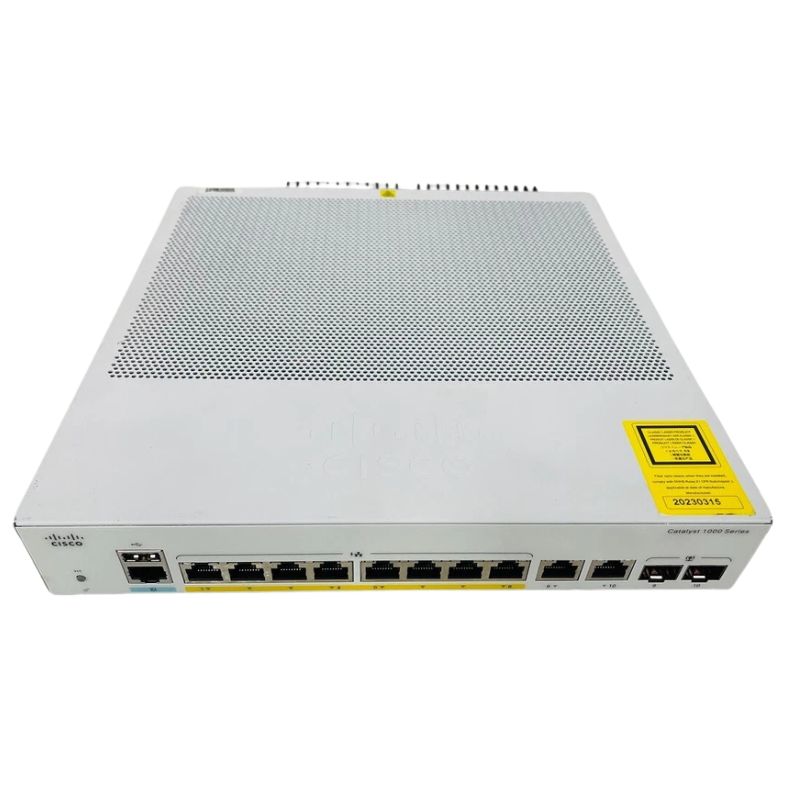

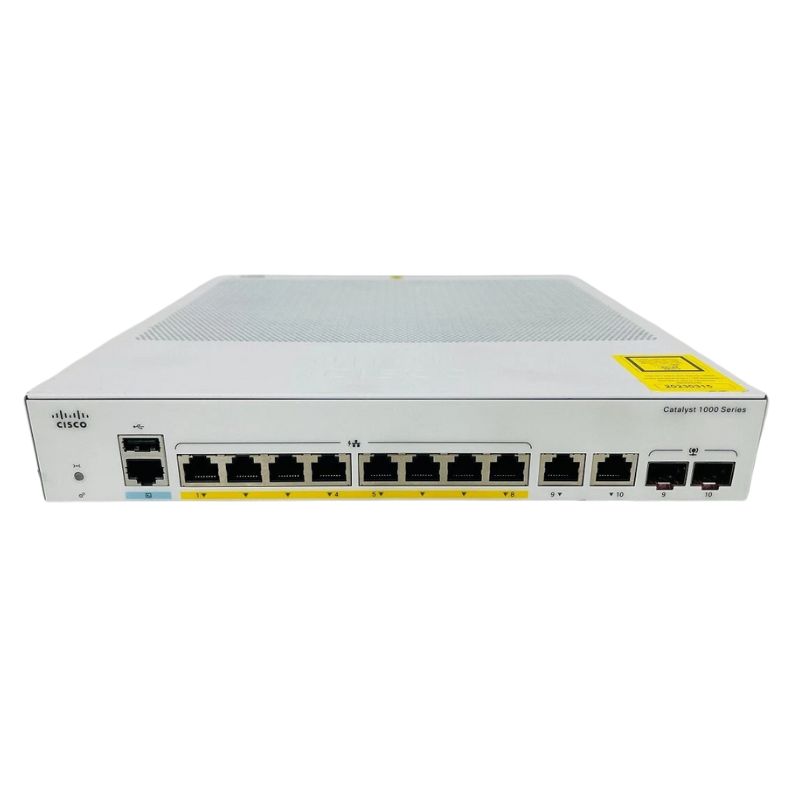

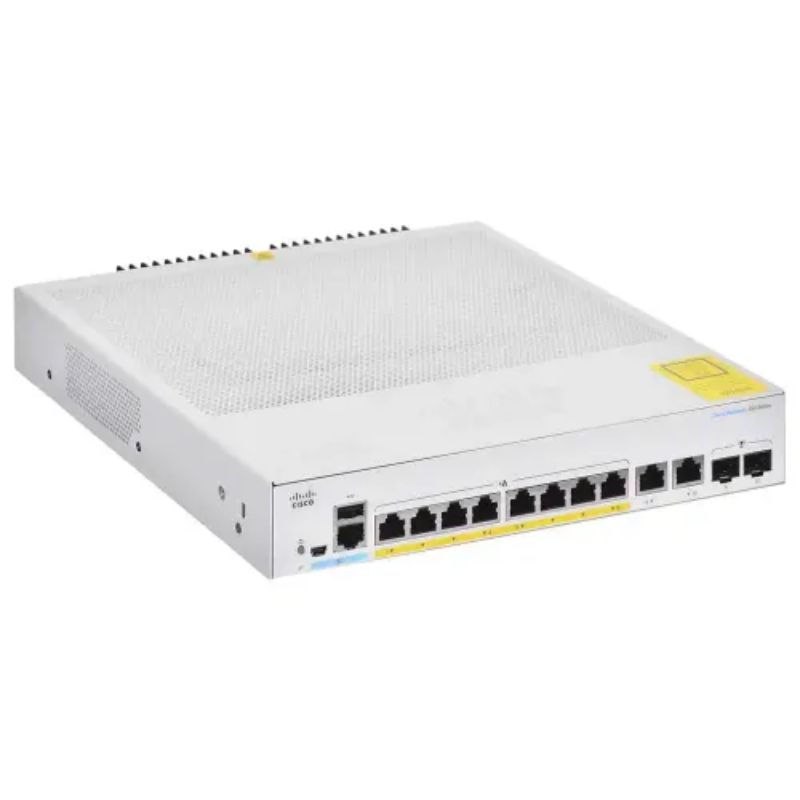

C1000-8P-2G-L Cisco Catalyst Switch 8 Ports SFP Uplink Rack-mountable

Key Features and Strategic Benefits

The Cisco C1000-8P-2G-L is more than just a port aggregator; it is a strategic network asset. Its design incorporates features that enhance performance, simplify management, and fortify network security, offering a total cost of ownership that is highly competitive.

Robust Hardware Design and Performance

Built for always-on business operations, the switch delivers non-blocking switching performance, ensuring wire-speed communication across all ports simultaneously. This eliminates bottlenecks at the access layer, providing a smooth user experience for data, voice, and video applications.

Port Configuration and Power over Ethernet (PoE)

The eight 10/100/1000BASE-T RJ-45 ports support IEEE 802.3af/at PoE and PoE+, enabling the switch to deliver both data and electrical power to connected devices. This capability is transformative for modern workspaces.

Devices and Applications Enabled by Integrated PoE:

VoIP Phones: Simplify deployment by eliminating separate power adapters for phone systems.
Wireless Access Points (WAPs): Flexibly place Wi-Fi coverage anywhere, even in areas without convenient power outlets.
IP Security Cameras: Power and connect surveillance cameras over a single network cable, streamlining installation and enhancing security systems.
IoT Sensors and Devices: Support the growing ecosystem of smart building and environmental sensors.

Fiber Uplink Capability with SFP Ports

The two 1 Gigabit SFP (Small Form-factor Pluggable) uplink ports are a defining feature. They allow network administrators to use fiber optic cables to connect the switch to the rest of the network over significantly longer distances than copper Ethernet allows (up to tens of kilometers). Fiber uplinks are also immune to electromagnetic interference, providing a more reliable and secure connection for critical backbone links.

Advanced Software and Management (LAN Base)

The '-L' (LAN Base) software image provides a rich set of features that go beyond basic unmanaged switching, offering control and visibility without overwhelming complexity.

Enhanced Security and Control

Network security starts at the access edge. The C1000-8P-2G-L includes port security, DHCP snooping, and Dynamic ARP Inspection (DAI) to prevent common man-in-the-middle and IP spoofing attacks. It also supports 802.1X network access control, ensuring only authorized users and devices can gain network access.

Quality of Service (QoS) for Optimized Traffic

To ensure critical applications like voice and video conferencing perform flawlessly, the switch offers advanced QoS features. It can classify, prioritize, and queue traffic based on IEEE 802.1p class of service (CoS) or IP differentiated services code point (DSCP) values, guaranteeing bandwidth for mission-critical flows.

Management and Automation

Administrators can manage the switch via a familiar Cisco IOS Command-Line Interface (CLI), a web-based graphical interface (GUI), or through SNMP. Support for Cisco DNA Center device plug-and-play simplifies large-scale deployments and Day 0 operations, while features like Smartport Macros auto-configure ports based on the type of device detected.

Ideal Deployment Scenarios and Use Cases

The compact size, PoE capability, and fiber uplinks of the Cisco C1000-8P-2G-L make it exceptionally versatile. It is the unsung hero in numerous deployment scenarios, providing reliable connectivity where it is needed most.

Small and Medium-Sized Business (SMB) Core/Edge Switching

For SMBs with modest port requirements, this switch can serve as the core networking device, connecting workstations, servers, and printers via its copper ports and using a fiber uplink to connect to an internet router or firewall for a high-performance WAN connection. Its manageability allows SMBs to implement professional-grade network policies.

Branch Office and Remote Site Connectivity

In distributed enterprises, this model is perfect for small branch offices or retail locations. It can power local devices and use its SFP ports for a fast, reliable fiber or long-range copper link back to the corporate headquarters or data center, ensuring seamless integration into the wider corporate network.

Enhanced Wireless Deployments

This switch is an optimal companion for wireless networks. It can power multiple Cisco or third-party wireless access points while using a high-bandwidth fiber uplink to backhaul the Wi-Fi traffic to the network core without congestion, supporting high-density Wi-Fi environments in offices or schools.

Specialized Environment: Point-of-Sale (POS) and Kiosk Networks

In retail or hospitality, clusters of POS terminals, receipt printers, and inventory scanners require reliable, always-on connectivity. The C1000-8P-2G-L's small size allows it to be mounted in a tight cabinet, powering these devices and aggregating their traffic over a single, secure fiber link to the back office.

Specialized Environment: Classroom and Educational Labs

Educational institutions benefit from its quiet, fanless operation (in certain models) and ability to power teacher computers, interactive displays, and student access points. The fiber uplink can handle the aggregated traffic from multiple classroom switches back to the school's main server room.

Software Features (LAN Base Image)

The feature set included with the LAN Base software license empowers administrators with robust management and security tools.

Layer 2+ Feature Set

VLANs: Support for 802.1Q trunking and a large number of VLANs for network segmentation.
Spanning Tree Protocol: Rapid PVST+ and MSTP for loop prevention and network redundancy.
Link Aggregation: LACP (Link Aggregation Control Protocol) for bundling multiple ports into a single logical link for increased bandwidth and redundancy.
Multicast Management: IGMP snooping for efficient video and multicast traffic delivery.

Comparing Within the Catalyst 1000 Family

The Catalyst 1000 series includes models with varying port counts, PoE budgets, uplink options, and software licenses.

C1000-8P-2G-L vs. Non-PoE Models

If you do not need to power devices like phones or access points, a non-PoE model (e.g., C1000-8T-2G-L) may be more cost-effective while retaining the same management features and uplink capability.

C1000-8P-2G-L vs. Models with More Ports

For larger workgroups, consider 24-port or 48-port models in the same series (e.g., C1000-24P-4G-L). These offer higher total PoE budgets and more uplink options but come in a larger physical form factor.

Understanding Software License Tiers

The Catalyst 1000 series typically offers three tiers: Essential (basic L2), LAN Base (advanced L2, featured here), and IP Lite (basic L3 routing). The C1000-8P-2G-L with LAN Base is the sweet spot for most professional deployments requiring comprehensive security and management without dynamic routing.
