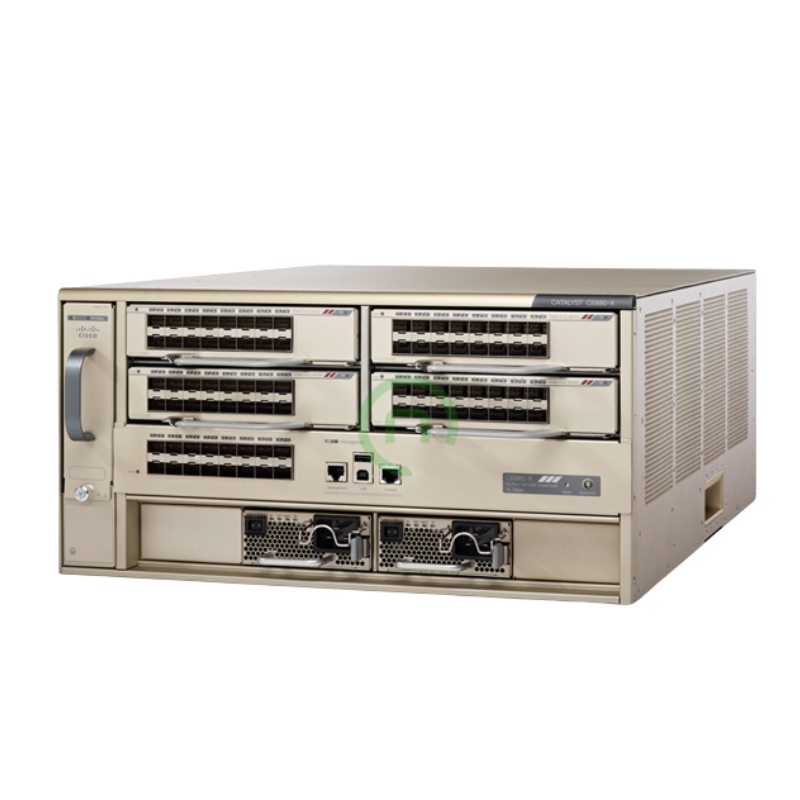

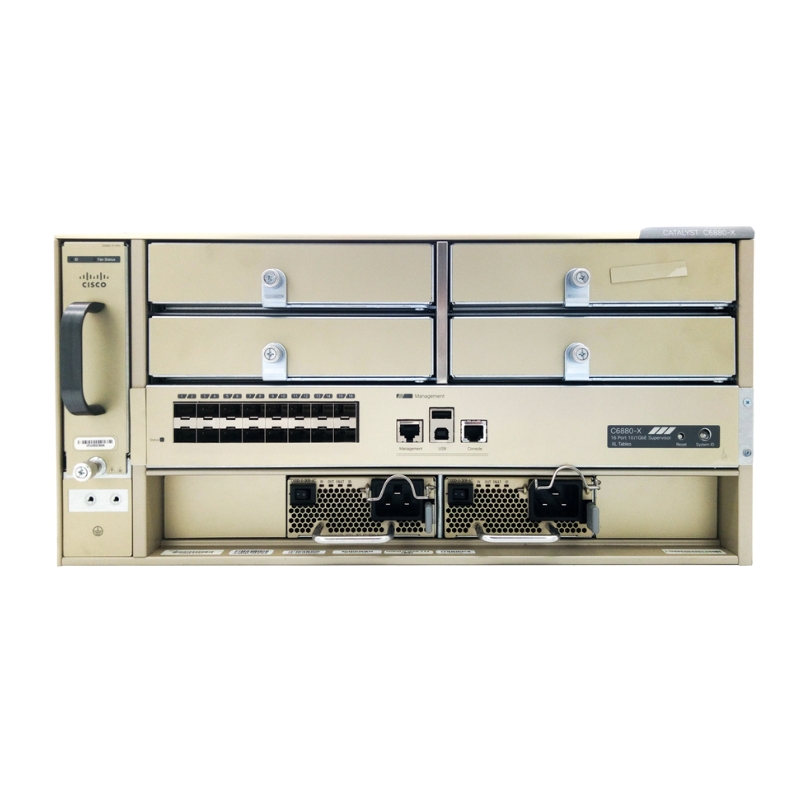

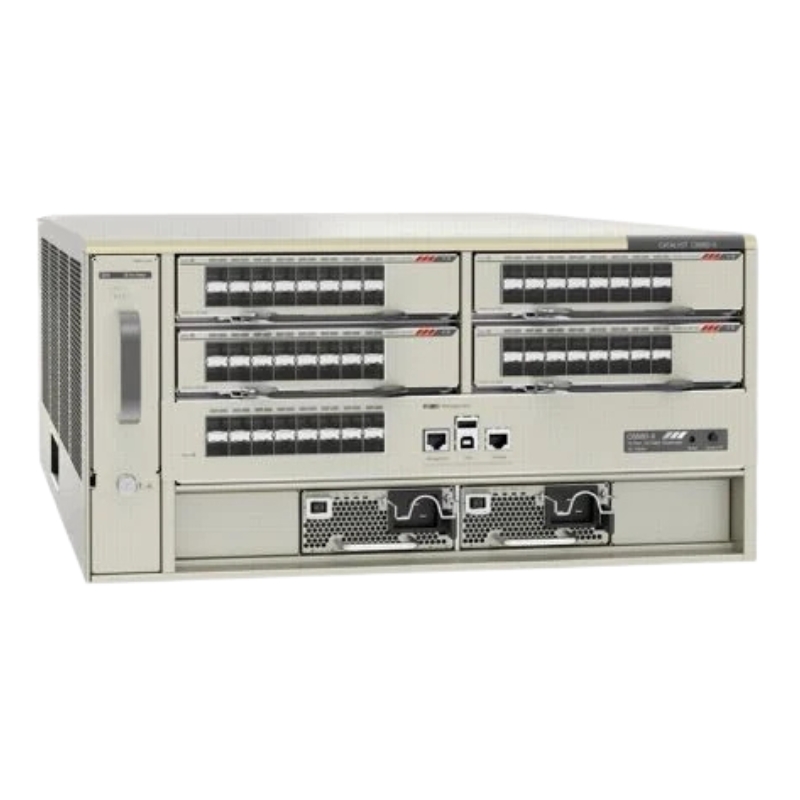

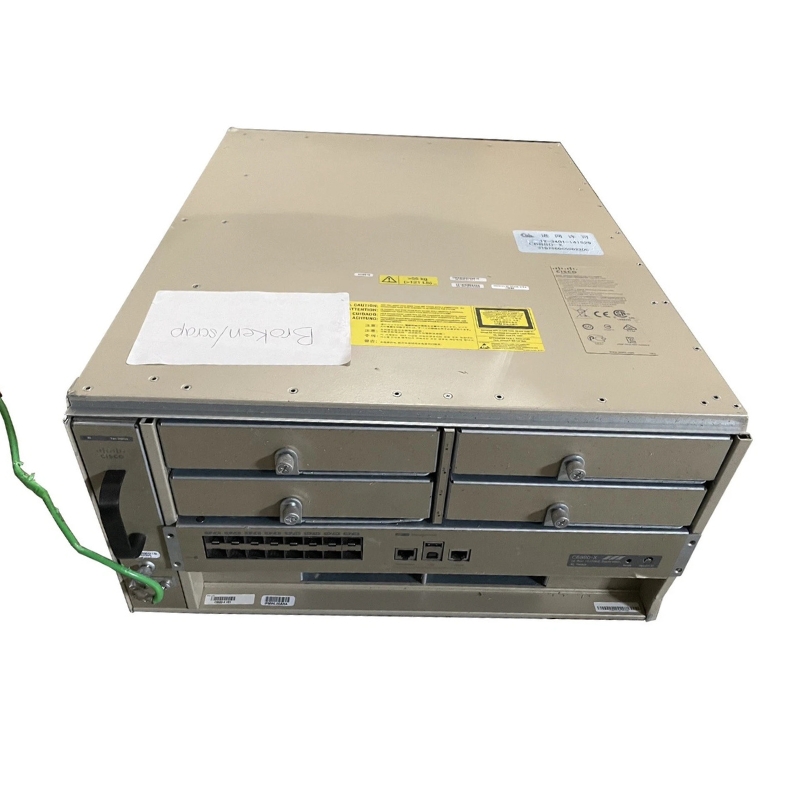

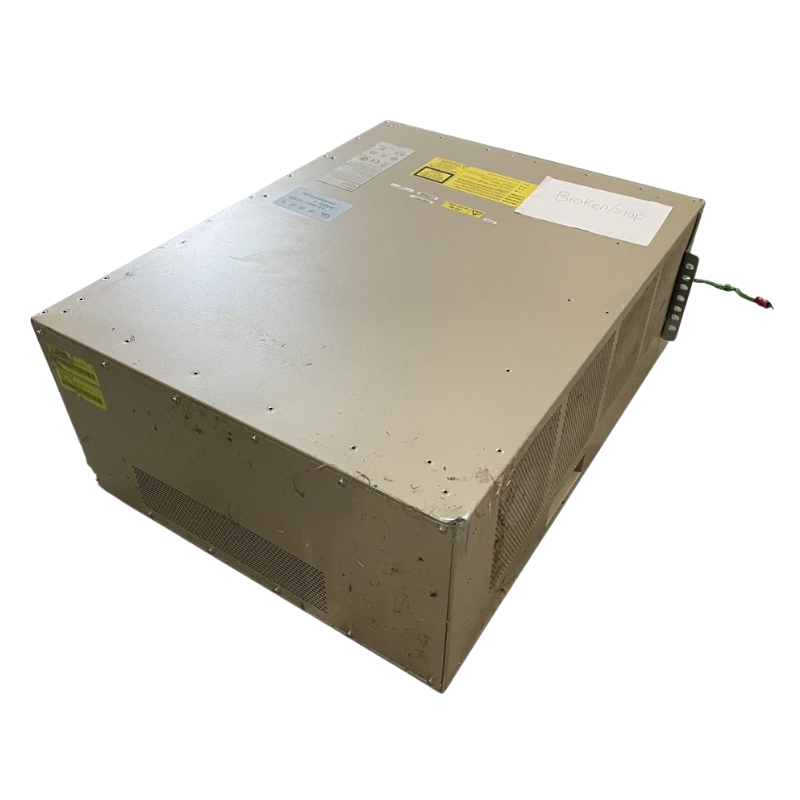

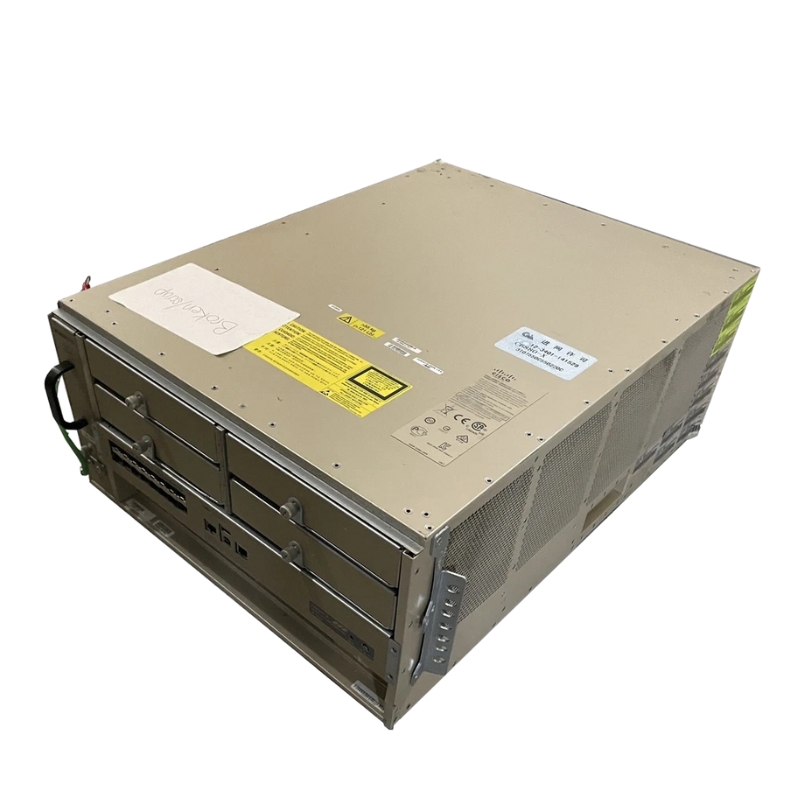

C6880-X-LE Cisco Catalyst 6880-X Managed Switch Chassis

Cisco C6880-X-LE Switch Chassis Specifications

• Manufacturer: Cisco
• Part Number: C6880-X-LE
• Product Line: Catalyst
• Product Series: 6880-X
• Type: Switch Chassis

Interface and Port Configuration

• Port Types: 16 x 1 Gigabit / 10 Gigabit SFP+
• Management Port: Yes
• USB Ports: Yes
• Expansion Slots: 20 Total
• SFP+ Slots: 16

Supported Network Technologies

• Ethernet Technology: 10 Gigabit Ethernet
• Network Technology: 10GBase-X

Performance and Features

• Layer Supported: Layer 3
• Features: NAT support, MPLS support, IGMP snooping, High Availability, ACL support, VRF-Lite, MLD snooping, NetFlow

Form Factor

• Rack-Mountable: Yes
• Desktop Option: Yes

Environmental and Power Specifications

• Minimum Operating Temperature: 32 °F
• Maximum Operating Temperature: 104 °F
• Operating Humidity Range: 5 – 90% (non-condensing)

Storage Conditions

• Minimum Storage Temperature: -4 °F
• Maximum Storage Temperature: 149 °F
• Storage Humidity Range: 5 – 95% (non-condensing)

Management and Protocols

• Manageable: Yes
• Supported Protocols: MIB, RMON, VLAN, QoS
• Memory: 2 GB

Power Description

• Power Device: Internal power supply – hot-plug
• Installed Quantity: 0 (installed) / 2 (max)
• Power Redundancy: Optional
• Redundancy Scheme: 1+1 (with optional power supply)

Compliance and Standards

• NEBS Level 3
• FCC Class A Certified
• EN 60950
• IEC 60950
• EN55024
• EN55022 Class A
• UL 60950
• EN50082-1
• EN 61000-6-1
• AS/NZS 60950
• GR-1089-CORE
• CAN/CSA C22.2 No. 60950
• VCCI Class A
• ETS 300 386

Features

High-performance

The Cisco C6880-X-LE Managed Switch Chassis is designed to deliver exceptional performance for demanding network environments. With its advanced hardware architecture and high-speed connectivity options, this switch provides fast data transfer rates, ensuring smooth and uninterrupted network operations. Whether you are running bandwidth-intensive applications or handling large data transfers, the high-performance capabilities of this switch ensure optimal network performance at all times.

Benefits:

• Enhanced productivity: The high-performance capabilities of the Cisco C6880-X-LE enable faster data transfer, reducing latency and improving overall network efficiency. This translates to increased productivity for users, as they can access resources and information quickly and efficiently.
• Seamless user experience: By delivering high-performance networking, this switch ensures a seamless user experience without any lag or delays. Users can enjoy smooth video streaming, fast file transfers, and responsive online applications, leading to improved satisfaction and productivity.
• Scalability: The high-performance nature of the Cisco C6880-X-LE allows for easy scalability. As your network grows and demands increase, this switch can handle the additional workload without compromising performance. It provides a future-proof solution that can adapt to evolving business needs.

Scalable

The Cisco C6880-X-LE Managed Switch Chassis offers scalability features that make it an ideal choice for growing businesses. It supports modular expansion, allowing you to add additional line cards or modules as needed. This flexibility ensures that your network can accommodate new devices and increased traffic without requiring a complete infrastructure overhaul.

Benefits:

• Cost-effective growth: By offering scalable options, this switch enables businesses to expand their network infrastructure without significant upfront costs. Instead of investing in an entirely new system, you can simply add modules to the existing chassis, saving both time and money.
• Future-proof solution: The scalability of the Cisco C6880-X-LE ensures that your network can adapt to changing business requirements. As your organization grows or introduces new applications, this switch can easily accommodate the increased demands, providing a scalable and future-proof solution.
• Greater flexibility: With the ability to scale, you have the flexibility to customize your network based on specific needs. You can add specialized line cards or modules to support advanced features or technologies, tailoring your network infrastructure to meet unique requirements.

Flexible

The flexibility of the Cisco C6880-X-LE Managed Switch Chassis makes it suitable for a wide range of networking environments. It supports various interfaces and protocols, allowing for seamless integration with different devices and systems. Whether you need to connect servers, storage devices, or other networking equipment, this switch offers the necessary flexibility to ensure compatibility.

Benefits:

• Easy integration: The flexible nature of this switch simplifies the integration process. It supports multiple interfaces such as Ethernet, Fiber Channel, and InfiniBand, allowing you to connect diverse devices without compatibility issues.
• Interoperability: By supporting various protocols and standards, including IPv4 and IPv6, the Cisco C6880-X-LE ensures interoperability with different networking equipment. This promotes seamless communication and collaboration across devices and systems.
• Adaptability: The flexibility of this switch enables it to adapt to evolving networking technologies and trends. As new protocols or standards emerge, this switch can be updated or expanded to support them, providing a future-proof solution that can keep up with changing requirements.

Reliable

The Cisco C6880-X-LE Managed Switch Chassis is built with reliability in mind. It incorporates redundant components and advanced features to ensure uninterrupted network connectivity. With its high availability design, this switch minimizes downtime and maximizes network reliability.

Benefits:

• Improved uptime: The reliable design of this switch reduces the risk of network outages. Redundant power supplies, fans, and other critical components ensure that the switch remains operational even in the event of a failure, maximizing network uptime and minimizing disruptions.
• Business continuity: By minimizing downtime, this switch helps maintain business continuity. It ensures that critical applications and services remain accessible to users, preventing potential revenue loss or productivity setbacks due to network failures.
• Resilience: The Cisco C6880-X-LE is designed to withstand environmental challenges and fluctuations. It includes features like temperature sensors and airflow management to maintain optimal operating conditions, enhancing the overall resilience and longevity of the switch.

Supports advanced networking capabilities

The Cisco C6880-X-LE Managed Switch Chassis provides extensive support for advanced networking capabilities, enabling businesses to implement sophisticated network architectures and technologies.

Benefits:

• Enhanced security: This switch supports advanced security features like Access Control Lists (ACLs), Virtual Private Networks (VPNs), and Secure Shell (SSH) protocols. These capabilities enable businesses to establish secure connections, protect sensitive data, and prevent unauthorized access.
• Quality of Service (QoS): The Cisco C6880-X-LE offers QoS features that prioritize network traffic based on predefined rules. This ensures that critical applications receive the necessary bandwidth and priority, optimizing network performance and user experience.
• High availability protocols: This switch supports various high availability protocols, such as Virtual Router Redundancy Protocol (VRRP) and Hot Standby Router Protocol (HSRP). These protocols enhance network resilience and ensure uninterrupted connectivity in case of device or link failures.
• Advanced monitoring and management: With support for advanced monitoring and management capabilities, this switch allows administrators to efficiently monitor network performance, troubleshoot issues, and optimize resource allocation. It offers features like SNMP (Simple Network Management Protocol) and NetFlow, enabling comprehensive network visibility and control.
