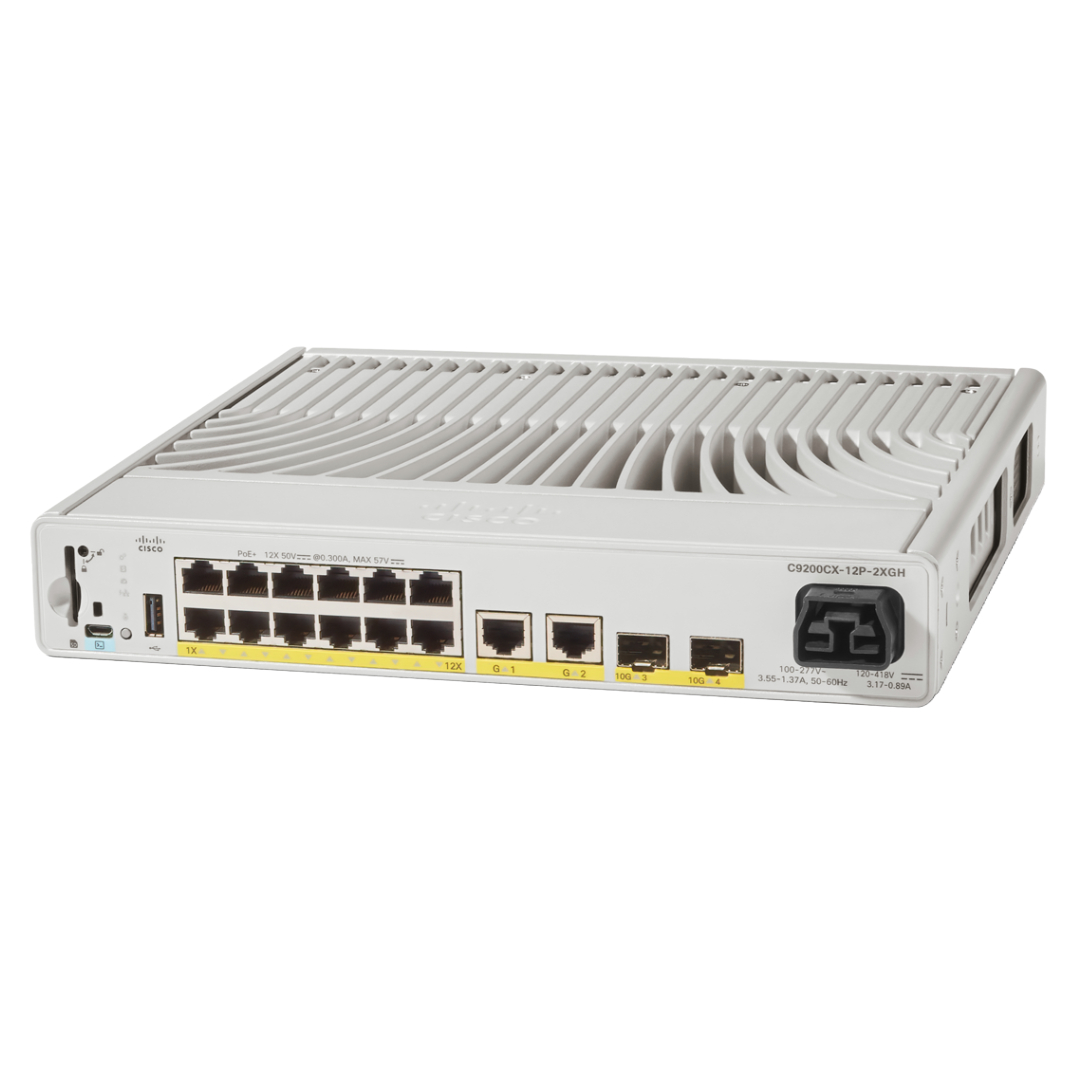

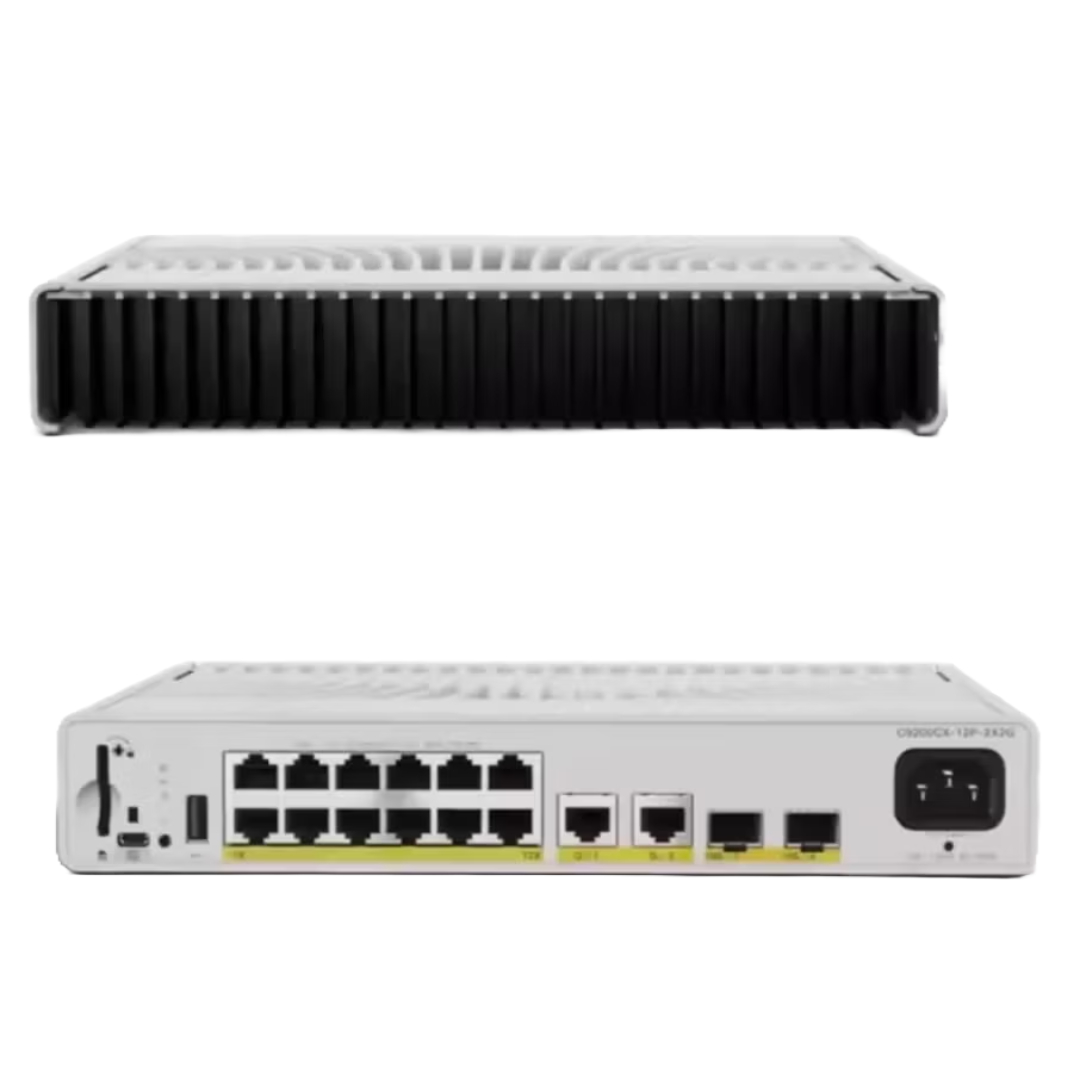

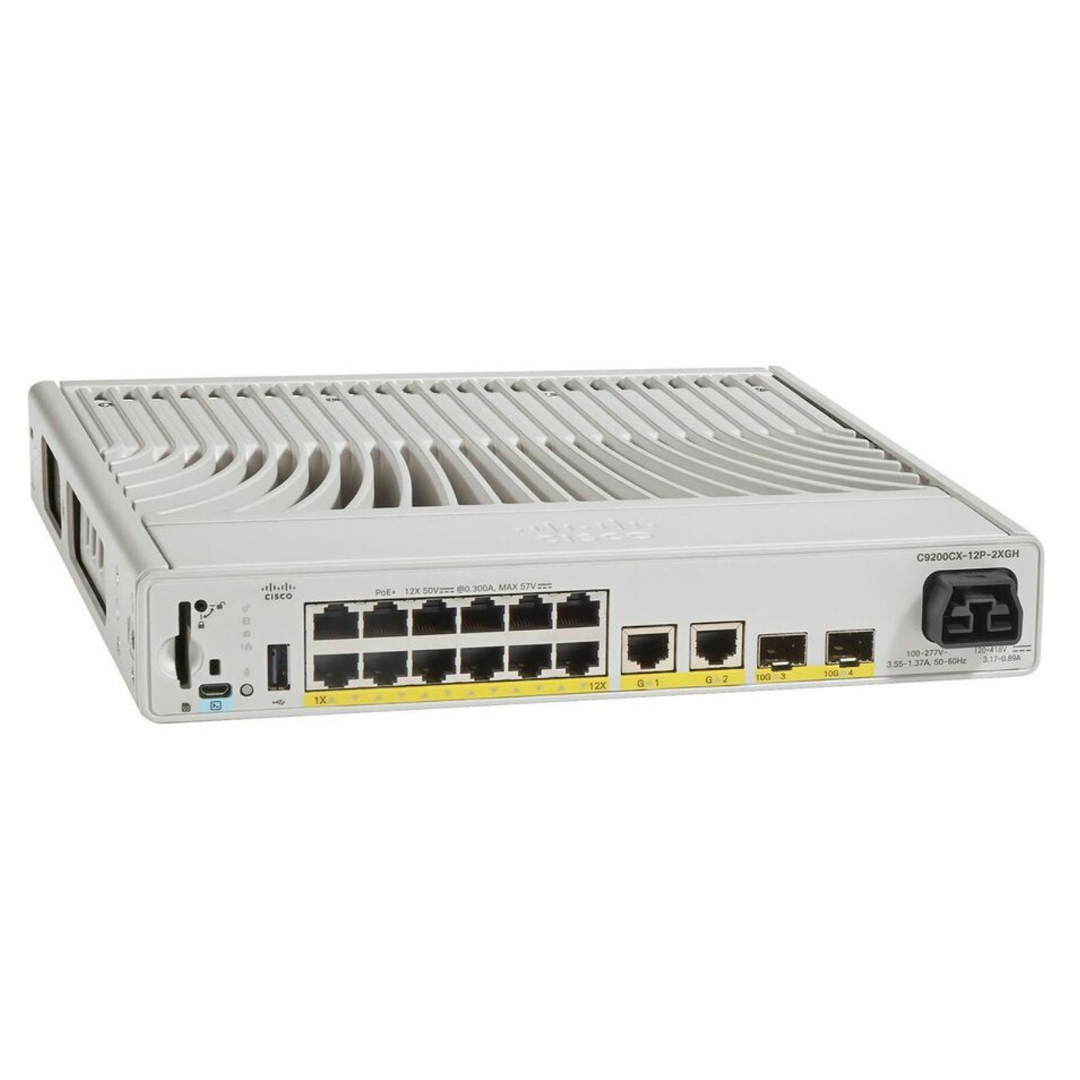

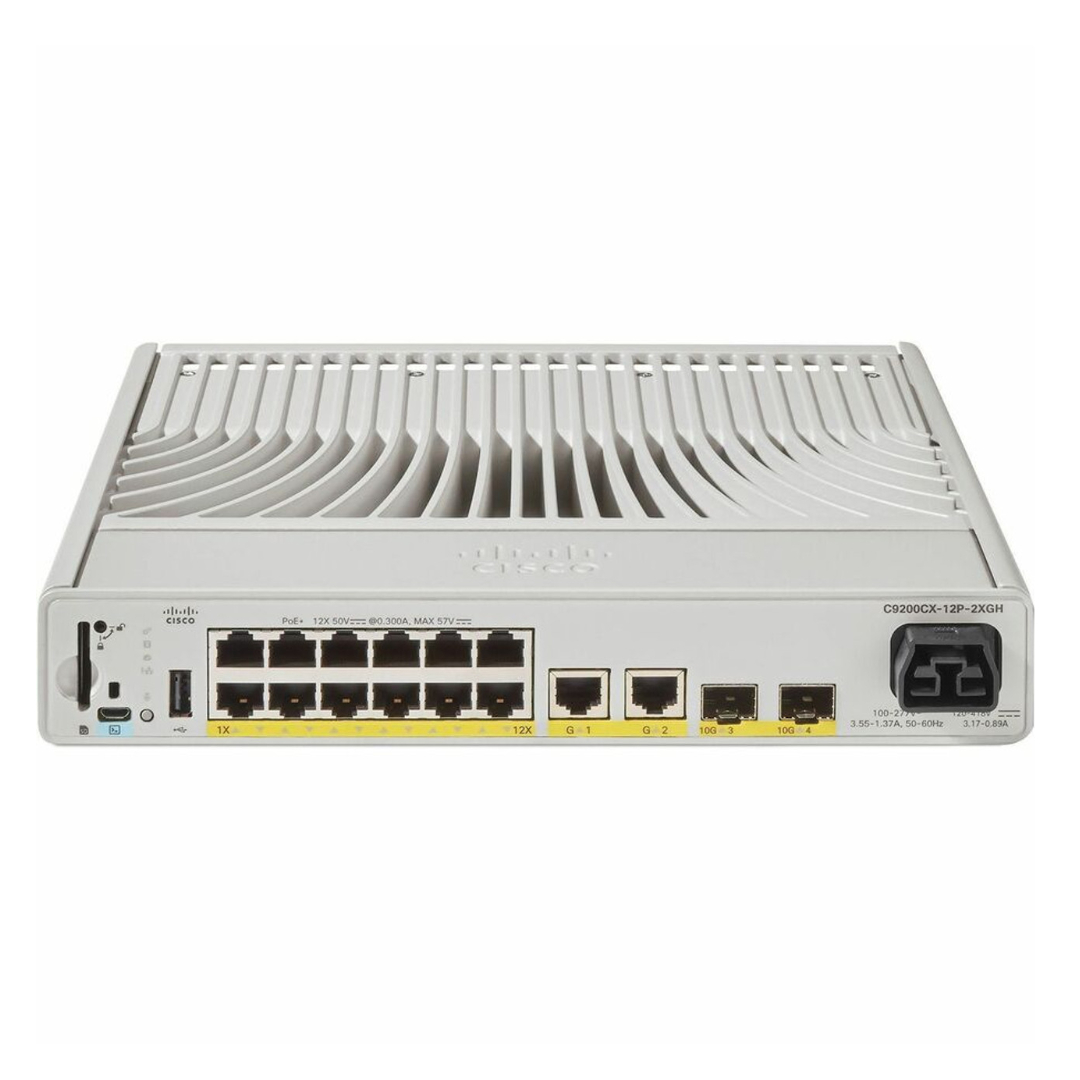

C9200CX-12P-2X2G-A Cisco Catalyst 9200CX 12-Port Network Switch Uplinks

Highlights of Cisco Catalyst 9200CX-12P-2X2G-A Switch

The Cisco Catalyst 9200CX-12P-2X2G-A is a versatile, rack-mountable network switch engineered for modern enterprise networks. Delivering exceptional reliability and advanced Layer 3 capabilities, this compact 12-port switch ensures seamless connectivity and scalable performance for growing infrastructures.

Main Specifications

• Manufacturer: Cisco
• Part Number: C9200CX-12P-2X2G-A
• Device Type: Managed 12-Port Layer 3 Switch

Key Technical Highlights

• Device Type: Managed Layer 3 Switch with 12 Gigabit Ethernet ports
• Form Factor: 1U rack-mountable enclosure, ideal for space-efficient deployments
• Port Configuration: 12 x 10/100/1000 PoE+ ports, 2 x 1000BASE-T, 2 x 10G SFP+ uplinks
• PoE Capabilities: PoE+ support with 240 W total budget for powering devices directly
• Switching Performance: 120 Gbps switching capacity, 95.23 Mpps forwarding rate, 6 Mb packet buffer

Routing & Virtualization

• Supports OSPF, EIGRP, RIP, VRRP, PIM-SM, PIM-SSM, Policy-Based Routing, and more
• Handles up to 14,000 IPv4 routes and 2,000 IPv6 routing entries
• Supports 16 virtual networks and up to 4,096 VLAN IDs
• Flexible NetFlow entries up to 16,000 for comprehensive traffic analysis

Network Capacity & Security

• MAC address table supports 32,000 entries
• Jumbo frame support up to 9,198 bytes
• Robust security features including 802.1x authentication, MACsec, Access Control Lists, Control Plane Protection (CoPP)
• Quality of Service (QoS) and DiffServ (DSCP) support for traffic prioritization

Connectivity and Expansion Options

• 12 x 1000BASE-T RJ-45 PoE+ ports delivering up to 30 W each
• 2 x 1000BASE-T RJ-45 ports for uplink connections
• 2 x 10GBASE-X SFP+ uplink ports for high-speed backbone integration
• 1 x USB 2.0 port and 1 x micro-USB console port for device management
• 1 SD memory card slot for storage expansion

Power and Energy Efficiency

• Internal Power Supply: 310 W, supporting AC 100–240 V (50/60 Hz)
• Energy-Efficient Ethernet features for reduced power consumption

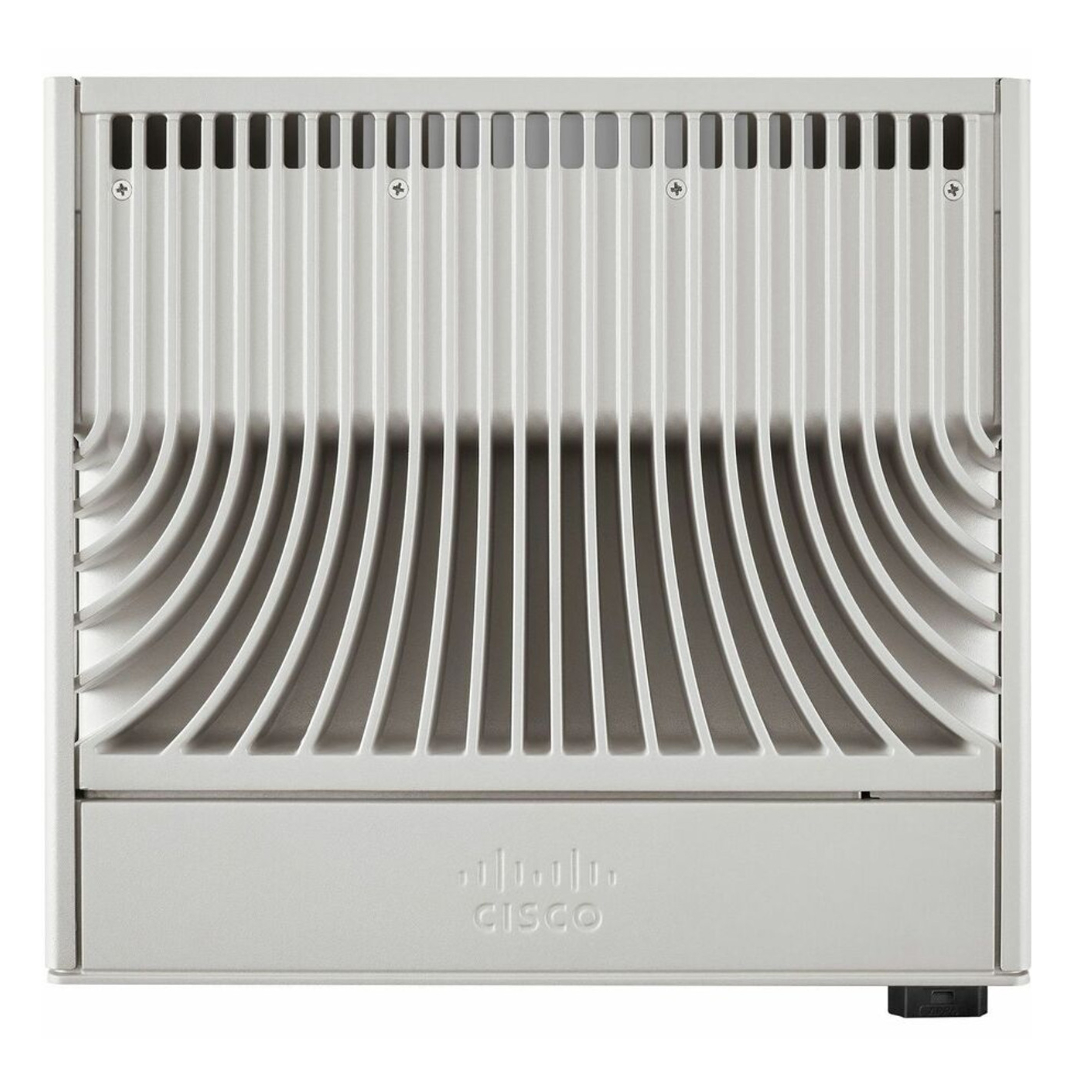

• Fanless design enhances silent operation and lower maintenance

Management and Monitoring Features

• Comprehensive remote management with SNMP v1/2c/3, RMON, CLI, NetConf, RESTCONF, and YANG support
• Embedded Event Manager (EEM) for automated network monitoring and control
• Remote Switch Port Analyzer (RSPAN) and Switched Port Analyzer (SPAN) for detailed traffic analysis

Standards Compliance and Reliability

• IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3af, 802.3at
• IEEE 802.1d, 802.1q, 802.1p, 802.1w, 802.1s, 802.1x, 802.1ae for enhanced interoperability
• Robust QoS, spanning-tree, and multicast support for enterprise-grade stability

Memory and Storage

• RAM: 4 GB for smooth operation and multitasking
• Flash Memory: 8 GB for firmware and configuration storage

Additional Features

• RFID tag for asset management
• Comprehensive status indicators including power and port activity
• Supports advanced protocols like PvLAN, First Hop Security, and flexible netflow analytics

Benefits of Cisco Catalyst 9200CX-12P-2X2G-A

• Compact yet powerful switch suitable for modern enterprise networks
• High PoE budget to support a variety of devices without additional power adapters
• Future-ready 10G uplinks and Layer 3 routing capabilities
• Energy-efficient, fanless design for quiet and sustainable deployment
• Comprehensive management and security features ensuring network resilience

Ideal Applications

• Medium to large enterprise campus networks
• High-density PoE deployments including IP phones, cameras, and wireless access points
• Scalable network backbone connections with 10G uplinks
• Managed environments requiring advanced routing, security, and monitoring

Overview of Cisco Catalyst 9200CX Series

The Cisco Catalyst 9200CX series represents the next generation of enterprise-class network switches designed to deliver unmatched performance, scalability, and security. The Cisco C9200CX-12P-2X2G-A, a prominent model in this series, offers a 12-port rack-mountable design with two high-speed 2G uplinks, catering to the modern network demands of medium to large enterprises. With its compact form factor, advanced Layer 2 and Layer 3 capabilities, and simplified management features, this switch ensures optimal connectivity while reducing operational complexity.

Advanced Network Performance

The Cisco C9200CX-12P-2X2G-A switch is engineered to provide superior network throughput with minimal latency. Its 12 high-performance ports support Power over Ethernet (PoE), allowing seamless integration with IP phones, wireless access points, and other PoE-enabled devices. The dual 2G uplinks ensure reliable and high-speed data transfer, enhancing the overall efficiency of network traffic management. This performance-oriented architecture makes the switch ideal for demanding environments requiring low latency and high availability.

Layer 2 and Layer 3 Capabilities

Equipped with advanced Layer 2 and Layer 3 features, the Cisco Catalyst 9200CX facilitates efficient routing and switching operations. Layer 2 functionalities such as VLAN segmentation, spanning tree protocols, and link aggregation allow for robust local network configurations. Meanwhile, Layer 3 capabilities, including static routing, OSPF, and IPv6 support, enable seamless integration with complex network topologies. This combination ensures flexible and scalable network deployment, making it suitable for growing enterprise networks.

Enhanced Security Features

Security is a critical aspect of modern networking, and the Cisco C9200CX series addresses this with comprehensive built-in mechanisms. Features such as IEEE 802.1X authentication, dynamic ARP inspection, and IP source guard help protect against unauthorized access and potential threats. Additionally, the switch supports encrypted communications and role-based access control, allowing IT administrators to enforce strict policies and ensure data integrity across the network. These security capabilities are essential for businesses looking to safeguard sensitive information while maintaining high network performance.

Scalability and Flexibility

The modular design of the Cisco Catalyst 9200CX series provides unparalleled scalability. The C9200CX-12P-2X2G-A model supports stacking capabilities, allowing multiple switches to be managed as a single entity. This feature simplifies network expansion and ensures that businesses can grow their infrastructure without major overhauls. Flexible deployment options, including rack-mountable and compact form factors, make it adaptable to various physical environments, from traditional server rooms to modern office spaces.

Power over Ethernet (PoE) Support

One of the standout features of the Cisco C9200CX-12P-2X2G-A switch is its robust PoE capabilities. By delivering power directly through the Ethernet cables, the switch eliminates the need for separate power supplies for connected devices, streamlining installation and reducing costs. This feature is particularly advantageous for deploying IP phones, wireless access points, and security cameras. The intelligent PoE management ensures efficient power allocation and prioritization, maintaining device functionality even under high-demand scenarios.

Intuitive Management and Automation

Managing complex network environments is simplified with Cisco DNA Center and Cisco IOS XE software. The C9200CX-12P-2X2G-A switch supports automated provisioning, configuration templates, and real-time monitoring. These capabilities allow IT teams to quickly deploy new devices, troubleshoot issues, and optimize network performance without extensive manual intervention. Automation features not only enhance operational efficiency but also reduce the likelihood of configuration errors, ensuring consistent network reliability.

Energy Efficiency

In addition to high performance, the Cisco Catalyst 9200CX series prioritizes energy efficiency. The switch incorporates advanced power management features, including Energy Efficient Ethernet (EEE) and intelligent cooling mechanisms. These innovations reduce power consumption and minimize environmental impact, making it an ideal choice for organizations focused on sustainability. Efficient thermal design ensures that the switch operates reliably in varying environmental conditions while maintaining optimal energy usage.

Robust Redundancy and Reliability

Reliability is a cornerstone of the Cisco Catalyst 9200CX series. Features such as redundant power supplies, rapid failover capabilities, and software-based high availability protocols ensure continuous network operation. The C9200CX-12P-2X2G-A switch is designed to withstand hardware failures without disrupting critical business processes. Its resilient architecture guarantees minimal downtime, making it suitable for mission-critical applications that demand uninterrupted network availability.

Flexible Deployment Scenarios

The Cisco C9200CX-12P-2X2G-A switch is suitable for a wide range of deployment scenarios. Whether used in branch offices, data centers, or campus networks, its compact design, high performance, and PoE support make it versatile for diverse networking environments. The switch can be mounted in standard 19-inch racks or installed in confined spaces, providing organizations with flexibility in network layout and physical deployment. Its adaptability ensures that businesses can optimize network performance regardless of physical constraints.
