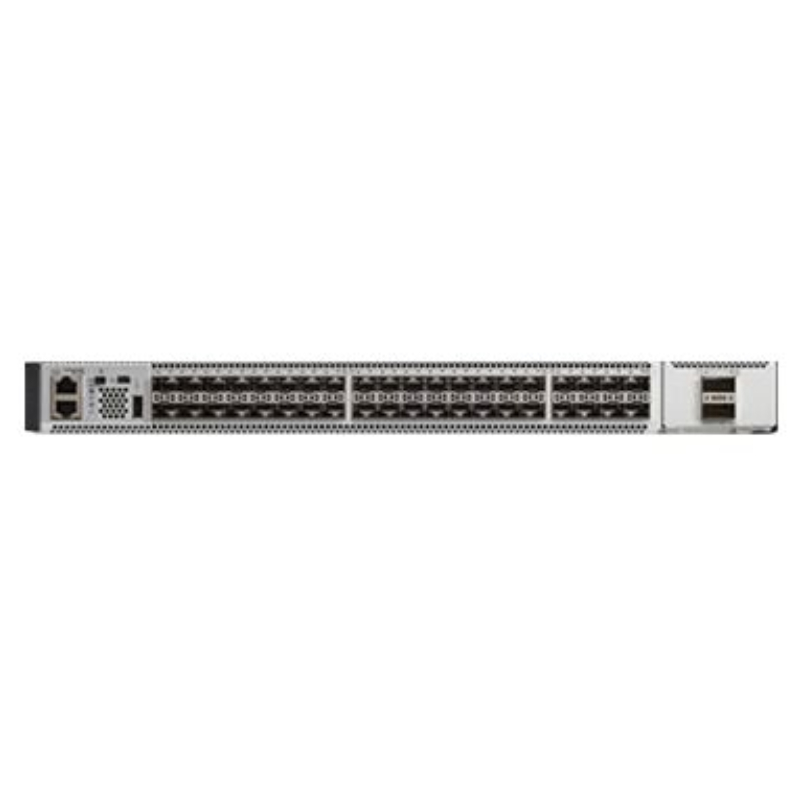

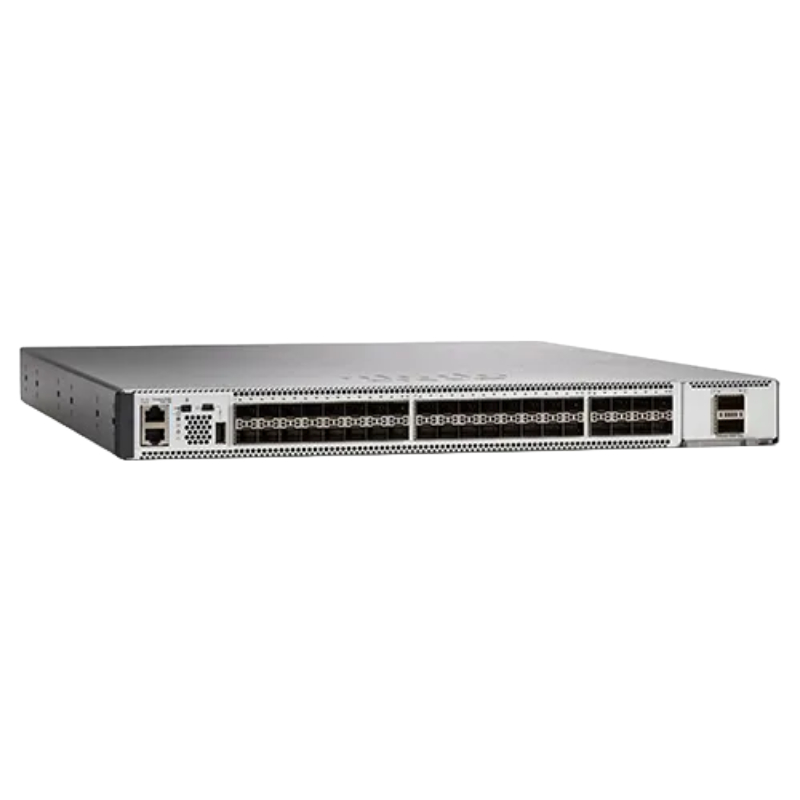

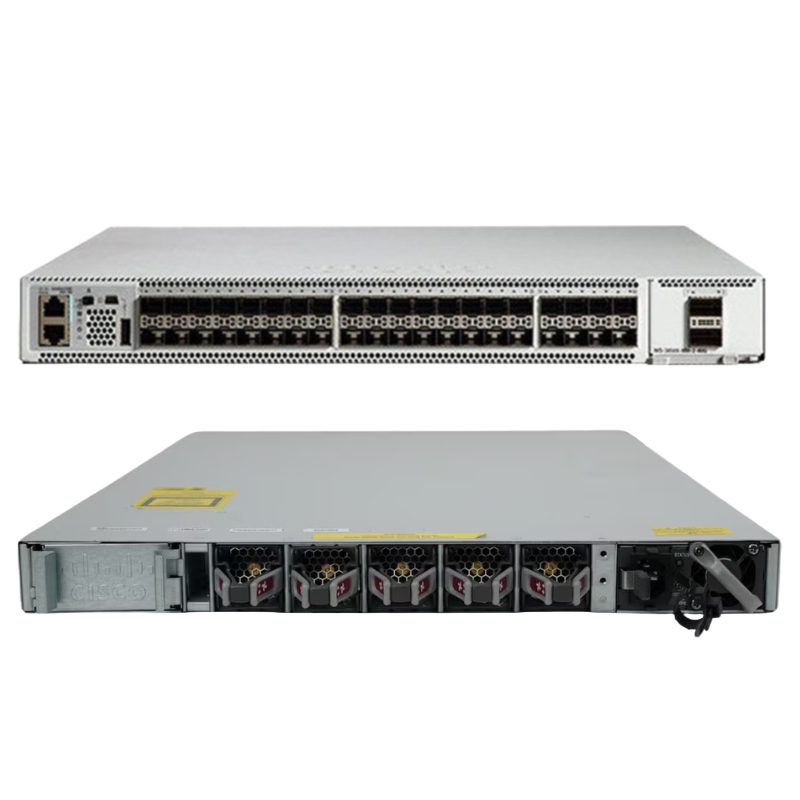

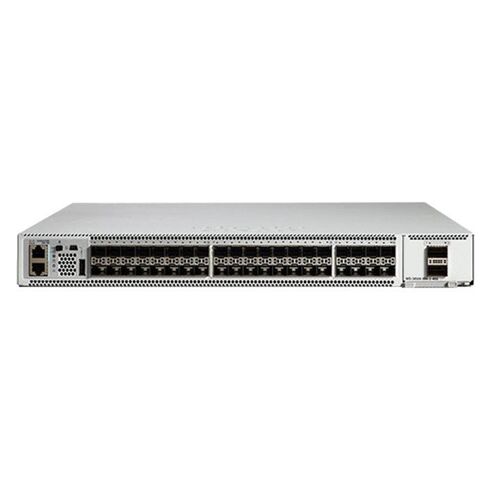

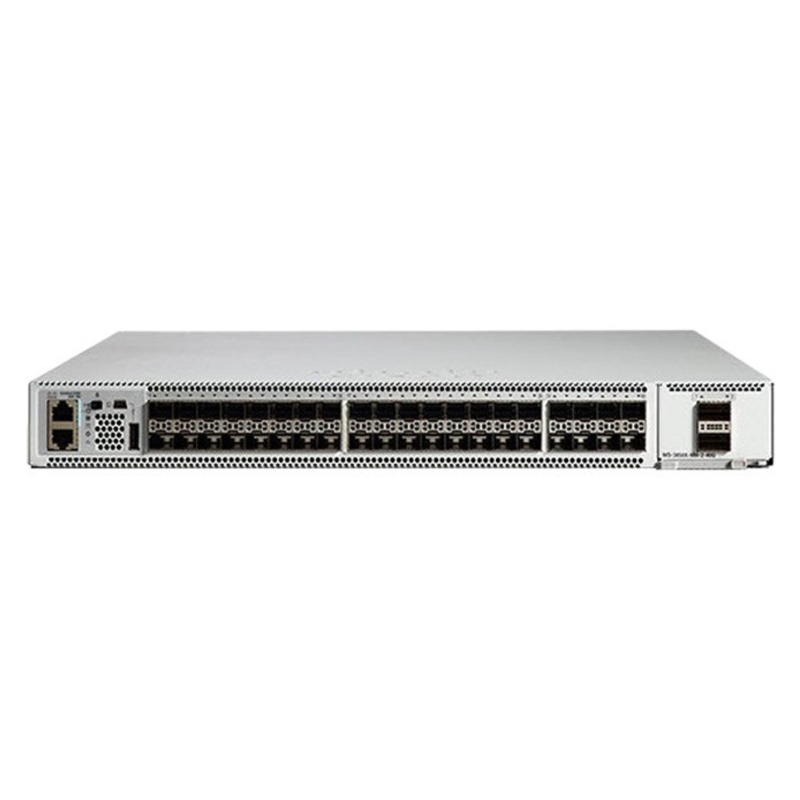

Cisco C9500-40X-2Q-A Catalyst 9500 40-port 10G switch

Cisco C9500-40X-2Q-A Catalyst 9500: A Comprehensive Overview

The Cisco C9500-40X-2Q-A Catalyst 9500 series switch is designed to meet the evolving needs of modern enterprise networks, offering advanced security, scalability, and high-performance switching. Featuring 40 10-Gigabit Ethernet ports and two 40-Gigabit Ethernet uplink modules, this switch delivers the power, speed, and flexibility essential for enterprise-level networks. The NW Advantage license, included in the model, ensures that enterprises have access to premium software capabilities, optimizing both security and network efficiency.

The Cisco Catalyst 9500 series is part of the broader Catalyst family, which is recognized for its robustness and innovative features. This particular model, the C9500-40X-2Q-A, is ideal for organizations that require high-speed connectivity, seamless network scaling, and a strong emphasis on security. Whether you are upgrading an existing network or building a new one, this switch is designed to handle the workload of data centers, campus networks, and large enterprises.

Core Features of the Cisco C9500-40X-2Q-A

The Cisco C9500-40X-2Q-A is built with enterprise networks in mind. It offers an array of core features that make it suitable for high-demand environments, ensuring that networks can scale and perform without compromising on security or efficiency. Here are some of the standout features of the Cisco C9500-40X-2Q-A:

1. High Port Density and Flexible Uplinks

This switch offers 40 10-Gigabit Ethernet ports, making it an ideal solution for organizations that require high port density for multiple connections. Additionally, the switch comes equipped with two 40-Gigabit Ethernet uplink modules, providing the flexibility to create uplinks to the core network, ensuring that bandwidth demands are met even in high-traffic environments.

2. Advanced Security Features

The Cisco C9500-40X-2Q-A comes with advanced security features to protect enterprise networks. The NW Advantage license ensures that the switch is equipped with Cisco's comprehensive suite of security tools, including hardware-anchored secure boot and trust anchor modules (TAM), which protect against unauthorized software modifications. Furthermore, this switch integrates with Cisco DNA Center, allowing for enhanced network visibility and proactive security measures, such as real-time threat detection and mitigation.

3. Scalability for Growing Networks

The C9500-40X-2Q-A supports stackable architecture, enabling networks to grow alongside organizational needs without necessitating expensive overhauls. The switch can easily be stacked with other Catalyst 9500 models, providing seamless scalability for campus networks, data centers, and large enterprise networks. With its high throughput and ability to handle large amounts of data, this switch ensures network growth without performance degradation.

4. Enhanced Performance with Multigigabit Technology

This switch delivers high performance by supporting Multigigabit technology, allowing for more bandwidth over existing cabling infrastructure. This eliminates the need to rewire entire networks, saving both time and costs for network upgrades. With the ability to deliver speeds of up to 40 Gbps, the C9500-40X-2Q-A ensures that even the most data-intensive applications are handled seamlessly.

5. Integrated Cisco DNA Center

Cisco DNA Center is a key feature of the C9500-40X-2Q-A, offering centralized management for enterprise networks. With Cisco DNA, network administrators can leverage automation, analytics, and assurance tools to optimize network performance. Cisco DNA Assurance provides real-time insights and analytics to ensure that network issues are quickly identified and resolved. Moreover, Cisco DNA simplifies network management through automation, reducing the complexity of configuring and troubleshooting network devices.

Benefits of the Cisco C9500-40X-2Q-A Catalyst Switch

The Cisco C9500-40X-2Q-A is designed to deliver key benefits to enterprises that require a powerful, scalable, and secure switching solution. Below are some of the significant advantages of this switch for enterprise networks:

1. Simplified Network Management

With the integration of Cisco DNA Center, the C9500-40X-2Q-A allows for simplified network management through automation. This reduces the manual effort needed to configure, manage, and troubleshoot the network. Automated processes enhance network performance by minimizing human error and expediting changes. Moreover, the network’s performance can be monitored in real-time, ensuring issues are quickly identified and resolved before they impact users.

2. Future-Proofing Through Scalability

As enterprises grow, so too do their networking needs. The Cisco C9500-40X-2Q-A supports modular expansion, allowing businesses to scale their networks without requiring a complete hardware overhaul. The ability to stack multiple switches also enables seamless growth, as additional switches can be integrated into the network without interrupting existing services. This future-proofing ensures that the switch can continue to meet the needs of expanding enterprises.

3. Superior Security and Threat Detection

Security is a top priority for enterprise networks, and the Cisco C9500-40X-2Q-A delivers industry-leading security features. From hardware-anchored secure boot to real-time threat detection with Cisco DNA Center integration, this switch provides multiple layers of protection. Cisco’s intent-based networking solutions ensure that security policies are enforced network-wide, and any anomalies are flagged immediately for investigation. This helps enterprises prevent data breaches and secure their most sensitive information.

4. Cost Efficiency

The Cisco C9500-40X-2Q-A is designed to optimize network performance while maintaining cost efficiency. Its Multigigabit technology enables higher speeds over existing cabling infrastructure, eliminating the need for costly rewiring. Additionally, the NW Advantage license includes premium software features, reducing the need for additional software purchases. Over time, the automation features of Cisco DNA Center reduce operational costs by streamlining network management and minimizing downtime.

5. Energy Efficiency

This switch is designed with energy efficiency in mind, helping enterprises reduce their carbon footprint and lower operating costs. The Cisco Catalyst 9500 series complies with the Energy Efficient Ethernet (EEE) standard, which reduces power consumption during periods of low network activity. Moreover, the switch features Cisco’s EnergyWise technology, enabling businesses to monitor and manage the energy consumption of their network infrastructure. By reducing power usage, the C9500-40X-2Q-A contributes to a more sustainable IT environment.

Applications and Use Cases for the Cisco C9500-40X-2Q-A

The Cisco C9500-40X-2Q-A is designed for a range of applications, making it suitable for various types of enterprise networks. Its high-performance capabilities, advanced security features, and scalability make it an ideal choice for:

1. Campus Networks

In large campus environments, where multiple departments and buildings require reliable and high-speed connectivity, the Cisco C9500-40X-2Q-A excels. The switch’s high port density, flexible uplinks, and stackable architecture make it easy to expand and scale as the campus network grows. Additionally, its advanced security features protect against cyber threats, ensuring that sensitive data remains secure.

2. Data Centers

The C9500-40X-2Q-A is an excellent choice for data centers that require high throughput and low latency. With its 40 10-Gigabit Ethernet ports and two 40-Gigabit uplink modules, this switch ensures that data centers can handle large volumes of traffic efficiently. The switch’s support for Multigigabit technology enables faster data transfer speeds without the need for expensive infrastructure upgrades.

3. Enterprise Core Networks

As the backbone of an enterprise network, the core layer requires switches that offer both high performance and reliability. The Cisco C9500-40X-2Q-A fits this requirement perfectly, providing a robust solution that can handle the demands of core networks. The switch’s stackable architecture allows for easy expansion, while its integration with Cisco DNA Center ensures that the core network is both secure and easy to manage.

4. Internet of Things (IoT) Deployments

With the growing adoption of IoT devices, enterprise networks need switches that can handle increased traffic and ensure security. The C9500-40X-2Q-A is designed to meet these needs, with its high port density, advanced security features, and support for Cisco DNA Center’s IoT integration capabilities. This switch ensures that IoT devices are securely connected and that the network can scale to accommodate future growth in IoT deployments.

Technical Specifications of the Cisco C9500-40X-2Q-A

1. Port Specifications

The Cisco C9500-40X-2Q-A offers 40 fixed 10-Gigabit Ethernet ports and two modular 40-Gigabit Ethernet uplinks. This provides the flexibility needed for large enterprise deployments and high-bandwidth applications. The switch also supports Multigigabit technology, ensuring optimal performance for demanding applications without requiring infrastructure upgrades.

2. Throughput and Performance

Designed for high-performance environments, the C9500-40X-2Q-A provides a switching capacity of 960 Gbps and forwarding rate of up to 720 Mpps (million packets per second). This ensures that the switch can handle large amounts of data traffic while maintaining low latency and high reliability. Enterprises can trust that this switch will meet the performance demands of data-intensive applications.

3. Power and Energy Efficiency

The Cisco C9500-40X-2Q-A is compliant with the IEEE 802.3az Energy Efficient Ethernet (EEE) standard, ensuring that power consumption is minimized during periods of low activity. Additionally, Cisco EnergyWise technology allows for comprehensive monitoring and management of energy usage across the network. This switch is designed to optimize energy efficiency, helping enterprises lower their operational costs and reduce their environmental impact.

4. Dimensions and Weight

The physical dimensions of the Cisco C9500-40X-2Q-A are compact, making it suitable for deployment in a wide range of environments. The switch measures 1.72 inches in height, 17.5 inches in width, and 21.5 inches in depth, and it weighs approximately 22.5 pounds. This form factor ensures that the switch can be easily integrated into existing rack environments, saving space without compromising on performance.

5. Software and Licensing

The C9500-40X-2Q-A comes with the NW Advantage license, which unlocks premium software features. This includes advanced routing protocols, security features, and automation tools that enhance the switch’s functionality. Additionally, the switch integrates with Cisco’s Software-Defined Access (SD-Access) architecture, enabling a simplified, policy-based approach to network management and security. The NW Advantage license ensures that enterprises have access to all the tools needed to manage and secure their networks effectively.
