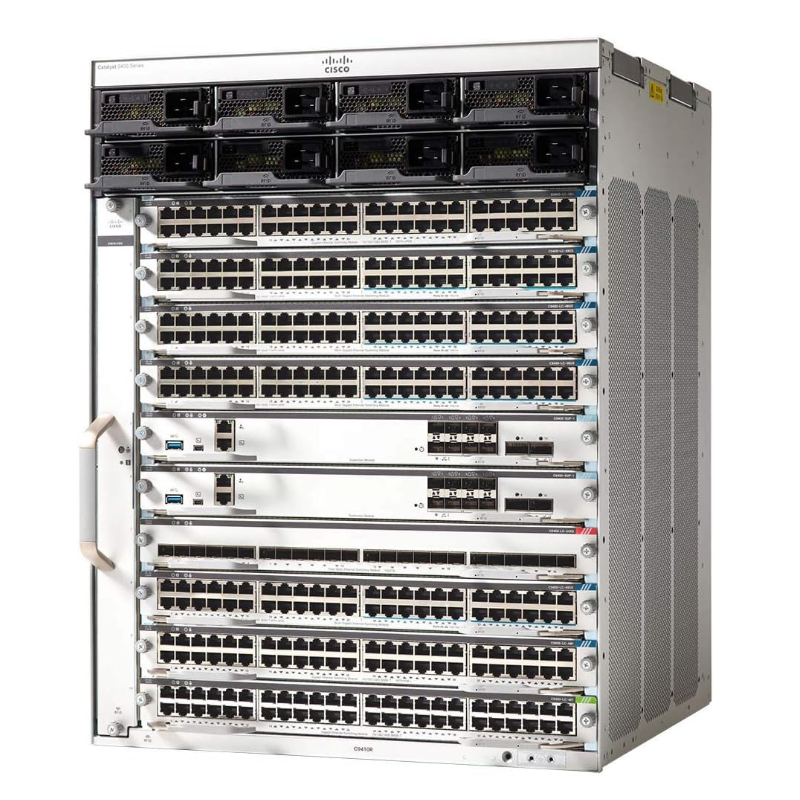

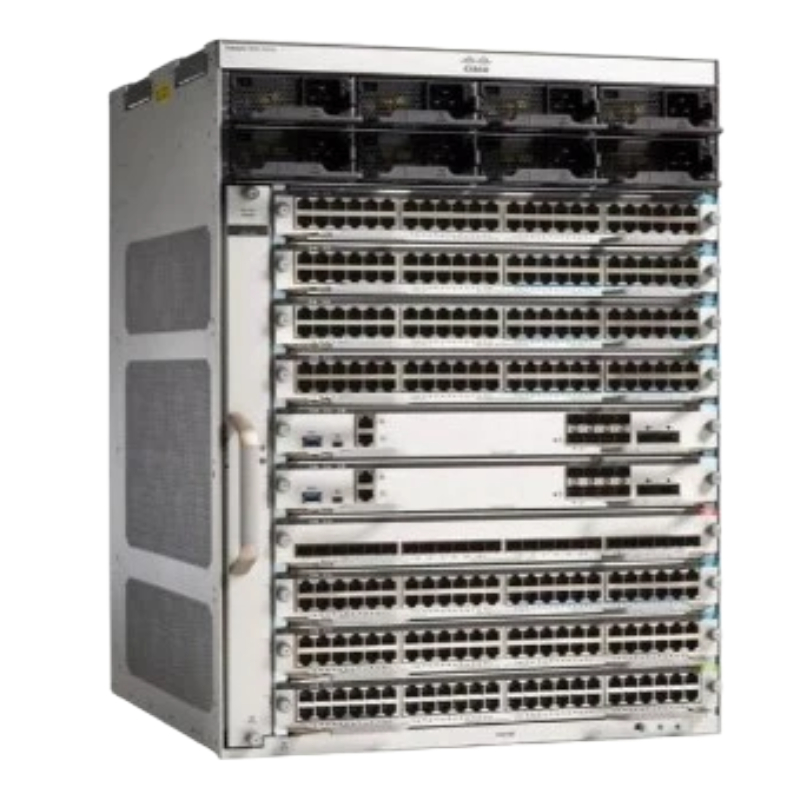

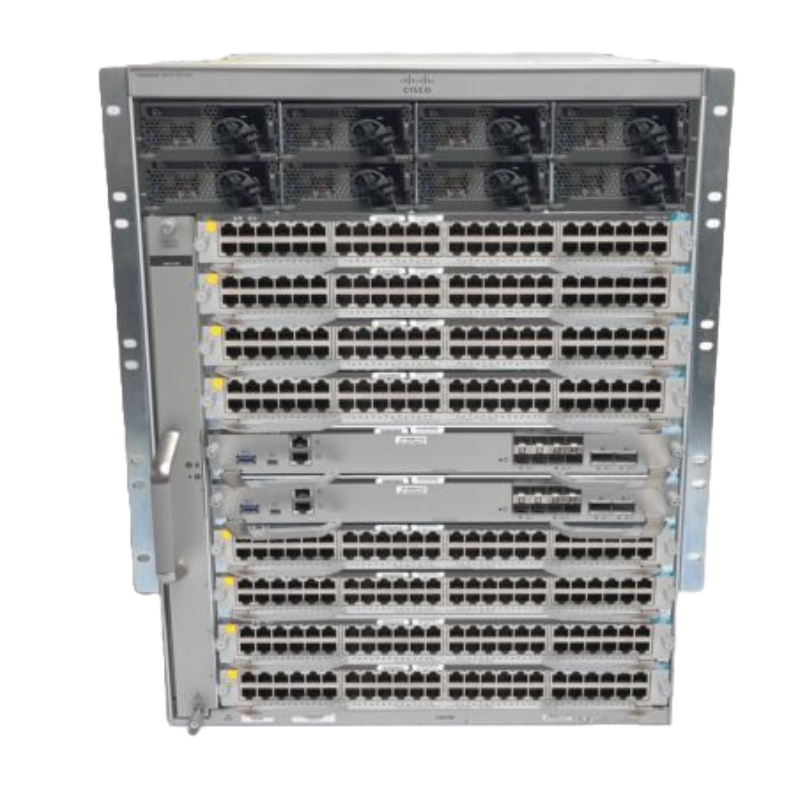

Cisco C9410R= Catalyst 9400 10 Slot Switch Chassis

Device Overview

• Part Number: Cisco C9410R=
• Device Type: Network Switch
• Enclosure Style: Side-to-Side Airflow, Rack-Mountable, 13U
• Power Over Ethernet (PoE): Yes

Expansion Capabilities

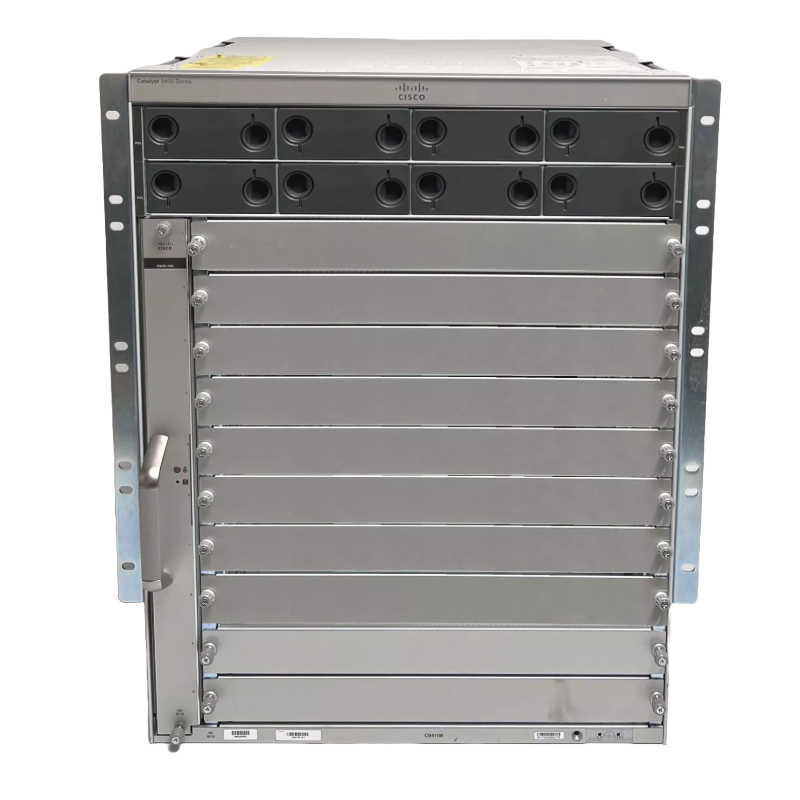

• Expansion Slots:
  • Line-card Slots: 8 total / 8 available
  • Supervisor Slots: 2 total / 2 available
• Maximum Installed Modules: 0 / 10 maximum

Power Specifications

• Power Device: Internal Power Supply (not included) - Hot-plug capability
• Power Redundancy: Optional
• Required Voltage: AC 120/230 V

Dimensions and Weight

• Dimensions (W x D x H): 17.3 in x 12.5 in x 22.6 in
• Weight: 64.99 lbs

Key Features

• Flexible Expansion: Accommodates various line-card and supervisor modules

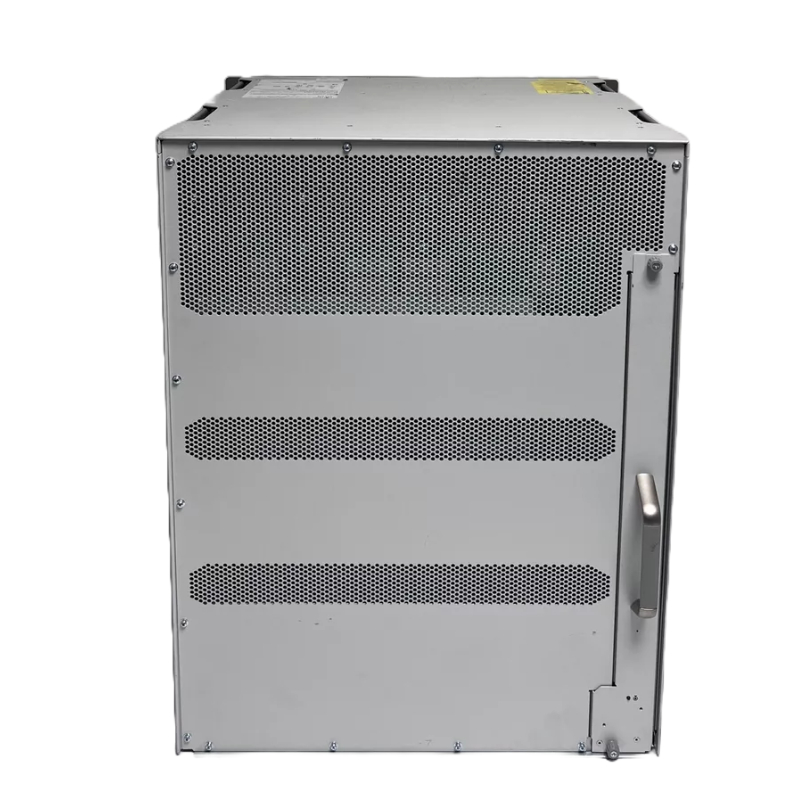

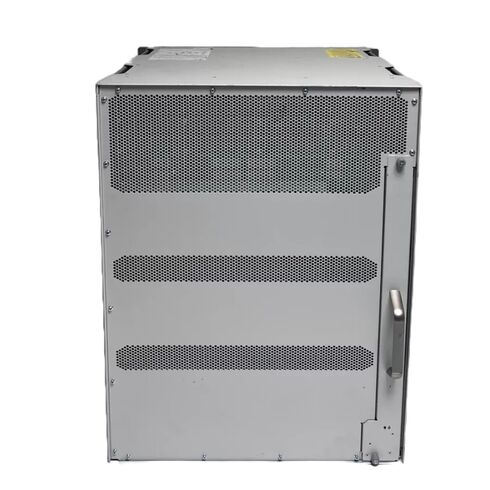

• Efficient Cooling: Designed with side-to-side airflow for optimal thermal management
• Hot-Plug Power Supply: Allows for easy maintenance and minimal downtime
• Versatile Power Options: Supports both 120V and 230V AC inputs

Configuration and Usage

• Rack-Mountable: Fits standard 19-inch racks with 13U height
• Capacity: Supports up to 8 modules for various network requirements
• Installation: Requires internal power supply, not pre-installed

Introduction

The Cisco Catalyst 9400 10 Slot Switch Chassis is a powerful and versatile networking solution designed to meet the demanding needs of modern enterprise networks. At the heart of this switch chassis is its flagship model, the C9410R. This high-performance switch chassis offers numerous benefits and features that make it an ideal choice for businesses of all sizes.

Reliability and Scalability

The C9410R is built with a focus on reliability and scalability. With its 10-slot chassis design, it provides ample room for expansion, allowing businesses to scale their networks as their needs grow. Whether you need to connect a few devices or hundreds, this switch chassis has the flexibility to accommodate your requirements.

In addition, the C9410R boasts redundant power supplies and fan trays, ensuring maximum uptime and reducing the risk of network downtime. This high level of reliability makes it a suitable choice for mission-critical applications where uninterrupted connectivity is crucial.

Modularity and Flexibility

One of the standout features of the C9410R is its modularity. The switch chassis supports a wide range of line cards, supervisor engines, and power supply options, allowing users to tailor their network setup to meet their specific requirements. This modular design offers the flexibility to upgrade or replace components as needed, ensuring that your network can keep up with changing business demands.

The C9410R also supports various connectivity options, including Gigabit Ethernet, 10 Gigabit Ethernet, and 40 Gigabit Ethernet interfaces. This flexibility allows businesses to connect different types of devices, from traditional desktop computers to high-bandwidth servers, with ease.

Advanced Security Features

In today's digital landscape, network security is a top priority for businesses. The C9410R comes equipped with advanced security features that help protect your network from unauthorized access and potential threats.

Secure Shell (SSH) and Secure Sockets Layer (SSL)

The C9410R supports SSH and SSL protocols, which encrypt network traffic and ensure secure remote management. This helps prevent unauthorized access to the switch chassis and protects sensitive data transmitted over the network.

Access Control Lists (ACLs)

ACLs allow you to define rules that control which devices or users can access your network resources. With the C9410R, you can create granular ACLs to restrict access to specific ports or protocols, providing an additional layer of security to your network infrastructure.

Network Segmentation

The C9410R supports virtual LANs (VLANs), allowing you to segment your network into smaller, isolated subnetworks. This helps prevent unauthorized access and contains potential security breaches within a specific VLAN, minimizing the impact on the entire network.

High-Speed Performance

The C9410R delivers exceptional performance to meet the demands of bandwidth-intensive applications and services. It supports high-speed switching capabilities, allowing for seamless data transmission across your network infrastructure.

High-Performance Switch Fabric

The C9410R features a high-performance switch fabric that enables wire-speed forwarding of network traffic. This ensures low-latency and high-throughput communication, providing a smooth and responsive network experience for users.

Quality of Service (QoS)

The C9410R supports advanced QoS mechanisms, allowing you to prioritize certain types of network traffic. This ensures that critical applications, such as voice or video conferencing, receive the necessary bandwidth and are not affected by other less time-sensitive traffic.

Ease of Management

Managing complex networks can be a daunting task. The C9410R simplifies network management with its intuitive and user-friendly interface.

Cisco IOS XE Software

The C9410R runs on Cisco IOS XE Software, a powerful operating system that provides a rich set of features and tools for network management. Its modular architecture allows for easy upgrades and seamless integration with other Cisco products.

Centralized Management

The C9410R can be managed centrally through Cisco DNA Center, a network management platform that streamlines operations and provides a unified view of your network infrastructure. With Cisco DNA Center, you can simplify configuration, monitoring, and troubleshooting tasks, saving time and minimizing errors.

Conclusion

The Cisco Catalyst 9400 10 Slot Switch Chassis, specifically the C9410R model, offers a robust set of features that make it an excellent choice for businesses seeking a reliable, scalable, and secure networking solution. With its modularity, advanced security features, high-speed performance, and ease of management, the C9410R provides the foundation for a resilient and efficient network infrastructure.
