CBS350-8FP-E-2G-NA Cisco 350 10 Ports Manageable 2 Layer Switch.

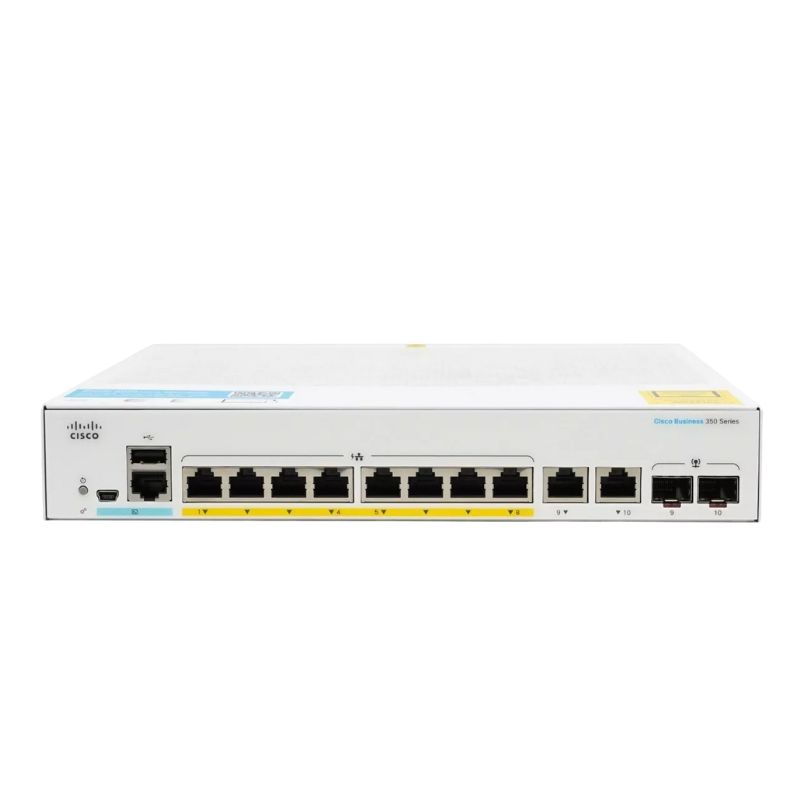

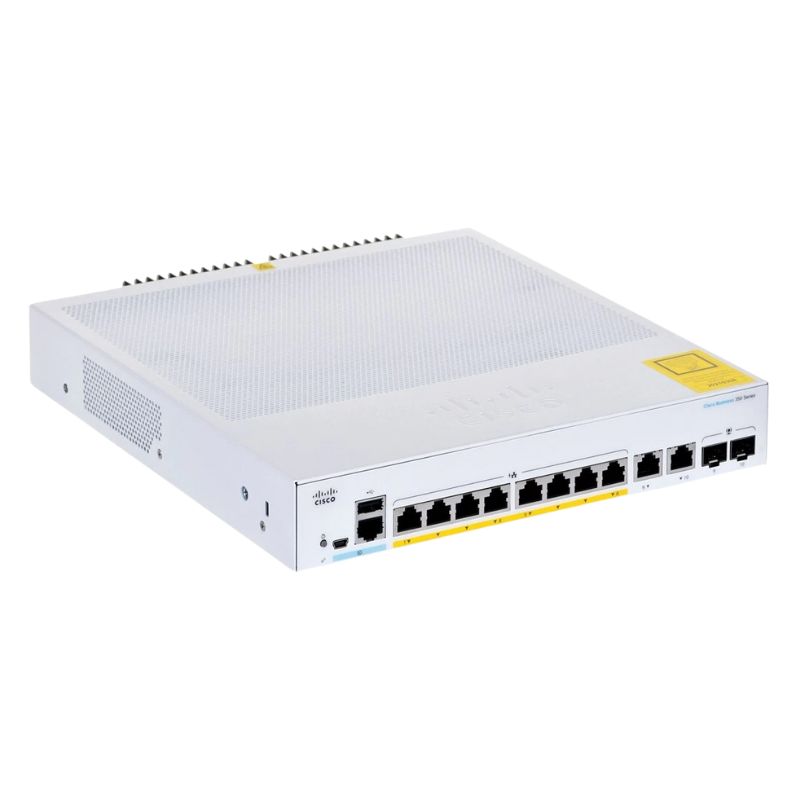

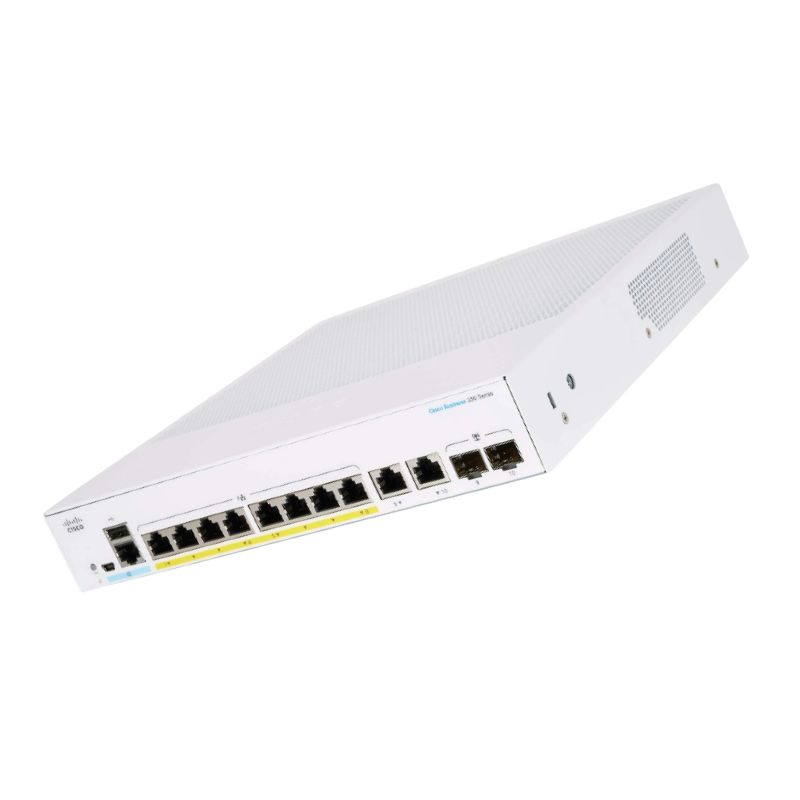

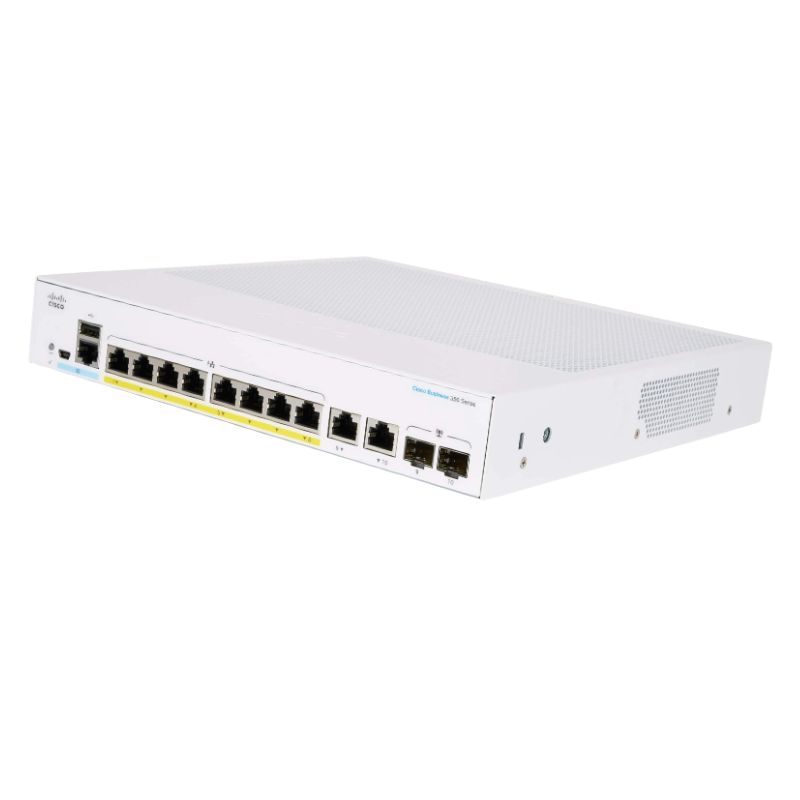

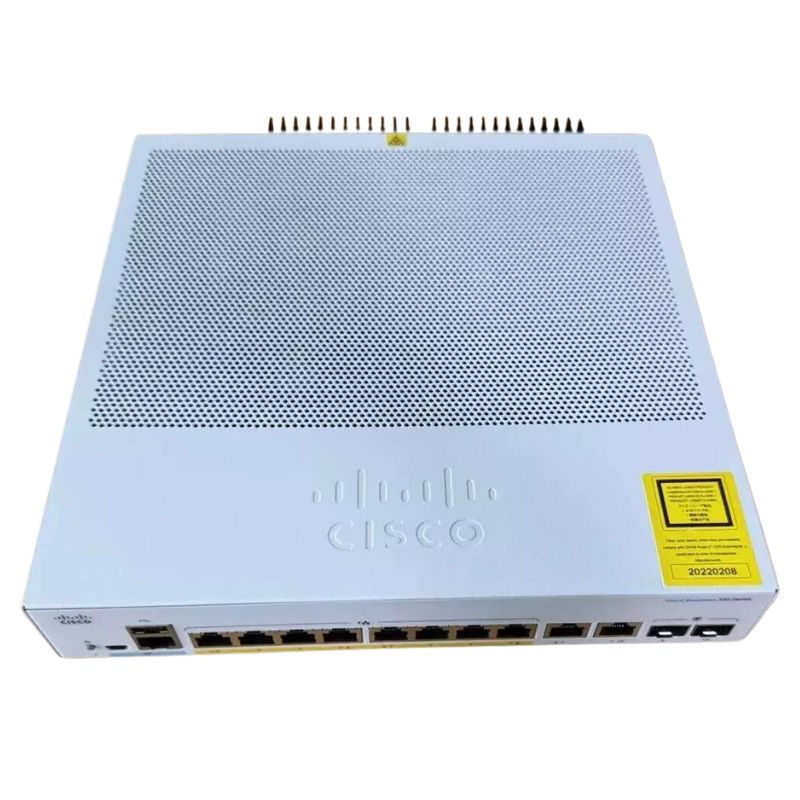

Cisco CBS350-8FP-E-2G-NA Managed Ethernet Switch Overview

The Cisco CBS350-8FP-E-2G-NA is a high-performance, manageable Layer 2/3 Ethernet switch designed for small to medium-sized networks. With robust PoE+ capabilities and flexible connectivity options, this switch ensures reliable and efficient network operations.

Key Manufacturer Details

• Brand: Cisco
• Model Number / SKU: CBS350-8FP-E-2G-NA
• Device Type: Ethernet Switch
• Port Configuration: 8 Ports

Technical Specifications

Device Features

• 8-Port Managed Switch with Layer 2/3 Support
• Stackable architecture for network scalability
• Rack-mountable enclosure for seamless integration
• Gigabit Ethernet connectivity

Port & Connectivity Details

• 8 × 10/100/1000 Mbps PoE+ ports
• 2 × Combo SFP uplink ports for fiber connections
• PoE+ total power budget: 120 W

Hardware Specifications

• Processor: ARM 800 MHz for efficient switching
• RAM: 512 MB for smooth operation
• Flash Memory: 256 MB for configuration storage
• Supports Jumbo Frames up to 2 KB

Performance Metrics

• Switching capacity: 20 Gbps
• Forwarding performance: 14.88 Mpps (64-byte packets)
• MAC Address Table Size: 16,000 entries

Routing & Protocol Support

• Routing: Static IPv4 & IPv6, Policy-Based Routing (PBR)
• Multicast: IGMPv1/v2/v3, MLDv1/v2
• Spanning Tree: STP, RSTP, MSTP

Remote Management & Security

• Management protocols: SNMP v1/v2c/v3, RMON, Telnet, HTTP/HTTPS, SSH/SSH-2
• File transfer: TFTP, SCP
• Network security: TACACS+, RADIUS authentication
• Other: CLI and ICMP support

Power & Physical Dimensions

• Power Supply: AC 120/230 V, 50/60 Hz
• Weight: 7.72 lbs
• Dimensions: 10.6" (W) × 7.3" (D) × 1.7" (H)

Cisco CBS350-8FP-E-2G-NA Overview

The Cisco CBS350-8FP-E-2G-NA is a high-performance managed Ethernet switch that belongs to Cisco's 350 Series, designed for small and medium-sized businesses seeking reliable network connectivity with advanced management features. This switch offers eight ports and supports Layer 2 network functionalities, enabling seamless integration into modern office and enterprise networks. With its compact form factor and energy-efficient design, the CBS350-8FP-E-2G-NA provides a cost-effective solution for organizations that require both performance and scalability.

Key Features and Specifications

The Cisco CBS350-8FP-E-2G-NA comes with a comprehensive set of features that enhance network performance and manageability. It includes eight 10/100/1000 Mbps ports that support Power over Ethernet (PoE), allowing connected devices such as IP phones, wireless access points, and surveillance cameras to operate without additional power sources. The switch also features two Gigabit uplink ports for increased network flexibility and connectivity to higher-tier switches or core networks.

Support for Layer 2 switching enables essential network services, including VLAN segmentation, link aggregation, and port mirroring. The CBS350-8FP-E-2G-NA also supports advanced security features, such as access control lists (ACLs), 802.1X authentication, and dynamic ARP inspection, ensuring robust protection against unauthorized access and network threats.

Advanced Management Capabilities

Management of the CBS350-8FP-E-2G-NA is highly flexible, offering both web-based graphical interfaces and command-line options. The switch can be easily integrated into Cisco’s Business Dashboard, allowing IT administrators to monitor network performance, configure VLANs, and set traffic priorities efficiently. Advanced Quality of Service (QoS) features ensure optimal bandwidth allocation for critical applications, minimizing latency and enhancing user experience. The CBS350 Series also supports Simple Network Management Protocol (SNMP), providing centralized network management and monitoring capabilities for IT teams.

Security and Reliability

Security is a crucial consideration for any network infrastructure, and the CBS350-8FP-E-2G-NA excels in this area. Its port-level security features, combined with 802.1X authentication, provide robust control over device access, preventing unauthorized devices from connecting to the network. The switch’s dynamic ARP inspection and DHCP snooping functionalities mitigate common network attacks, safeguarding sensitive data from potential breaches.

Additionally, the switch is designed for high reliability and uptime. With features such as Spanning Tree Protocol (STP) and redundant uplink connections, the CBS350-8FP-E-2G-NA ensures continuous network availability and rapid recovery in case of link failures. Cisco's reputation for durable hardware and extensive testing ensures that this switch can handle demanding network environments without compromising performance.

Power over Ethernet Capabilities

The eight PoE-enabled ports on the CBS350-8FP-E-2G-NA provide a maximum PoE budget sufficient to power multiple connected devices simultaneously. This feature eliminates the need for separate power adapters, reducing clutter and simplifying network installations. PoE also enables greater flexibility for deploying IP-based devices in locations without easy access to electrical outlets, such as ceiling-mounted wireless access points or security cameras in remote areas.

Scalability and Network Expansion

Small and growing businesses can benefit from the CBS350-8FP-E-2G-NA’s scalability. The two dedicated Gigabit uplink ports allow for seamless integration with larger Cisco switches or existing network infrastructure, ensuring that network expansion does not compromise performance or manageability. Layer 2 features such as link aggregation provide the ability to combine multiple ports for higher throughput, supporting applications with high bandwidth demands.
