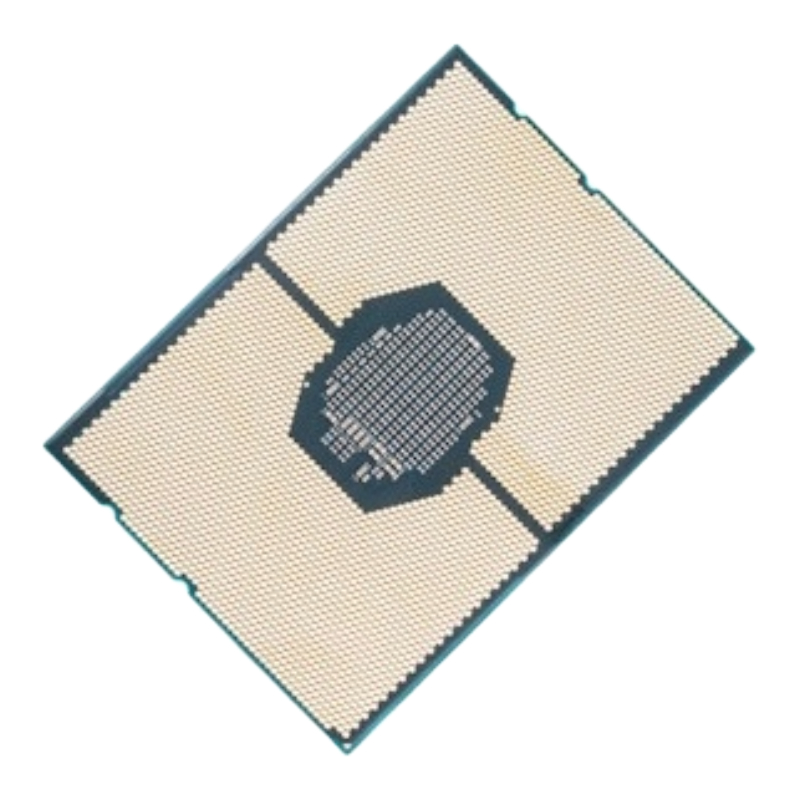

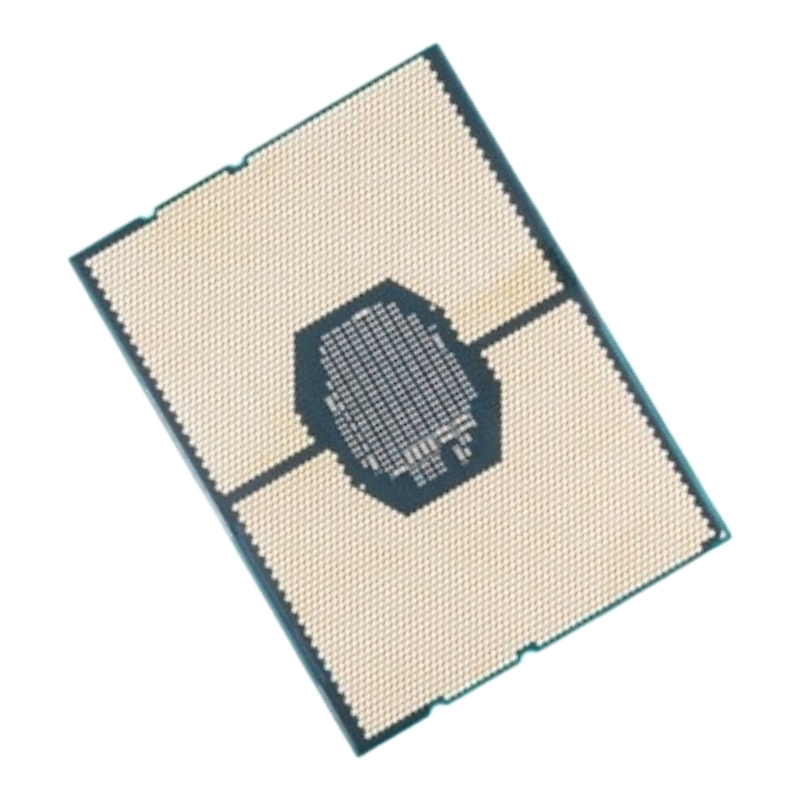

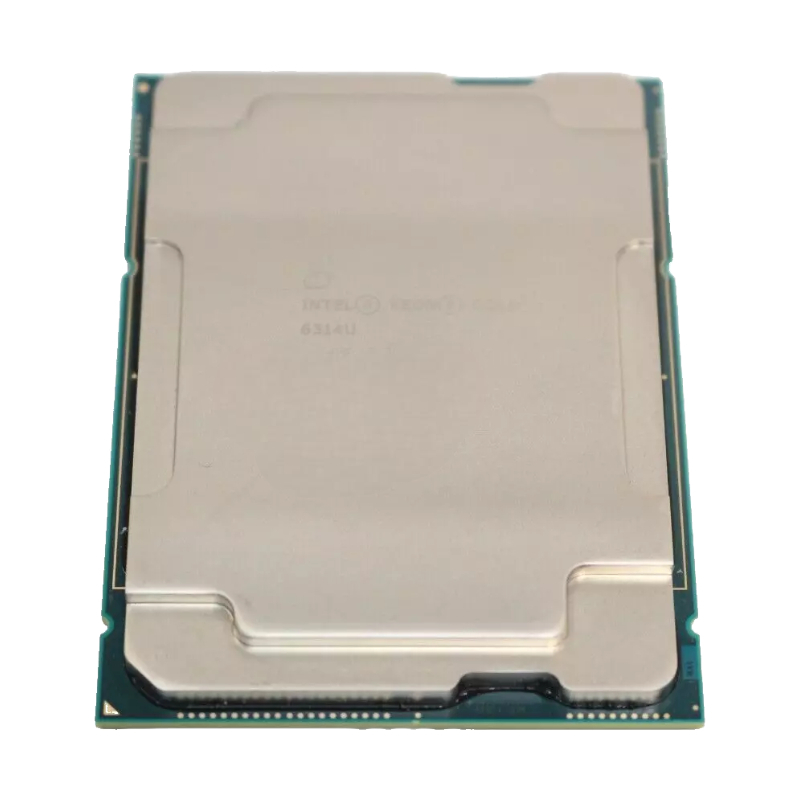

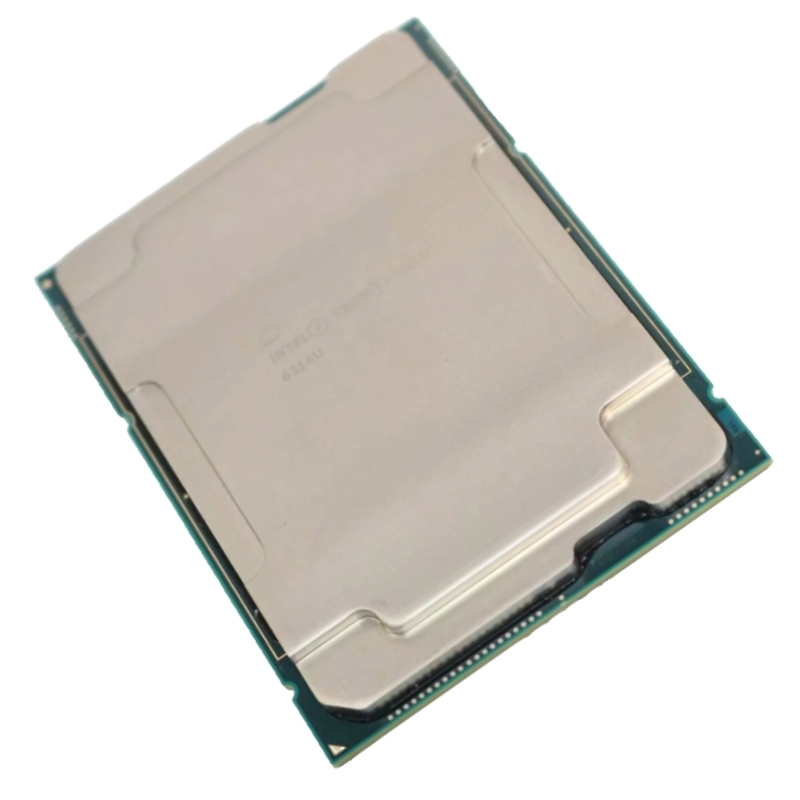

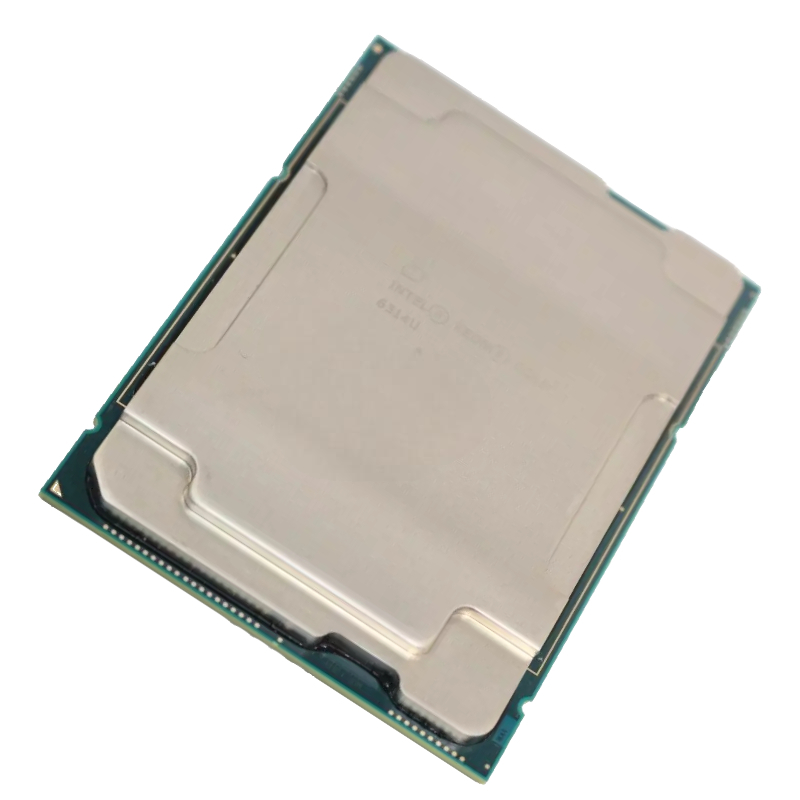

CD8068904570101 Intel Xeon Gold 32 Core Processor 6314u 2.30GHz 48MB Cache

Intel Xeon Gold 6314U Processor

Product Specifications and Overview

The Intel Xeon Gold 6314U, part number CD8068904570101, is a high-end server processor from the 3rd Generation Intel Xeon Scalable lineup. Designed with the Ice Lake architecture, this processor delivers exceptional performance and efficiency, making it a powerful choice for enterprise servers, data centers, and advanced computing environments.

Product Details

• Manufacturer: Intel
• Part Number: CD8068904570101
• Processor Series: 3rd Gen Intel Xeon Scalable (Gold 6300 Series)
• Socket Type: FCLGA4189
• Heatsink and Accessories: Not included

Performance Specifications

The Intel Xeon Gold 6314U processor is optimized for heavy workloads and complex applications. It features a multi-core architecture and a suite of advanced technologies designed to boost performance and manage data-intensive tasks effectively.

Core and Frequency Details

• Base Clock Speed: 2.30 GHz
• Max Turbo Frequency: 3.40 GHz
• Number of Cores: 32
• Number of Threads: 64

Cache and Processing Power

• Cache Size: 48 MB
• Lithography: 10 nm
• Thermal Design Power (TDP): 205 W

Memory Capabilities

• Maximum Memory Capacity: Up to 6 TB (6,000 GB), depending on memory type
• Supported Memory Types: DDR4
• Maximum Memory Speeds: 3200 MHz
• Memory Channels: 8
• Error-Correcting Code (ECC) Support: Yes
• Intel Optane DC Persistent Memory: Supported

Expansion and Scalability Options

The Xeon Gold 6314U offers robust expansion capabilities, supporting next-generation PCI Express and ensuring flexibility for various configurations.

Expansion Features

• Scalability: Single Socket (1S) support only
• PCI Express Version: 4.0
• Maximum PCIe Lanes: 64

Advanced Technologies

• Intel Speed Select Technology: Fine-tunes power and performance, adjusting core power dynamically.
• Intel Deep Learning Boost: Accelerates AI workloads with enhanced processing capabilities.
• Intel Resource Director Technology (RDT): Advanced management of resources for improved efficiency.
• Intel Turbo Boost Technology 2.0: Dynamically increases clock speed for enhanced performance during peak loads.
• Intel Hyper-Threading Technology: Allows multiple threads per core for better parallel processing.

Virtualization Support

• Intel Virtualization Technology (VT-x): Enables multiple operating systems to run concurrently.
• Intel VT-d (Direct I/O): Improves virtualized I/O performance and security.
• Extended Page Tables (EPT): Enhances virtualization performance by reducing overhead.
• Intel Transactional Synchronization Extensions (TSX): Boosts performance for multi-threaded applications.

Security and Reliability Enhancements

• Advanced Encryption Standard (AES-NI): Accelerates data encryption and decryption processes.
• Intel Software Guard Extensions (SGX): Provides secure enclaves for running sensitive code and data.
• Trusted Execution Technology (TXT): Safeguards the system from unauthorized software attacks.
• Execute Disable Bit: Provides additional security against malware.
• Mode-Based Execute Control (MBE): Enhances execution security by controlling code permissions.
• Total Memory Encryption: Protects data at rest within the system's memory.

Applications and Use Cases

The Intel Xeon Gold 6314U is built for versatility, making it ideal for diverse environments and a variety of professional applications. It excels in enterprise settings, from data analytics to high-performance computing tasks.

Enterprise Servers

Designed for high-performance server environments, the Xeon Gold 6314U supports large-scale computing tasks with its powerful multi-core configuration. Its advanced features make it perfect for mission-critical applications and high-demand server operations.

Data Center Optimization

In data centers, this processor offers high performance, efficiency, and scalability. The Xeon Gold 6314U enhances data handling capabilities, minimizes operational costs, and supports complex workloads, making it an invaluable component for data-driven operations.

High-Performance Workstations

For fields such as engineering, scientific research, and design, the Xeon Gold 6314U delivers substantial processing power, supporting resource-intensive applications and high-speed simulations. It is especially suited for tasks that demand precision and speed.

Virtualization and Cloud Computing

The Xeon Gold 6314U is well-suited for virtualization environments, thanks to its robust core and thread count. It efficiently handles multiple virtual machines, ensuring consistent performance and responsiveness, which is essential for cloud computing and virtualized infrastructures.

Installation and Maintenance Guidelines

Proper installation and maintenance of the Xeon Gold 6314U are essential to achieving peak performance and reliability. Attention to detail during setup can significantly impact system efficiency.

Processor Installation

• Socket Compatibility: Ensure installation into an FCLGA4189 socket, compatible with the processor and the system motherboard.
• System Compatibility: Verify that the motherboard supports this processor, especially regarding power requirements and thermal design specifications.

Cooling Solutions

• Cooling Considerations: Due to the 205 W TDP, an appropriate cooling system is crucial. Proper cooling ensures stability, especially under heavy loads.
• Heatsink and Fan: Utilize a high-quality heatsink and fan combination to manage heat effectively and maintain optimal temperatures.

System Power Requirements

• Power Supply: Ensure that the power supply unit (PSU) can handle the Xeon Gold 6314U, along with other components in the system.
• Motherboard Compatibility: Confirm that the motherboard and other hardware components support the power, cooling, and processing needs of the Xeon Gold 6314U.
