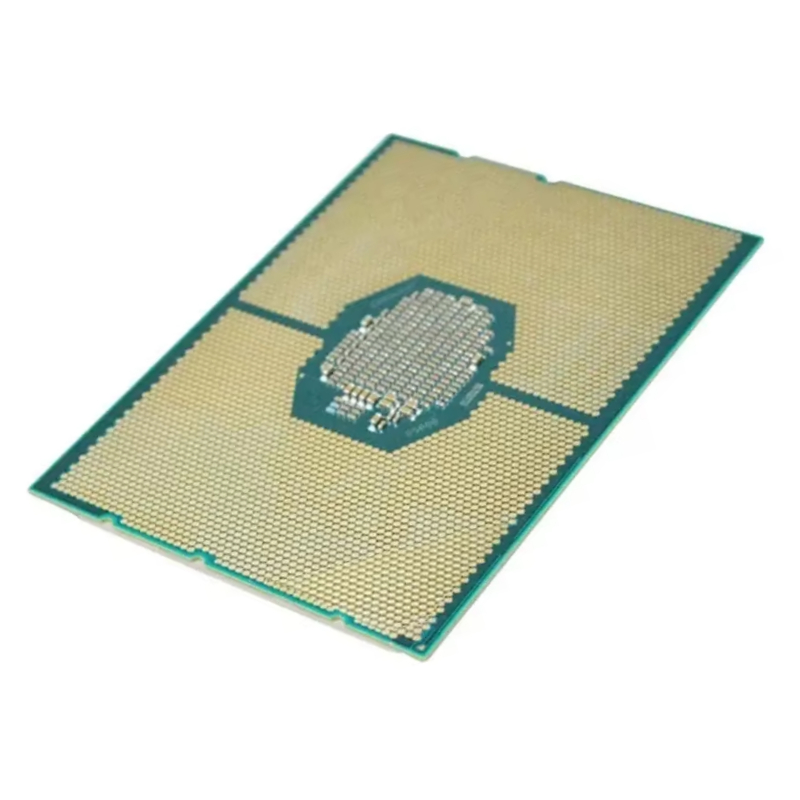

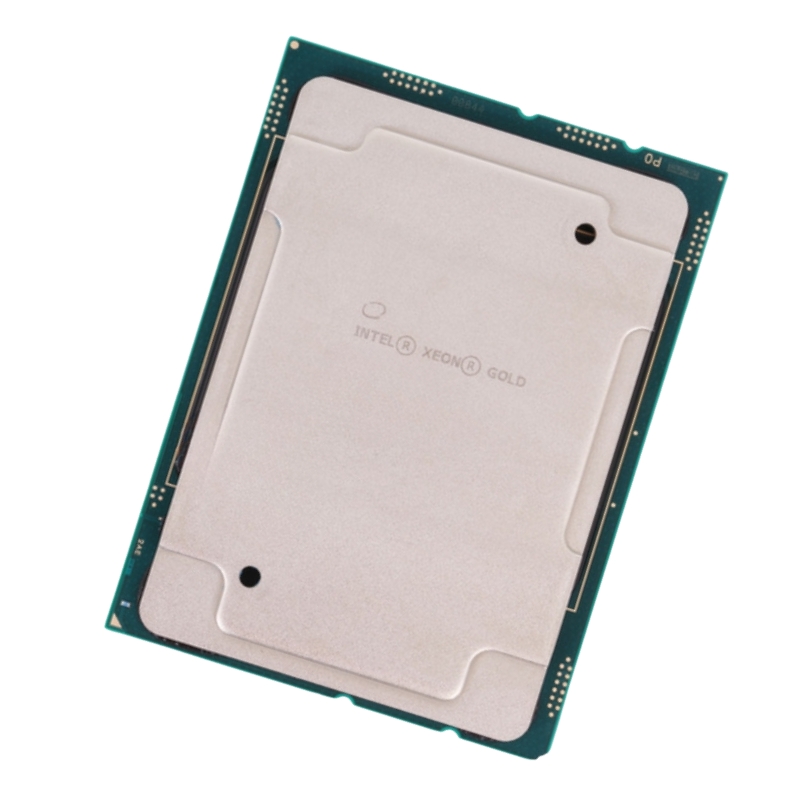

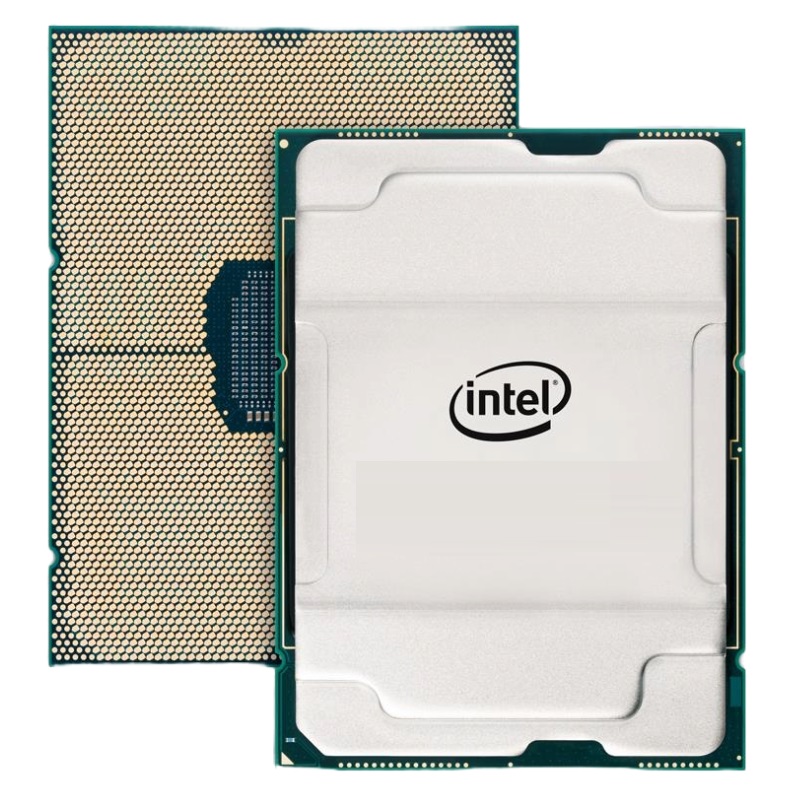

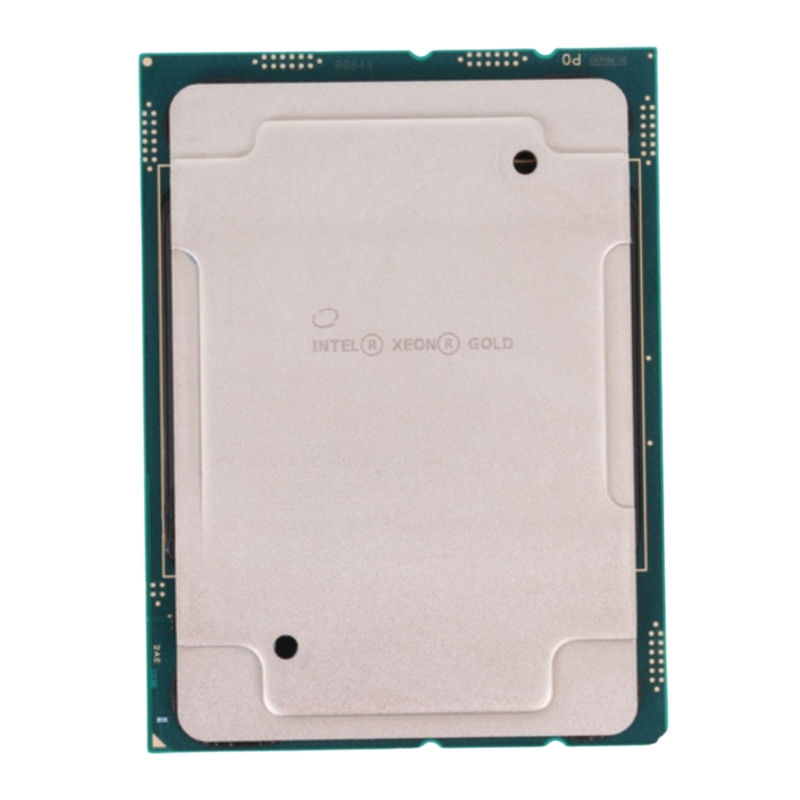

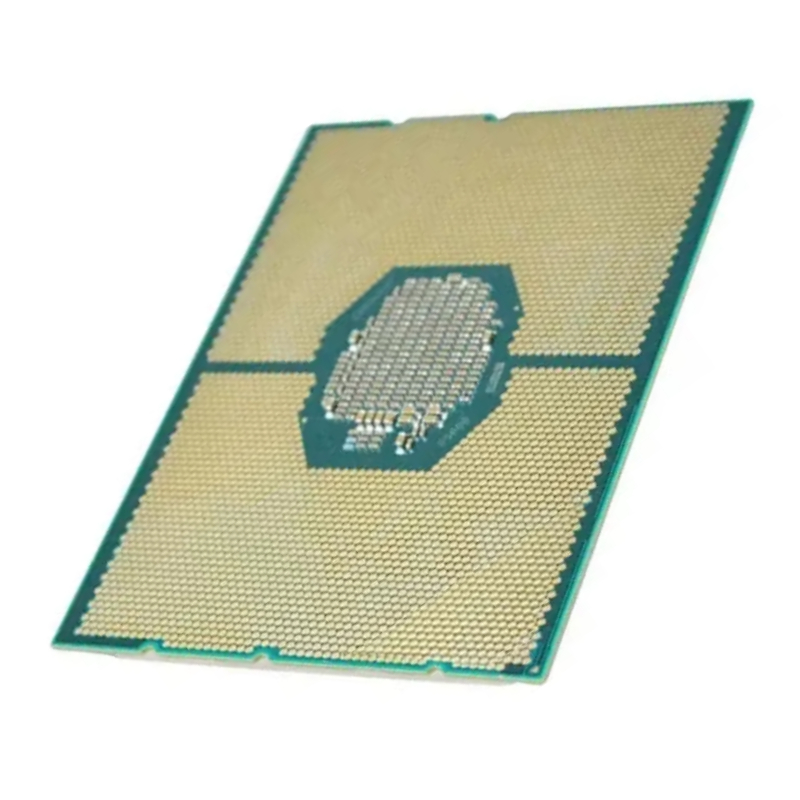

Intel CD8069504425402 Xeon Gold 6250 8-core 3.9GHz 35.75mb Smart Cache Processor

Intel CD8069504425402 Xeon Gold 3.9GHz Processor

The Intel CD8069504425402 Xeon Gold 6250 processor stands as a powerful solution for high-performance computing tasks, offering a balanced combination of core count, clock speed, and cache capacity. With its 8 cores and a base clock speed of 3.9 GHz, this processor is engineered to deliver exceptional performance for both single-threaded and multi-threaded applications. As part of Intel's Xeon Gold series, the 6250 is designed to meet the demands of enterprise servers, data centers, and other critical computing environments.

Intel Xeon Processor CD8069504425402 Details

Product Overview

• Part Number: CD8069504425402
• Product Collection: 2nd Generation Intel® Xeon® Scalable Processors
• Code Name: Previously known as Cascade Lake
• Processor Number: 6250
• Target Market: Server
• Manufacturing Process: 14 nm
• Launch Date: Q1 2020
• Marketing Status: Launched
• Servicing Status: Baseline Servicing
• Embedded Options: Not available

Processor Specifications

• Total Cores: 8
• Total Threads: 16
• Base Clock Frequency: 3.90 GHz
• Max Turbo Frequency: 4.50 GHz
• Cache Memory: 35.75 MB
• Number of UPI Links: 3
• Thermal Design Power (TDP): 185 W

Memory Capabilities

• Maximum Memory Size: 1 TB (dependent on memory type)
• Memory Types: DDR4-2933
• Maximum Memory Speed: 2933 MHz
• Number of Memory Channels: 6
• Intel® Optane™ Persistent Memory Support: Yes
• ECC Memory Support: Yes

Package Details

• Socket Type: FCLGA3647
• Package Dimensions: 76.0 mm x 56.5 mm
• Case Temperature (TCASE): 60°C

Scalability and Expansion

• Scalability: 4S
• PCI Express Revision: 3.0
• Maximum PCI Express Lanes: 48

Advanced Features

• Intel® Volume Management Device (VMD): Yes
• Intel® Deep Learning Boost (DL Boost): Yes
• Intel® Speed Select Technology - Performance Profile: No
• Intel® Speed Select Technology - Base Frequency: No
• Intel® Resource Director Technology (RDT): Yes
• Intel® Speed Shift Technology: Yes
• Intel® Turbo Boost Max Technology 3.0: No
• Intel® Turbo Boost Technology 2.0: Yes
• Intel® Hyper-Threading Technology: Yes
• Intel® Transactional Synchronization Extensions: Yes
• Intel® 64 Technology: Yes
• Number of AVX-512 FMA Units: 2
• Instruction Set Extensions: Intel® SSE4.2, Intel® AVX, Intel® AVX2, Intel® AVX-512
• Enhanced Intel SpeedStep® Technology: Yes

Security and Reliability Features

• Intel vPro® Platform Eligibility: Yes
• Intel® AES New Instructions: Yes
• Intel® Trusted Execution Technology: Yes
• Execute Disable Bit: Yes
• Intel® Run Sure Technology: Yes
• Mode-based Execute Control (MBEC): Yes
• Intel® Virtualization Technology (VT-x): Yes
• Intel® Virtualization Technology for Directed I/O (VT-d): Yes
• Intel® VT-x with Extended Page Tables (EPT): Yes

Key Features of the Intel CD8069504425402 Xeon Gold 6250

High Clock Speed for Fast Performance

The Xeon Gold 6250 features a base clock speed of 3.9 GHz, which allows it to handle tasks that require rapid processing with efficiency. This high clock speed is particularly advantageous for applications that rely heavily on single-threaded performance, including many enterprise applications and transactional workloads. The processor’s speed ensures that tasks are executed swiftly, enhancing overall system responsiveness.

8 Cores for Enhanced Multitasking

Equipped with 8 cores, the Xeon Gold 6250 excels in environments where multitasking and parallel processing are crucial. Each core operates at a high clock speed, providing substantial processing power to manage multiple tasks simultaneously. This core configuration is ideal for applications such as virtualization, databases, and high-performance computing, where efficient multitasking is essential.

Generous Cache Size

The processor comes with a significant 35.75 MB of Smart Cache, which helps in reducing data access times and improving overall system performance. The large cache size ensures that frequently accessed data is readily available to the processor, minimizing delays and enhancing processing speed. This feature is particularly beneficial for applications with high data throughput requirements.

Advanced Thermal Management

With a thermal design power (TDP) of 185 watts, the Xeon Gold 6250 is designed to operate efficiently under high workloads while managing heat effectively. Advanced thermal management technologies are employed to ensure that the processor remains within safe temperature limits, preventing overheating and maintaining stability during demanding tasks.

Robust Security Features

Security is a priority in modern computing environments, and the Xeon Gold 6250 incorporates advanced security features to protect data and system integrity. Technologies such as Intel Total Memory Encryption (TME) and Intel Software Guard Extensions (SGX) provide strong protection against unauthorized access and data breaches. These features ensure that sensitive information remains secure during processing and storage.

Benefits of the Intel CD8069504425402 Xeon Gold 6250 Processor

Superior Performance for Enterprise Applications

The Xeon Gold 6250 is designed to deliver outstanding performance for a wide range of enterprise applications. Its high clock speed and multiple cores make it well-suited for handling complex applications, including customer relationship management (CRM) systems, enterprise resource planning (ERP) solutions, and other mission-critical software. The processor’s capabilities ensure that these applications run smoothly and efficiently, supporting business operations and productivity.

Enhanced Multitasking Capabilities

With its 8-core configuration, the Xeon Gold 6250 excels in environments that require extensive multitasking. The processor's ability to handle multiple simultaneous tasks with ease makes it ideal for virtualization and data center operations. It efficiently manages virtual machines (VMs) and large-scale workloads, improving overall system performance and resource utilization.

Optimized for High-Performance Computing

For high-performance computing (HPC) applications, the Xeon Gold 6250 provides the necessary computational power to handle demanding tasks. Its high clock speed and generous cache size support complex data analysis, scientific simulations, and other computationally intensive workloads. The processor’s performance capabilities enable accurate and timely results for HPC applications, enhancing research and analysis efforts.

Energy Efficiency and Cost Savings

The Xeon Gold 6250 is designed with energy efficiency in mind, balancing high performance with power consumption to optimize operational costs. Its efficient design helps reduce energy consumption while maintaining high performance levels. This balance contributes to cost savings and supports environmentally sustainable computing practices.

Applications and Use Cases

Enterprise Servers

The Intel Xeon Gold 6250 is well-suited for use in enterprise servers, where high performance and reliability are crucial. Its robust core count and clock speed enable it to handle demanding enterprise applications efficiently. Organizations can rely on the Xeon Gold 6250 to support critical business functions, including transaction processing, database management, and enterprise resource planning.

Virtualization and Data Centers

In virtualization and data center environments, the Xeon Gold 6250 provides the performance needed to manage multiple virtual machines and large-scale workloads. Its high clock speed and multi-core configuration enhance the efficiency of virtualized environments, enabling smooth operation of cloud services, application hosting, and server consolidation.

High-Performance Computing (HPC)

The Xeon Gold 6250 is an excellent choice for high-performance computing applications that require substantial computational power. Its impressive clock speed and large cache size support complex simulations, data analytics, and scientific research. The processor’s capabilities ensure that HPC tasks are executed efficiently, providing accurate and timely results for research and development efforts.

Compatibility and Integration

Motherboard Compatibility

The Intel CD8069504425402 Xeon Gold 6250 is compatible with motherboards that feature the FCLGA3647 socket type. Ensuring compatibility with this socket type is essential for achieving optimal performance and seamless integration into server systems. Verify motherboard specifications to ensure support for the Xeon Gold 6250 processor.

Cooling Solutions

Given the processor’s thermal design power (TDP) of 185 watts, effective cooling solutions are necessary to maintain stable operation. High-performance heatsinks and cooling fans are recommended to manage heat dissipation and prevent overheating. Proper cooling helps maintain the processor’s performance and ensures reliable operation during intensive tasks.

System Memory Requirements

The Xeon Gold 6250 supports DDR4 memory, which is crucial for maximizing the processor’s performance. Using high-quality memory modules that meet the processor’s specifications is important for achieving efficient data handling and system stability. Ensure compatibility between memory modules, the motherboard, and the processor to optimize overall system performance.

Comparative Analysis

Comparison with Previous Generations

When compared to previous Xeon generations, the Gold 6250 offers significant improvements in clock speed and cache size. These enhancements provide better single-threaded performance and faster data access, making the 6250 a superior choice for high-demand applications. The processor’s advancements in technology contribute to improved overall system efficiency and performance.

Comparison with Other Xeon Gold Models

Within the Xeon Gold series, the 6250 distinguishes itself with its 8-core configuration and high clock speed. Compared to other models in the series, the Gold 6250 offers a balance of performance and power consumption, making it a versatile choice for various enterprise and data center applications. Its combination of core count, clock speed, and cache size positions it as a strong performer in the Xeon Gold lineup.
