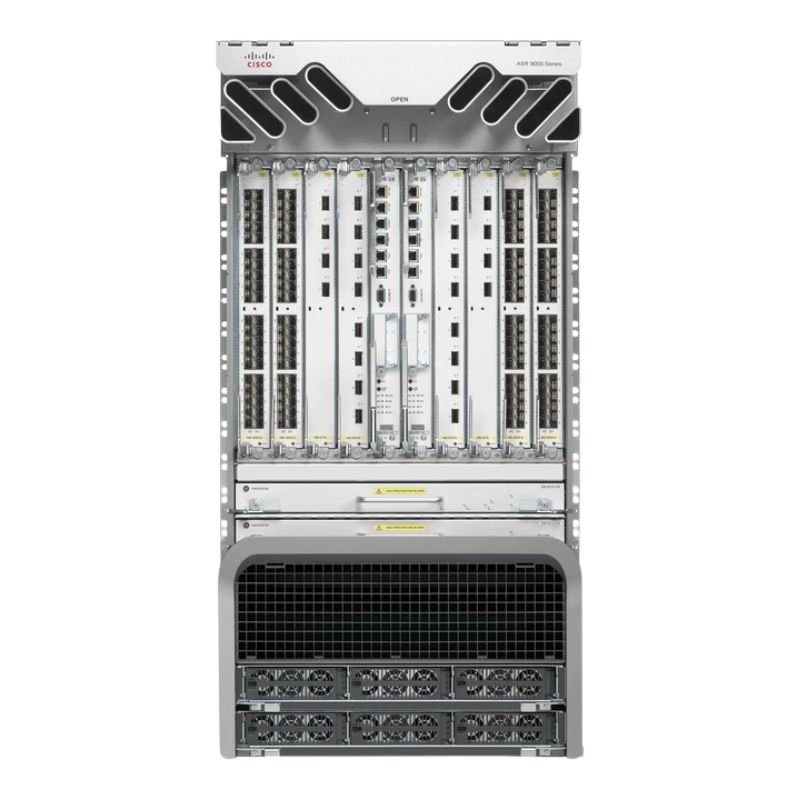

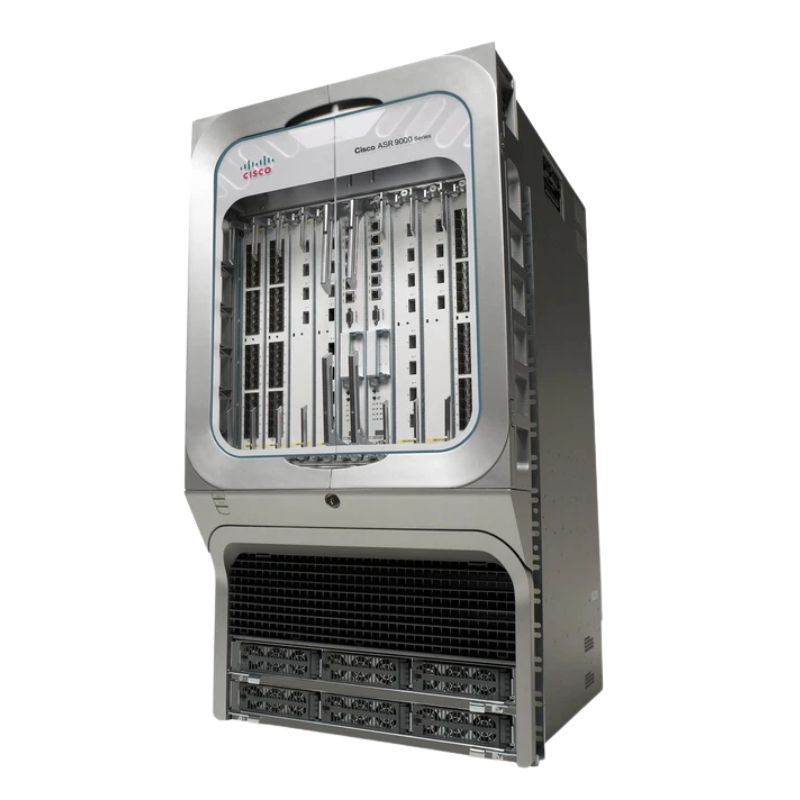

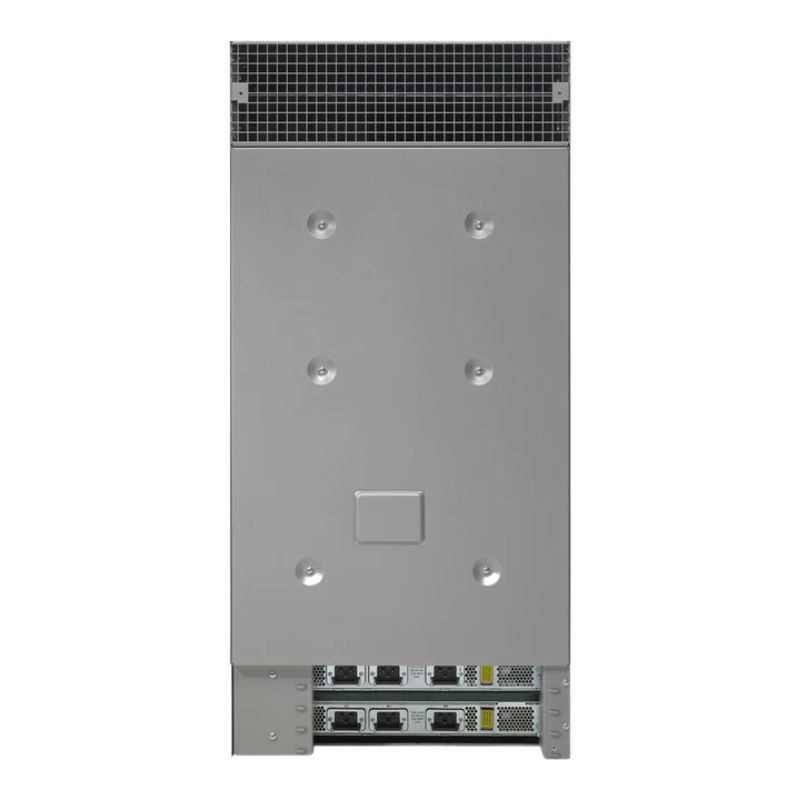

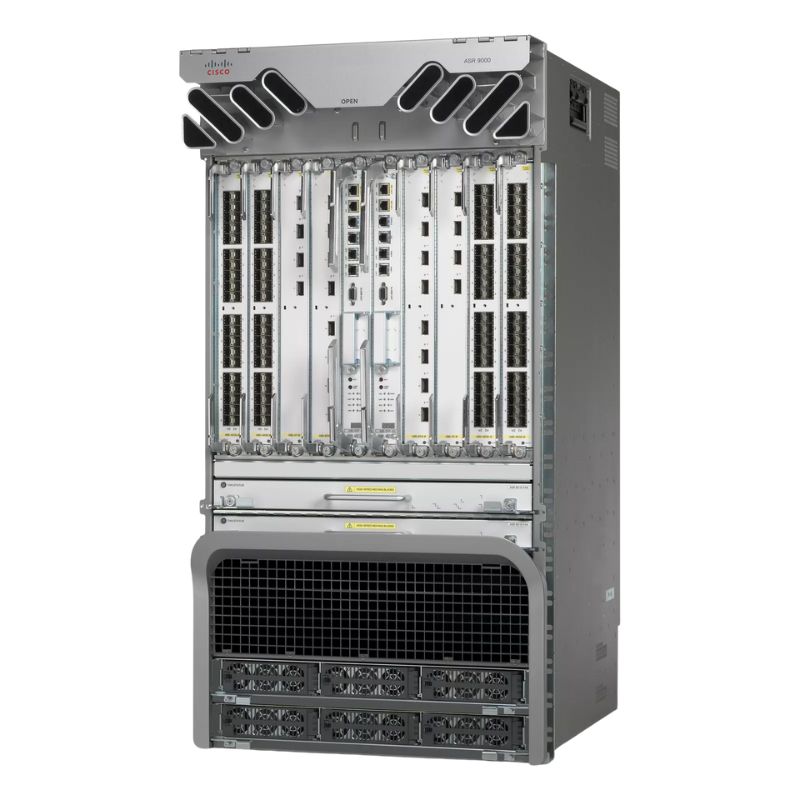

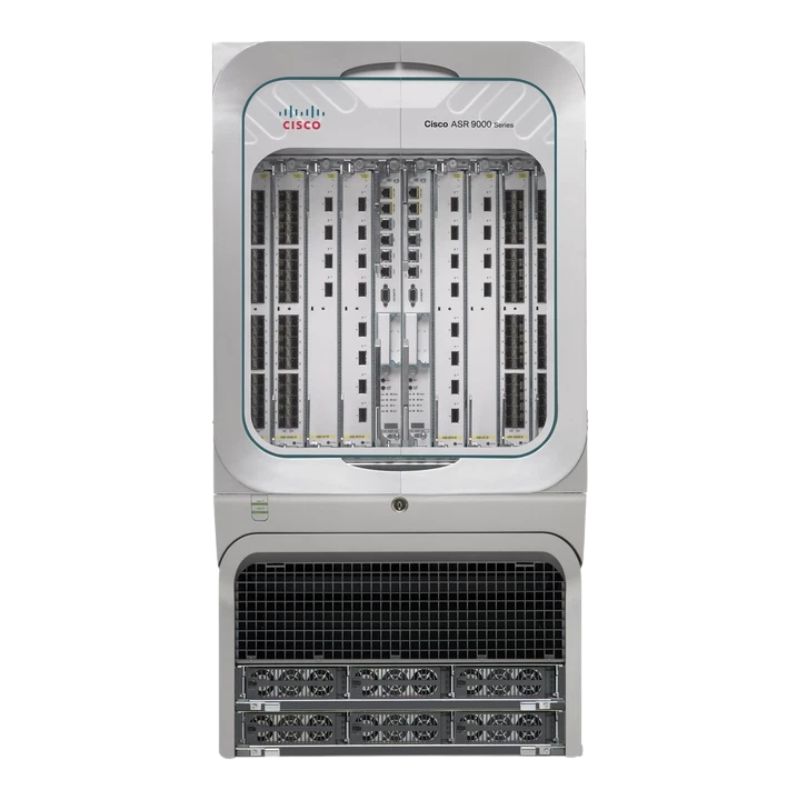

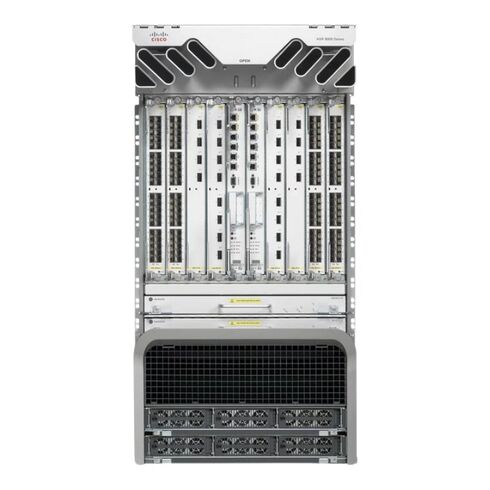

ASR-9010-DC-V2 Cisco ASR 9010 Chassis 10 Slots

Product Overview for Cisco ASR-9010-DC-V2 Router

The Cisco ASR-9010-DC-V2 chassis is a high-capacity networking solution tailored for data centers demanding robust performance and scalability. Designed with ten expansion slots, this chassis delivers flexible integration options for a wide array of modules and line cards, ensuring seamless adaptability to growing network requirements.

General Information

• Brand: Cisco
• Part Number: ASR-9010-DC-V2
• Series: ASR 9000
• Model: ASR 9010
• Product Name: ASR 9010 Chassis
• Type: Router Chassis

Expansion Capabilities

• Number of Expansion Slots: 10 Slots for line cards, allowing extensive network scalability and flexibility
• Slot Type: Compatible with line cards for versatile network expansion

Power

• PoE (Power over Ethernet) Port: Not available
• Input Voltage: 220 V AC for standard power requirements
• Redundant Power Supply: Supported, ensuring continuous operation and reliability

EMC Standards - Emission

• FCC Class: 47CFR15 A
• ICES: 003 Class A
• AS/NZS: CISPR22 Class A
• CISPR 22: (EN55022) Class A
• VCCI: Class A
• BSMI: Class A
• IEC/EN: 61000-3-12, 61000-3-11
• EN: 55022, 50121-4

EMC Standards

• IEC/EN: 61000-4-2, 61000-4-3, 61000-4-4, 61000-4-5, 61000-4-6, 61000-4-8, 61000-4-11
• EN: 55024, 50082-1/61000-6-1, 50121-4
• UL/CSA/IEC/EN: 60950-1
• IEC/EN: 60825
• ACA TS001
• AS/NZS: 60950

The Cisco ASR-9010-DC-V2 Chassis

The Cisco ASR-9010-DC-V2 is a high-performance, modular chassis designed to meet the growing demands of modern data centers and large-scale enterprise networks. This 10-slot chassis is part of the renowned ASR 9000 series, delivering unmatched reliability, scalability, and throughput for service providers and enterprise applications alike. Its robust architecture allows organizations to deploy a highly resilient network backbone capable of supporting millions of concurrent users and high-bandwidth applications.

Featuring the latest Cisco technology, the ASR-9010-DC-V2 provides advanced hardware and software capabilities designed for next-generation network requirements. It supports a wide range of interface cards, redundant power supplies, and high-capacity route processors, ensuring maximum uptime and operational efficiency. The chassis is ideal for core and edge routing, enabling service providers to deploy IPv4 and IPv6 networks with ease and future-proof their infrastructure.

Modular Design and Expansion

The modular architecture of the ASR-9010-DC-V2 allows operators to install and replace line cards without shutting down the chassis. This modularity provides flexibility to adapt to future networking standards and traffic growth. Network engineers can choose from various line cards optimized for high-density Ethernet, MPLS, and optical interfaces, ensuring tailored solutions for specific environments.

With 10 available slots, the ASR-9010 chassis supports a mix of routing and service line cards. This versatility enables deployment scenarios ranging from core routers in service provider networks to aggregation devices in large enterprise networks. As traffic demands increase, additional line cards can be added to expand capacity without replacing the entire chassis.

High Availability and Reliability

Reliability is crucial for mission-critical networks, and the ASR-9010-DC-V2 excels in this area. Redundant components such as power supplies, route processors, and cooling modules ensure that the chassis continues operating even in the event of hardware failures. In addition, Cisco’s IOS XR software offers features such as nonstop forwarding and In-Service Software Upgrade (ISSU), which enable network administrators to apply updates without disrupting traffic.

The chassis also supports advanced diagnostic tools and monitoring systems. Operators can quickly detect potential issues and proactively address them, reducing downtime and maintaining service level agreements. The ASR 9010’s reputation for high reliability makes it a preferred choice for service providers managing critical infrastructure.

Security and Network

The Cisco ASR-9010-DC-V2 chassis is designed with network security in mind. Integrated features include access control lists (ACLs), firewall capabilities, and encryption support for sensitive traffic. Network administrators can implement comprehensive security policies directly on the router, protecting both data center and service provider networks from unauthorized access.

Additionally, the chassis is compatible with Cisco’s network management tools, enabling centralized monitoring and configuration. Operators can track performance metrics, manage device configurations, and receive alerts on potential issues through a single interface. This unified approach reduces operational complexity and enhances the overall efficiency of the network.

Routing Line Cards

Routing line cards provide high-speed forwarding capabilities and are optimized for IP/MPLS networks. They offer a combination of high bandwidth, low latency, and advanced features such as multicast, QoS, and traffic engineering. Popular routing cards include the 10-slot series with support for multiple Gigabit and 10-Gigabit ports.

Service Line Cards

Service line cards are designed for additional network services such as deep packet inspection, firewalling, and network analytics. These cards allow service providers and enterprises to deploy value-added services directly within the routing infrastructure without requiring separate appliances.

Optical Line Cards

For networks that require high-speed optical connectivity, the ASR-9010 chassis supports optical line cards that include 40G and 100G interfaces. These cards are ideal for connecting data centers, backbone networks, and high-capacity enterprise environments, providing reliable and scalable optical transport solutions.

Redundant Components and Power Modules

The chassis includes options for redundant power modules and route processors, ensuring uninterrupted operations. Operators can deploy dual power supplies and backup route processors to mitigate the risk of hardware failure. This redundancy, combined with Cisco IOS XR’s nonstop forwarding capabilities, maximizes network uptime and reliability.

Performance and Scalability

The Cisco ASR-9010-DC-V2 is designed to deliver high performance across large-scale deployments. It can handle terabits of traffic per second, supporting the growing demands of cloud services, content delivery networks, and enterprise applications. Its modular design ensures that scalability is straightforward, allowing additional line cards and services to be added as traffic increases.

The chassis supports hardware-based forwarding and packet processing, which reduces latency and improves overall network performance. It is suitable for both high-density data center environments and wide-area networks requiring low-latency routing and resilient traffic handling.

Cooling and Environmental Management

Efficient cooling is critical for maintaining the performance and longevity of high-capacity routers. The ASR-9010 chassis incorporates intelligent cooling systems that dynamically adjust fan speed based on temperature sensors. This ensures optimal thermal management while minimizing energy consumption. Additionally, the chassis is designed for data center deployment, adhering to environmental standards for noise, heat dissipation, and airflow management.

Compatibility and Integration

The Cisco ASR-9010-DC-V2 chassis integrates seamlessly with other Cisco network devices and management platforms. This compatibility allows for unified network operations and simplified deployment across multiple network layers. Operators can leverage existing Cisco infrastructure while taking advantage of the high performance and modular flexibility offered by the ASR-9010 chassis.
