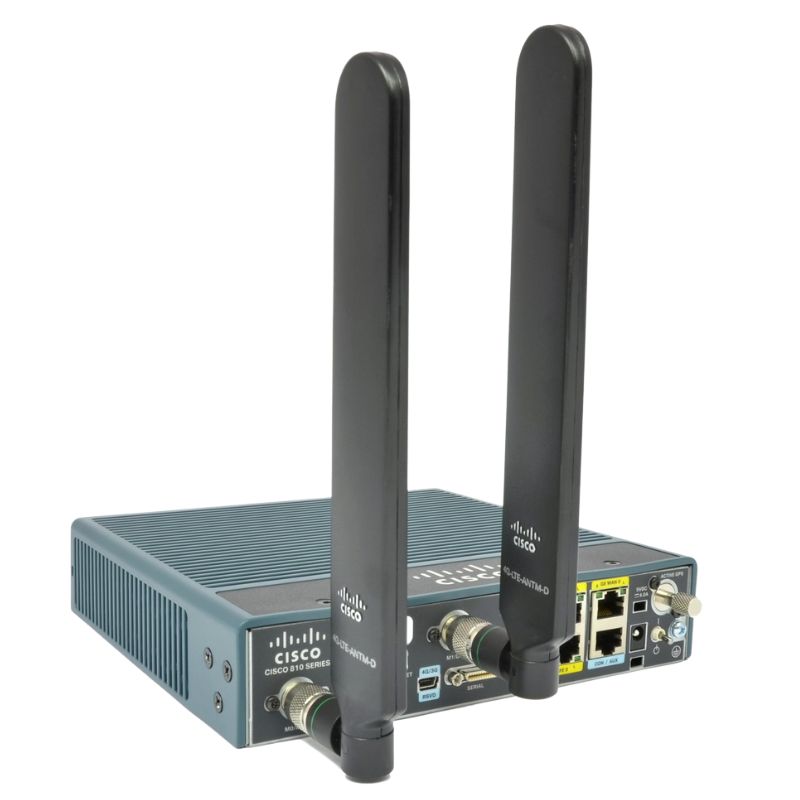

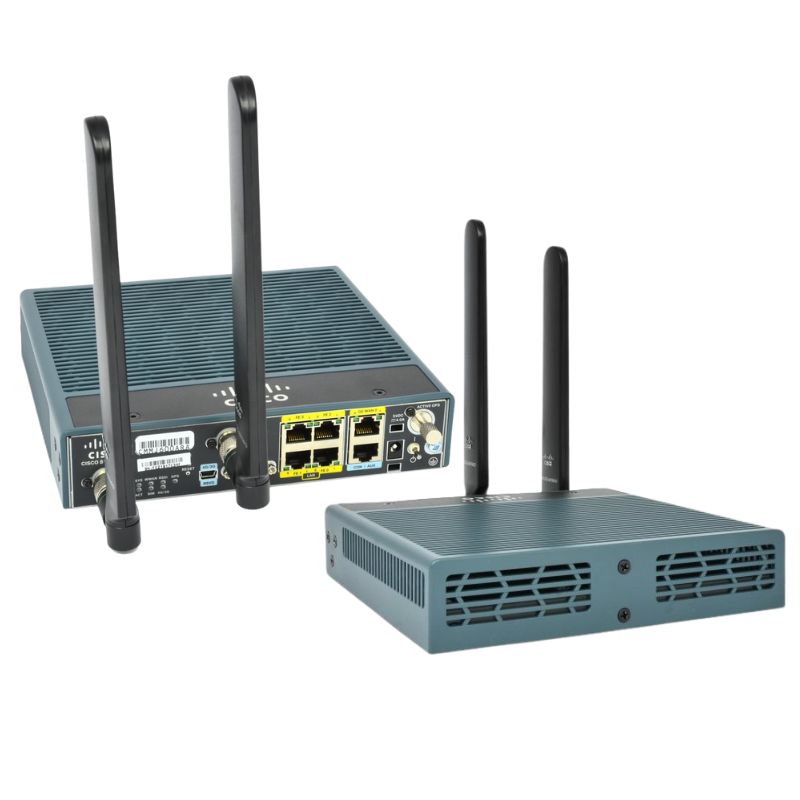

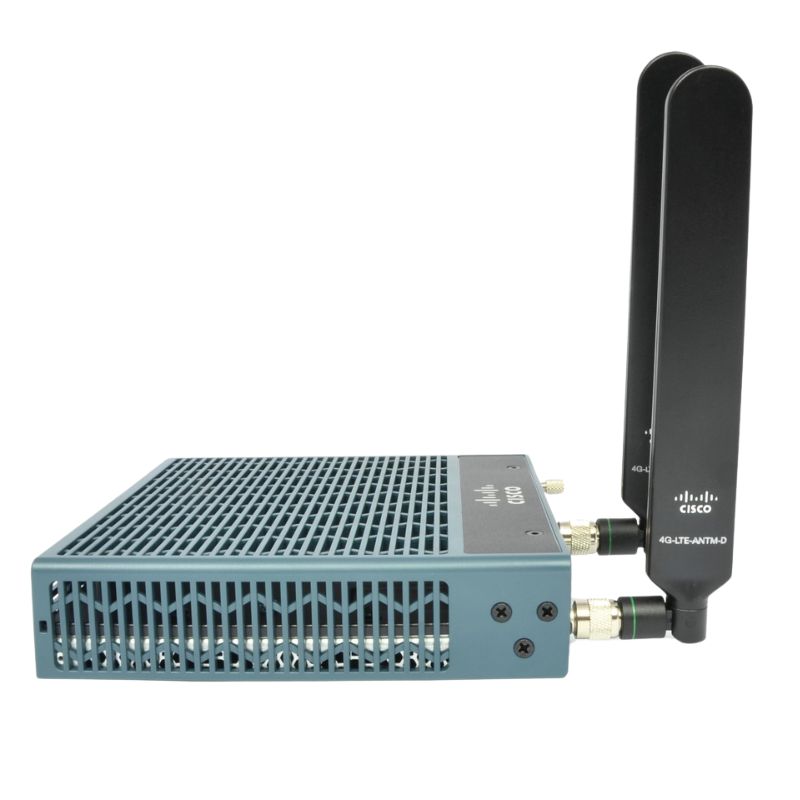

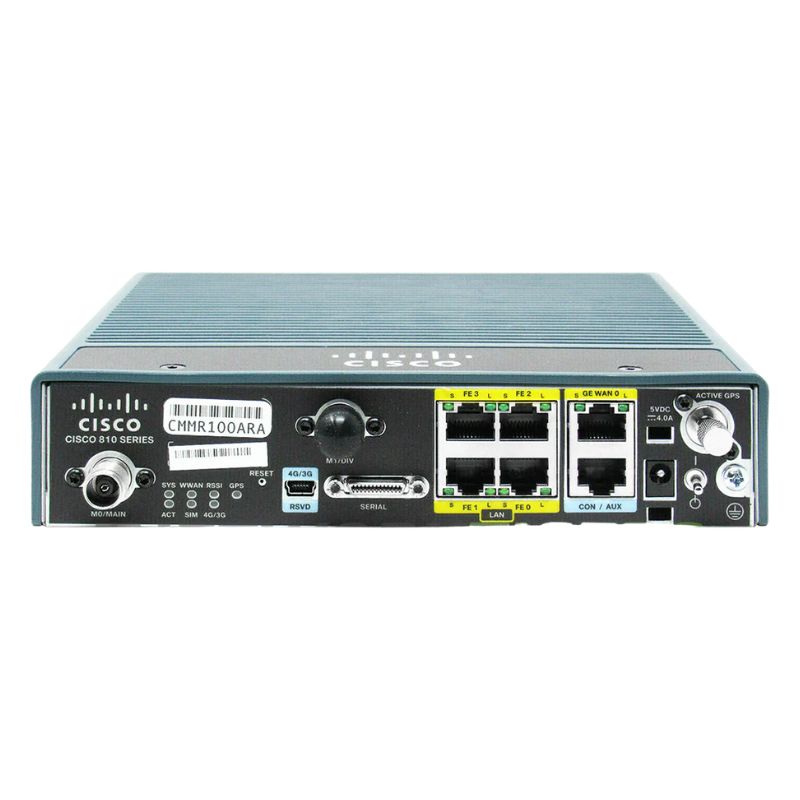

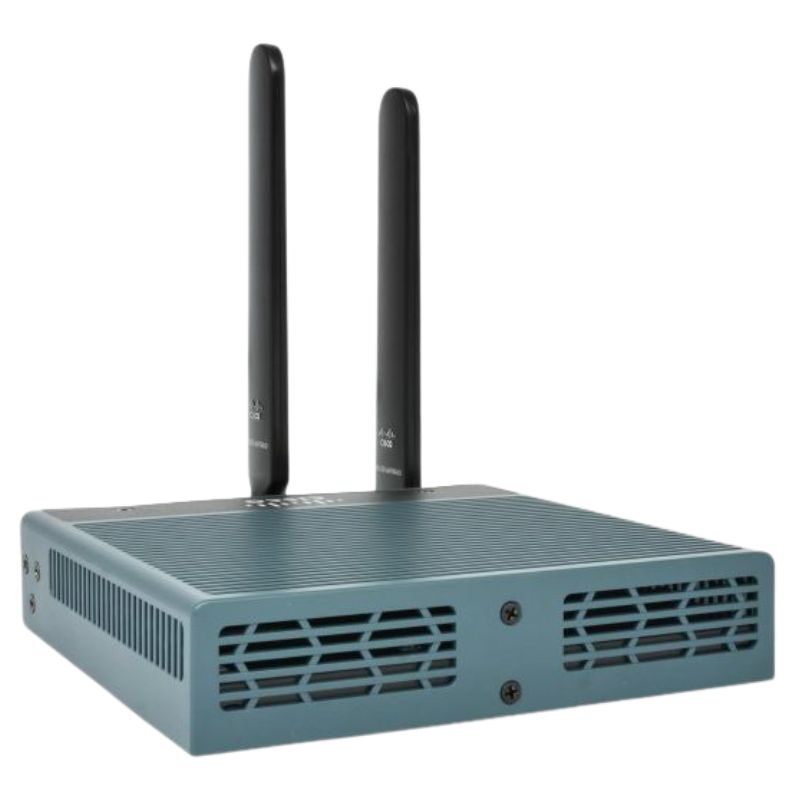

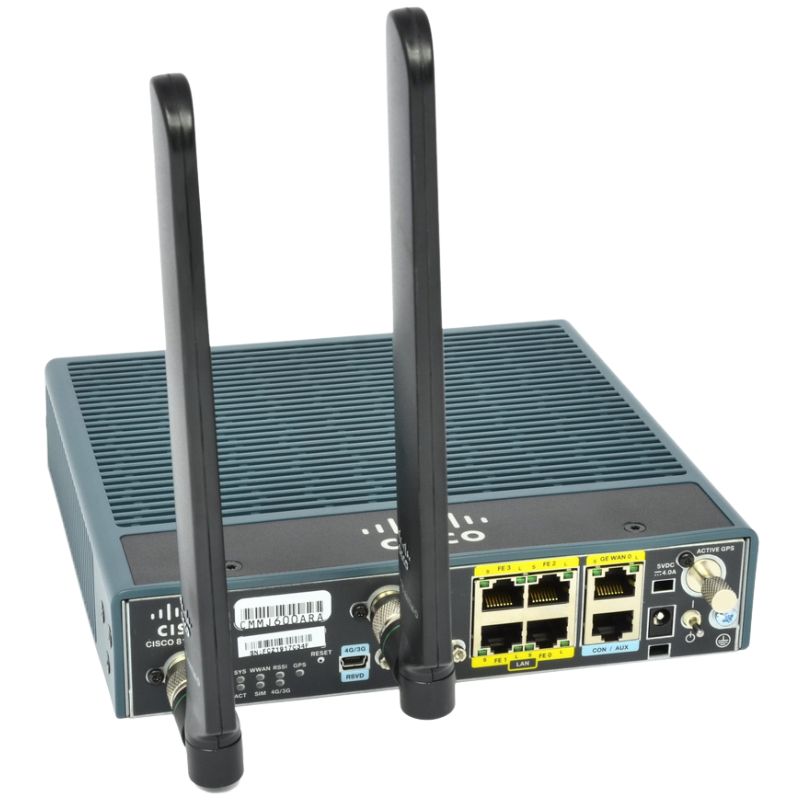

C819HGW-V-A-K9 Cisco IEEE 802.11n Wireless Services Router

Cisco C819HGW-V-A-K9 Wireless Services Router Overview

The Cisco C819HGW-V-A-K9 router belongs to the renowned Cisco 800 Series, offering reliable wireless connectivity and robust performance for small to medium-sized deployments. Designed for versatility, it supports high-speed cellular broadband and advanced networking features.

Key Product Details

• Manufacturer: Cisco
• Model Number: C819HGW-V-A-K9
• Type: Router
• Category: Wireless Router
• Series: 800

Transmission & Frequency Support

• Broadband Technology: Cellular
• Wireless Standard: IEEE 802.11n
• ISM Band: Yes (up to 2.4 GHz)
• UNII Band: Yes (up to 5 GHz)
• Cellular Generation: 3.9G
• Supported Networks: CDMA 800, CDMA 1900
• Data Connectivity: HSPA+, EVDO

Antennas & Wireless Performance

• Total Antennas: 5
• Antenna Type: Dipole
• Maximum Wireless Speed: 54 Mbps

Advanced Security Features

• Security Protocols: IEEE 802.1x
• Encryption Options: AES 128/192/256-bit
• Additional Protections: Intrusion Prevention System (IPS)

Enhanced Functionalities

• Supports Quality of Service (QoS) for optimized traffic management
• Equipped with MIMO technology for improved wireless throughput
• GPS-enabled for location-based services

Connectivity & Ports

Network Interfaces

• RJ-45 Ethernet Ports: 4
• Broadband (RJ-45) Port: 1
• USB Port: Yes
• Management Port: Yes
• No RJ-11, VGA, or PoE ports available

Ethernet & Communication Standards

• Ethernet Technology: Gigabit Ethernet
• Network Type: 10/100/1000Base-T

Management & Protocol Support

Software & Remote Management

• Runs on Cisco IOS Software Release 15.2(4)M1 or later
• Remote administration via Web UI, SNMPv3, Telnet, or CLI
• Supports DHCP, MIB, and MIB II for network management

Security & Filtering Protocols

• Supports L2TP, L2TPv3, NAT, and ACL
• MAC filtering, DES/3DES encryption, IPsec, and URL filtering enabled

Power & Certification Details

Power Specifications

• Input Voltage: 12 V DC
• Power Supply: AC Adapter

Certifications & Compliance

• UL 60950-1, 2nd Edition
• CAN/CSA C22.2 No. 60950-1, 2nd Edition
• EN 60950-1, 2nd Edition
• CB to IEC 60950-1, 2nd Edition

EMC & Radio Standards

• Emissions: EN55022, CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438
• Immunity: EN55024/CISPR24, EN61000-4 series compliance
• Cellular Radio Standards: EN 301 908-1/2, EN 301 511, 47 CFR Part 22 & 24

Supported IEEE Standards

• 802.3, 802.3u (Ethernet)
• 802.11a/b/g/n (Wireless)
• 802.1d, 802.1Q, 802.1x (Network Management & Security)

Cisco C819HGW-V-A-K9 C819HGW IEEE 802.11n Wireless Services Router

The Cisco C819HGW-V-A-K9 C819HGW IEEE 802.11n Wireless Services Router represents a robust and highly versatile networking solution designed to meet the connectivity demands of distributed enterprises, remote offices, transportation environments, and machine-to-machine deployments. Built with reliability and scalability in mind, this wireless services router integrates advanced routing capabilities, secure connectivity features, and wireless networking technologies into a compact form factor. The inclusion of IEEE 802.11n wireless standards ensures reliable and high-speed wireless communication, making it suitable for environments where wired infrastructure is limited or impractical.

This category encompasses routers that are engineered to provide secure, resilient, and high-performance network access across various industries. The Cisco 819 series, including the C819HGW-V-A-K9 model, is known for its ability to deliver enterprise-grade services in rugged and space-constrained environments. These routers are particularly valuable in scenarios where continuous connectivity is critical, such as in transportation fleets, industrial automation systems, and remote monitoring applications.

Integrated Wireless Capabilities and IEEE 802.11n Support

The integration of IEEE 802.11n wireless technology within the Cisco C819HGW-V-A-K9 router allows organizations to deploy high-speed wireless networks without requiring additional hardware components. This wireless standard supports improved throughput, extended coverage, and enhanced reliability compared to earlier wireless protocols. The router’s ability to deliver consistent wireless performance ensures seamless communication for devices operating within the network.

Wireless services routers in this category are designed to provide secure and efficient connectivity for a wide range of devices, including laptops, mobile devices, IoT sensors, and industrial equipment. The IEEE 802.11n standard enables faster data transfer rates and better signal penetration, making it suitable for both indoor and outdoor deployments. The router’s wireless capabilities are complemented by advanced security protocols that protect sensitive data transmitted over the network.

Enhanced Mobility and Flexible Deployment Options

The Cisco C819HGW-V-A-K9 router supports flexible deployment scenarios, enabling organizations to establish network connectivity in locations where traditional infrastructure is unavailable. Its compact design allows for easy installation in vehicles, kiosks, remote offices, and temporary setups. This flexibility makes it an ideal solution for industries that require mobile connectivity, such as transportation, logistics, and public safety.

Routers within this category are engineered to operate in challenging environments, including areas with fluctuating temperatures, vibrations, and limited space. The ability to provide reliable wireless connectivity in such conditions ensures uninterrupted communication and data exchange, which is essential for mission-critical applications.

Secure Wireless Networking for Modern Enterprises

Security is a fundamental aspect of the Cisco C819HGW-V-A-K9 router, particularly in wireless environments where data transmission is susceptible to unauthorized access. The router incorporates advanced encryption standards, authentication mechanisms, and firewall capabilities to safeguard network traffic. These features help organizations maintain data integrity and protect against cyber threats.

Wireless services routers in this category are equipped with multiple layers of security, including VPN support, intrusion prevention systems, and secure boot processes. These security measures ensure that only authorized users and devices can access the network, reducing the risk of data breaches and unauthorized activities.

Advanced Routing and Network Management Capabilities

The Cisco C819HGW-V-A-K9 router delivers powerful routing capabilities that enable efficient data transmission across complex network architectures. It supports a wide range of routing protocols, allowing seamless integration with existing network infrastructures. This versatility makes it suitable for organizations with diverse networking requirements, including those with multiple branch locations and remote sites.

Network administrators benefit from comprehensive management tools that simplify configuration, monitoring, and troubleshooting processes. The router’s intuitive interface and centralized management capabilities enable efficient network operations, reducing the time and effort required to maintain optimal performance.

Scalability for Growing Network Demands

As organizations expand their operations, the need for scalable networking solutions becomes increasingly important. The Cisco C819HGW-V-A-K9 router is designed to accommodate growing network demands by supporting additional devices, increased data traffic, and evolving connectivity requirements. Its scalable architecture ensures that businesses can adapt to changing needs without significant infrastructure upgrades.

This category of wireless services routers provides the flexibility to scale network resources efficiently, enabling organizations to maintain high levels of performance and reliability. The ability to support multiple connections and handle large volumes of data traffic ensures that the network remains responsive and efficient even during peak usage periods.

Seamless Integration with Existing Infrastructure

The Cisco C819HGW-V-A-K9 router is engineered to integrate seamlessly with existing network infrastructures, minimizing disruption during deployment. It supports various connectivity options, including Ethernet, cellular, and wireless interfaces, allowing organizations to establish reliable connections using their preferred technologies. This compatibility ensures a smooth transition when upgrading or expanding network capabilities.

Wireless services routers in this category are designed to work in harmony with other networking components, such as switches, firewalls, and access points. This interoperability enhances overall network performance and simplifies management processes, enabling organizations to maintain a cohesive and efficient network environment.

Optimized Performance and Reliability

Performance optimization is a key feature of the Cisco C819HGW-V-A-K9 router, ensuring that data is transmitted efficiently across the network. The router’s advanced processing capabilities enable it to handle multiple tasks simultaneously, including routing, security enforcement, and wireless communication. This multitasking capability ensures consistent performance even in demanding environments.

Reliability is equally important, particularly in mission-critical applications where network downtime can have significant consequences. The router is built with high-quality components and robust design principles to ensure continuous operation. Features such as failover mechanisms and redundant connectivity options further enhance reliability, providing organizations with a dependable networking solution.

Cellular Connectivity and Remote Access Solutions

The Cisco C819HGW-V-A-K9 router includes integrated cellular connectivity, enabling organizations to establish network access in remote or mobile environments. This feature is particularly valuable in scenarios where wired connections are unavailable or impractical. The router’s cellular capabilities ensure that devices can remain connected to the network regardless of their location.

Cellular-enabled routers in this category support various network standards, providing flexibility in choosing service providers and connectivity options. This adaptability ensures that organizations can maintain reliable communication across different regions and environments, enhancing operational efficiency and productivity.

Reliable Communication for Remote Operations

Remote operations often require dependable network connectivity to support data transmission, monitoring, and control processes. The Cisco C819HGW-V-A-K9 router is designed to deliver consistent performance in such environments, ensuring that critical data is transmitted securely and efficiently. This reliability is essential for industries such as energy, transportation, and agriculture, where remote monitoring plays a crucial role.

Wireless services routers in this category are equipped with features that enhance communication reliability, including signal optimization, network redundancy, and automatic failover capabilities. These features ensure that the network remains operational even in challenging conditions, minimizing disruptions and maintaining continuity.

Secure Remote Access and VPN Support

Secure remote access is a critical requirement for modern enterprises, particularly those with distributed workforces and remote operations. The Cisco C819HGW-V-A-K9 router supports virtual private network (VPN) technologies, enabling secure communication between remote devices and central networks. This capability ensures that sensitive data is protected during transmission.

VPN support within this category of routers includes advanced encryption protocols and authentication mechanisms, providing a secure environment for data exchange. Organizations can leverage these features to establish secure connections between branch offices, remote sites, and mobile users, enhancing collaboration and productivity.

Enhanced Network Visibility and Control

Effective network management requires comprehensive visibility into network activities and performance metrics. The Cisco C819HGW-V-A-K9 router provides detailed insights into network operations, enabling administrators to monitor traffic, identify potential issues, and optimize performance. This visibility is essential for maintaining a secure and efficient network environment.

Wireless services routers in this category offer advanced management tools that facilitate real-time monitoring and control. These tools enable administrators to configure settings, manage devices, and enforce security policies from a centralized interface, simplifying network management and reducing operational complexity.
