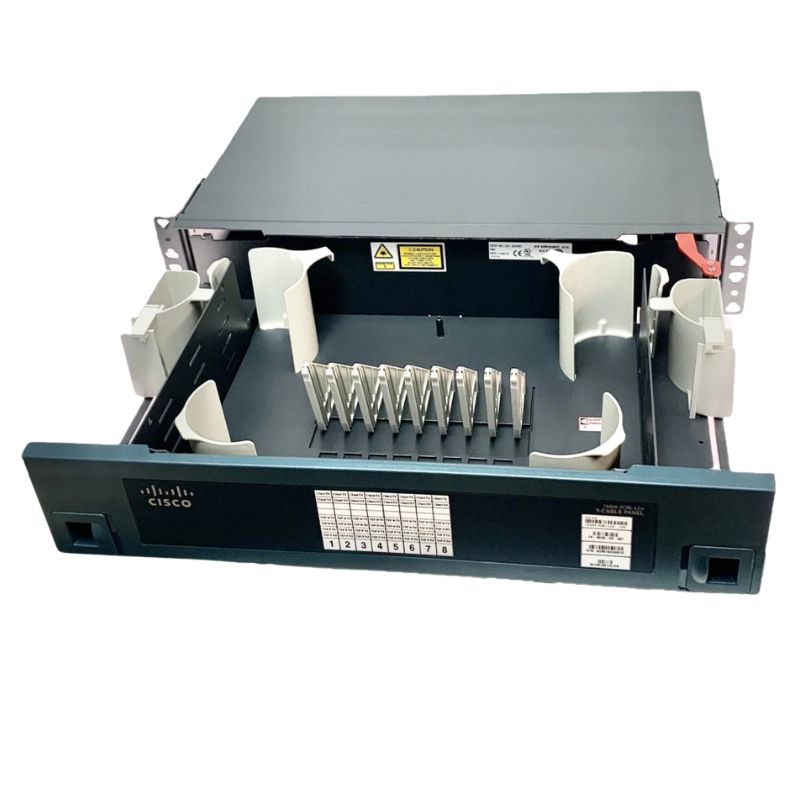

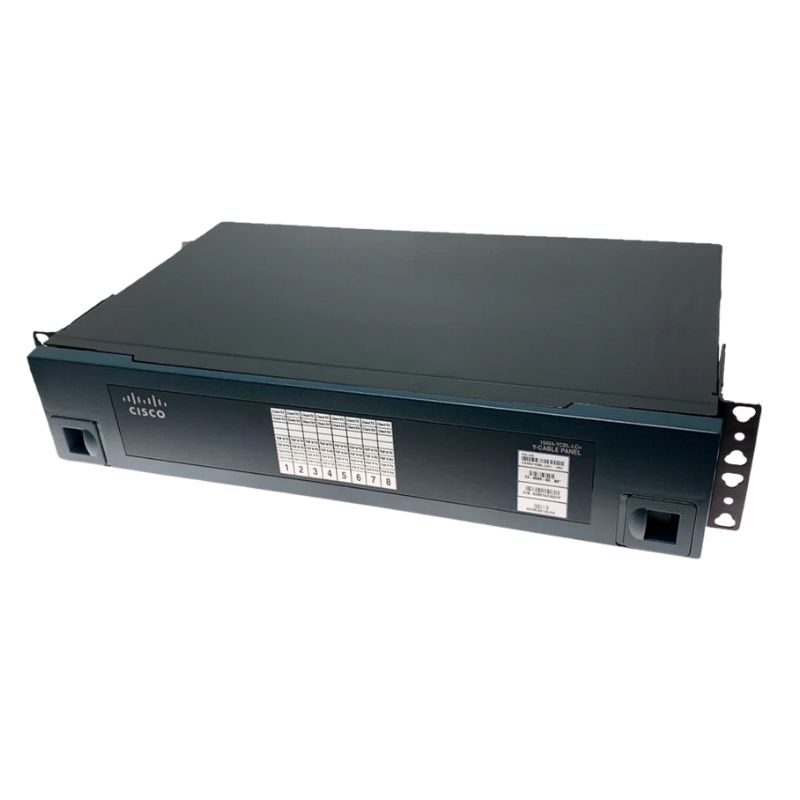

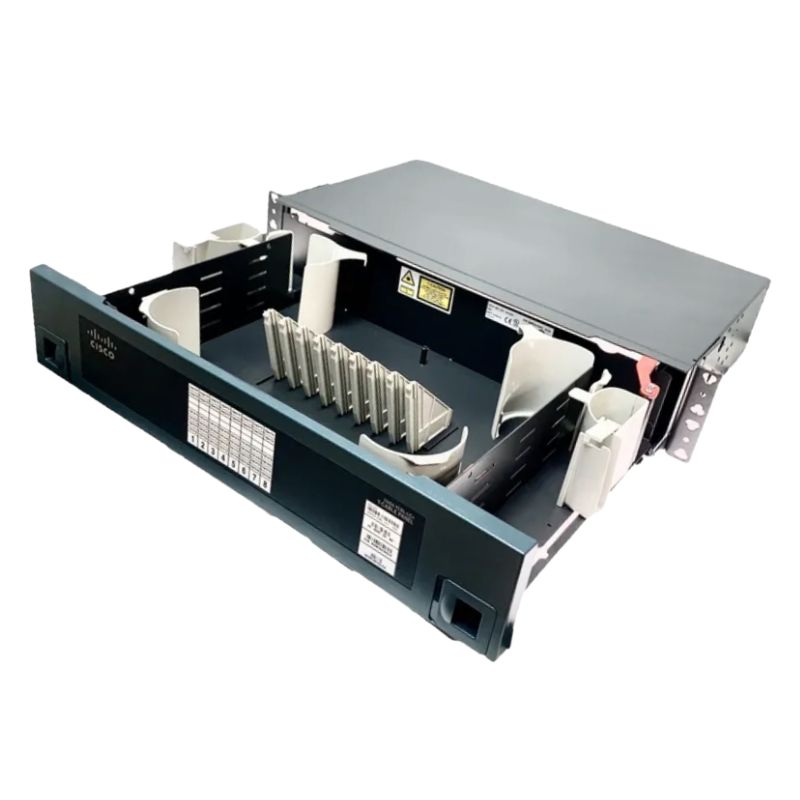

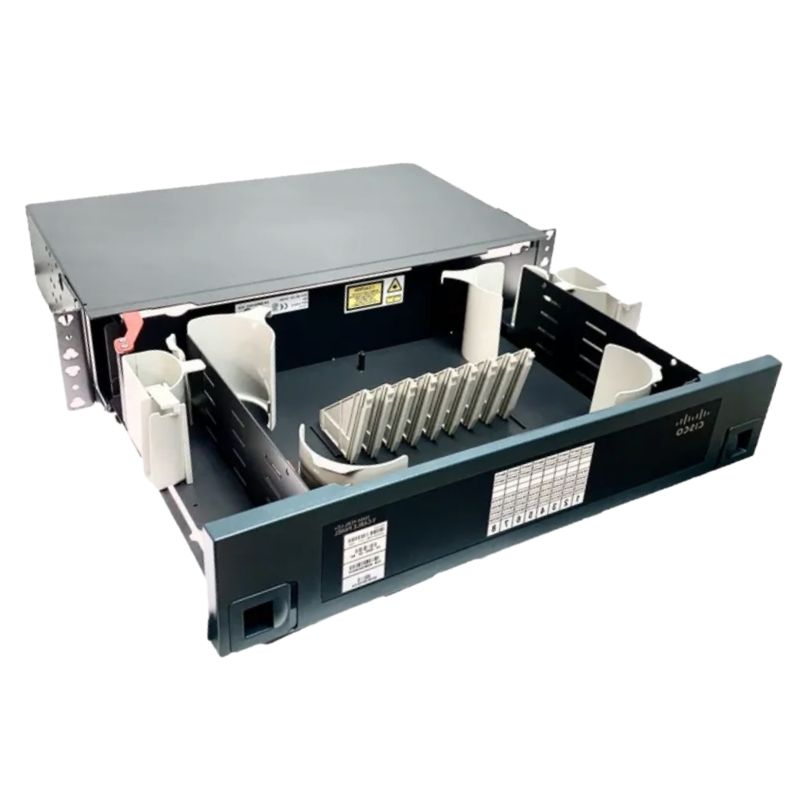

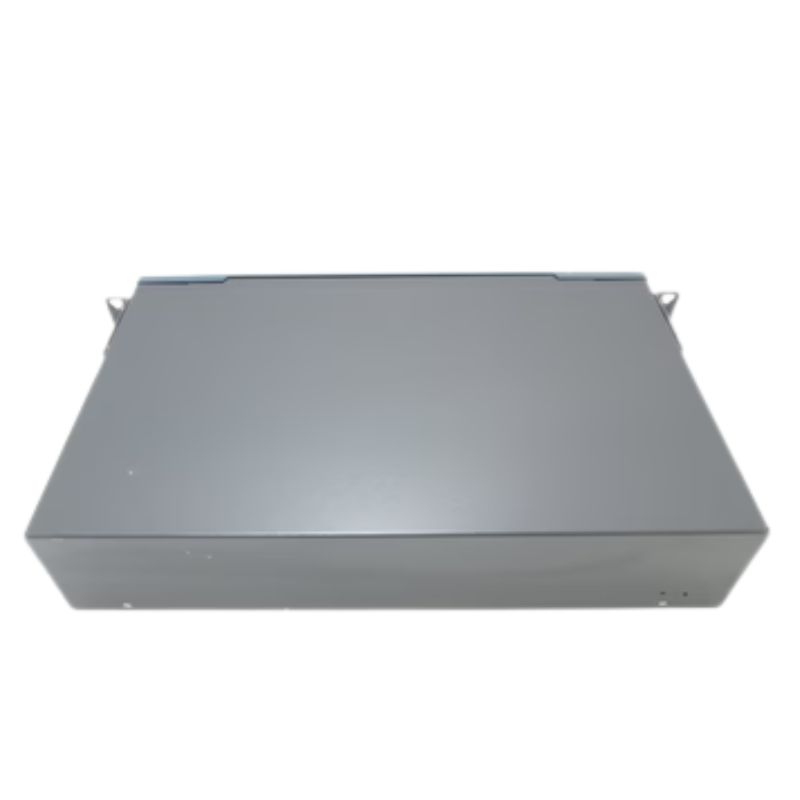

15454-YCBL-LC Cisco 8-Slot Y/Cable Drawer

Product Overview: Cisco 15454-YCBL-LC 2RU Y Cable Drawer

The Cisco 15454-YCBL-LC (15454 2RU Y Cable Drawer) is a specialized rack-mounted fiber management component designed to streamline optical cable organization in dense networking environments. Built for efficiency and durability, it supports structured routing of Y-cables while minimizing fiber stress and damage in mission-critical infrastructures.

General Information of Cisco 15454-YCBL-LC

• Brand: Cisco
• Part Number: 15454-YCBL-LC
• Product Category: Rack chassis / fiber management drawer

Technical Specifications

• Improves fiber cable routing clarity in dense network racks
• Reduces physical stress on optical fiber connections
• Enhances maintenance efficiency and troubleshooting speed
• Supports structured cabling best practices in telecom environments

Capacity and Module

• Supports up to 8 module positions (slots)
• Accommodates multiple Y-cable protection and routing modules
• Enables flexible network expansion and reconfiguration

Form Factor and Rack Integration

• Occupies 2 Rack Units (2RU)
• Compatible with standard 19-inch rack systems
• Optimized for space-efficient fiber management

Connector Compatibility

• LC-type fiber optic connectors
• High-density optical interface support
• Suitable for enterprise and telecom-grade deployments

Advantages of Cisco 15454-YCBL-LC Drawer

• Reduces cable clutter inside network racks
• Improves airflow and equipment accessibility
• Supports long-term fiber reliability

Use Cases and Applications

Telecommunication Networks

• Central office fiber distribution systems
• Carrier-grade optical transport networks

Enterprise Data Centers

• High-density fiber routing in server racks
• Structured cabling management for scalable IT infrastructure

Network Infrastructure Expansion

• Ideal for upgrading legacy fiber management systems
• Supports modular network growth and reconfiguration

Highlighted Specifications

• 2RU rack-mounted fiber management drawer
• 8-slot module capacity for Y-cable organization
• Designed for LC fiber optic connectors
• Optimized for reduced cable stress and improved routing
• Suitable for telecom and enterprise-grade environments

Cisco 15454-YCBL-LC 15454 2RU Y Cable Drawer

The Cisco 15454-YCBL-LC 15454 2RU Y Cable Drawer 8 Modules Positions 15454-Y is a highly specialized optical transport and cable management component engineered for advanced telecommunications infrastructure. Designed specifically for integration within the Cisco ONS 15454 platform ecosystem, this Y cable drawer provides a structured and efficient method of organizing, routing, and protecting fiber and signal cabling within dense carrier-grade environments. Its 2RU form factor and support for eight module positions make it a critical subsystem for network operators seeking optimized space utilization, superior cable routing discipline, and enhanced operational reliability in mission-critical optical transport networks.

As modern telecom environments evolve toward higher bandwidth demands, dense wavelength division multiplexing, and multi-service transport, structured cabling components such as the Cisco 15454-YCBL-LC play an essential role in maintaining physical layer integrity. This category of Y cable drawers is designed to support scalable architecture while reducing cable congestion, improving airflow management within racks, and enabling faster maintenance cycles without disrupting live traffic. The design philosophy behind the Cisco 15454-YCBL-LC emphasizes modular flexibility, mechanical durability, and compatibility with legacy and modern Cisco optical transport modules.

Integration within Optical Networking Frameworks

Within the Cisco Optical Network System 15454 platform, the Y cable drawer functions as an essential physical infrastructure layer that supports interconnection between optical modules, cross-connect systems, and transport interfaces. It ensures that complex fiber pathways remain organized and traceable even in high-density deployments. The Cisco 15454-YCBL-LC 2RU Y Cable Drawer is particularly designed to support modular scalability, allowing network engineers to expand system capacity without compromising cable integrity or introducing excessive signal loss caused by improper cable routing.

Supporting Carrier-Grade Telecommunications

Carrier-grade networks require consistent uptime, low latency, and predictable performance. The Cisco 15454-YCBL-LC supports these requirements by providing structured cable pathways that minimize mechanical stress on fiber strands. By reducing micro-bending and excessive curvature, the cable drawer helps maintain optimal optical signal performance across long-distance transmission links. This ensures that service providers can deliver high-quality voice, video, and data services over their infrastructure without degradation caused by physical layer inefficiencies.

Physical Design and Engineering of Cisco 15454-YCBL-LC

2RU Form Factor Architecture

The 2RU (two rack unit) design of the Cisco 15454-YCBL-LC is optimized for standard 19-inch telecom racks, which are widely deployed in central offices, data centers, and carrier POP sites. The compact vertical footprint allows network operators to maximize rack density while still maintaining accessible cable routing channels. Despite its compact size, the structure is engineered to support significant cable volume, ensuring that eight module positions can be accommodated without congestion or physical interference.

Durable Mechanical Construction

Constructed using high-grade materials suitable for telecom-grade environments, the Cisco 15454-YCBL-LC is designed to withstand continuous operational stress, vibration, and thermal variation. The mechanical framework is reinforced to maintain structural stability even under full cable load conditions. This durability ensures long-term operational reliability, reducing the need for frequent replacement or maintenance interventions in critical network deployments.

Precision Cable Routing Channels

The internal structure of the Y cable drawer includes precisely engineered routing channels that guide fiber and electrical cables along controlled paths. These channels are designed to minimize bending radius violations, which can otherwise lead to signal attenuation or physical fiber damage. The controlled routing system ensures that cables remain organized and accessible, supporting both installation efficiency and troubleshooting effectiveness.

Eight Module Position Design and Functional Capacity

High-Density Module Accommodation

The Cisco 15454-YCBL-LC supports up to eight module positions, enabling high-density integration within a single drawer system. This configuration is particularly valuable in environments where rack space is limited but service demand is high. Each module position is designed to maintain isolation and structured routing, ensuring that signal pathways do not interfere with one another.

Scalability for Network Expansion

One of the key advantages of the eight-position architecture is its scalability. Network operators can incrementally expand their infrastructure by adding modules as demand increases. This modular expansion capability eliminates the need for large-scale infrastructure redesigns, allowing for cost-effective growth and seamless capacity upgrades within existing optical transport frameworks.

Signal Integrity Preservation

Maintaining signal integrity across multiple module connections is essential in optical networking environments. The Cisco 15454-YCBL-LC ensures that each module position is physically isolated and properly aligned to reduce electromagnetic interference and mechanical stress. This contributes to stable signal transmission and reduced packet loss in high-speed data environments.

Fiber Management and Cable Organization Efficiency

Structured Cable Routing System

The structured cable routing system within the Cisco 15454-YCBL-LC ensures that fiber cables are organized in a predictable and traceable manner. This is particularly important in large-scale deployments where hundreds or thousands of fiber strands may be present within a single rack. The structured approach reduces human error during maintenance and improves operational efficiency during troubleshooting.

Reduction of Cable Congestion

Cable congestion is a common challenge in high-density telecom environments. The Y cable drawer mitigates this issue by providing designated pathways for each cable group, reducing overlap and entanglement. This not only improves airflow within the rack system but also reduces the risk of accidental disconnections during service operations.

Improved Accessibility for Maintenance

Maintenance operations in telecom infrastructure often require quick access to specific fiber links or modules. The Cisco 15454-YCBL-LC is designed to provide easy accessibility without disrupting adjacent connections. Technicians can trace and access individual cable paths efficiently, reducing downtime during repairs or upgrades.

Deployment Scenarios and Use Cases

Central Office Installations

In central office environments, the Cisco 15454-YCBL-LC is deployed as part of a larger optical transport system supporting metropolitan and long-haul networks. Its structured cable management capabilities ensure that dense fiber interconnections remain organized even under continuous operational load. This is essential for maintaining service reliability in high-traffic telecommunications hubs.

Data Center Optical Interconnects

Data centers rely heavily on high-speed optical interconnects to support cloud computing, virtualization, and large-scale data processing workloads. The Cisco 15454-YCBL-LC provides the necessary physical infrastructure to manage these interconnects efficiently, ensuring that fiber pathways remain clean, structured, and optimized for performance.

Telecom Carrier Backbone Networks

Carrier backbone networks require robust and scalable infrastructure components capable of supporting long-distance optical transmission. The Y cable drawer contributes to backbone stability by ensuring consistent cable organization and reducing the likelihood of physical layer failures caused by poor routing practices.

Compatibility with Cisco Optical Transport Systems

ONS 15454 Platform Integration

The Cisco 15454-YCBL-LC is fully aligned with the Cisco ONS 15454 optical transport platform, ensuring seamless integration with existing chassis, modules, and network configurations. This compatibility allows network engineers to deploy the cable drawer without requiring extensive system modifications or custom adaptations.

Multi-Module System Support

The cable drawer supports a wide range of optical modules used within the ONS 15454 ecosystem. This includes transport cards, switching modules, and interface components that rely on structured fiber routing. The compatibility ensures unified system behavior across different hardware generations and configurations.

Legacy and Modern Network Bridging

In many network environments, legacy systems coexist with modern optical transport technologies. The Cisco 15454-YCBL-LC plays an important role in bridging these systems by maintaining consistent cable organization standards across mixed-generation deployments. This ensures operational continuity and reduces migration complexity.

Strategic Importance in Modern Optical Networks

Supporting High-Bandwidth Evolution

As network demand continues to increase due to cloud computing, streaming services, and enterprise connectivity requirements, infrastructure components like the Cisco 15454-YCBL-LC become increasingly important. They provide the physical foundation necessary to support high-bandwidth optical transmission systems.

Enhancing Operational Efficiency

Operational efficiency in telecom networks is heavily influenced by physical infrastructure design. By improving cable organization and reducing complexity, the Cisco 15454-YCBL-LC allows network operators to optimize maintenance workflows and reduce operational overhead.

Enabling Future Network Scalability

Future-proofing network infrastructure requires scalable and adaptable physical components. The modular design and structured architecture of the Cisco 15454-YCBL-LC ensure that it can support evolving network requirements without requiring significant redesign or replacement.
