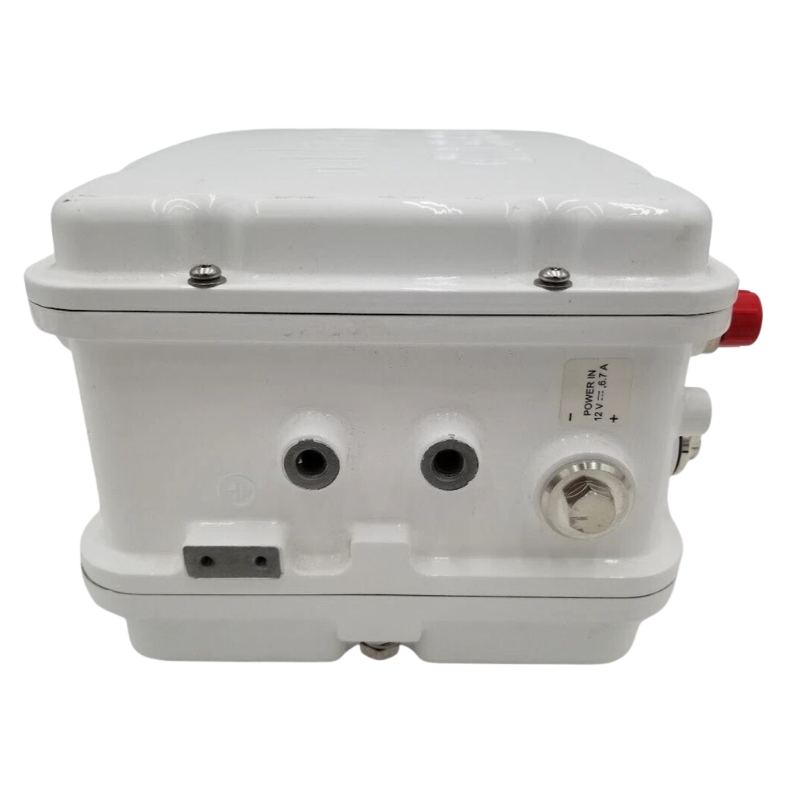

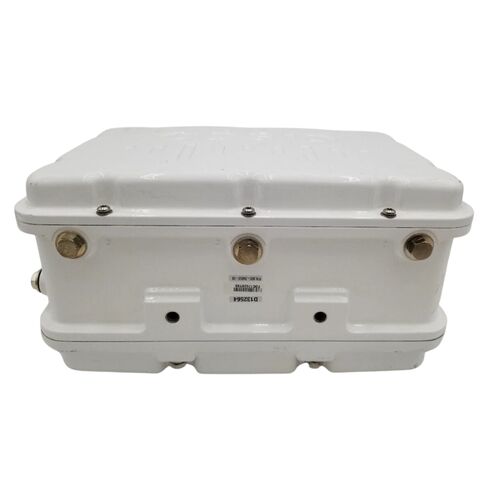

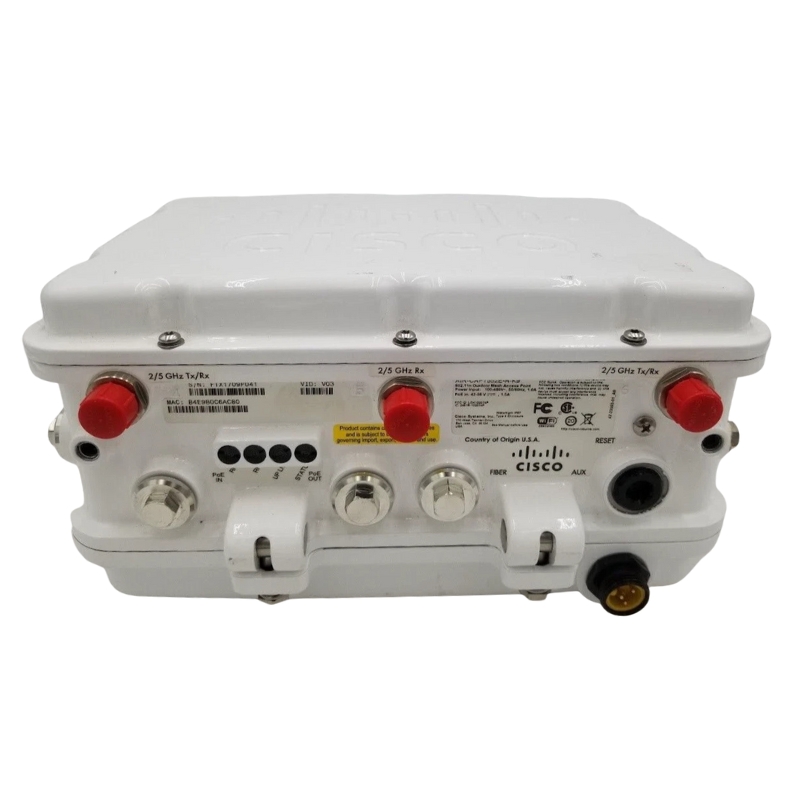

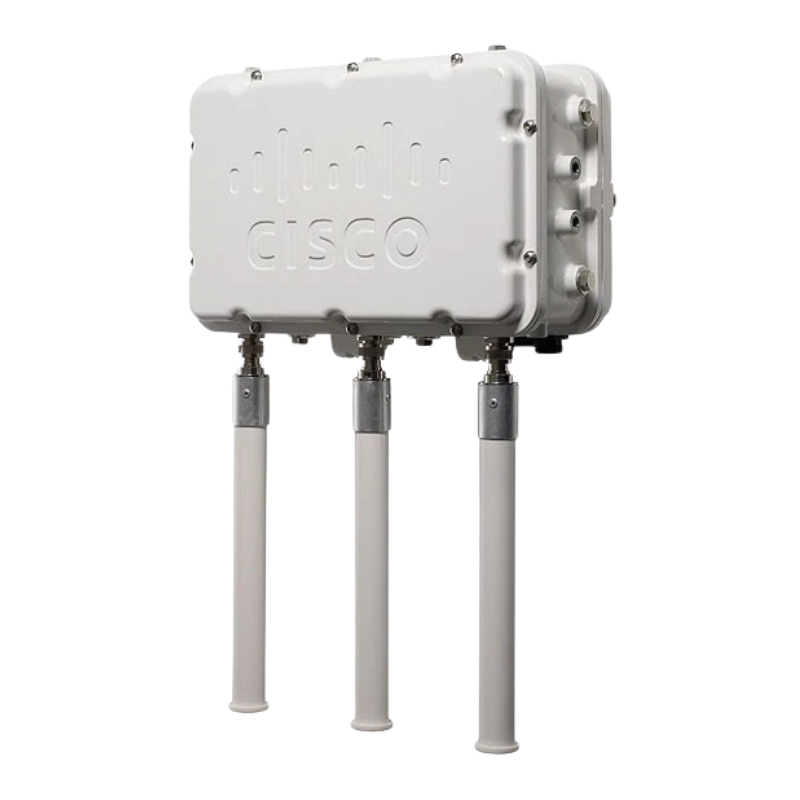

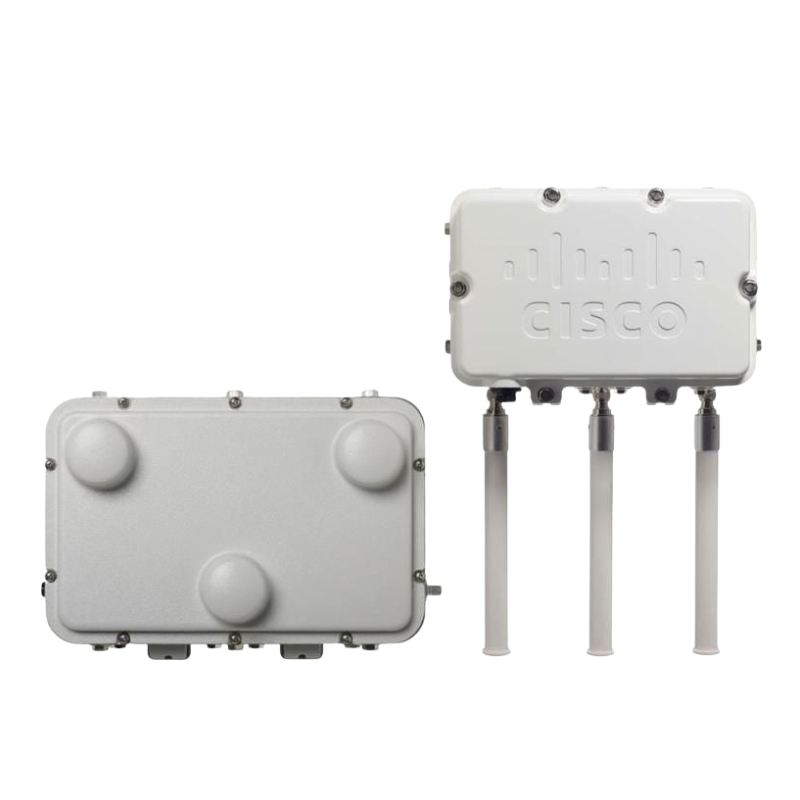

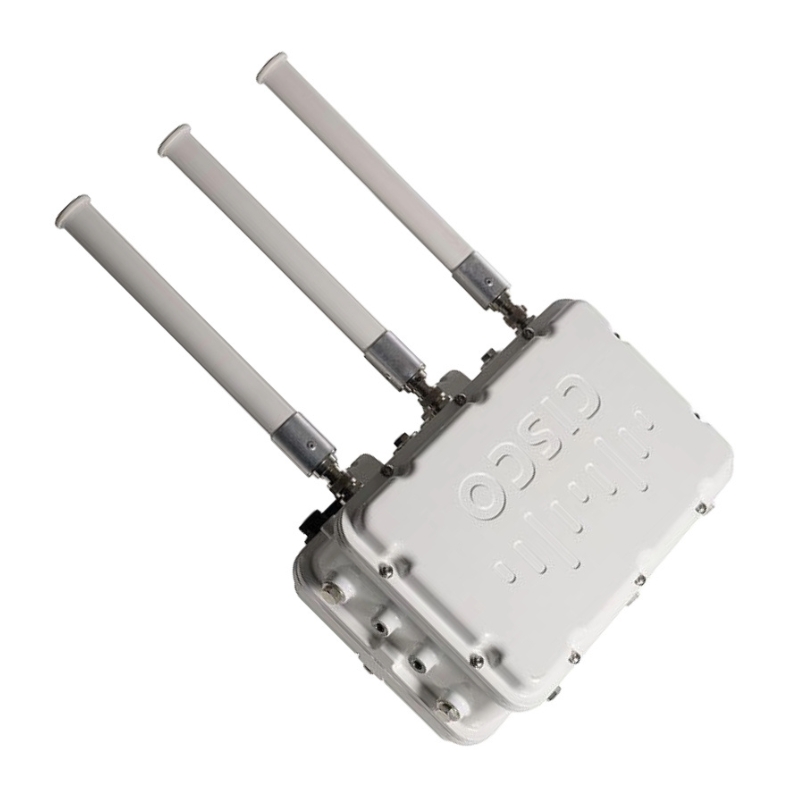

Cisco 802.11N Outdoor Access Point AIR-CAP1552EU-Z-K9

Key Specifications of Cisco AIR-CAP1552EU-Z-K9 Outdoor Access Point

• Manufacturer: Cisco
• Part Number: AIR-CAP1552EU-Z-K9
• Type: Networking Equipment
• Sub-Type: Rugged Outdoor Access Point

Rugged Outdoor Design

• Specifically built for outdoor environments
• Weatherproof and ruggedized for harsh conditions

Wireless Networking Capabilities

• Form Factor: External unit
• Connectivity: Wireless technology
• Data Transfer Rate: Up to 300 Mbps
• Coding Format: CCK
• Supported Protocols: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n
• Networking Protocols: L2TP, IPSec
• Frequency Bands: 2.4 GHz and 5 GHz

Advanced Networking Features

• MAC address filtering and auto-sensing per device
• DFS support for optimal frequency selection
• Support for VPN passthrough and MIMO technology
• Quality of Service (QoS) and CleanAir technology
• ClientLink technology for enhanced wireless performance

Compliance with Industry Standards

• Standards: IEEE 802.11b, 802.11a, 802.11g, 802.11n, 802.11i, 802.1x, and more
• Certifications: Wi-Fi CERTIFIED, IEEE 802.3af

Expansion and Connectivity Options

• Expansion Slots: 1 x SFP (mini-GBIC) slot, total and free
• Interfaces: 1 x 1000Base-T – RJ-45, 3 x Antenna connectors

Miscellaneous Standards Compliance

• Meets FCC Part 15.247, RSS-210, RSS-102, EN 61000-4-4, and more
• NEMA Type 4X and IP67 rated for outdoor protection

Power Options

• Power Supply: Supports Power over Ethernet (PoE)

Wireless Standard: 802.11N

Overview

Cisco AIR-CAP1552EU-Z-K9 is an outdoor access point that supports the 802.11N wireless standard, which is a significant advancement in wireless technology. This standard offers faster speeds, improved range, and enhanced reliability compared to its predecessors. With its advanced features and capabilities, the 802.11N wireless standard has revolutionized the way users connect to the internet and share data wirelessly.

Benefits

1. Enhanced Speed

One of the primary benefits of the 802.11N wireless standard is its faster data transfer speeds. It can achieve speeds of up to 600Mbps, which is significantly higher than the older standards such as 802.11a/b/g. This blazing-fast speed allows users to download and upload files quickly, stream high-definition videos seamlessly, and enjoy lag-free online gaming experiences. Whether you are a business professional in need of fast data transfers or a casual user who enjoys media streaming, the 802.11N standard ensures a smooth and efficient wireless experience.

2. Extended Range

Another crucial advantage of the 802.11N wireless standard is its extended range. This standard utilizes Multiple Input Multiple Output (MIMO) technology, which uses multiple antennas to transmit and receive data simultaneously. MIMO helps eliminate dead spots and improves signal strength, resulting in a more extensive coverage area. With 802.11N, users can connect to their Wi-Fi network from a greater distance without experiencing signal degradation or dropouts. This extended range is particularly beneficial for outdoor environments where access points need to cover large areas such as parks, campuses, or industrial sites.

3. Improved Reliability

The 802.11N wireless standard enhances the reliability of wireless connections by reducing the impact of interference. It achieves this through the use of Orthogonal Frequency Division Multiplexing (OFDM), a modulation technique that divides the wireless signal into multiple smaller sub-signals, allowing them to be transmitted simultaneously. This technique minimizes the effects of interference caused by other devices operating in the same frequency range, such as microwaves or cordless phones. As a result, users can enjoy a stable and uninterrupted connection, even in crowded environments where multiple devices are in use.

Importance

1. Future-Proof Technology

Investing in an access point that supports the 802.11N wireless standard is a wise decision for both individuals and businesses. While newer standards like 802.11ac and 802.11ax have emerged, 802.11N remains widely adopted and supported by a vast range of devices. By choosing an access point with this standard, users ensure compatibility with their existing devices while also future-proofing their network infrastructure to some extent.

2. Compatibility

The 802.11N wireless standard offers backward compatibility, meaning it can communicate with older devices using previous standards such as 802.11a/b/g. This compatibility ensures that users can connect their legacy devices to the network without any issues. Moreover, it facilitates seamless integration of new devices that support the 802.11N standard, allowing users to leverage its benefits while maintaining connectivity with older devices.

Conclusion

In conclusion, the Cisco AIR-CAP1552EU-Z-K9 Outdoor Access Point offers support for the 802.11N wireless standard, which brings significant advantages to users. With its enhanced speed, extended range, and improved reliability, this standard revolutionizes wireless connectivity. Whether you require fast data transfers, wider coverage areas, or stable connections, the 802.11N standard delivers exceptional performance. By investing in an access point that supports this standard, users ensure compatibility with a wide range of devices and future-proof their network infrastructure. Upgrade to the 802.11N wireless standard and experience the next level of wireless connectivity.
