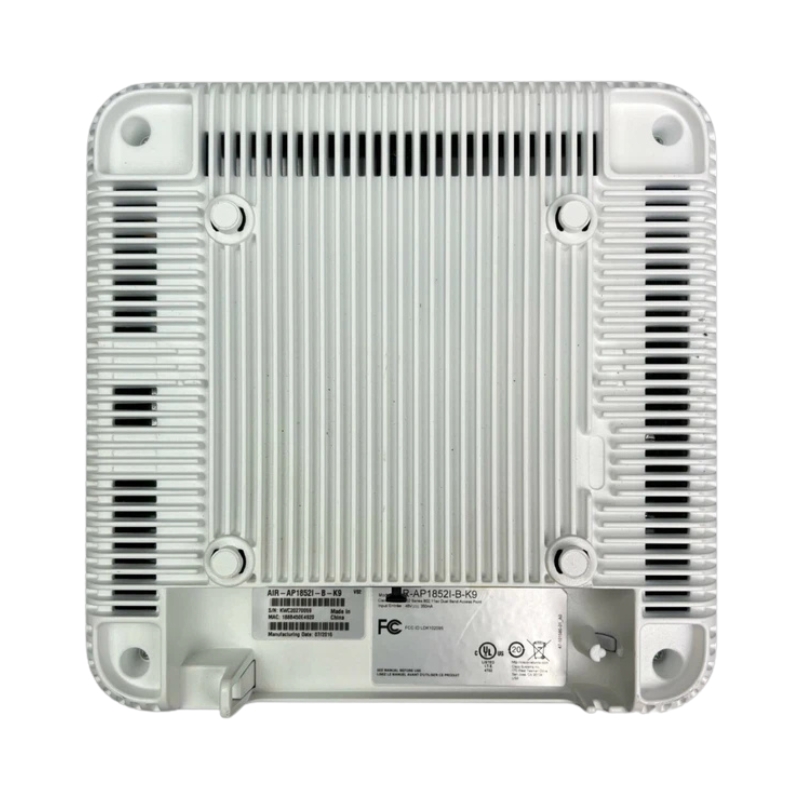

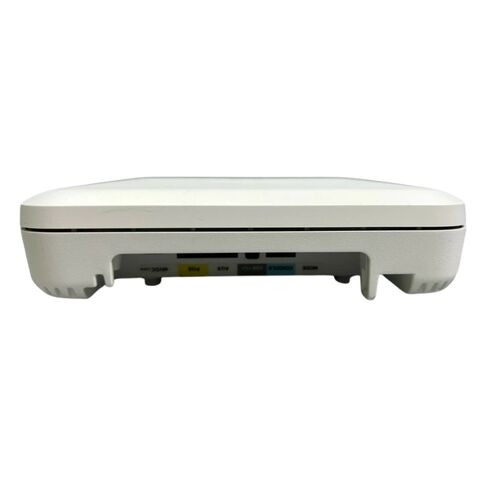

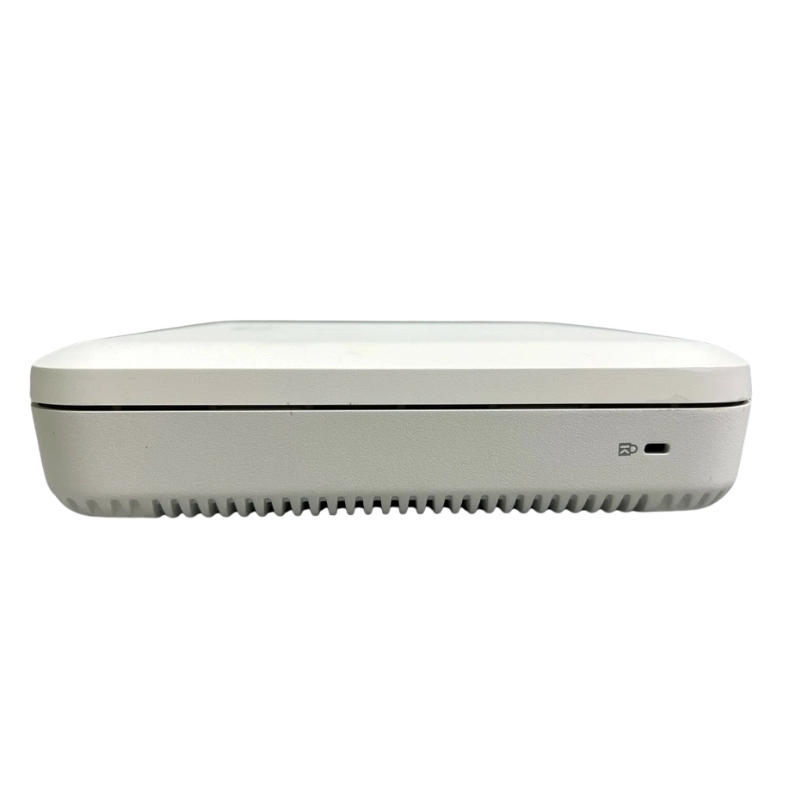

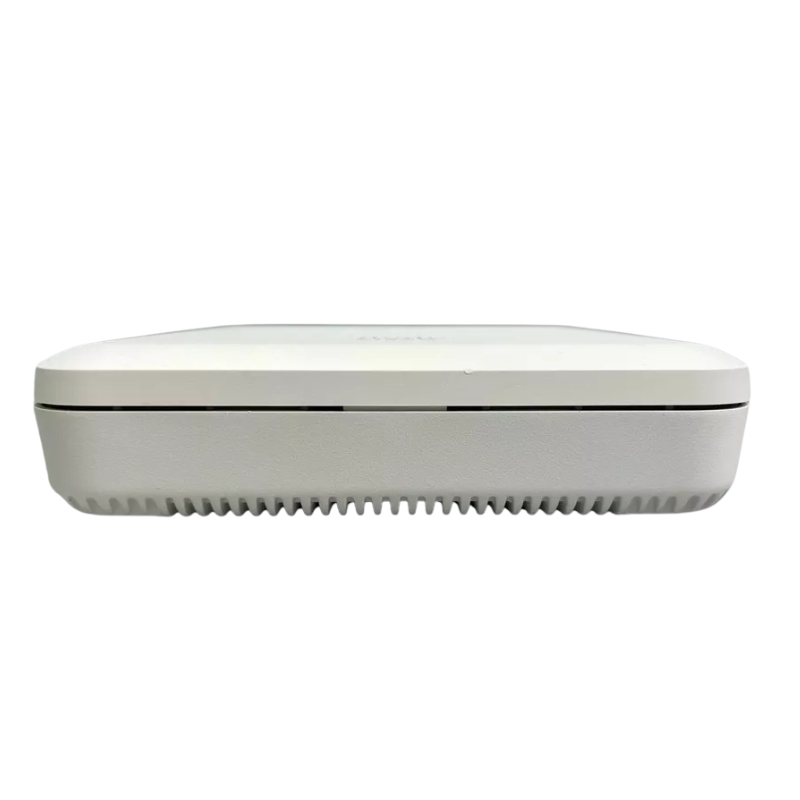

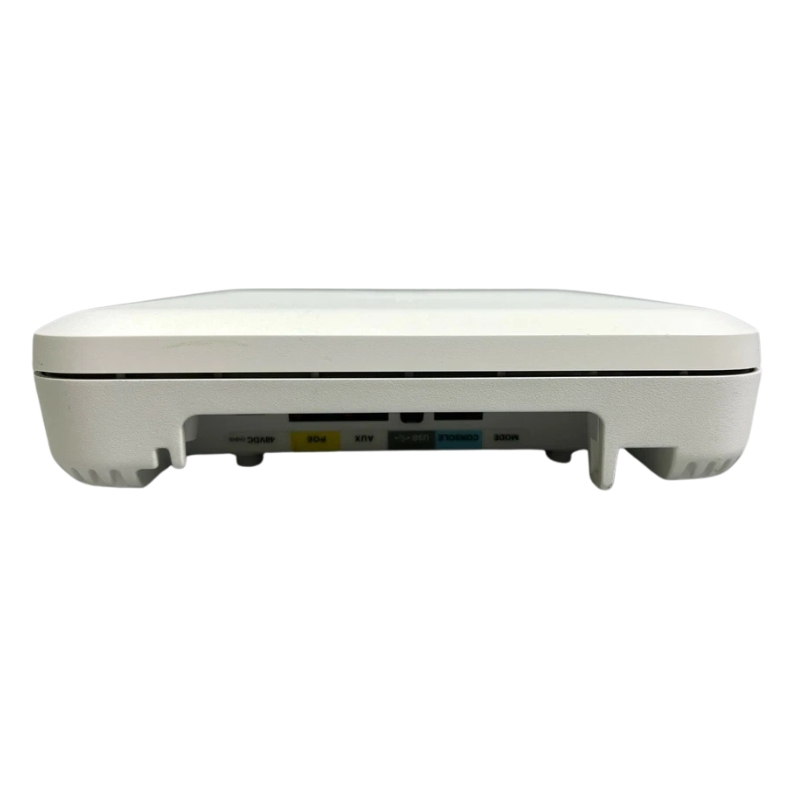

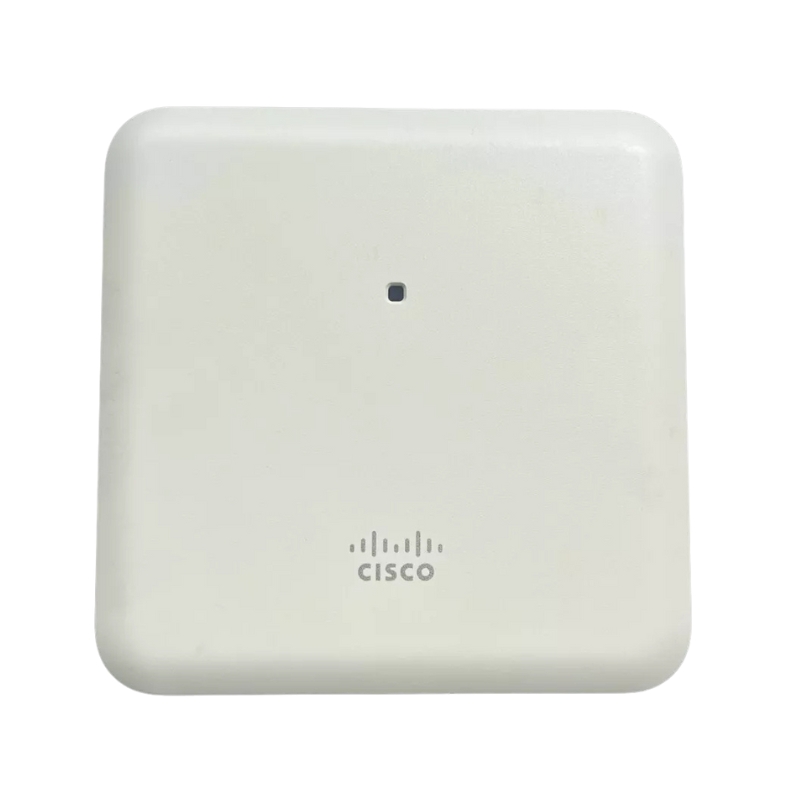

Cisco AIR-AP1852I-B-K9 Wireless Access Point Ethernet 1.7 GBPS 1850 Series

Data Transfer Rate

The Cisco AIR-AP1852I-B-K9 Wireless Access Point offers an impressive data transfer rate of 1.7 Gbps. This high-speed connectivity ensures that users can enjoy seamless and uninterrupted internet access, even in high-demand environments.

Main Specifications of 1.7GBPS Wireless Access Point

• Manufacturer: Cisco
• Part Number: AIR-AP1852I-B-K9
• Series: Aironet 1850
• Product Type: Wireless Access Point

Wireless Access Point Specifications

Form Factor and Connectivity

• Form Factor: External
• Connection Technology: Wireless
• Data Transfer Speed: 1.7 Gbps
• Wireless LAN Standard: IEEE 802.11ac
• Transmission Speed: 1.69 Gbit/s
• MIMO Technology: Supported
• Beamforming Technology: Supported

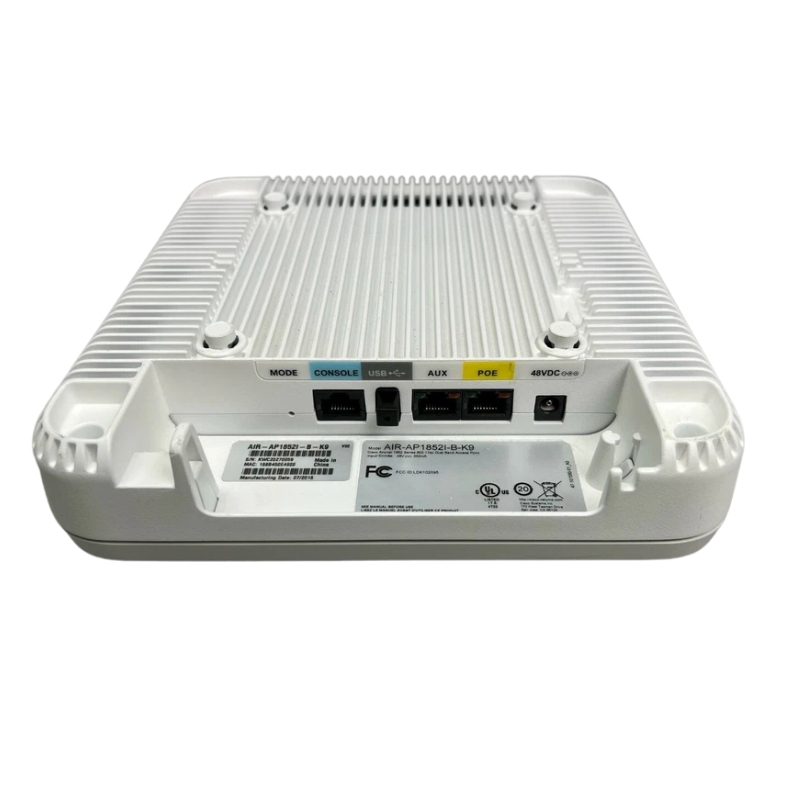

Ports and Interfaces

• Ethernet Ports: Yes
• Fast Ethernet Ports: Yes
• Gigabit Ethernet Ports: Yes
• 10 Gigabit Ethernet Ports: No
• Network (RJ-45) Ports: 2
• PoE (RJ-45) Port: Yes
• VGA: No
• HDMI: No
• USB Ports: Yes
• Powerline: No
• Management Port: Yes

Processor, Memory, and Storage

• RAM: 1 GB
• Flash Storage: 256 MB

Networking Capabilities

Protocols and Frequency

• Data Link Protocols: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac (draft 5.0)
• Frequency Bands: 2.4 GHz, 5 GHz

Status and Antenna Details

• Status Indicators: Present
• Antenna Type: Internal
• Antenna Directivity: Omni-directional
• Antenna Gain: 5 dB

Power Specifications

Power Requirements

• Power Over Ethernet (PoE) Support: PoE+
• Power Source: External power adapter
• Required Voltage: AC 120/230 V (50 – 60 Hz)
• Operational Power Consumption: 20.9 Watts

Environmental Conditions

Temperature and Humidity

• Minimum Operating Temperature: -4 °F
• Maximum Operating Temperature: 122 °F
• Operating Humidity Range: 10 – 90% (non-condensing)

Compliance and Standards

• VCCI
• ICES-003
• EN 300.328
• EN 301.489.1
• FCC Part 15.247
• RSS-210
• RSS-102
• UL 2043
• AES
• UL 60950-1
• IEC 60950-1
• EN 60950-1
• FCC Part 15.107
• FCC Part 15.109
• EN 301.893
• EN 60601-1-2
• ARIB STD-T66
• ARIB STD-T71
• EN50155
• CAN/CSA C22.2 No. 60950-1
• Directive 93/42/EEC
• FCC OET Bulletin 65c
• EN 301.489-17
• TLS

Improved Performance

With a data transfer rate of 1.7 Gbps, this wireless access point enables users to experience lightning-fast internet speeds. Whether you are streaming high-definition videos, conducting video conferences, or playing online games, this access point ensures a smooth and lag-free performance.

The high data transfer rate is particularly beneficial for businesses that rely on bandwidth-intensive applications. It allows multiple users to connect simultaneously without experiencing any slowdowns or disruptions. This means that employees can collaborate efficiently, upload and download large files quickly, and access cloud-based applications without any delay.

Enhanced Productivity

The fast data transfer rate provided by the Cisco AIR-AP1852I-B-K9 Wireless Access Point significantly enhances productivity in various settings. In an office environment, employees can seamlessly access shared resources, databases, and online tools, enabling them to work efficiently.

For educational institutions such as schools and universities, the high-speed connectivity offered by this access point ensures that students and teachers can access online learning resources without any buffering or delays. This allows for a more engaging and interactive learning experience.

Smooth User Experience

With a data transfer rate of 1.7 Gbps, this access point ensures a smooth and uninterrupted user experience. Whether you are browsing the web, streaming media content, or using cloud-based applications, you can expect fast and reliable connectivity.

This is especially important for businesses that rely on customer engagement through their website or online platforms. A slow or unreliable internet connection can lead to frustrated customers and lost sales opportunities. With the high data transfer rate of this access point, businesses can provide a seamless online experience, leading to increased customer satisfaction and loyalty.

Series

The Cisco AIR-AP1852I-B-K9 Wireless Access Point belongs to the 1850 Series, a lineup of advanced wireless access points designed for high-performance networking environments. This series offers several benefits and features that make it an excellent choice for businesses and organizations.

Scalability

The 1850 Series access points are designed to be scalable, allowing organizations to expand their wireless network easily. Whether you need to add more access points to accommodate a growing number of users or expand your network coverage, the 1850 Series can adapt to your needs.

By choosing the 1850 Series, businesses can future-proof their network infrastructure and ensure that it can handle the increasing demands of modern technologies. This scalability also allows organizations to optimize their wireless network performance by strategically placing access points where they are needed most.

Advanced Security

The 1850 Series access points come equipped with advanced security features to protect your network and sensitive data. These access points support various encryption protocols, including WPA2-Enterprise, ensuring that your wireless network remains secure from unauthorized access.

In addition to encryption, the 1850 Series offers features such as rogue access point detection and MAC address filtering, further enhancing network security. With these advanced security measures in place, businesses can have peace of mind knowing that their wireless network is protected against potential threats.

High Performance

The 1850 Series access points are designed to deliver high-performance wireless connectivity. With support for the latest Wi-Fi standards, such as 802.11ac Wave 2, these access points offer faster data transfer speeds and increased network capacity.

By utilizing features such as multi-user MIMO (MU-MIMO) and beamforming, the 1850 Series access points can provide a reliable and efficient wireless connection to multiple users simultaneously. This ensures that all devices connected to the network can enjoy fast and stable internet access, even in high-density environments.

Interface

The Cisco AIR-AP1852I-B-K9 Wireless Access Point features an Ethernet interface, providing a reliable and high-speed connection to your network infrastructure. The Ethernet interface offers several benefits and is crucial for seamless network integration.

Wired Network Connectivity

The Ethernet interface allows the access point to connect directly to your wired network infrastructure. This ensures a stable and reliable connection, as Ethernet cables are less susceptible to interference compared to wireless connections.

By connecting the access point through Ethernet, you can take advantage of the high-speed capabilities of your wired network. This is particularly important in scenarios where a large number of devices need to connect simultaneously or when bandwidth-intensive applications are being used.

Network Flexibility

The Ethernet interface provides flexibility in network deployment. Whether you have a small office with a single access point or a large enterprise with multiple access points, the Ethernet interface allows for easy integration into your existing network infrastructure.

In addition, the Ethernet interface enables Power over Ethernet (PoE) support, allowing you to power the access point directly through the Ethernet cable. This eliminates the need for separate power cables and simplifies installation and setup.

Seamless Integration

By utilizing the Ethernet interface, the Cisco AIR-AP1852I-B-K9 Wireless Access Point seamlessly integrates into your network infrastructure. This allows for centralized management and monitoring of the access point, ensuring efficient network administration.

Furthermore, the Ethernet interface ensures compatibility with various network devices, such as switches, routers, and firewalls. This enables easy integration into your existing network architecture and ensures smooth communication between devices.

Overall, the data transfer rate, series, and interface features of the Cisco AIR-AP1852I-B-K9 Wireless Access Point offer significant benefits and importance for users. The high-speed data transfer rate provides improved performance, enhanced productivity, and a smooth user experience. The 1850 Series offers scalability, advanced security, and high-performance wireless connectivity. The Ethernet interface provides wired network connectivity, network flexibility, and seamless integration into existing network infrastructures. By considering these features, businesses and organizations can make an informed decision when choosing a wireless access point that meets their requirements for speed, reliability, security, and network integration.
