ASR-9006-DC-V2 Cisco ASR-9006-DC Chassis with PEM V2

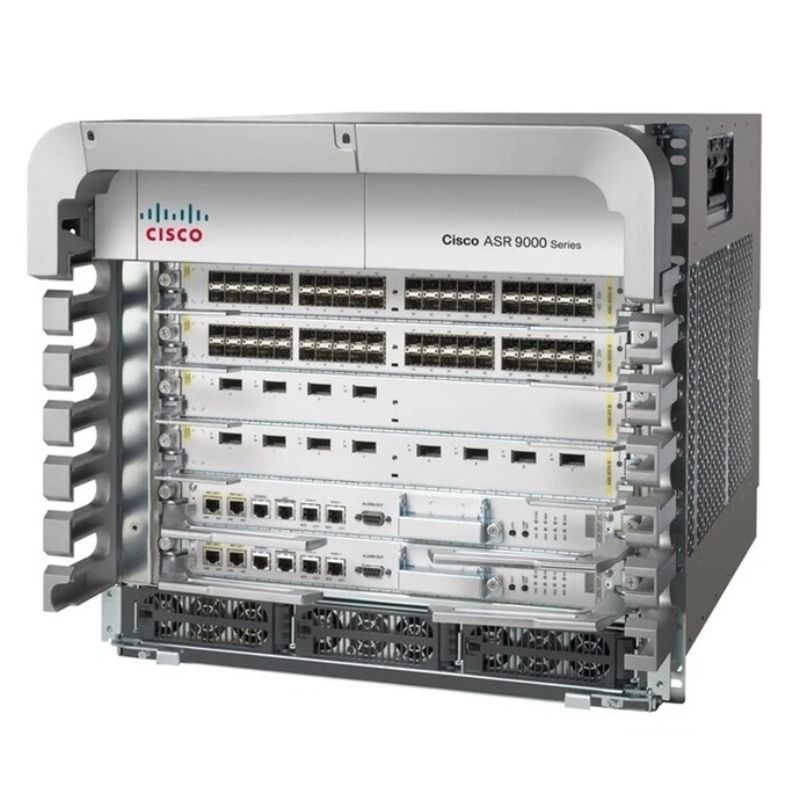

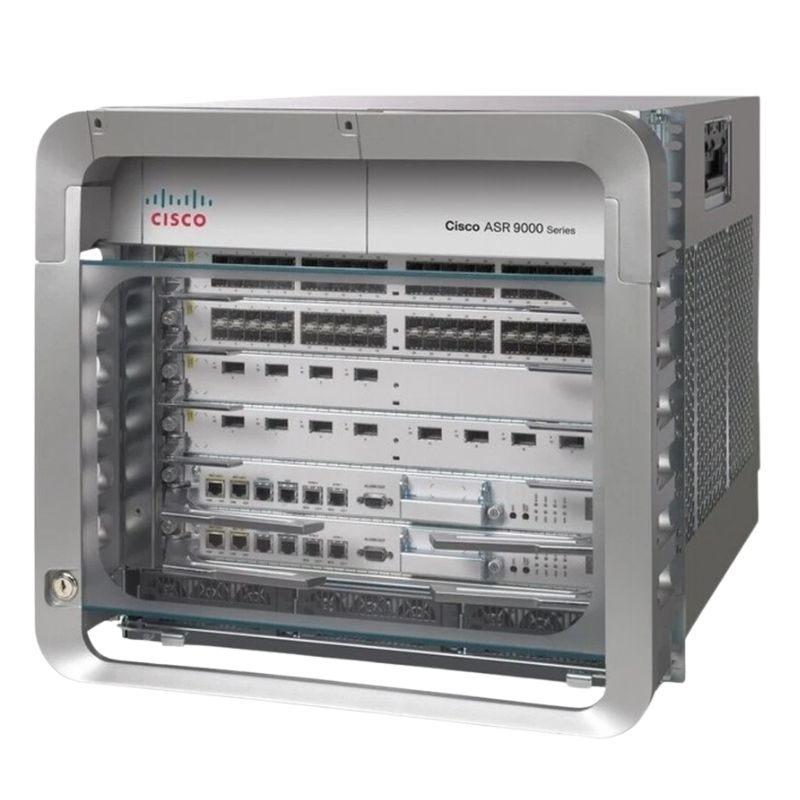

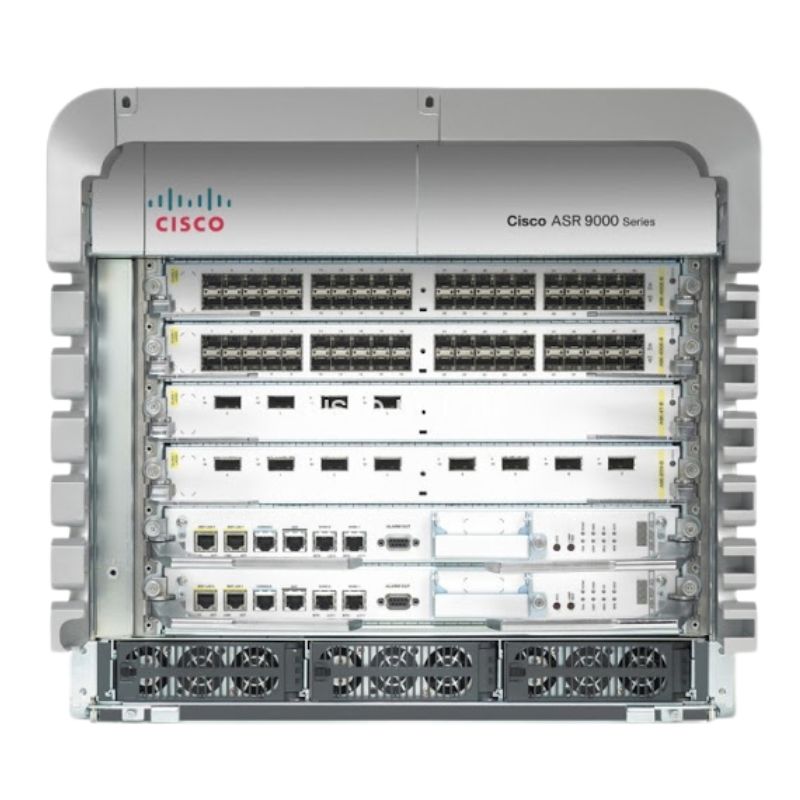

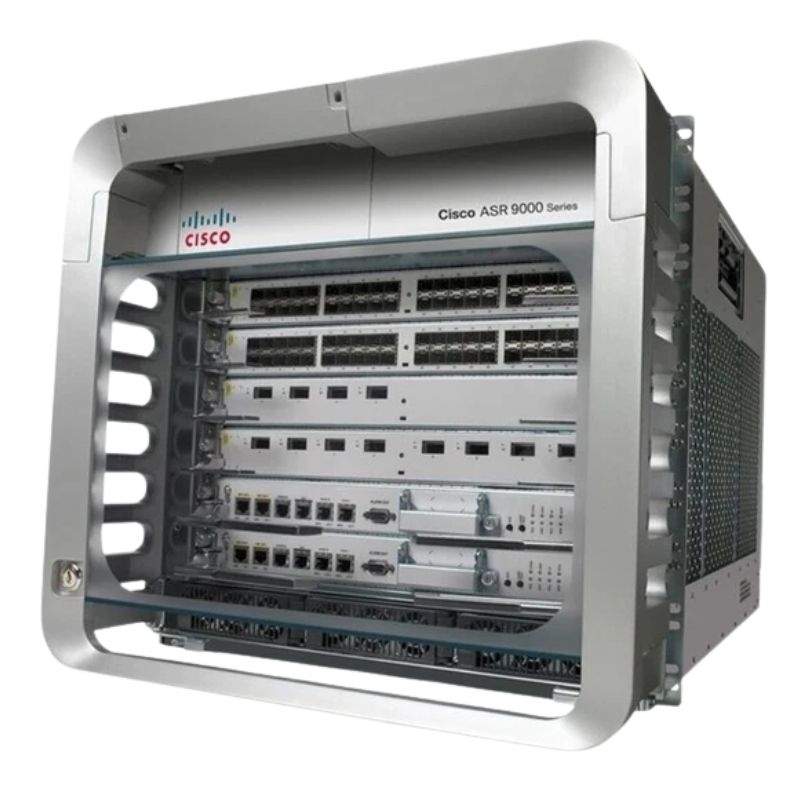

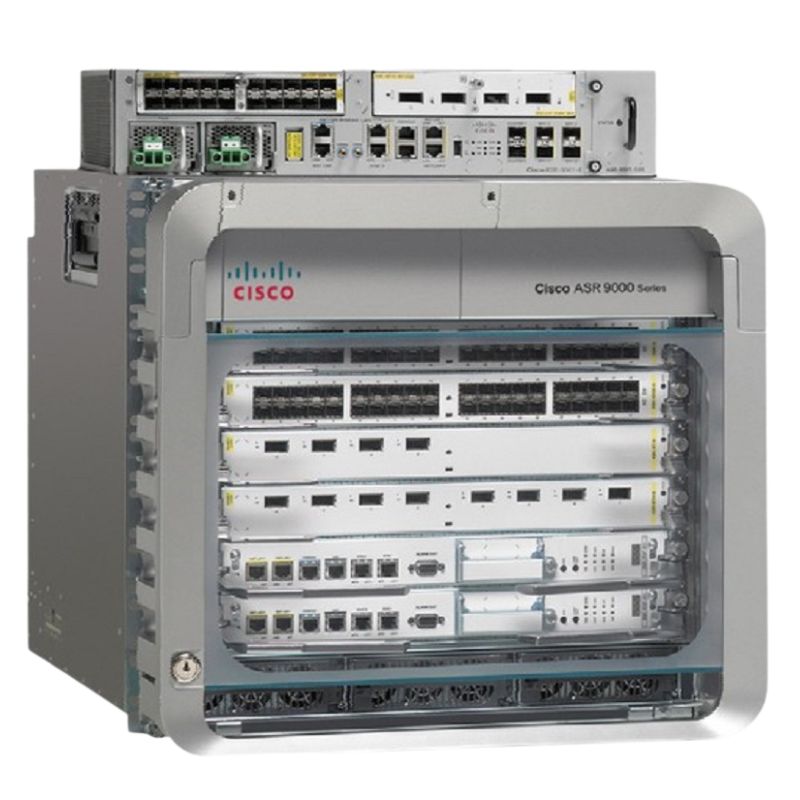

The Cisco ASR-9006-DC-V2 ASR 9006 DC Chassis

The Cisco ASR-9006-DC-V2, also known as the ASR 9006 DC Chassis with PEM Version 2, represents the pinnacle of high-performance routing solutions for modern data centers. Designed to handle massive network traffic with reliability and efficiency, the ASR 9006 DC-V2 chassis is a critical component for enterprises, service providers, and large-scale networking environments. Leveraging Cisco’s robust engineering and advanced technology, this chassis ensures optimal performance, scalability, and energy efficiency for demanding network infrastructures.

Engineered for modularity and flexibility, the ASR-9006-DC-V2 provides a platform that supports multiple line cards, redundant power systems, and advanced routing capabilities. Its PEM Version 2 (Power Entry Module) enhances energy efficiency, reliability, and safety, making it suitable for high-density data center deployments. The chassis supports a variety of routing modules, including high-speed Ethernet and optical line cards, allowing network architects to customize the system based on specific bandwidth and redundancy requirements.

Key Features of Cisco ASR-9006-DC-V2

The ASR-9006-DC-V2 is packed with features designed to meet the needs of modern networks. Its high scalability, modular design, and advanced management capabilities make it a standout solution for large-scale operations. Key features include:

High Scalability and Modularity

The ASR-9006 DC Chassis offers unmatched scalability, supporting multiple line cards and redundant power modules. This modular design allows organizations to scale their network capacity without the need for complete system overhauls. Users can deploy additional line cards as bandwidth demands grow, ensuring that the chassis continues to meet evolving network requirements over time.

Advanced Power Management with PEM Version 2

Equipped with PEM Version 2, the ASR-9006-DC-V2 chassis provides efficient power distribution and management. The power modules are hot-swappable, enabling maintenance and upgrades without network downtime. PEM Version 2 improves energy efficiency by optimizing power usage for active line cards and routing engines. This translates into lower operational costs and reduced environmental impact, which is essential for modern data centers striving for sustainability.

High-Performance Routing Capabilities

The ASR 9006 DC supports high-throughput routing operations, making it suitable for service providers and enterprise data centers handling massive volumes of traffic. It supports Cisco’s advanced IOS-XR software, which offers superior routing, traffic engineering, and network automation features. This ensures uninterrupted performance even under heavy loads and during complex network configurations.

Power and Cooling Efficiency

The chassis includes PEM Version 2 modules, which deliver redundancy, reliability, and energy efficiency. The power modules support hot-swapping and allow for N+1 redundancy configurations, ensuring continuous operation even if one power module fails. Cooling fans are intelligently managed to optimize airflow, reduce energy consumption, and maintain safe operating temperatures across all line cards and components.

This Cisco ASR-9006-DC-V Environments

The Cisco ASR-9006-DC-V2 chassis supports a wide array of compatible modules, line cards, and accessories, making it adaptable for various networking environments. Each module is designed to provide specific functionality, ranging from high-speed Ethernet connectivity to advanced routing and network optimization capabilities.

Routing Engine Modules

The ASR-9006-DC-V2 supports multiple routing engines that manage network traffic, routing protocols, and chassis health. These routing engines are responsible for processing complex routing algorithms and ensuring high availability. Redundant routing engines allow for seamless failover in case of hardware or software failures, enhancing network reliability and uptime.

Power Entry Modules (PEM) and Redundancy

The chassis comes with PEM Version 2 modules, which are crucial for power distribution and energy efficiency. Redundant PEMs allow for continuous operation even during power failures or module maintenance. These modules support hot-swapping, reducing downtime and ensuring that critical network services remain online. The energy-efficient design also reduces operational costs by minimizing power consumption.

Performance and Reliability Features

The Cisco ASR-9006-DC-V2 is engineered to deliver high performance, low latency, and reliable network operations. These features are critical for data centers, service providers, and enterprise environments that demand uninterrupted connectivity.

High Availability

The ASR-9006 DC Chassis incorporates multiple redundancy mechanisms, including dual routing engines, redundant power modules, and failover capabilities for line cards. This ensures continuous operation even in the event of hardware failure. The system also supports stateful switchover (SSO), which allows routing engines to seamlessly transfer control without impacting network traffic.

Advanced IOS-XR Software Integration

The chassis runs Cisco IOS-XR, a carrier-grade network operating system designed for high reliability, scalability, and security. IOS-XR provides advanced features such as MPLS, VPN services, traffic engineering, and automated network management. This software ensures optimal routing performance while enabling network operators to manage and configure the system efficiently.

Data Center Core and Aggregation

As a core routing platform, the ASR-9006-DC-V2 provides high-speed connectivity between data center racks, aggregation layers, and external networks. Its modularity allows it to scale as the number of connected devices and applications grows. The chassis supports multi-terabit traffic forwarding, making it ideal for enterprise and cloud data center environments.

Service Provider Edge

Service providers can use the ASR-9006 DC Chassis as a high-performance edge router, connecting customers to the provider network while ensuring reliability and low latency. The chassis supports advanced traffic management features, such as QoS and MPLS, which are essential for delivering high-quality services to end users. Its redundancy and hot-swappable components minimize downtime and maximize service availability.

High-Performance Enterprise Networks

Large enterprises with demanding networking requirements can leverage the ASR-9006-DC-V2 for their internal backbone and WAN connectivity. Its scalable design allows for incremental upgrades as the organization grows, and its high throughput ensures that critical business applications operate smoothly. Security and QoS features further enhance network reliability and performance for mission-critical operations.

Security Features

Network security is a critical consideration in today’s data centers, and the ASR-9006-DC-V2 incorporates multiple security measures. The chassis supports secure management protocols, encrypted routing updates, and access control mechanisms. These features protect network infrastructure from unauthorized access and ensure that sensitive data remains secure during transit.
